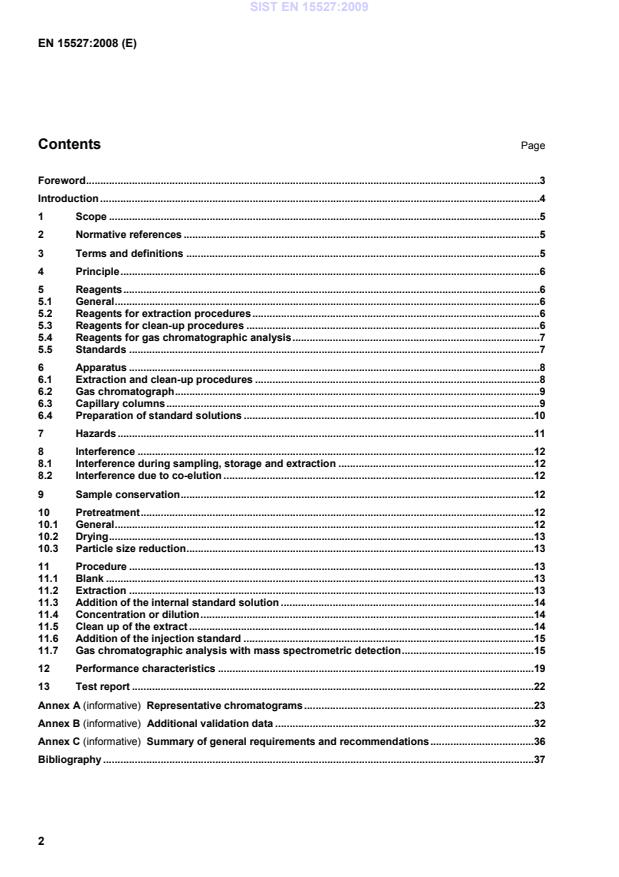

Representative chromatograms.23 Annex B (informative)
Additional validation data.32 Annex C (informative)
Summary of general requirements and recommendations.36 Bibliography.37
Introduction Polynuclear aromatic hydrocarbons (PAH) are ubiquitous because of the fact that they are released in appreciable quantities every year into the environment through the combustion of organic materials such as coal, fuel oils, petrol, wood, refuse and plant materials. Since some of these PAH compounds are carcinogenic or mutagenic, their presence in the environment (air, water, soil, sediment and waste) are regularly monitored and controlled. At present, the determination of PAH is carried out in these matrices in most of the routine laboratories following the preceding steps for sampling, pre-treatment, extraction, clean-up by measurement of specific PAH by means of gas chromatography in combination with mass spectrometric detection(GC-MS) or by HPLC in combination with UV-DAD- or Fluorescence-detection (HPLC-UV-DAD/FLD). However, the different matrices covered in this standard may contain a lot of contaminants. For this reason, the GC-MS method seems to be most appropriate for waste analysis. SIST EN 15527:2009

1 Scope This European Standard specifies the quantitative determination of 16 polynuclear aromatic hydrocarbons (PAH) according to the priority list of the Environmental Protection Agency (EPA, 1982). This European Standard is applicable for wastes such as contaminated soil, sludge and rubble, bitumen or waste containing bitumen. This European Standard describes a gas chromatographic method with mass spectrometric detection (GC-MS). Under the conditions specified in this document, a typical lower limit of application of 0,1 mg/kg for each individual PAH can be achieved.
NOTE 1 This method may be applied to the analysis of other PAH compounds not specified in the scope provided its applicability has been proven by proper in-house validation experiments. NOTE 2 For some materials, e. g. bitumen, the lower limit of application of 0,1 mg/kg cannot be achieved due to interferences. NOTE 3 Under certain circumstances the method may be applicable to PAH concentrations lower than 0,1 mg/kg but it is in the responsibility of the laboratory to provide proper validation data for such low concentrations. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 14346, Characterization of waste — Calculation of dry matter by determination of dry residue or water content EN 15002, Characterization of waste — Preparation of test portions from the laboratory sample ISO 14507, Soil quality — Pretreatment of samples for determination of organic contaminants 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 analyte selected polynuclear aromatic hydrocarbons (PAH) with 2 to 6 condensed aromatic rings (see Table 1) 3.2 calibration standard solution of PAH prepared from a secondary standard and/or stock solutions of native PAH and deuterated PAH used to calibrate the response of the instrument 3.3 extraction standard deuterated PAH or native (unlabeled) PAH of medium volatility that are unlikely to be present in waste added to the sample before extraction and used for control of the extraction efficiency SIST EN 15527:2009

5.3.2.1 Silica gel 60, particle size 63 µm to 200 µm. 5.3.2.2 Preparation of silica gel 60 with a water content of 10 % (w/w). Silica gel 60, heated for at least 3 h at 450 °C, cooled down and stored in a desiccator containing magnesium perchlorate or another suitable drying agent. Before use, heat it once again at least for 5 h at 130 °C in a drying oven. Then allow to cool in a desiccator to ambient temperature. Transfer the silica gel to a flask and add 10 % water (w/w). Shake for 5 min intensively by hand until all lumps have disappeared and then for 2 h in a shaking machine. Store the deactivated silica gel sealed from air and use it for maximum of one week. 5.4 Reagents for gas chromatographic analysis Carrier gas for gas chromatography, e. g. helium of suitable purity. 5.5 Standards 5.5.1 Calibration standards, extraction standards and internal standards Choose internal/extraction standard substances whose physical and chemical properties (such as extraction behaviour, retention time) are similar to those of the compounds to be analysed. Deuterated PAH should be used as internal standards for the GC-MS method for evaluation of results. Verify the stability of the internal/extraction standards regularly. Table 1 contains native and a minimum number of deuterated PAH to be used for calibration of specific analytes. The use of isotope dilution (each native PAH is quantified with respect to his labelled analogue) is recommended. NOTE Certified solutions of PAH and single solid PAH substances with certified purity are commercially available. SIST EN 15527:2009

Table 1 — Native PAH and deuterated PAH PAH reference substances for calibration Internal/extraction standard substances: (deuterated PAH) Naphthalene
(CAS No. 91-20-3) Naphthalene- D8 Acenaphthene
(CAS No.83-32-9) Acenaphthene-D10 Acenaphthylene
(CAS No.208-96-8)
Fluorene
(CAS No.86-73-7)
Anthracene
(CAS No.120-12-7)
Phenanthrene
(CAS No. 85-01-8) Phenanthrene-D10 (extraction standard) Fluoranthene
(CAS No.206-44-0)
Pyrene
(CAS No.129-00-0)
Benzo(a)anthracene
(CAS No.56-55-3) Benzo(a)anthracene-D12 Chrysene
(CAS.No.218-01-9)
Benzo(b)fluoranthene
(CAS No. 205-99-2)
Benzo(k)fluoranthene
(CAS No.207-08-9)
Benzo(a)pyrene
(CAS No.50-32-8) Benzo(a)pyrene-D12 Indeno(1,2,3-cd)pyrene (CAS No.193-39-5)
Dibenzo(ah)anthracene
(CAS No.53-70-3)
Benzo(ghi)perylene
(CAS No.191-24-2)
Perylene-D12
5.5.2 Injection standards A deuterated PAH is added to the final extract before GC-MS injection to check the recovery of the deuterated internal/extraction standards. Suitable injection standards are 1-methylnaphthalene-D10, benzo(e)pyrene-D10 and triphenylene-D12.
6 Apparatus 6.1 Extraction and clean-up procedures Customary laboratory glassware.
All glassware and material that comes into contact with the sample or extract shall be free of PAH and any interfering compounds. 6.1.1 Extraction procedures 6.1.1.1 Glass sample bottles of appropriate size with glass stopper or screw top and polytetrafluorethene seal (PTFE). SIST EN 15527:2009

Key X
Time Y
Intensity R2R1,tt Retention times of each eluted component 1 and 2 in s b2b1,ww Peak widths of each peak at its base in s Figure 1 — Resolution of chromatographic peaks
()b2b1R1R22wwttR+−= (1) where R
is the resolution; R2R1,tt
are the retention times of each eluted component 1 and 2 in s; b2b1,ww
are the peak widths of each peak at its base in s. 6.4 Preparation of standard solutions 6.4.1 Single substance stock solution Solutions of the individual substances of native and deuterated PAH (see Table 1) in an appropriate solvent with a mass concentration of e. g. 10 µg/ml.
Single substance stock solutions can be prepared from pure solid PAH or purchased. These solutions are used for confirmation and identification of single PAH in the chromatogram. The single substance stock solutions and diluted standard solutions are to be stored in a dark place at about 4 °C (or less). They are stable for about 1 year. 6.4.2 Multiple substance stock solution of native PAH Dilute the multiple substance stock solution of the native PAH in an appropriate solvent to a mass concentration of e. g. 10 µg/ml for each individual PAH. SIST EN 15527:2009

EXAMPLE
Transfer for example 500 µl of both multiple stock solutions of native and deuterated PAH into a 5 ml volumetric flask and fill up to the mark with a hexane-like solvent. For example, 1 µl of this calibration solution contains 1 ng of the respective individual native and deuterated substances. NOTE Concentrations of internal standards in sample extracts should ideally be in the same range as those of the analytes (e. g. 1 µg/ml). 6.4.5 Preparation of extraction standard solution Prepare a stock solution of a deuterated or native PAH (e. g. phenanthrene-D10) in an appropriate solvent according to 6.4.1. The concentration of the extraction standard in the final extract should be in the same range as in the calibration solutions. 6.4.6 Preparation of internal standard solution Prepare a multiple substance stock solution of deuterated PAH according to 6.4.3 which is to be added to the sample after extraction. Examples of internal standard compounds are given in Table 1. The amount of the internal standards has to be adjusted in such a way that their concentrations in the final extract correspond to those in the calibration solutions. 6.4.7 Preparation of injection standard Prepare a single substance stock solution according to 6.4.1.
NOTE A suitable injection standard is e. g. deuterated benzo(e)pyrene or other PAH, which does not interfere with the target analyte. 7 Hazards Anyone dealing with waste and sludge analysis has to be aware of the typical risks of that kind of material irrespective of the parameter to be determined. Waste and sludge samples may contain hazardous (e. g. toxic, reactive, flammable, infectious) substances, which can be liable to biological and/or chemical reaction. Consequently it is recommended that these samples should be handled with special care. The gases which may be produced by microbiological or chemical activity are potentially flammable and will pressurise sealed bottles. Bursting bottles are likely to result in hazardous shrapnel, dust and/or aerosol. National regulations should be followed with respect to all hazards associated with this method.
Certain PAH are carcinogenic and must be handled with extreme care. Skin contact with solid materials, PAH standard solutions and sample extracts must be prevented. PAH may co-evaporate with solvents and deposit on the outer walls of stoppered glass bottles and containers. Hence, all containers, which contain solutions of PAH in organic solvents or sample extracts must be handled wearing solvent resistant disposable protecting gloves. PAH contamination of containers may be detected by irradiation with 366 nm U.V. light. Vessels SIST EN 15527:2009

Sufficient chromatographic resolution of the GC peaks for benzo(a)pyrene and benzo(e)pyrene as well as for benzo(b)fluoranthene and benzo(k)fluoranthene allowing accurate quantification of these compounds can be achieved by selecting an appropriate chromatographic column, which meets the performance criteria for separation of these critical pairs. On most capillary columns benzo(j)fluoranthene co-elutes with either benzo(b)fluoranthene or benzo(k)fluoranthene in one peak. Hence, measured concentrations of the target compounds benzo(b)fluoranthene and benzo(k)fluoranthene usually represent the sum of benzo(b)fluoranthene and benzo(j)fluoranthene or benzo(k)fluoranthene and benzo(j)fluoranthene, respectively. This co-elution shall be checked for by analysing mixtures of benzo(j)fluoranthene/benzo(b)fluoranthene and benzo(j)fluoranthene/benzo(k)fluoranthene and indicated when reporting results. The contribution of benzo(j)fluoranthene to the signal assigned to benzo(b)fluoranthene and benzo(k)fluoranthene, respectively, can neither be neglected nor estimated reliably. 9 Sample conservation In principle, samples shall be analysed as soon as possible after sampling. This applies in particular to the examination of microbiologically active solids. Field moist samples can be stored at a temperature of about 4 °C in sample containers in a dark place for a maximum of one week. If the sample cannot be processed within a week, it has to be stored at temperatures below –18 °C. Dried samples must be stored in the dark preferably at a temperature of about 4 °C. 10 Pretreatment 10.1 General The goal of a pre-treatment procedure is to prepare a test sample in which the content of PAH has not significantly changed compared to that in the laboratory sample. Sample pre-treatment is described in EN 15002. Remove parts which are not representative and typical for the material, e. g. all visible metallic components. Take care to avoid losses during pre-treatment of volatile compounds, e. g. naphthalene. SIST EN 15527:2009

For grinding of samples, which have a plastic or paste-like consistency, embrittlement with liquid nitrogen is inevitable. An ultra-centrifugal mill is highly recommended for plastic materials. 11 Procedure 11.1 Blank Perform a blank determination following the paragraphs of the procedure applied to samples (extraction and clean-up). Use the same amount of reagents that are used for the pre-treatment, extraction, clean up and analysis of a sample. Blank values should be well below reporting limits. 11.2 Extraction 11.2.1 Extraction by shaking or sonication Weigh a test portion of 10 g to 25 g to the nearest 0,1 g in a stoppered flask. Add a definite volume of the extraction standard solution (6.4.6). Typically, the concentration of the extraction standard in the final extract should be 1 µg/ml. Add 50 ml of acetone to the test sample. Extract by shaking thoroughly for 30 min on a shaking device or by sonication. Then add 50 ml of petroleum ether (alternatively n-hexane, iso-hexane, cyclohexane) and extract again thoroughly during 30 min. After solids have settled, decant the supernatant. Wash the remaining solids with 50 ml of petroleum ether (alternatively n-hexane, iso-hexane, cyclohexane) and decant again. Collect the extracts in a separatory funnel of 1 litre capacity and remove the acetone by shaking twice with 400 ml of water. Dry the extract over anhydrous sodium sulfate and rinse the sodium sulfate three times with 10 ml of
...
