EN 13862:2001+A1:2009

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Talni odrezovalni stroji - VarnostBodentrennschleifmaschinen - SicherheitMachines à scier les sols - SécuritéFloor cutting-off machines - Safety93.080.10Gradnja cestRoad constructionICS:Ta slovenski standard je istoveten z:EN 13862:2001+A1:2009SIST EN 13862:2002+A1:2009en01-maj-2009SIST EN 13862:2002+A1:2009SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13862:2001+A1
March 2009 ICS 93.080.10 Supersedes EN 13862:2001English Version
Floor cutting-off machines - Safety
Machines à scier les sols - Sécurité
Bodentrennschleifmaschinen - Sicherheit This European Standard was approved by CEN on 25 July 2001 and includes Amendment 1 approved by CEN on 15 February 2009.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2009 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13862:2001+A1:2009: ESIST EN 13862:2002+A1:2009

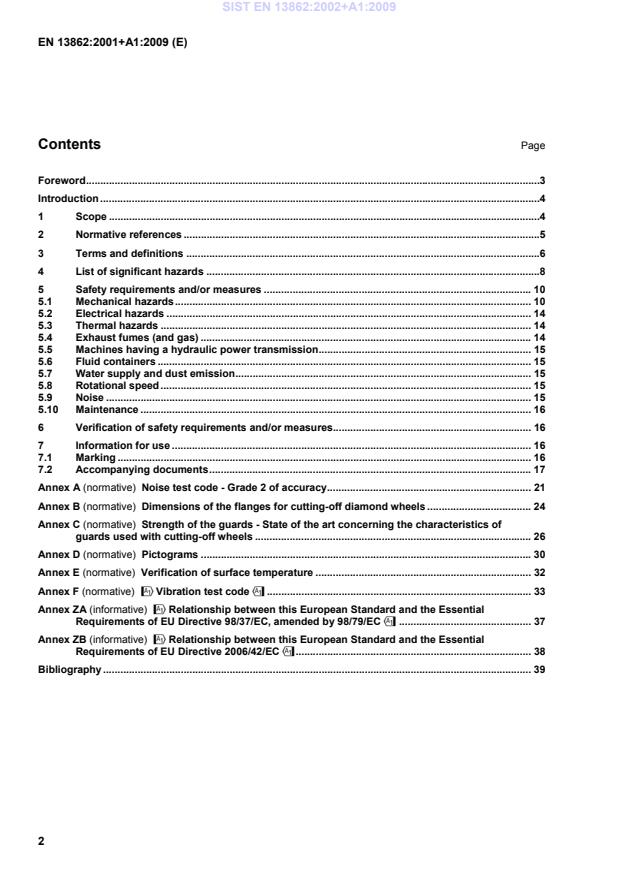

Noise test code - Grade 2 of accuracy. 21Annex B (normative)
Dimensions of the flanges for cutting-off diamond wheels . 24Annex C (normative)
Strength of the guards - State of the art concerning the characteristics of guards used with cutting-off wheels . 26Annex D (normative)
Pictograms . 30Annex E (normative)
Verification of surface temperature . 32Annex F (normative)
!Vibration test code" . 33Annex ZA (informative)
!Relationship between this European Standard and the Essential Requirements of EU Directive 98/37/EC, amended by 98/79/EC" . 37Annex ZB (informative)
!Relationship between this European Standard and the Essential Requirements of EU Directive 2006/42/EC" . 38Bibliography . 39 SIST EN 13862:2002+A1:2009

Key 1 Frame 2 Electric motor, or internal combustion engine which generates the power for driving the tool(s) and which generates the power for the feeding movement to the machine (for self propelled machines) 3 Tool(s) (illustrated as a cutting-off wheel) 4 Control devices for the functions and feed of the machine 5 Guards limiting the hazard of contact in dangerous areas 6 Water supply system for cooling the diamond cutting-off wheel(s) 7 Sawing guiding device of the machine (when necessary) NOTE Figure 1 is an example of one of the many machines available for floor sawing, grooving and milling. It illustrates the main components in its construction. Figure 1 — Typical example of a pedestrian controlled floor sawing machine SIST EN 13862:2002+A1:2009

ISO 525:1999 and !ISO 6104:2005" NOTE Other types of abrasive wheels may also be mounted either alone or as several units together according to the design and usage parameters of the machine. 3.7 tool flange mounting device including several parts which securely hold and position the rotating tool/tools on the drive spindle 3.8 tool guard guard which encloses the non-working part of the rotating tool 3.9 nominal mass the mass of the machine equipped with all its dismountable parts, but without the tool(s) mounted, the attached tank(s) being empty 3.10 maximum operating mass the mass of the machine equipped with all its dismountable parts, ready for use, with the tool(s) mounted and the attached tank(s) being full 4 List of significant hazards This clause contains all significant hazards and hazardous situations, as far as they are dealt with in this European Standard, identified by risk assessment significant for this type of machinery and which require action to eliminate or reduce risk. SIST EN 13862:2002+A1:2009

Hazards Concerned subclauses 4.1 Hazards due to mass and velocity (kinetic energy of elements in controlled and uncontrolled motion) of the tool 5.1.3 4.2 Hazards due to inadequacy of mechanical strength of the tool 5.1.3 4.3 Crushing hazard 5.1.2, 5.1.3, 5.1.4, 5.1.5, 5.1.6, 5.1.7, 5.1.8, 5.1.9, 7.2 4.4 Shearing hazard 5.1.2, 5.1.3, 5.1.5, 5.1.6, 5.1.8, 5.1.9 4.5 Cutting and severing hazard 5.1.1, 5.1.2, 5.1.3, 5.1.5, 5.1.6, 5.1.8, 5.1.9 4.6 Entanglement hazard 5.1.2, 5.1.3, 5.1.6, 5.1.8, 5.1.9 4.7 Drawing-in or trapping hazard 5.1.2, 5.1.3, 5.1.6, 5.1.8, 5.1.9 4.8 Impact hazard 5.1.2, 5.1.3, 5.1.5, 5.1.6, 5.1.7, 5.1.8, 5.1.9, 7.2 4.9 Friction or abrasion hazard 5.1.2.3, 7.2 4.10 Fluid ejection hazard 5.5 4.11 Hazards caused by ejection of parts(material/work pieces) 5.1.2, 5.1.3, 5.1.6, 5.1.7, 5.8 4.12 Excessive speed of pedestrian controlled machinery 5.1.8.3 4.13 Hazards caused by loss of stability (machinery and machine parts) 5.1.4, 7.2 4.14 Slip, trip and fall hazard in relationship with machinery 5.6, 7.2 4.15 Hazards caused by electrical contact direct or indirect 5.2, 7.2 4.16 Hazards resulting in burns and/or scalds, by possible contact of persons, by flames or explosions and also by radiation of heat sources 5.3, 7.2 4.17 Hazards generated by noise
5.9, 7.2 4.18 Hazards resulting from contact with or inhalation of harmful fluids, gases, mists, fumes and dusts 5.4, 5.6, 5.7, 7.2 4.19 Hazards caused by fire and/or explosion 7.2 4.20 Hazards from the engine and batteries 5.4, 5.6, 7.2 4.21 Unauthorized start-up 5.1.8.3 4.22 Unhealthy postures or excessive efforts 5.1.5, 5.1.8, 7.2 4.23 Hazards caused by inadequate local lighting 7.2 4.24 Hazards caused by human errors 7.1, 7.2 4.25 Hazard combinations 5, 7.1, 7.2
(continued)
Hazards Concerned subclauses 4.26 Hazard caused by failure of energy supply (of
energy and/or control circuits) 5.1.9, 5.2, 7.2 4.27 Hazards caused by failure/disorder of control system 5.1.8.1, 5.1.9, 5.2, 7.2 4.28 Inadequate design of manual controls and their mode of operation 5.1.7 4.29 Hazards caused by errors of fitting 5.1.6, 7.1, 7.2 4.30 Hazards caused by temporarily missing and/or incorrectly positioned safety related measures/means such as:
4.30.1 Guards of all kinds 7.2 4.30.2 Safety related protection devices of all kinds 7.2 4.30.3 Starting and stopping devices 5.1.8.2, 7.2 4.30.4 Safety signs and tags 7.1, 7.2 4.30.5 Information and warning devices of all kinds 7.1, 7.2 4.30.6 Insufficient instructions for the driver/operator 7.2 4.30.7 Essential equipment and accessories for safe adjustment and/or maintenance 7.2 !4.31 Hazards generated by vibration Annex F"
5 Safety requirements and/or measures Machinery shall comply with the safety requirements and/or measures of this clause and in addition with !EN ISO 12100-1:2003 and EN ISO 12100-2:2003" for hazards relevant but not significant which are not dealt with in this standard. For the application of EN 294:1992, !EN 953", EN 982:1996 and !EN 60204-1:2006" the manufacturer shall carry out an adequate risk assessment of their requirements, where it is necessary to make choices. NOTE This specific risk assessment should be part of the general risk assessment relating to the hazards not covered by this standard. Covering each significant individual hazard is sufficient for covering combinations of hazards. 5.1 Mechanical hazards 5.1.1 General As components and parts have to be manually handled, all the accessible parts, the tool excepted, shall not present sharp edges or angles/corners which could generate hazards when setting, using, handling, and maintaining the machine. Burrs resulting from, for example, manufacturing, casting or welding shall be eliminated and sharp edges shall be smoothed. SIST EN 13862:2002+A1:2009

EN ISO 12100-2:2003." Fixed guards shall be held in position either by welding or by mounting them in such a way that they can be opened or removed only with the aid of tools or keys. Guards shall comply with the provisions of EN 294:1992 on safety distances. !deleted text" 5.1.2.2 Connection between the cutting head and the frame When the vertical movement of the cutting head with respect to the frame is power driven, safety distances according to EN 294:1992 shall be provided. 5.1.2.3 Protection of the tool 5.1.2.3.1 General Machines shall be equipped with a guard covering at least the upper half of the tool(s) and its fixing device(s) (see figure C.1). Specifications concerning the strength of the guards are given in annex C. The guard(s) shall be so designed to facilitate safe and easy access for tool replacement. When the tool guard is removable to allow access to the tool fixing device, the machine shall be so designed that the rotation of the tool(s) may not be possible without the guard. The following exception is possible. The presence of a device for stopping the tool(s) is not necessary when the absence or the opening of the guard creates a projection of water, which prevents the intended use of the machine. The guard shall remain fixed to the machine also in the open position and a warning sign (see figure D.3) shall be provided at the guard. 5.1.2.3.2 Open parts in the guard When the guard is designed with a section which can be opened at the front in order to visually position the rotating tool in relation with the cutting line, or to allow it to perform a cut close to a vertical surface, then:  the open section shall stay connected to the main guard;  the retaining device of the rotating tool(s) shall remain covered. 5.1.2.3.3 Complementary requirements to prevent contact with the tool(s) out of the cutting area Contact with the tool(s) in rotation during the displacement of the machine outside the cutting area shall be prevented as follows:  either all parts of the tool(s) (in particular the lower part) shall be guarded when the machine is set for displacement or;  if the tool(s) is(are) not completely guarded, the machine shall be designed to allow displacement without the tool rotating, for example by means of a clutch and the guard shall carry a warning sign stating the following: SIST EN 13862:2002+A1:2009

EN 12100-2:2003". 5.1.6 Fixing of the tool(s) 5.1.6.1 Device for mounting the rotating tool(s) The device for mounting the rotating tool(s) shall be so designed that loosening and untightening shall be possible only by an intentional manual action (e.g. retaining the rotating tool(s) on the drive spindle by a threaded nut, the thread direction of which prevents unscrewing of the nut during the cutting operation). 5.1.6.2 Flanges 5.1.6.2.1 Mounting of a cutting-off wheel The flanges intended to mount a rotating tool shall comply with the requirements of annex B. SIST EN 13862:2002+A1:2009

!EN 60204-1:2006", in particular clauses 4, 5, 6, 14, 15 and 16. In addition to !4.4.3" of
!EN 60204-1:2006" these machines shall work as intended in an ambient temperature range of 0 °C to 40 °C. The enclosure of the electric controls shall provide a degree of protection of at least IP 54 as defined in EN 60529:1991. 5.2.2 Water pump Where water is supplied by an electrical pump for flushing the tool(s) the pump shall fulfil the relevant requirements of !EN 60335-1:2002 and EN 60335-2-41:2003". 5.3 Thermal hazards 5.3.1 Handles and other surfaces which require continuous contact shall have a surface temperature not exceeding 43 °C. 5.3.2 Controls and other parts of the machine which are contacted occasionally shall meet the limits as given in !4.2 of EN ISO 13732-1:2008" according to the chosen material for a contact period up to 5 s, lowest curve. 5.3.3 Hot areas which may be contacted unintentionally shall meet the levels of
!EN ISO 13732-1:2008" for a contact period below 1 s. These areas shall be either located at a distance greater than 120 mm from the gripping areas, or they shall be protected by shields. These shields shall be designed to reduce the heat transfer from the surface to the body of the operator. This could be achieved by a structured surface, ribs or special coating. 5.3.4 Test method The test method to verify the surface temperature of the machine is described in annex E. The machine parts whose temperatures exceed the permissible limits of !EN ISO 13732-1:2008" for contact not exceeding 1 s and whose surface is greater than 10 cm2, shall not be accessible to the test cone (see annex E). 5.4 Exhaust fumes (and gas) Internal combustion engine exhausts shall not be directed towards the operator when in the operating position as specified by the manufacturer. This requirement is considered fulfilled when the angle of the axis of the exhaust outlet and the longitudinal axis of the machine, measured from the position of the operator, is equal to or greater than 90°. SIST EN 13862:2002+A1:2009
...
