EN 16261-2:2013
(Main)Pyrotechnic articles - Fireworks, Category 4 - Part 2: Requirements
Pyrotechnic articles - Fireworks, Category 4 - Part 2: Requirements
This European Standard specifies requirements for the construction, performance and protective packaging of Category 4 fireworks, as listed in EN 16261-1.
This European Standard does not apply for articles containing pyrotechnic compositions that include any of the following substances:
- arsenic or arsenic compounds;
- polychlorobenzenes;
- lead or lead compounds;
- mercury compounds;
- white phosphorus;
- picrates or picric acid.
This European Standard does not apply for articles containing military explosives or commercial blasting agents except for black powder or flash composition.
In addition, any European regulation regarding forbidden substances should be taken into account.
Pyrotechnische Gegenstände - Feuerwerkskörper, Kategorie 4 - Teil 2: Anforderungen
Diese Europäische Norm legt die Anforderungen an die Konstruktion, Funktion und Schutzverpackung von Feuerwerkskörpern der Kategorie 4 fest, wie in EN 16261-1 aufgeführt.
Diese Europäische Norm gilt nicht für Gegenstände, die pyrotechnische Sätze aus einem der folgenden Stoffe enthalten:
- Arsen oder Arsenverbindungen;
- Polychlorbenzole;
- Blei oder Bleiverbindungen;
- Quecksilberverbindungen;
- Weißen Phosphor;
- Pikrate oder Pikrinsäure.
Diese Europäische Norm gilt nicht für Gegenstände, die militärische Sprengstoffe oder handelsübliche Sprengstoffe mit Ausnahme von Schwarzpulver oder Blitzsätzen enthalten.
Außerdem sollten alle europäischen Verordnungen hinsichtlich verbotener Stoffe berücksichtigt werden.
Articles pyrotechniques - Artifices de divertissement, Catégorie 4 - Partie 2: Exigences
La présente Norme européenne définit les exigences de construction, de performances des artifices de divertissement de catégorie 4, et de leurs emballages de protection tels que répertoriés dans l'EN 16261-1.
La présente Norme européenne ne s'applique pas aux articles contenant une composition pyrotechnique comprenant l'une des substances suivantes :
- arsenic ou composés de l'arsenic ;
- polychlorobenzènes ;
- plomb ou composés du plomb ;
- composés du mercure ;
- phosphore blanc ;
- picrates ou acide picrique.
La présente Norme européenne ne s'applique pas aux articles contenant des explosifs militaires ou des substances explosives commerciales à l'exception de la poudre noire ou de la composition flash.
De plus, il convient de prendre en compte toute réglementation européenne concernant des substances interdites.
Pirotehnični izdelki - Ognjemet, kategorija 4 - 2. del: Zahteve
Ta evropski standard navaja zahteve za izdelavo, zmogljivost in zaščitno pakiranje ognjemetov razreda 4, ki so navedeni v standardu EN 16261-1. Ta standard ne velja za izdelke, ki vsebujejo pirotehnične sestavine s katero koli od naslednjih snovi: – arzen ali spojine iz arzena; – poliklorobenzeni; – svinec ali spojine iz svinca; – spojine iz živega srebra; – beli fosfor; – pikrati ali pikrinska kislina. Ta evropski standard se ne uporablja za izdelke, ki vsebujejo vojaški eksploziv ali tržne eksplozivne sestavine, razen črnega smodnika ali bliskovnega praška. Poleg tega je treba upoštevati katerikoli evropski predpis, ki obravnava prepovedane snovi.
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Pyrotechnische Gegenstände - Feuerwerkskörper, Kategorie 4 - Teil 2: AnfonderungenArticles pyrotechniques - Artifices de divertissement, Catégorie 4 - Partie 2: ExigencesPyrotechnic articles - Fireworks, Category 4 - Part 2: Requirements71.100.30Eksplozivi. PirotehnikaExplosives. PyrotechnicsICS:Ta slovenski standard je istoveten z:EN 16261-2:2013SIST EN 16261-2:2013en,fr,de01-julij-2013SIST EN 16261-2:2013SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16261-2
January 2013 ICS 71.100.30 English Version
Pyrotechnic articles - Fireworks, Category 4 - Part 2: Requirements
Articles pyrotechniques - Artifices de divertissement, Catégorie 4 - Partie 2: Exigences
Pyrotechnische Gegenstände - Feuerwerkskörper, Kategorie 4 - Teil 2: Anforderungen This European Standard was approved by CEN on 24 November 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2013 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 16261-2:2013: ESIST EN 16261-2:2013

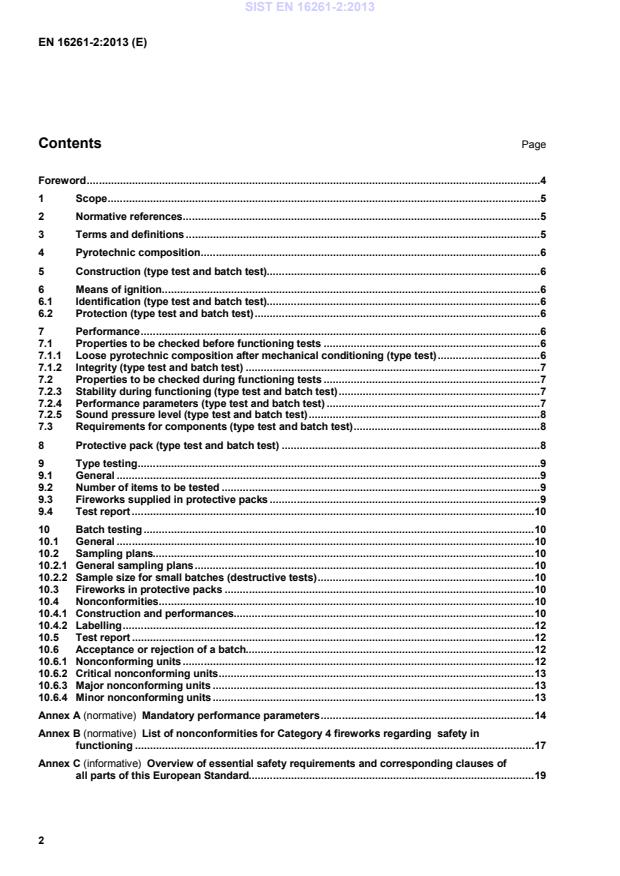

Page Foreword . 4 1 Scope . 5 2 Normative references . 5 3 Terms and definitions . 5 4 Pyrotechnic composition . 6 5 Construction (type test and batch test) . 6 6 Means of ignition . 6 6.1 Identification (type test and batch test) . 6 6.2 Protection (type test and batch test) . 6 7 Performance . 6 7.1 Properties to be checked before functioning tests . 6 7.1.1 Loose pyrotechnic composition after mechanical conditioning (type test) . 6 7.1.2 Integrity (type test and batch test) . 7 7.2 Properties to be checked during functioning tests . 7 7.2.3 Stability during functioning (type test and batch test) . 7 7.2.4
Performance parameters (type test and batch test) . 7 7.2.5 Sound pressure level (type test and batch test) . 8 7.3 Requirements for components (type test and batch test) . 8 8 Protective pack (type test and batch test) . 8 9 Type testing . 9 9.1 General . 9 9.2 Number of items to be tested . 9 9.3 Fireworks supplied in protective packs . 9 9.4 Test report . 10 10 Batch testing . 10 10.1 General . 10 10.2 Sampling plans. 10 10.2.1 General sampling plans . 10 10.2.2 Sample size for small batches (destructive tests) . 10 10.3 Fireworks in protective packs . 10 10.4 Nonconformities . 10 10.4.1 Construction and performances. 10 10.4.2 Labelling . 12 10.5 Test report . 12 10.6 Acceptance or rejection of a batch. 12 10.6.1 Nonconforming units . 12 10.6.2 Critical nonconforming units . 13 10.6.3 Major nonconforming units . 13 10.6.4 Minor nonconforming units . 13 Annex A (normative)
Mandatory performance parameters . 14 Annex B (normative)
List of nonconformities for Category 4 fireworks regarding
safety in functioning . 17 Annex C (informative)
Overview of essential safety requirements and corresponding clauses of all parts of this European Standard. 19 SIST EN 16261-2:2013
Relationship between this European Standard and the Essential Requirements of EU Directive 2007/23/EC on the placing on the market of pyrotechnic articles . 20
4 Pyrotechnic composition No limits are given for the net explosive content (NEC)1) of Category 4 articles in this standard. 5 Construction (type test and batch test) When tested in accordance with 6.1 and 6.2 of EN 16261-3:2012, the article dimensions and gross mass shall be in accordance with the manufacturer’s declaration (including tolerances). The orientation of mortars shall be verified by inspection according to 6.3 of EN 16261-3:2012, during type test. When the orientation of mortars in combinations is not visible, the maximum firing angle shall be displayed on the label and verified by visual inspection according to 6.7 of EN 16261-3:2012. 6 Means of ignition 6.1 Identification (type test and batch test) The means of ignition shall be clearly visible or shall be indicated by labelling or instructions where applicable. Conformity to this requirement shall be verified by visual examination according to 6.7 of EN 16261-3:2012. 6.2 Protection (type test and batch test) Where appropriate, the means of ignition shall be protected to avoid accidental ignition of the fireworks. Conformity to this requirement shall be verified by visual examination according to 6.7 of EN 16261-3:2012. 7 Performance 7.1 Properties to be checked before functioning tests 7.1.1 Loose pyrotechnic composition after mechanical conditioning (type test) When tested in accordance with 6.8 of EN 16261-3:2012, the loose pyrotechnic composition found outside the article after mechanical conditioning shall be weighed. The mass of the whole loose material shall comply with manufacturer's specifications (if any) and the mass of loose pyrotechnic composition shall not exceed
3 % of the NEC and not more than 1 g for each item tested. If the pyrotechnic composition cannot be separated from the loose material, the same limits shall apply to the whole loose material.
1) The NEC has an influence (directly or indirectly) on the safety distances. For Category 4 fireworks, it is agreed that no fixed minimum safety distances are defined, contrary to Category 1, 2 and 3 fireworks. The safe use of Category 4 fireworks is one of the major responsibilities of the person with specialist knowledge who should determine the minimum safety dis
...
