EN 15882-3:2009

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Razširjena uporaba rezultatov preskusov požarne odpornosti servisnih inštalacij - 3. del: Tesnitve prebojevErweiterter Anwendungsbereich der Ergebnisse aus Feuerwiderstandsprüfungen für Installationen - Teil 3: AbschottungenExtended applications of results from fire resistance tests for service installations - Part 3: Penetration seals13.220.50Požarna odpornost gradbenih materialov in elementovFire-resistance of building materials and elementsICS:Ta slovenski standard je istoveten z:EN 15882-3:2009SIST EN 15882-3:2009en,de01-julij-2009SIST EN 15882-3:2009SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 15882-3March 2009ICS 13.220.50 English VersionExtended applications of results from fire resistance tests forservice installations - Part 3: Penetration sealsApplication étendue des résultats des essais de résistanceau feu - Partie 3 : CalfeutrementsErweiterter Anwendungsbereich der Ergebnisse ausFeuerwiderstandsprüfungen - Teil 3 : AbschottungenThis European Standard was approved by CEN on 11 January 2009.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre:
Avenue Marnix 17,
B-1000 Brussels© 2009 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 15882-3:2009: ESIST EN 15882-3:2009

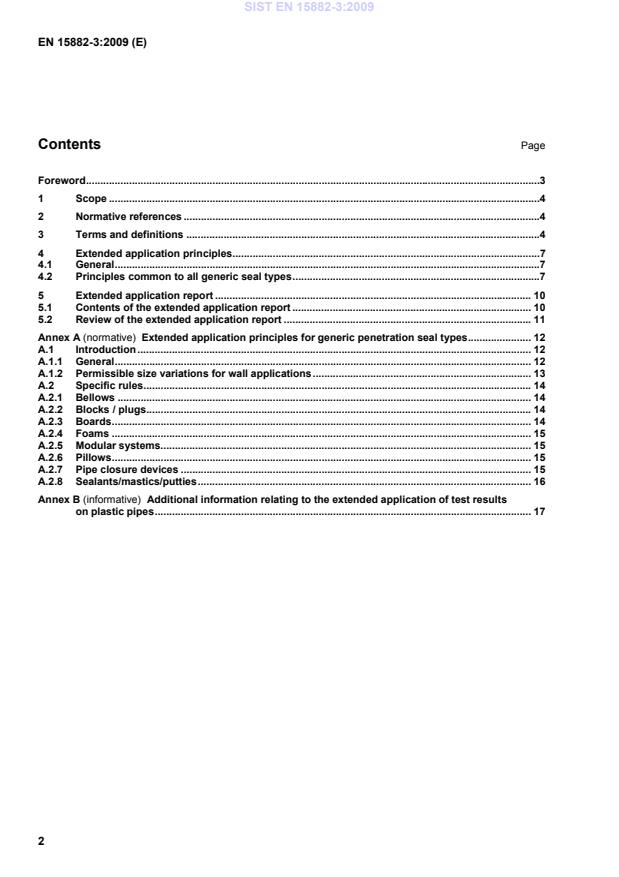

Extended application principles for generic penetration seal types . 12 A.1 Introduction . 12 A.1.1 General . 12 A.1.2 Permissible size variations for wall applications . 13 A.2 Specific rules . 14 A.2.1 Bellows . 14 A.2.2 Blocks / plugs . 14 A.2.3 Boards . 14 A.2.4 Foams . 15 A.2.5 Modular systems. 15 A.2.6 Pillows . 15 A.2.7 Pipe closure devices . 15 A.2.8 Sealants/mastics/putties . 16 Annex B (informative)
Additional information relating to the extended application of test results on plastic pipes . 17
It gives no guidance as to the magnitude, nor how this magnitude is evaluated.
Composite pipes comprising both metallic and plastics components are not covered by this European Standard. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 1363-1:1999, Fire resistance tests — Part 1: General requirements EN 1363-2:1999, Fire resistance tests — Part 2: Alternative and additional procedures EN 1366-3: 2004, Fire resistance tests for service installations — Part 3: Penetration seals EN 13501-1:2007, Fire classification of construction products and building elements —
Part 1: Classification using test data from reaction to fire tests EN 13501-2:2007, Fire classification of construction products and building elements —
Part 2: Classification using data from fire resistance tests, excluding ventilation services EN ISO 13943:2000, Fire safety — Vocabulary (ISO 13943:2000) 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN 1363-1:1999, EN 1363-2:1999, EN 1366-3:2004, EN 13501-1:2007, EN 13501-2:2007, EN ISO 13943:2000 and the following apply. 3.1
bellows seal flexible seal, often based on a coated fabric sleeve, to allow movement of services 3.2
block product available in a variety of shapes and sizes. Generally cuboid for rectangular penetrations 3.3
bus bar low impedance conductor to which several electric circuits can be connected
NOTE See IEC 60439-1. SIST EN 15882-3:2009

cable bundles Several cables running in the same direction and bound closely together by mechanical means 3.6 collar see pipe closure devices (3.14) 3.7
conduit metal or plastic casing designed to accomodate cables.
Normally a conduit is circular or oval in section.
See also trunking (3.26) 3.8
foam seal seal made from a material that cures at room temperature, increasing its volume upon application 3.9
metal pipes type 1 metallic pipes and conduits of reaction to fire class A1 according to EN 13501-1 with a melting or decomposition point greater than 1000°C (e.g. steel, cast iron, copper and copper alloys, nickel alloys), either insulated or non-insulated. Included in this group are the above pipes with a coating provided the overall reaction to fire class is minimum A2 3.10 metal pipes type 2 metallic pipes and conduits of reaction to fire class A1 or A2 according to EN 13501-1 with a melting or decomposition point equal to or less than 1000°C (e.g. lead, aluminium and aluminium alloys), either insulated or non-insulated 3.11 modular system system comprising a steel frame into which elastomeric blocks are installed, compressed around the service. 3.12
mortar blend of gypsum or cement based powder, fillers, water and chemical modifiers, with or without reinforcement 3.13 pillow (also referred to as bag or cushion) deformable, pillow-like bag, filled with reactive or non-reactive material, for the temporary or permanent closing of penetrations or openings. Examples of filling materials are glass and mineral wool, vermiculite, sand, organic and inorganic foams with or without intumescent or ceramising additives 3.14 pipe closure devices pre-fabricated, heat activated device that, under fire exposure, acts to crush plastic pipes or service ducts that pass through vertical or horizontal separating elements and/or fill the hollow space with an intumescent foam
NOTE Three types are considered here: collars, wraps and sleeves: Collars incorporate an outer casing which acts as a restraint for an intumescent material, enabling the collar to be either surface fixed to the separating element or incorporated within it;
interrupted insulation pipe insulation that does not pass through the seal 3.19 sustained insulation pipe insulation that passes through the seal 3.20 putty material similar to some sealants/mastics, capable of being formed and directly installed by hand, but remaining in a plastic condition 3.21 seal depth shortest distance between the exposed and unexposed surfaces of the seal
3.22 seal thickness shortest distance between the surface of the service and the surrounding aperture
3.23 sealant/mastic, flexible single or multi-component material, comprising organic and/or inorganic fillers pre-dispersed in a binder (i.e. acrylic, polysulphide, silicone, etc) that cures or dries after application to an elastic or plasto-elastic material
3.24 service support construction mechanical support provided in the form of clips, ties, hangers, ladder racks or trays, or any device designed to carry the load of the penetrating services 3.25 sleeves see pipe closure devices (3.14) 3.26 trunking metal or plastic casing with a removable lid designed to accommodate cables.
Normally square or rectangular in section (also see conduit 3.7) SIST EN 15882-3:2009
...
