EN 13501-2:2007
(Main)Fire classification of construction products and building elements - Part 2: Classification using data from fire resistance tests, excluding ventilation services
Fire classification of construction products and building elements - Part 2: Classification using data from fire resistance tests, excluding ventilation services
This European Standard specifies the procedure for classification of construction products and building elements using data from fire resistance and smoke leakage tests which are within the direct field of application of the relevant test method. Classification on the basis of extended application is outside the scope of this European Standard. For extended application, however, the same classes are used as specified in this European Standard.
This European Standard deals with:
a) loadbearing elements without a fire separating function:
walls;
floors;
roofs;
beams;
columns;
balconies;
walkways;
stairs.
b) loadbearing elements with a fire separating function, with or without glazing, services and fixtures:
walls;
floors;
roofs;
raised floors.
c) products and systems for protecting elements or parts of the works
ceilings with no independent fire resistance;
fire protective coatings, claddings and screens;
d) non-loadbearing elements or parts of works, with or without glazing, services and fixtures:
partitions;
facades (curtain walls) and external walls;
ceilings with independent fire resistance;
fire doors and shutters and their closing devices;
smoke control doors;
conveyor systems and their closures;
penetration seals;
linear joint seals;
service ducts and shafts;
chimneys.
e) wall and ceiling coverings with fire protection ability.
f) lift landing doors which are tested according to EN 81-58 are excluded from this European Standard. Lift landing doors which are tested according to EN 1634-1 are classified in accordance with 7.5.5.
Relevant test methods which have been prepared for these elements are listed in Clause 7.
Klassifizierung von Bauprodukten und Bauarten zu ihrem Brandverhalten - Teil 2: Klassifizierung mit den Ergebnissen aus den Feuerwiderstandsprüfungen, mit Ausnahme von Lüftungsanlagen
Diese Europäische Norm spezifiziert das Verfahren zur Klassifizierung von Bauprodukten und Bauteilen anhand der Ergebnisse von Feuerwiderstandsprüfungen und Prüfungen zur Rauchdichtheit entsprechend dem direkten Anwendungsbereich der zugehörigen Prüfverfahren. Die Klassifizierung auf der Basis des erweiterten Anwendungsbereichs von Versuchsergebnissen ist nicht Gegenstand dieser Europäischen Norm. Für die Klassifizierung auf der Basis des erweiterten Anwendungsbereichs werden jedoch die gleichen Klassen benutzt wie in dieser Europäischen Norm festgelegt.
In dieser Europäischen Norm werden behandelt:
a) tragende Bauteile ohne raumabschließende Funktion:
Wände;
Decken;
Dächer;
Balken;
Stützen;
Balkone;
Laubengänge;
Treppen;
b) tragende Bauteile mit raumabschließender Funktion, mit oder ohne Verglasung, haustechnischer Anlagen und Befestigungen:
Wände;
Decken;
Dächer;
Doppelböden;
c) Produkte und Systeme zum Schutz von Bauteilen oder Teilen von Bauwerken:
Unterdecken ohne eigener Feuerwiderstandsfähigkeit;
Brandschutzbeschichtungen, Bekleidungen und Abschirmungen;
d) nichttragende Bauteile oder Teile von Bauwerken, mit oder ohne Verglasung, haustechnischer Anlagen und Befestigungen:
Trennwände;
Vorhangfassaden und Außenwände;
Unterdecken mit eigener Feuerwiderstandsfähigkeit;
Feuerschutztüren und Abschlüsse und ihre Schließvorrichtungen;
Rauchschutztüren;
Förderanlagen und ihre Abschlüsse;
Abschottungen von Durchführungen;
Bauteilfugen;
Installationskanäle und -schächte;
Abgasanlagen;
e) Brandschutztechnisch wirksame Bekleidungen von Wänden und Decken.
f) Fahrschachttüren, die nach EN 81-58 geprüft wurden, sind nicht Bestandteil dieser Europäischen Norm. Fahrschachttüren, die nach EN 1634-1 geprüft wurden, werden nach 7.5.5 klassifiziert.
Die jeweils geltenden Prüfverfahren, die für diese Produkte aufgestellt worden sind, sind im Abschnitt 2 aufgelistet.
Classement au feu des produits et éléments de construction - Partie 2: Classement à partir des données d'essais de résistance au feu à l'exclusion des produits utilisés dans les systèmes de ventilation
La présente Norme européenne spécifie la méthode de classement des produits de construction et des éléments de construction à partir des données des essais de résistance au feu qui font partie du domaine d'application directe de la méthode d'essai correspondante. Un classement établi sur la base d'une application étendue ne fait pas partie du domaine d'application de la présente Norme européenne. Pour une application étendue, les mêmes classes sont toutefois utilisées comme il est spécifié dans la présente Norme européenne.
La présente Norme européenne traite des points suivants :
a) éléments porteurs sans fonction de compartimentage :
parois ;
planchers ;
toits ;
poutres ;
poteaux ;
balcons ;
passerelles ;
escaliers ;
b) éléments porteurs avec une fonction de compartimentage, avec ou sans vitrage, services et accessoires :
parois ;
planchers ;
toits ;
planchers surélevés ;
c) produits et systèmes destinés à protéger des éléments ou des parties des ouvrages
plafonds n'ayant pas de résistance au feu propre ;
revêtements, enduits et écrans de protection ;
d) éléments non porteurs ou parties des ouvrages, avec ou sans vitrage, services et accessoires :
cloisons ;
façades (murs rideaux) et murs extérieurs ;
plafonds ayant une résistance au feu propre ;
portes et fermetures résistantes au feu ainsi que leurs systèmes de fermeture ;
portes pare-fumée ;
fermetures de passages pour convoyeurs ;
calfeutrements ;
joints linéaires ;
gaines pour installation technique ;
conduits de fumée ;
e) revêtements de murs et de plafonds avec capacité de protection contre l'incendie ;
f) les portes palières des ascenseurs qui sont soumises aux essais selon le document EN 81-58 sont exclues de la présente Norme européenne. Les portes palières des ascenseurs qui sont soumises aux essais selon le document EN 1634-1 sont classées conformément au paragraphe 7.5.5.
Požarna klasifikacija gradbenih proizvodov in elementov stavb - 2. del: Klasifikacija na podlagi podatkov iz preskusov požarne odpornosti, izvzeti prezračevalni sistemi
General Information
- Status
- Withdrawn
- Publication Date
- 09-Oct-2007
- Withdrawal Date
- 01-Sep-2009
- Technical Committee
- CEN/TC 127 - Fire safety in buildings
- Drafting Committee
- CEN/TC 127 - Fire safety in buildings
- Current Stage
- 9960 - Withdrawal effective - Withdrawal
- Start Date
- 02-Sep-2009
- Completion Date
- 02-Sep-2009
Relations
- Effective Date
- 22-Dec-2008
- Effective Date
- 27-Jun-2009
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Get Certified
Connect with accredited certification bodies for this standard
NSF International
Global independent organization facilitating standards development and certification.
Kiwa BDA Testing
Building and construction product certification.
Sponsored listings
Frequently Asked Questions
EN 13501-2:2007 is a standard published by the European Committee for Standardization (CEN). Its full title is "Fire classification of construction products and building elements - Part 2: Classification using data from fire resistance tests, excluding ventilation services". This standard covers: This European Standard specifies the procedure for classification of construction products and building elements using data from fire resistance and smoke leakage tests which are within the direct field of application of the relevant test method. Classification on the basis of extended application is outside the scope of this European Standard. For extended application, however, the same classes are used as specified in this European Standard. This European Standard deals with: a) loadbearing elements without a fire separating function: walls; floors; roofs; beams; columns; balconies; walkways; stairs. b) loadbearing elements with a fire separating function, with or without glazing, services and fixtures: walls; floors; roofs; raised floors. c) products and systems for protecting elements or parts of the works ceilings with no independent fire resistance; fire protective coatings, claddings and screens; d) non-loadbearing elements or parts of works, with or without glazing, services and fixtures: partitions; facades (curtain walls) and external walls; ceilings with independent fire resistance; fire doors and shutters and their closing devices; smoke control doors; conveyor systems and their closures; penetration seals; linear joint seals; service ducts and shafts; chimneys. e) wall and ceiling coverings with fire protection ability. f) lift landing doors which are tested according to EN 81-58 are excluded from this European Standard. Lift landing doors which are tested according to EN 1634-1 are classified in accordance with 7.5.5. Relevant test methods which have been prepared for these elements are listed in Clause 7.
This European Standard specifies the procedure for classification of construction products and building elements using data from fire resistance and smoke leakage tests which are within the direct field of application of the relevant test method. Classification on the basis of extended application is outside the scope of this European Standard. For extended application, however, the same classes are used as specified in this European Standard. This European Standard deals with: a) loadbearing elements without a fire separating function: walls; floors; roofs; beams; columns; balconies; walkways; stairs. b) loadbearing elements with a fire separating function, with or without glazing, services and fixtures: walls; floors; roofs; raised floors. c) products and systems for protecting elements or parts of the works ceilings with no independent fire resistance; fire protective coatings, claddings and screens; d) non-loadbearing elements or parts of works, with or without glazing, services and fixtures: partitions; facades (curtain walls) and external walls; ceilings with independent fire resistance; fire doors and shutters and their closing devices; smoke control doors; conveyor systems and their closures; penetration seals; linear joint seals; service ducts and shafts; chimneys. e) wall and ceiling coverings with fire protection ability. f) lift landing doors which are tested according to EN 81-58 are excluded from this European Standard. Lift landing doors which are tested according to EN 1634-1 are classified in accordance with 7.5.5. Relevant test methods which have been prepared for these elements are listed in Clause 7.
EN 13501-2:2007 is classified under the following ICS (International Classification for Standards) categories: 13.220.50 - Fire-resistance of building materials and elements. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 13501-2:2007 has the following relationships with other standards: It is inter standard links to EN 13501-2:2003, EN 13501-2:2007+A1:2009, EN 15269-1:2010, EN 15269-20:2009, EN 15882-3:2009, EN 1364-4:2007. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 13501-2:2007 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Fire classification of construction products and building elements - Part 2: Classification using data from fire resistance tests, excluding ventilation servicesClassement au feu des produits et éléments de construction - Partie 2: Classement à partir des données d'essais de résistance au feu des produits utilisés dans les systèmes de ventilationKlassifizierung von Bauprodukten und Bauarten zu ihrem Brandverhalten - Teil 2: Klassifizierung mit den Ergebnissen aus den Feuerwiderstandsprüfungen, mit Ausnahme von LüftungsanlagenTa slovenski standard je istoveten z:EN 13501-2:2007SIST EN 13501-2:2008en,de13.220.50ICS:SIST EN 13501-2:20031DGRPHãþDSLOVENSKI
STANDARDSIST EN 13501-2:200801-marec-2008
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13501-2October 2007ICS 13.220.50Supersedes EN 13501-2:2003
English VersionFire classification of construction products and building elements- Part 2: Classification using data from fire resistance tests,excluding ventilation servicesClassement au feu des produits et éléments deconstruction - Partie 2: Classement à partir des donnéesd'essais de résistance au feu des produits utilisés dans lessystèmes de ventilationKlassifizierung von Bauprodukten und Bauarten zu ihremBrandverhalten - Teil 2: Klassifizierung mit denErgebnissen aus den Feuerwiderstandsprüfungen, mitAusnahme von LüftungsanlagenThis European Standard was approved by CEN on 30 November 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2007 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13501-2:2007: E

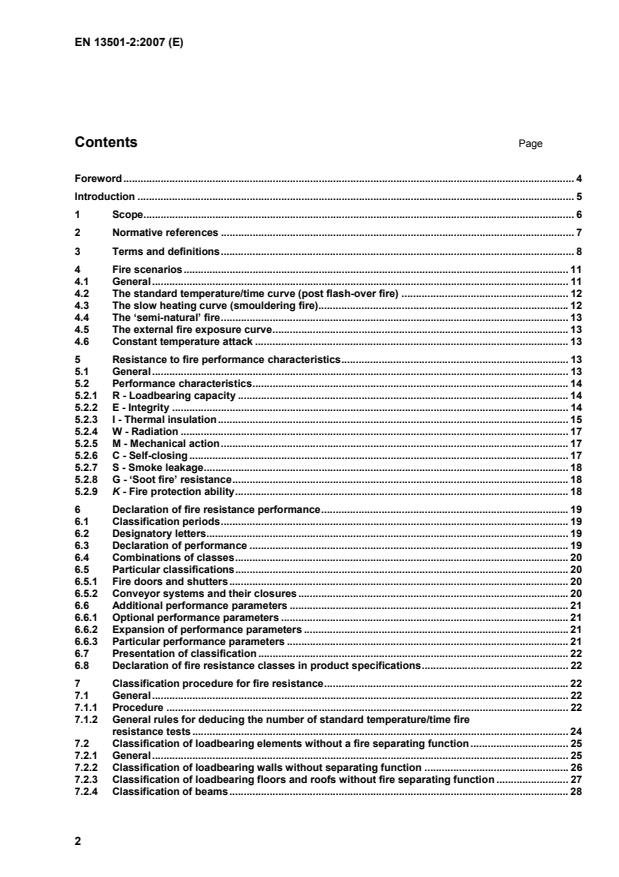

Classification report.59 A.1 General.59 A.2 Content and format.59 A.3 Classification report format.61 Annex B (informative)
Presentation of characterisation data and their field of application for products and systems for protecting elements or parts of work.65 B.1 General.65 B.2 Characterisation data for protective vertical membranes.65 B.3 Characterisation data for applied protection to concrete members.66 B.4 Characterisation data for applied protection to steelwork.67 B.5 Characterisation data for applied protection to concrete/profiled sheet steel composite members.69 B.6 Characterisation data for applied protection to concrete filled hollow steel columns.70 B.7 Characterisation data for applied protection to timber members.71 Bibliography.79
walls; floors; roofs; beams; columns; balconies; walkways; stairs. b) loadbearing elements with a fire separating function, with or without glazing, services and fixtures:
walls; floors; roofs; raised floors. c) products and systems for protecting elements or parts of the works
ceilings with no independent fire resistance; fire protective coatings, claddings and screens; d) non-loadbearing elements or parts of works, with or without glazing, services and fixtures:
partitions; facades (curtain walls) and external walls; ceilings with independent fire resistance; fire doors and shutters and their closing devices; smoke control doors; conveyor systems and their closures; penetration seals; linear joint seals; service ducts and shafts; chimneys. e) wall and ceiling coverings with fire protection ability. f) lift landing doors which are tested according to EN 81-58 are excluded from this European Standard. Lift landing doors which are tested according to EN 1634-1 are classified in accordance with 7.5.5. Relevant test methods which have been prepared for these elements are listed in Clauses 2 and 7.
- Full configuration (complete assembly) EN 1364-4, Fire resistance tests for non-loadbearing elements — Part 4: Curtain walling — Part configuration EN 1365-1, Fire resistance tests for loadbearing elements — Part 1: Walls EN 1365-2, Fire resistance tests for loadbearing elements — Part 2: Floors and roofs EN 1365-3, Fire resistance tests for loadbearing elements — Part 3: Beams EN 1365-4, Fire resistance tests for loadbearing elements — Part 4: Columns EN 1365-5, Fire resistance tests for loadbearing elements — Part 5: Balconies and walkways EN 1365-6, Fire resistance tests for loadbearing elements — Part 6: Stairs EN 1366-3, Fire resistance tests for service installations — Part 3: Penetration seals EN 1366-4, Fire resistance tests for service installations — Part 4: Linear joint seals EN 1366-5, Fire resistance tests for service installations — Part 5: Service ducts and shafts EN 1366-6, Fire resistance tests for service installations — Part 6: Raised access and hollow core floors EN 1366-7, Fire resistance tests for service installations — Part 7: Conveyor systems and their closures EN 1634-1, Fire resistance tests for door and shutter assemblies — Part 1: Fire doors and shutters EN 1634-3, Fire resistance tests for door and shutter assemblies — Part 3: Smoke control doors and shutters EN 13216-1, Chimneys — Test methods for system chimneys — Part 1: General test methods CEN/TS 13381-1, Test methods for determining the contribution to the fire resistance of structural members — Part 1: Horizontal protective membranes ENV 13381-2, Test methods for determining the contribution to the fire resistance of structural members — Part 2: Vertical protective membranes ENV 13381-3, Test methods for determining the contribution to the fire resistance of structural members — Part 3: Applied protection to concrete members
(EN 1364-2:1999) 3.4 door or shutter assembly (doorset) complete assembly, including any frame or guide, door leaf or leaves, rolling or folding curtain etc., which is provided for closing of permanent openings in separating elements. This includes all side-panels, vision panels or transom panels, together with the door hardware and any seals (whether provided for the purpose of fire or smoke control or for other purposes such as draught control or acoustics) which are used in the assembly
(EN 1634-1:2000) 3.5 floor horizontal element of building construction which is loadbearing
(EN 1365-2:1999)
(EN 1365-2:1999) 3.7 suspended ceiling ceiling which is suspended from a supporting construction
(EN 1364-2:1999) 3.8 loadbearing wall wall designed to support an applied load
(EN 1365-1:1999) 3.9 non-loadbearing wall wall designed not to be subjected to any load other than its self weight
(EN 1364-1:1999) 3.10 internal wall wall which provides fire separation. It can be exposed separately to a fire from either side
(EN 1364-1:1999 and EN 1365-1:1999) 3.11 external wall wall forming the external envelope of a building which may be exposed separately to an internal or an external fire
(EN 1364-1:1999 and EN 1365-1:1999) 3.12 insulated wall wall, with or without glazing, which satisfies both the integrity and insulation criteria for the achieved fire resistance period
(EN 1364-1:1999 and EN 1365-1:1999) 3.13 un-insulated wall wall, with or without glazing, which satisfies the integrity and, where required, the radiation criteria for the achieved fire resistance period but which is not intended to provide insulation. Such a wall can consist entirely of un-insulated fire resistant glazing
(EN 1364-1:1999 and EN 1365-1:1999) 3.14 separating wall wall with or without glazing provided within a building or between adjoining buildings to prevent the transfer of fire from one side to the other
(EN 1364-1:1999 and EN 1365-1:1999)
(EN 1364-3:2006) 3.16 fire resistant glazing glazing system consisting of one or more transparent or translucent panes with a suitable method of mounting, with e.g. frames, seals and fixing materials, capable of satisfying the appropriate fire resistance criteria
(EN 1364-1:1999) 3.17 insulated glazing fire resistant glazing which satisfies both the integrity and insulation criteria for the achieved fire resistance period
(EN 1364-1:1999) 3.18 un-insulated glazing fire resistance glazing which satisfies the integrity and, where required, the radiation criteria for the achieved fire resistance period but which is not intended to provide insulation
(EN 1364-1:1999) 3.19 glazed element building element with one or more (light transmissive) panes, fire resistant or not, that are built in a frame with fixings and seals
(EN 1364-1:1999) 3.20 test specimen element (or part) of building construction provided for the purpose of determining either its fire resistance or its contribution to the fire resistance of another building element
(EN 1363-1:1999) 3.21 loadbearing element element that is intended for use in supporting an external load in a building and maintaining this support in the event of a fire
(EN 1363-1:1999) 3.22 separating element element that is intended for use in maintaining separation between two adjacent areas of a building in the event of a fire
(EN 1363-1:1999)
(EN 1363-1:1999) 3.24 sustained flaming continuous flaming for a period of time greater than 10 s
(EN 1363-1:1999) 3.25 load level magnitude of the test load (mechanical actions) in relation to the loadbearing capacity of the member at normal temperature NOTE The loadbearing capacity of the member at normal temperature is determined by testing or calculation, taking into account the actual mechanical properties of the loadbearing element tested. 3.26 covering product intended to protect underlying products against damage during a specified fire exposure 3.27 direct field of application includes the variations in the construction and the limits of use for the element which, without further analysis, are covered by the single test result, with respect to defined performance characteristics that have been achieved from a fire resistance test according to the appropriate test standard 3.28 extended field of application includes variations in the construction and limits of use for an element that has been subject to one or more fire tests according to the appropriate standard. Extended application is done following procedures laid down in extended application standards 3.29 closure and conveyor system assembly complete assembly of the closure for the conveyor system and, where relevant, its frame or guide, which is provided for closing off a permanent opening in a separating element. This includes the anchoring parts for the connection with the separating element, a length of any penetrating component on either side of the construction and the penetration seal, any sealing system between the closure for a conveyor system, the conveyor system and any closing and/or separating device
(EN 1366-7:2004) 4 Fire scenarios 4.1 General The second essential requirement of the Construction Products Directive addresses spread of fire and smoke and the loadbearing capacity of the construction. These requirements are considered to be satisfied by proving fire resistance of loadbearing and/or separating elements.
is the time from the start of the test in minutes (min); T
is the mean furnace temperature in degrees Celsius (°C). NOTE Further details relating to the practical application of this curve and other test parameters, e.g. tolerances, are given in EN 1363-1. 4.3 The slow heating curve (smouldering fire) The smouldering fire test shall only be used if it is expected that the fire resistance performance of the element may be reduced by exposure to temperatures associated with the growth stage of a fire. It is, therefore, particularly relevant to elements whose performance may be dependent upon high heating rates below approximately 500 °C (as provided during the standard temperature/time curve) for achievement of their classifications (i.e. mainly reactive or intumescent products). The slow heating curve is given by the following relationship: for 0 < t ≤ 21 T = 154t0,25 + 20 for t > 21 T = 345 log10 (8(t-20) + 1) + 20 where t
is the time from start of test in minutes (min); T
is the mean furnace temperature in degrees Celsius (°C). NOTE Further details relating to the practical application of this curve, and other test parameters e.g. tolerances, are given in EN 1363-2.
is the time from start of test in minutes (min); T
is the mean furnace temperature in degrees Celsius (°C). NOTE Further details relating to the practical application of this curve, and other test parameters e.g. tolerances, are given in EN 1363-2. 4.6 Constant temperature attack In addition to the heating regimes given above, the evaluation of some elements shall be made using a notional constant value of temperature. The specified temperature depends upon the type of element. The rate at which this temperature is achieved is specified in each relevant test standard. The following temperatures shall be used for the elements indicated: 20 °C for evaluating the leakage rate of smoke control doors at ambient temperature; 200 °C for evaluating the leakage rate of medium temperature smoke control doors; 500 °C for evaluating the fire performance of raised floors; 1 000 °C for evaluating soot fire resistance of chimneys and chimney related products. 5 Resistance to fire performance characteristics 5.1 General ID2 requires the assessment of the characteristic loadbearing capacity and/or integrity and/or insulation. Further optional characteristics are also specified by ID2, namely radiation, mechanical
...
