EN 12201-1:2024
(Main)Plastics piping systems for water supply, and for drains and sewers under pressure - Polyethylene (PE) - Part 1: General
Plastics piping systems for water supply, and for drains and sewers under pressure - Polyethylene (PE) - Part 1: General
This document specifies materials and the general aspects of polyethylene (PE) pressure piping systems (mains and service pipes) for buried or above ground applications, intended for the conveyance of water for human consumption, raw water prior to treatment, drains and sewers under pressure, vacuum sewer systems, and water for other purposes, with the exception of industrial application.
NOTE 1 For PE components intended for the conveyance of water intended for human consumption and raw water prior to treatment attention is drawn to Clause 6 of this document. Components manufactured for water for other purposes, drains and sewers, and vacuum systems are possibly not suitable for water supply for human consumption.
NOTE 2 Industrial application is covered by EN ISO 15494 [6].
The intended use includes sea outfalls, laid in water and pipes suspended below bridges.
It also specifies the test parameters for the test methods referred to in this document.
In conjunction with EN 12201-2, EN 12201 3, EN 12201 4 and EN 12201 5, this document is applicable to PE pipes, fittings and valves, their joints and joints with components of PE and other materials intended to be used under the following conditions:
a) allowable operating pressure, PFA, up to 25 bar ;
b) an operating temperature of 20 °C as a reference temperature.
NOTE 3 For applications operating at constant temperatures greater than 20 °C and up to and including 50 °C, see Annex A.
The EN 12201 series covers a range of allowable operating pressures and gives requirements concerning colours.
NOTE 4 It is the responsibility of the purchaser or specifier to make the appropriate selections from these aspects, taking into account their particular requirements and any relevant national guidance or regulations and installation practices or codes.
Kunststoff-Rohrleitungssysteme für die Wasserversorgung und für Entwässerungs- und Abwasserdruckleitungen - Polyethylen (PE) - Teil 1: Allgemeines
Dieses Dokument legt Werkstoffe und die allgemeinen Anforderungen an erdverlegte oder oberirdisch verlegte Druckrohrleitungssysteme (Haupt- und Anschlussleitungen) aus Polyethylen (PE) fest, die für den Transport von Trinkwasser, des zur Aufbereitung vorgesehenen Rohwassers, für Entwässerungs- und Abwasserdruckleitungen, Unterdruckentwässerungssysteme sowie für den Transport von Brauchwasser vorgesehen sind, mit Ausnahme von industriellen Anwendungen.
ANMERKUNG 1 In Zusammenhang mit Rohrleitungsteilen aus PE für den Transport von Trinkwasser einschließlich des aufzubereitenden Rohwassers wird auf Abschnitt 6 dieses Dokuments verwiesen. Rohrleitungsteile, die für den Transport von Brauchwasser, für Entwässerungs- und Abwasserleitungen sowie für Unterdrucksysteme gefertigt wurden, sind möglicherweise nicht für die Versorgung mit Trinkwasser geeignet.
ANMERKUNG 2 Industrielle Anwendungen sind durch EN ISO 15494 [6] abgedeckt.
Die bestimmungsgemäße Verwendung umfasst die Entwässerung ins Meer (Siele), in Gewässern verlegte Rohre sowie Düker und Brückenleitungen.
Es legt auch die Prüfparameter für die Prüfverfahren fest, auf die in diesem Dokument verwiesen wird.
Zusammen mit EN 12201 2, EN 12201 3, EN 12201 4 und EN 12201 5 ist das Dokument anwendbar für Rohre, Formstücke und Armaturen aus PE, deren Verbindungen untereinander sowie mit Rohrleitungsteilen aus PE und aus anderen Werkstoffen, die zur Verwendung unter den folgenden Bedingungen vorgesehen sind:
a) zulässiger Bauteilbetriebsdruck PFA bis 25 bar ;
b) eine Betriebstemperatur von 20 °C als Bezugstemperatur.
ANMERKUNG 3 Für Anwendungsgebiete, in denen konstante Betriebstemperaturen von über 20 °C bis einschließlich 50 °C auftreten, siehe Anhang A.
Die Normenreihe EN 12201 deckt einen Bereich von zulässigen Bauteilbetriebsdrücken ab und enthält Anforderungen bezüglich Farben.
ANMERKUNG 4 Es liegt in der Verantwortung des Auftraggebers oder Planers, aus diesen Gesichtspunkten die geeignete Auswahl zu treffen, unter Berücksichtigung ihrer speziellen Anforderungen und jeglicher maßgebenden nationalen Empfehlungen oder Festlegungen und Verfahrensweisen oder Vorschriften für die Verlegung.
Systèmes de canalisations en plastique pour l'alimentation en eau et pour les branchements et les collecteurs d'assainissement avec pression - Polyéthylène (PE) - Partie 1: Généralités
Le présent document spécifie la matière et les aspects généraux des systèmes de canalisations en polyéthylène (PE) avec pression (canalisations de distribution et de branchement) pour des applications enterrées ou non enterrées, prévus pour le transport d’eau destinée à la consommation humaine, y compris l’eau brute avant traitement, les branchements et les collecteurs d’assainissement avec pression, les réseaux d’évacuation des eaux usées sous vide et l’eau destinée à d’autres usages, à l’exception des applications industrielles.
NOTE 1 Pour les composants en PE prévus pour le transport d’eau destinée à la consommation humaine et d’eau brute avant traitement, l’attention est attirée sur l’Article 6 du présent document. Les composants fabriqués pour l’eau destinée à d’autres usages et pour les branchements et les collecteurs d’assainissement et les réseaux d’évacuation des eaux usées sous vide peuvent s’avérer inaptes pour l’alimentation en eau destinée à la consommation humaine.
NOTE 2 Les applications industrielles sont couvertes par l’EN ISO 15494 [6].
L'utilisation prévue comprend les émissaires de rejet en mer, posés dans l'eau, et les canalisations suspendues sous des ponts.
Il spécifie également les paramètres d’essai pour les méthodes d’essai référencées dans le présent document.
Conjointement avec l’EN 12201-2, l’EN 12201-3, l’EN 12201-4 et l’EN 12201-5, le présent document s’applique aux tubes, raccords et robinets en PE et à leurs assemblages, ainsi qu’aux assemblages avec des composants en PE et en d’autres matières, destinés à être utilisés dans les conditions suivantes :
a) une pression de service admissible, PFA, jusqu’à 25 bar ;
b) une température de service de 20 °C comme température de référence ;
NOTE 3 Pour les applications à température de service constante supérieure à 20 °C et jusqu’à 50 °C compris, voir l’Annexe A.
La série EN 12201 couvre une gamme de pressions de service admissibles et donne les exigences concernant les couleurs.
NOTE 4 Il est de la responsabilité de l’acheteur ou du concepteur du réseau d’effectuer les choix appropriés à partir de ces données, en tenant compte des exigences particulières et de toute ligne directrice ou toute réglementation nationale applicable, ainsi que des pratiques ou codes de pose.
Cevni sistemi iz polimernih materialov za oskrbo z vodo in za odvodnjavanje in kanalizacijo pod tlakom - Polietilen (PE) - 1. del: Splošno
Ta dokument določa materiale in glavne vidike tlačnih cevnih sistemov iz polietilena (PE) (glavne in priključne) za podzemno in nadzemno uporabo, namenjenih za prenos pitne vode, neobdelane vode pred obdelavo, odvodnjavanje in kanalizacijo pod tlakom, vakuumske kanalizacijske sisteme in vode za druge namene, z izjemo industrijske uporabe.
OPOMBA 1: Za sestavne dele iz polietilena, ki so namenjeni za prenos pitne vode in neobdelane vode pred obdelavo, je treba upoštevati točko 6 tega dokumenta. Sestavni deli, ki so izdelani za vodo za druge namene, odvodnjavanje in kanalizacijo in za vakuumske sisteme, morda niso primerni za oskrbo s pitno vodo.
OPOMBA 2: Industrijska uporaba ni zajeta v standardu EN ISO 15494 [6].
Predvidena uporaba vključuje cevi za izpuste v morje, cevi, položene v vodo, in cevi, obešene pod mostovi.
Določa tudi preskusne parametre za preskusne metode iz tega dokumenta.
V povezavi s standardi EN 12201-2, EN 12201 3, EN 12201 4 in EN 12201 5 se ta dokument uporablja za cevi, fitinge iz polietilena, njihove spoje ter spoje s komponentami iz polietilena in drugih materialov, namenjene uporabi v naslednjih pogojih:
a) dovoljen obratovalni tlak PFA do 25 bar;
b) delovna temperatura 20 °C kot referenčna temperatura.
OPOMBA 3: V zvezi z napravami, ki delujejo pri stalnih temperaturah od 20 do in vključno 50 °C, glej dodatek A.
Skupina standardov EN 12201 zajema razpon najvišjih obratovalnih tlakov in določa zahteve glede barv.
OPOMBA 4: Za ustrezne izbire izdelkov je odgovoren kupec ali specifikator, pri čemer mora upoštevati konkretne zahteve ter vse pomembne nacionalne predpise in prakse ali kodekse vgradnje.
General Information
Relations
Standards Content (Sample)

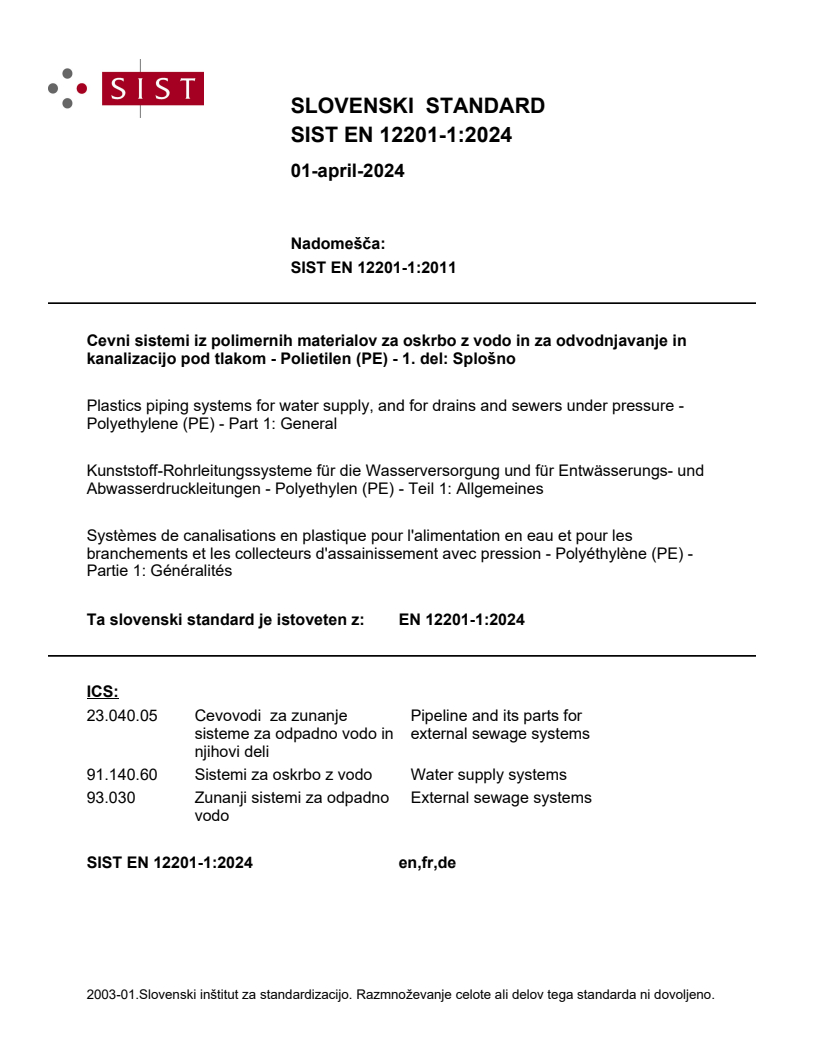

SLOVENSKI STANDARD
01-april-2024
Nadomešča:
SIST EN 12201-1:2011
Cevni sistemi iz polimernih materialov za oskrbo z vodo in za odvodnjavanje in
kanalizacijo pod tlakom - Polietilen (PE) - 1. del: Splošno
Plastics piping systems for water supply, and for drains and sewers under pressure -
Polyethylene (PE) - Part 1: General
Kunststoff-Rohrleitungssysteme für die Wasserversorgung und für Entwässerungs- und
Abwasserdruckleitungen - Polyethylen (PE) - Teil 1: Allgemeines
Systèmes de canalisations en plastique pour l'alimentation en eau et pour les
branchements et les collecteurs d'assainissement avec pression - Polyéthylène (PE) -
Partie 1: Généralités
Ta slovenski standard je istoveten z: EN 12201-1:2024
ICS:
23.040.05 Cevovodi za zunanje Pipeline and its parts for
sisteme za odpadno vodo in external sewage systems
njihovi deli
91.140.60 Sistemi za oskrbo z vodo Water supply systems
93.030 Zunanji sistemi za odpadno External sewage systems
vodo
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

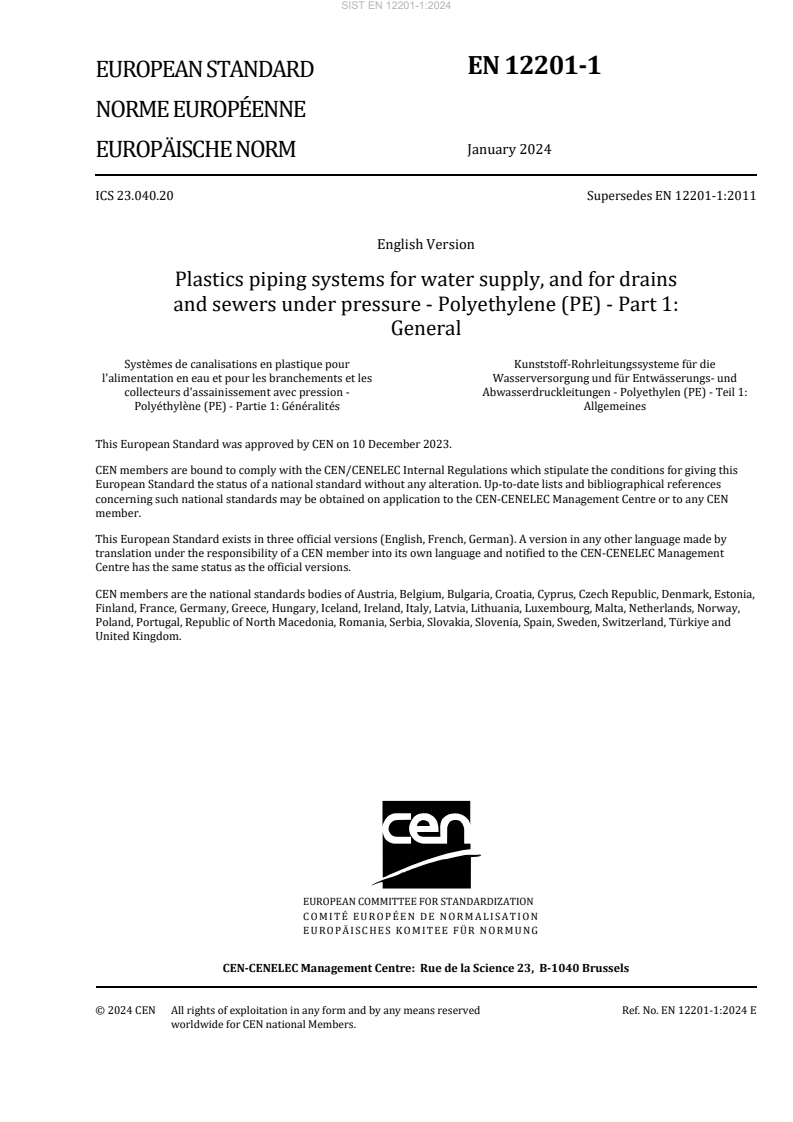

EN 12201-1
EUROPEAN STANDARD
NORME EUROPÉENNE
January 2024
EUROPÄISCHE NORM
ICS 23.040.20 Supersedes EN 12201-1:2011
English Version
Plastics piping systems for water supply, and for drains
and sewers under pressure - Polyethylene (PE) - Part 1:
General
Systèmes de canalisations en plastique pour Kunststoff-Rohrleitungssysteme für die
l'alimentation en eau et pour les branchements et les Wasserversorgung und für Entwässerungs- und
collecteurs d'assainissement avec pression - Abwasserdruckleitungen - Polyethylen (PE) - Teil 1:
Polyéthylène (PE) - Partie 1: Généralités Allgemeines
This European Standard was approved by CEN on 10 December 2023.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 12201-1:2024 E
worldwide for CEN national Members.

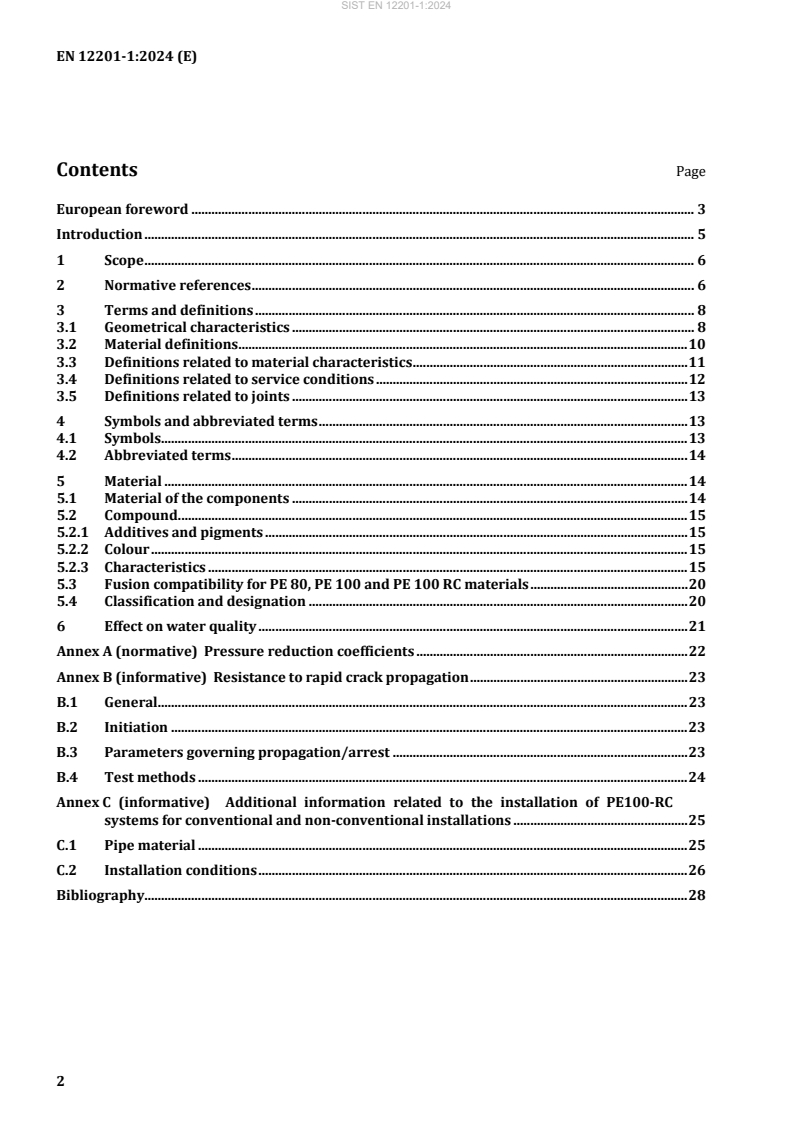

Contents Page
European foreword . 3
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 8
3.1 Geometrical characteristics . 8
3.2 Material definitions . 10
3.3 Definitions related to material characteristics . 11
3.4 Definitions related to service conditions . 12
3.5 Definitions related to joints . 13
4 Symbols and abbreviated terms . 13
4.1 Symbols. 13
4.2 Abbreviated terms . 14
5 Material . 14
5.1 Material of the components . 14
5.2 Compound . 15
5.2.1 Additives and pigments . 15
5.2.2 Colour . 15
5.2.3 Characteristics . 15
5.3 Fusion compatibility for PE 80, PE 100 and PE 100 RC materials . 20
5.4 Classification and designation . 20
6 Effect on water quality . 21
Annex A (normative) Pressure reduction coefficients . 22
Annex B (informative) Resistance to rapid crack propagation . 23
B.1 General . 23
B.2 Initiation . 23
B.3 Parameters governing propagation/arrest . 23
B.4 Test methods . 24
Annex C (informative) Additional information related to the installation of PE100-RC
systems for conventional and non-conventional installations . 25
C.1 Pipe material . 25
C.2 Installation conditions . 26
Bibliography. 28
European foreword
This document (EN 12201-1:2024) has been prepared by Technical Committee CEN/TC 155 “Plastics
piping systems and ducting systems”, the secretariat of which is held by NEN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by July 2024, and conflicting national standards shall be
withdrawn at the latest by July 2024.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 12201-1:2011.
System Standards are based on the results of the work being undertaken in ISO/TC 138 “Plastics pipes,
fittings and valves for the transport of fluids”, which is a Technical Committee of the International
Organization for Standardization (ISO).
They are supported by separate standards on test methods to which references are made throughout the
System Standard.
The System Standards are consistent with general standards on functional requirements and on
recommended practice for installation.
EN 12201 consists of the following parts:
— EN 12201-1, Plastics piping systems for water supply, and for drains and sewers under pressure —
Polyethylene (PE) — Part 1: General (this document);
— EN 12201-2, Plastics piping systems for water supply, and for drains and sewers under pressure —
Polyethylene (PE) — Part 2: Pipes;
— EN 12201-3, Plastics piping systems for water supply, and for drains and sewers under pressure —
Polyethylene (PE) — Part 3: Fittings;
— EN 12201-4, Plastics piping systems for water supply, and for drains and sewers under pressure —
Polyethylene (PE) — Part 4: Valves for water supply systems;
— EN 12201-5, Plastics piping systems for water supply, and for drains and sewers under pressure —
Polyethylene (PE) — Part 5: Fitness for purpose of the system.
In addition, the following document provides guidance on the assessment of conformity:
— CEN/TS 12201-7, Plastics piping systems for water supply, and for drainage and sewerage under
pressure — Polyethylene (PE) — Part 7: Guidance for the assessment of conformity.
The revision of this System Standard has been carried out to add the PE 100-RC type materials with
enhanced resistance to slow crack growth. Annex C discusses the performance of this type of material
and gives additional information for non-conventional installation techniques. The size range has been
increased to 3 000 mm diameter, test methods have been updated, and new test methods have been
added for PE 100-RC materials.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
Introduction
This document specifies the requirements for a piping system and its components made from
polyethylene (PE). The piping system is intended to be used for water supply intended for human
consumption, including the conveyance of raw water prior to treatment, drains and sewers under
pressure, vacuum sewer systems, and water for other purposes.
In respect of potential adverse effects on the quality of water intended for human consumption, caused
by the products covered by the EN 12201 series:
— this document provides no information as to whether the products may be used without restriction
in any of the Member States of the EU or EFTA;
NOTE Attention is drawn to the presence of national regulations and testing arrangements in relation to
products intended for use in water supply to ensure fitness for contact with drinking water.
Requirements and test methods for components of the piping system are specified in EN 12201-2,
EN 12201-3 and EN 12201-4.
Characteristics for fitness for purpose of the system are covered in EN 12201-5 [1]. CEN/TS 12201-7 [2]
gives guidance for assessment of conformity.
This part of EN 12201 covers the general aspects of the plastics piping system.
1 Scope
This document specifies materials and the general aspects of polyethylene (PE) pressure piping systems
(mains and service pipes) for buried or above ground applications, intended for the conveyance of water
for human consumption, raw water prior to treatment, drains and sewers under pressure, vacuum sewer
systems, and water for other purposes, with the exception of industrial application.
NOTE 1 For PE components intended for the conveyance of water intended for human consumption and raw
water prior to treatment attention is drawn to Clause 6 of this document. Components manufactured for water for
other purposes, drains and sewers, and vacuum systems are possibly not suitable for water supply for human
consumption.
NOTE 2 Industrial application is covered by EN ISO 15494 [6].
The intended use includes sea outfalls, laid in water and pipes suspended below bridges.
It also specifies the test parameters for the test methods referred to in this document.
In conjunction with EN 12201-2, EN 12201-3, EN 12201-4 and EN 12201-5, this document is applicable
to PE pipes, fittings and valves, their joints and joints with components of PE and other materials intended
to be used under the following conditions:
a) allowable operating pressure, PFA, up to 25 bar ;
b) an operating temperature of 20 °C as a referenc
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
