Plastics piping systems for water supply, and for drainage and sewerage under pressure - Polyethylene (PE) - Part 1: General
This European Standard specifies the general aspects of polyethylene (PE) pressure piping systems (mains and service pipes) for buried or above ground applications, intended for the conveyance of water for human consumption, raw water prior to treatment, drainage and sewerage under pressure, vacuum sewer systems, and water for other purposes.
NOTE 1 For PE components intended for the conveyance of water intended for human consumption and raw water prior to treatment attention is drawn to Clause 5 of this European Standard. Components manufactured for water for other purposes, drainage and sewerage may not be suitable for water supply for human consumption.
It also specifies the test parameters for the test methods referred to in this standard.
In conjunction with Parts 2 to 5 of EN 12201, it is applicable to PE pipes, fittings, valves, their joints and to joints with components of other materials intended to be used under the following conditions:
a) allowable operating pressure, PFA, up to 25 bar );
b) an operating temperature of 20 °C as a reference temperature;
c) buried in the ground;
d) sea outfalls;
e) laid in water;
f) above ground, including pipes suspended below bridges.
NOTE 2 For applications operating at constant temperatures greater than 20 °C and up to 40 °C, see Annex A.
EN 12201 (all parts) covers a range of allowable operating pressures and gives requirements concerning colours and additives.
NOTE 3 It is the responsibility of the purchaser or specifier to make the appropriate selections from these aspects, taking into account their particular requirements and any relevant national guidance or regulations and installation practices or codes.
Kunststoff-Rohrleitungssysteme für die Wasserversorgung und für Entwässerungs- und Abwasserdruckleitungen - Polyethylen (PE) - Teil 1: Allgemeines
Dieser Teil der EN 12201 legt die allgemeinen Anforderungen an erdverlegte oder oberirdisch verlegte Druckrohr¬leitungs¬systeme (Haupt- und Anschluss¬leitungen) aus Polyethylen (PE) fest, die für den Transport von Trinkwasser, des zur Aufbereitung vorgesehenen Rohwassers, für Ent¬wässerungs- und Abwasserdruckleitungen, Unterdruckentwässerungs¬systeme sowie für den Transport von Brauchwasser vorgesehen sind.
ANMERKUNG 1 In Zusammenhang mit Rohrleitungsteilen aus PE für den Transport von Trinkwasser einschließlich des aufzubereitenden Rohwassers wird auf Abschnitt 5 dieser Europäischen Norm verwiesen. Rohrleitungsteile, die für den Transport von Brauchwasser sowie für Entwässerungs- und Abwasserleitungen ge¬fertigt wurden, sind möglicherweise nicht für die Versorgung mit Trinkwasser geeignet.
Er legt auch die Prüfparameter für die Prüfverfahren fest, auf die in dieser Norm verwiesen wird.
Zusammen mit den Teilen 2 bis 5 der EN 12201 gilt er für Rohre, Formstücke und Armaturen aus PE, deren Verbindungen untereinander sowie mit Rohrleitungsteilen aus anderen Werkstoffen, die zur Verwen¬dung unter den folgenden Bedingungen vorgesehen sind:
a) maximal zulässiger Betriebsdruck PFA bis 25 bar );
b) eine Betriebstemperatur von 20 °C als Bezugstemperatur;
c) erdverlegt;
d) Entwässerung ins Meer (Siele);
e) in Gewässern verlegt;
f) oberirdisch verlegt, einschließlich Düker und Brückenleitungen.
ANMERKUNG 2 Für Anwendungsgebiete, in denen konstante Betriebstemperaturen von über 20 °C bis höchstens 40 °C auftreten, siehe Anhang A.
EN 12201 (alle Teile) enthält Festlegungen über maximal zulässige Betriebsdrücke und legt Anforderungen an die Einfärbung von Rohrleitungsteilen sowie die Verwendung von Zusatzstoffen fest.
ANMERKUNG 3 Der Anwender bzw. Auftraggeber ist unter Berücksichtigung der eigenen Anforderungen sowie der gel¬tenden nationalen Empfehlungen oder Festlegungen und Verlegepraktiken für die entsprechende Auswahl dieser Kriterien verantwortlich.
Systèmes de canalisations en plastique pour l'alimentation en eau et pour les branchements et les collecteurs d'assainissement avec pression - Polyéthylène (PE) - Partie 1: Généralités
La présente partie de l'EN 12201 spécifie les aspects généraux des systèmes de canalisations en polyéthylène (PE) avec pression (canalisations de distribution et de branchement) pour des applications enterrées ou non enterrées prévues pour le transport d'eau destinée à la consommation humaine, y compris l'eau brute avant traitement, les branchements et les collecteurs d'assainissement avec pression, les réseaux d'évacuation des eaux usées sous vide et l'eau destinée à d'autres usages.
NOTE 1 Pour les composants en polyéthylène (PE) prévus pour le transport d'eau destinée à la consommation humaine et d'eau brute avant traitement, l'attention est attirée sur l'Article 5 de la présente Norme européenne. Les composants fabriqués pour l'eau destinée à d'autres usages et pour l'assainissement peuvent s'avérer inaptes pour l'alimentation en eau destinée à la consommation humaine.
Elle spécifie également les paramètres d'essai pour les méthodes d'essai auxquelles la présente Norme fait référence.
Conjointement avec les Parties 2 à 5 de l'EN 12201, elle s'applique aux tubes, raccords, robinets et assemblages fabriqués en polyéthylène (PE) et aux assemblages avec des composants fabriqués en d'autres matières, destinés à être utilisés dans les conditions suivantes :
a) avec une pression de service admissible, PFA, jusqu'à 25 bar ;
b) à une température de service de 20 °C comme température de référence ;
c) enterrés dans le sol ;
d) comme émissaires de rejet en mer ;
e) posés dans l'eau ;
f) non enterrés, y compris canalisations suspendues sous des ponts.
NOTE 2 Pour les applications à température de service constante supérieure à 20 °C et jusqu'à 40 °C, voir Annexe A.
La Norme EN 12201 (toutes les parties) couvre une plage de pressions de service admissibles et définit des exigences concernant les couleurs et les additifs.
NOTE 3 Il incombe à l'acheteur ou au prescripteur la responsabilité de réaliser une sélection convenable de ces aspects en prenant en compte les exigences particulières ainsi que les directives ou règles nationales et les pratiques et codes de pose en usage dans son pays.
Cevni sistemi iz polimernih materialov za oskrbo z vodo in za odvodnjavanje in kanalizacijo pod tlakom - Polietilen (PE) - 1. del: Splošno
Ta del EN 12201 določa splošne vidike polietilenskih (PE) cevnih sistemov (za glavne in servisne cevi), ki so namenjeni prenosu vode za prehrano ljudi, vključno z neobdelano vodo pred obdelavo.
Določa tudi preskusne parametre za preskusne metode, navedene v tem standardu. Skupaj z drugimi deli EN 12201 velja za PE-cevi, fitinge, ventile, njihove spoje in spoje s komponentami iz drugih materialov, namenjene uporabi v naslednjih pogojih:
a) najvišji obratovalni tlak, MOP, do vključno 25 bar,
b) obratovalna temperature 20 °C kot referenčna temperatura.
OPOMBA 1: Za aplikacije, ki potekajo pri konstantnih temperaturah med 20 °C in 40 °C, glej dodatek A. EN 12201 zajema razpon najvišjih obratovalnih tlakov in podaja zahteve glede barv in aditivov.
OPOMBA 2: Za ustrezno izbiro med temi vidiki je odgovoren kupec ali specifikator, pri čemer mora upoštevati konkretne zahteve in vsa pomembna nacionalna vodila ali predpise in prakse ali kodekse vgradnje.
General Information
- Status
- Withdrawn
- Publication Date
- 06-Sep-2011
- Withdrawal Date
- 13-Apr-2025
- Technical Committee
- CEN/TC 155 - Plastics piping systems and ducting systems
- Current Stage
- 9960 - Withdrawal effective - Withdrawal
- Start Date
- 31-Jan-2024
- Completion Date
- 14-Apr-2025
- Directive
- 89/106/EEC - Construction products
Relations
- Replaces
EN 12201-1:2003 - Plastics piping systems for water supply - Polyethylene (PE) - Part 1: General - Effective Date
- 10-Sep-2011
- Effective Date
- 01-Apr-2009
- Effective Date
- 28-Jan-2023
Frequently Asked Questions
EN 12201-1:2011 is a standard published by the European Committee for Standardization (CEN). Its full title is "Plastics piping systems for water supply, and for drainage and sewerage under pressure - Polyethylene (PE) - Part 1: General". This standard covers: This European Standard specifies the general aspects of polyethylene (PE) pressure piping systems (mains and service pipes) for buried or above ground applications, intended for the conveyance of water for human consumption, raw water prior to treatment, drainage and sewerage under pressure, vacuum sewer systems, and water for other purposes. NOTE 1 For PE components intended for the conveyance of water intended for human consumption and raw water prior to treatment attention is drawn to Clause 5 of this European Standard. Components manufactured for water for other purposes, drainage and sewerage may not be suitable for water supply for human consumption. It also specifies the test parameters for the test methods referred to in this standard. In conjunction with Parts 2 to 5 of EN 12201, it is applicable to PE pipes, fittings, valves, their joints and to joints with components of other materials intended to be used under the following conditions: a) allowable operating pressure, PFA, up to 25 bar ); b) an operating temperature of 20 °C as a reference temperature; c) buried in the ground; d) sea outfalls; e) laid in water; f) above ground, including pipes suspended below bridges. NOTE 2 For applications operating at constant temperatures greater than 20 °C and up to 40 °C, see Annex A. EN 12201 (all parts) covers a range of allowable operating pressures and gives requirements concerning colours and additives. NOTE 3 It is the responsibility of the purchaser or specifier to make the appropriate selections from these aspects, taking into account their particular requirements and any relevant national guidance or regulations and installation practices or codes.
This European Standard specifies the general aspects of polyethylene (PE) pressure piping systems (mains and service pipes) for buried or above ground applications, intended for the conveyance of water for human consumption, raw water prior to treatment, drainage and sewerage under pressure, vacuum sewer systems, and water for other purposes. NOTE 1 For PE components intended for the conveyance of water intended for human consumption and raw water prior to treatment attention is drawn to Clause 5 of this European Standard. Components manufactured for water for other purposes, drainage and sewerage may not be suitable for water supply for human consumption. It also specifies the test parameters for the test methods referred to in this standard. In conjunction with Parts 2 to 5 of EN 12201, it is applicable to PE pipes, fittings, valves, their joints and to joints with components of other materials intended to be used under the following conditions: a) allowable operating pressure, PFA, up to 25 bar ); b) an operating temperature of 20 °C as a reference temperature; c) buried in the ground; d) sea outfalls; e) laid in water; f) above ground, including pipes suspended below bridges. NOTE 2 For applications operating at constant temperatures greater than 20 °C and up to 40 °C, see Annex A. EN 12201 (all parts) covers a range of allowable operating pressures and gives requirements concerning colours and additives. NOTE 3 It is the responsibility of the purchaser or specifier to make the appropriate selections from these aspects, taking into account their particular requirements and any relevant national guidance or regulations and installation practices or codes.
EN 12201-1:2011 is classified under the following ICS (International Classification for Standards) categories: 23.040.01 - Pipeline components and pipelines in general; 23.040.05 - Pipeline and its parts for external sewage systems; 91.140.60 - Water supply systems; 93.030 - External sewage systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 12201-1:2011 has the following relationships with other standards: It is inter standard links to EN 12201-1:2003, EN 13244-1:2002, EN 12201-1:2024. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 12201-1:2011 is associated with the following European legislation: EU Directives/Regulations: 305/2011, 89/106/EEC. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase EN 12201-1:2011 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Cevni sistemi iz polimernih materialov za oskrbo z vodo in za odvodnjavanje in kanalizacijo pod tlakom - Polietilen (PE) - 1. del: SplošnoKunststoff-Rohrleitungssysteme für die Wasserversorgung und für Entwässerungs- und Abwasserdruckleitungen - Polyethylen (PE) - Teil 1: AllgemeinesPlastics piping systems for water supply, and for drainage and sewerage under pressure - Polyethylene (PE) - Part 1: General93.030Zunanji sistemi za odpadno vodoExternal sewage systems91.140.60Sistemi za oskrbo z vodoWater supply systems23.040.20Cevi iz polimernih materialovPlastics pipesICS:Ta slovenski standard je istoveten z:EN 12201-1:2011SIST EN 12201-1:2011en,fr,de01-december-2011SIST EN 12201-1:2011SLOVENSKI
STANDARDSIST EN 13244-1:2003SIST EN 12201-1:20031DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 12201-1
September 2011 ICS 23.040.01 Supersedes EN 12201-1:2003, EN 13244-1:2002English Version
Plastics piping systems for water supply, and for drainage and sewerage under pressure - Polyethylene (PE) - Part 1: General Systèmes de canalisations en plastique pour l'alimentation en eau et pour les branchements et les collecteurs d'assainissement avec pression - Polyéthylène (PE) - Partie 1: Généralités
Kunststoff-Rohrleitungssysteme für die Wasserversorgung und für Entwässerungs- und Abwasserdruckleitungen - Polyethylen (PE) - Teil 1: Allgemeines This European Standard was approved by CEN on 8 July 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2011 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 12201-1:2011: ESIST EN 12201-1:2011

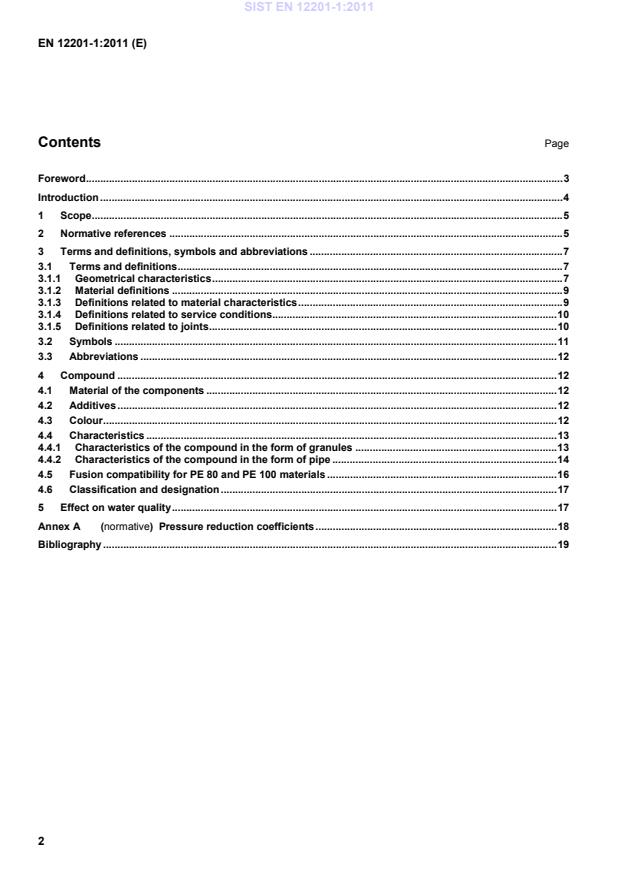

2 Contents Page Foreword . 3Introduction . 41Scope . 52Normative references . 53Terms and definitions, symbols and abbreviations . 73.1Terms and definitions . 73.1.1Geometrical characteristics . 73.1.2Material definitions . 93.1.3Definitions related to material characteristics . 93.1.4Definitions related to service conditions. 103.1.5Definitions related to joints . 103.2Symbols . 113.3Abbreviations . 124Compound . 124.1Material of the components . 124.2Additives . 124.3Colour . 124.4Characteristics . 134.4.1Characteristics of the compound in the form of granules . 134.4.2Characteristics of the compound in the form of pipe . 144.5Fusion compatibility for PE 80 and PE 100 materials . 164.6Classification and designation . 175Effect on water quality . 17Annex A(normative)
