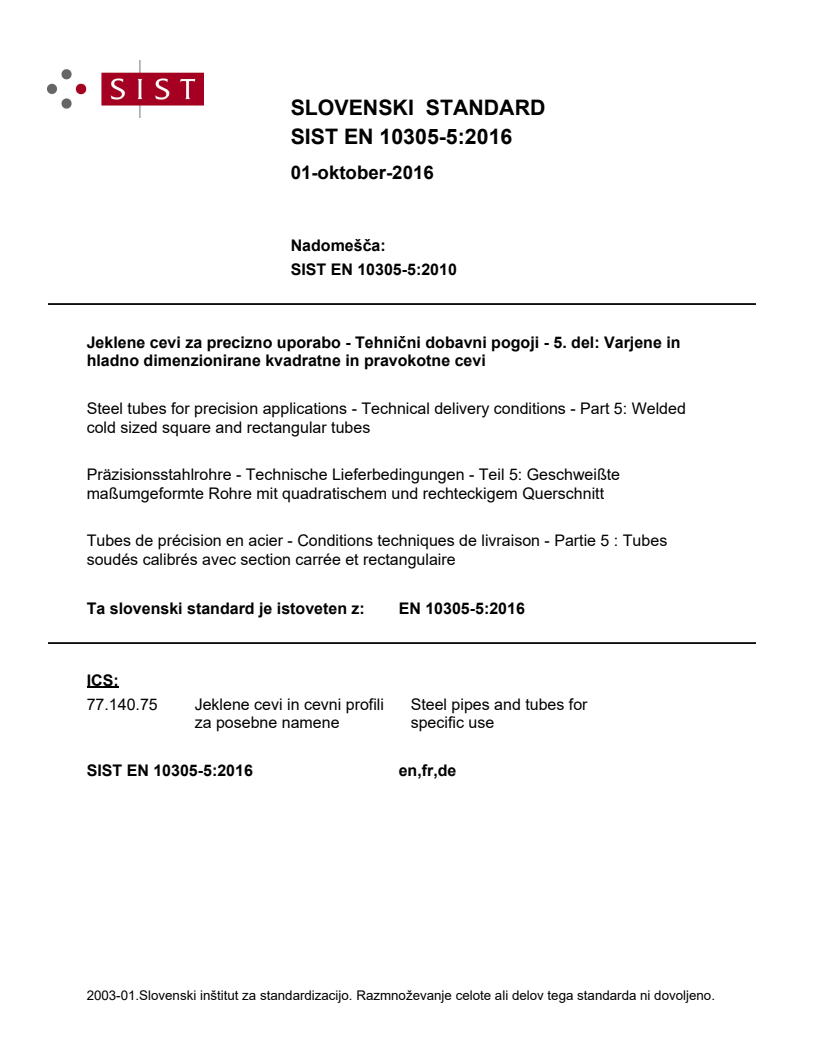

EN 10305-5:2016

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Präzisionsstahlrohre - Technische Lieferbedingungen - Teil 5: Geschweißte maßumgeformte Rohre mit quadratischem und rechteckigem QuerschnittTubes de précision en acier - Conditions techniques de livraison - Partie 5 : Tubes soudés calibrés avec section carrée et rectangulaireSteel tubes for precision applications - Technical delivery conditions - Part 5: Welded cold sized square and rectangular tubes77.140.75Jeklene cevi in cevni profili za posebne nameneSteel pipes and tubes for specific useICS:Ta slovenski standard je istoveten z:EN 10305-5:2016SIST EN 10305-5:2016en,fr,de01-oktober-2016SIST EN 10305-5:2016SLOVENSKI
STANDARDSIST EN 10305-5:20101DGRPHãþD

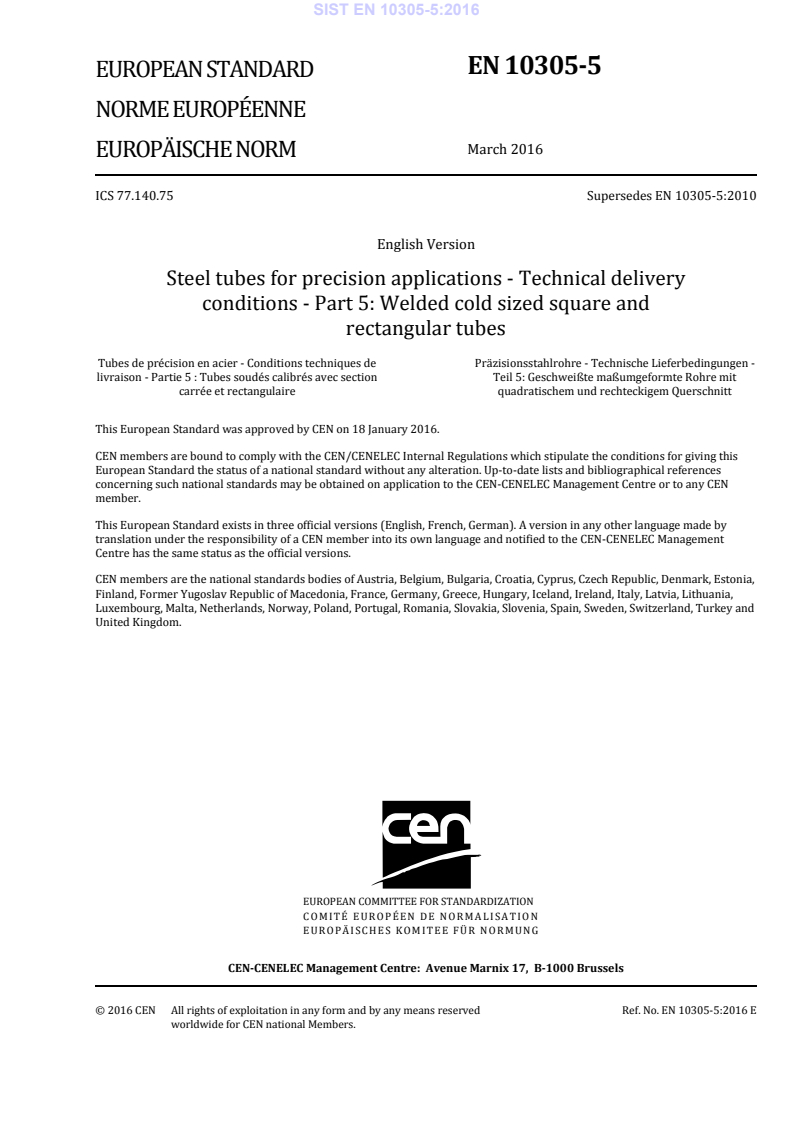

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 10305-5
March
t r s x ICS
y yä s v rä y w Supersedes EN
s r u r wæ wã t r s rEnglish Version
Steel tubes for precision applications æ Technical delivery conditions æ Part
wã Welded cold sized square and rectangular tubes Tubes de prßcision en acier æ Conditions techniques de livraison æ Partie
w ã Tubes soudßs calibrßs avec section carrße et rectangulaire
Präzisionsstahlrohre æ Technische Lieferbedingungen æTeil
wã Geschweißte maßumgeformte Rohre mit quadratischem und rechteckigem Querschnitt This European Standard was approved by CEN on
s z January
t r s xä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey andUnited Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s x CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s r u r wæ wã t r s x ESIST EN 10305-5:2016

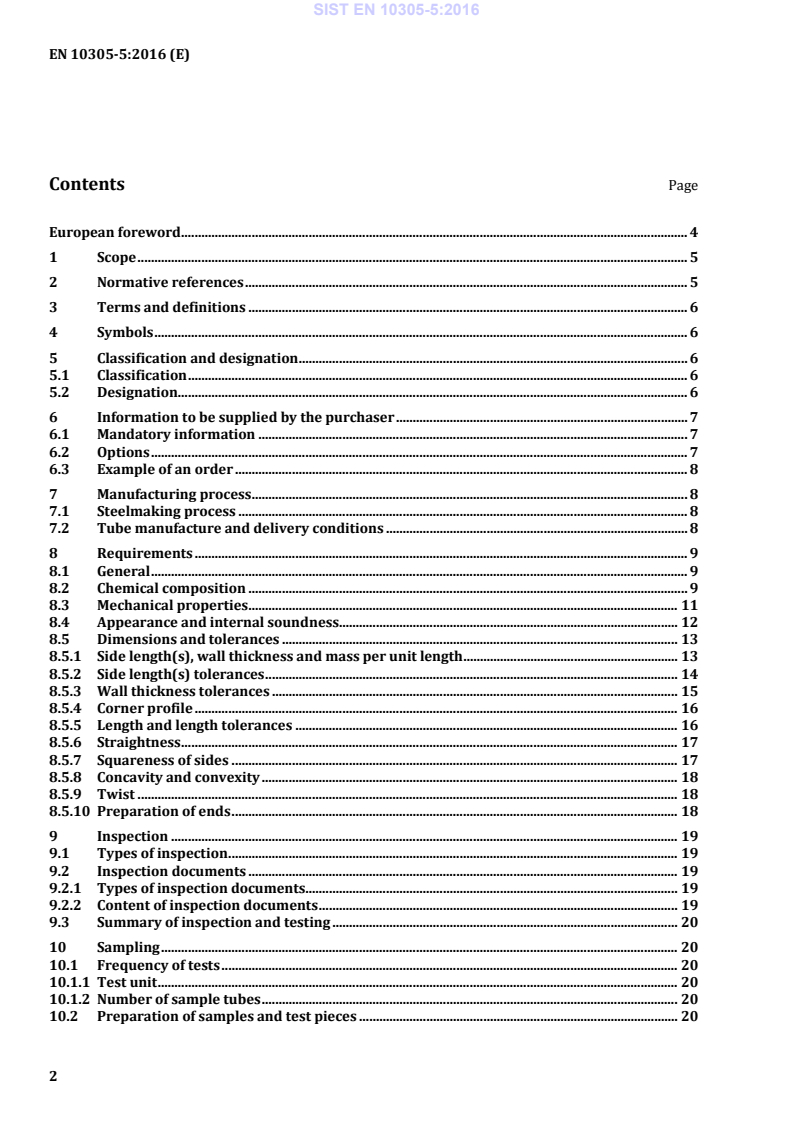

Option 1: specification of a steel grade not specified in this document (see 8.2);
Option 3: suitability for hot-dip galvanizing (see 8.2);
Option 4: surface condition for further processing (see 8.4.1);
Option 5: position of the weld line (see 8.4.2);
Option 6: removal of internal weld bead (see 8.4.3);
Option 8: measurement of surface roughness (see 8.4.5);
Option 9: specific surface roughness (see 8.4.5);
Option 11: non-destructive testing of the weld seam for the detection of longitudinal imperfections (see 8.4.8);
Option 19: reduced wall thickness tolerance (see 8.5.3);
Option 20: unilateral wall thickness tolerance (see 8.5.3);
Option 21: another specified length and/or tolerance (see 8.5.5);
Option 22: reduced maximum deviation from straightness (see 8.5.6);
Option 23: specified end finishing (see 8.5.10); SIST EN 10305-5:2016

Option 26: test unit with tubes from one cast only (see 10.1.1);
Option 28: alternative marking (see Clause 12);
Option 29: delivery without corrosion protection (see Clause 13);
Option 30: specified corrosion protection (see Clause 13);
Option 38: unbundled tubes or specific method of packaging (see Clause 13). 6.3 Example of an order 12 000 m tube, size H = 50 mm × B = 30 mm with a wall thickness of T = 3 mm in accordance with EN 10305-5, made of steel grade E235 in the normalized condition with strip surface condition S2, pickled, to be delivered in standard lengths of 6 m with a 3.1 inspection certificate in accordance with EN 10204: 12 000 m tubes – H 50 × B 30 × T 3 – EN 10305-5 – E235+N – S2 – standard length – inspection certificate 3.1 7 Manufacturing process 7.1 Steelmaking process The steelmaking process is at the discretion of the manufacturer with the exception that the open hearth (Siemens-Martin) process shall not be employed unless in combination with a secondary steelmaking or ladle refining process. Steels shall be fully killed. NOTE This excludes the use of rimming, balanced or semi-killed steel. 7.2 Tube manufacture and delivery conditions 7.2.1 The tubes shall be manufactured from strip by electric welding. The tubes shall not contain strip end welds. Possible surface conditions are: a) S1 (black); b) S2 (pickled); c) S3 (cold rolled); d) S4 (coated to an agreed condition). The surface conditions S1 and S3 apply for the strip. The surface condition S2 and S4 can apply for the strip or the tube; the purchaser should, where necessary, indicate the required condition at the time of enquiry and order. 7.2.2 Tubes made of the steel grades E155, E195, E235, E275 and E355 shall be supplied in one of the delivery conditions given in Table 1, except +CR2. Tubes made of the grades E190, E220, E260, E320, E370, E420, E460, E500, E550, E600 and E700 shall be supplied in the delivery condition +CR2. SIST EN 10305-5:2016
...
