EN 12046-1
EUROPEAN STANDARD
NORME EUROPÉENNE
August 2020
EUROPÄISCHE NORM
ICS 91.060.50; 91.190 Supersedes EN 12046-1:2003
English Version
Operating forces - Test method - Part 1: Windows
Forces de manoeuvre - Méthode d'essai - Partie 1 : Bedienkräfte - Prüfverfahren - Teil 1: Fenster
Fenêtre
This European Standard was approved by CEN on 12 July 2020.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 12046-1:2020 E
worldwide for CEN national Members.

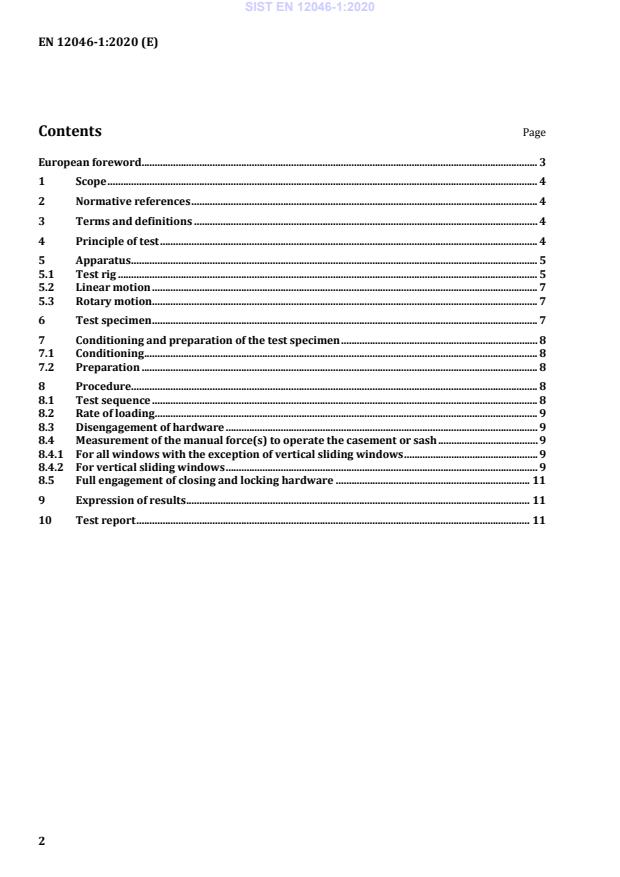

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Principle of test . 4
5 Apparatus . 5
5.1 Test rig . 5
5.2 Linear motion . 7
5.3 Rotary motion . 7
6 Test specimen . 7
7 Conditioning and preparation of the test specimen . 8
7.1 Conditioning . 8
7.2 Preparation . 8
8 Procedure. 8
8.1 Test sequence . 8
8.2 Rate of loading . 9
8.3 Disengagement of hardware . 9
8.4 Measurement of the manual force(s) to operate the casement or sash . 9
8.4.1 For all windows with the exception of vertical sliding windows . 9
8.4.2 For vertical sliding windows . 9
8.5 Full engagement of closing and locking hardware . 11
9 Expression of results . 11
10 Test report . 11

European foreword
This document (EN 12046-1:2020) has been prepared by Technical Committee CEN/TC 33 “Doors,
windows, shutters, building hardware and curtain walling”, the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by February 2021, and conflicting national standards
shall be withdrawn at the latest by February 2021.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 12046-1:2003.
This document is one of a series of standards for windows.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
1 Scope
This document specifies the test method for determining the force required when engaging or releasing
the hardware of a window and when commencing the movement of a casement or sash, in both opening
and closing directions.
This document is applicable to all types of openable windows where the movement is a manual
operation.
This document is applicable to products of any frame material.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 12519, Windows and pedestrian doors — Terminology
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 12519 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp
3.1
manual operating forces
manual operating forces indicate the force needed to manual operate windows
3.2
linear motion
movement of casement, sash or hardware in a straight line when acted upon by an operating force; also
movement through an arc of which the radius is large in proportion to the length of the arc
3.3
rotary motion
movement, usually of hardware but also applicable to a casement or sash, in a circular path when acted
upon by an operating torque, e.g. the turning action of the bow of a key
3.4
sash weight
weight of the opening or closing sash including its infill (e.g. glazing)
4 Principle of test
The principle consists of measuring the minimum static force or torque required:
— to release or lock the hardware (locks or handles);
— to commence opening of the casement or sash;
— to continue opening/ closing of the sash (in the case o
...
