EN 10323:2004

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Steel wire and wire products - Bead wireStahldraht und Drahterzeugnisse - ReifeneinlegedrahtFils et produits tréfilés en acier - Fil
pour tringleSteel wire and wire products - Bead wire77.140.65Jeklene žice, jeklene vrvi in verigeSteel wire, wire ropes and link chainsICS:Ta slovenski standard je istoveten z:EN 10323:2004SIST EN 10323:2004en01-november-2004SIST EN 10323:2004SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 10323September 2004ICSEnglish versionSteel wire and wire products - Bead wireFils et produits tréfilés en acier - Fil
pour tringleStahldraht und Drahterzeugnisse - ReifeneinlegedrahtThis European Standard was approved by CEN on 1 July 2004.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2004 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 10323:2004: ESIST EN 10323:2004

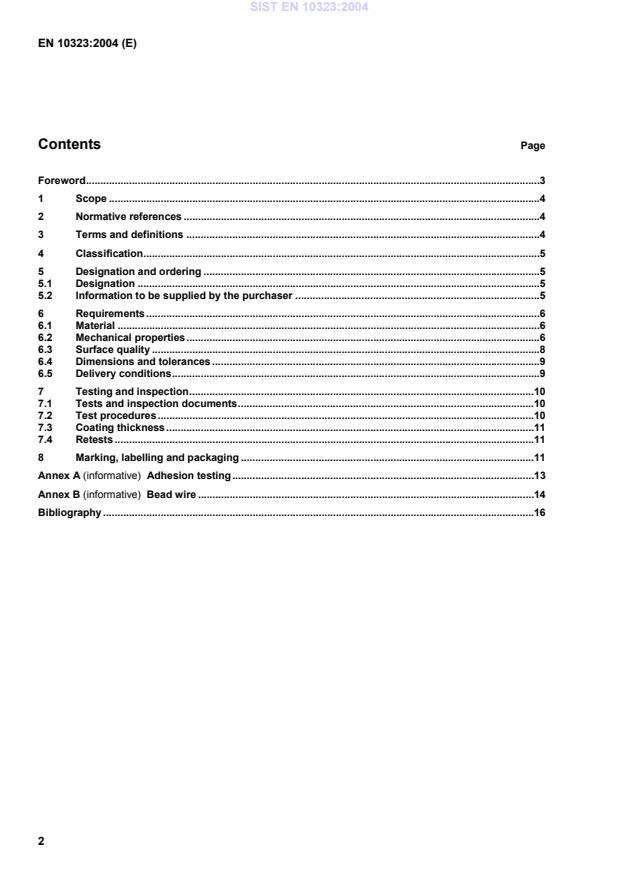

Adhesion testing.13 Annex B (informative)
Bead wire.14 Bibliography.16
EN 10244-1, Steel wire and wire products – Non-ferrous metallic coatings on steel wire – Part 1: General principles CR 10261, ECISS Information circular 11 – Iron and steel – Review of available methods of chemical analysis 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 nominal diameter: d value of the diameter, expressed in millimetres, by which the wire is designated and specified by the purchaser NOTE This is the basis on which the values of all relevant characteristics are determined for the acceptance of the wire 3.2 actual diameter arithmetic mean of two measurements of the diameter at right angles determined at any cross-section 3.3 out of roundness arithmetic difference between the maximum and minimum diameters measured in a transverse cross-section perpendicular to the wire axis SIST EN 10323:2004

It is supplied in two classes of tensile strength:  NT: Normal tensile strength;  HT: High tensile strength. 5 Designation and ordering 5.1 Designation For products supplied in accordance with this document, the designation shall state in the following order:  the term: bead wire;  for flat wire after the term bead wire: flat;  the coating: see 6.1.3;  the number of this document;  for flat wire the dimensions expressed as width x thickness: 3 x 1,5;  the tensile strength class (see 4);  for round wire the nominal diameter. EXAMPLE Bronze coated bead wire 1,295 mm high tensile strength conforming to EN 10323 shall be designated:
Bead wire bronze coated EN 10323 HT 1,295. 5.2 Information to be supplied by the purchaser The purchaser shall clearly state in his enquiry or order the product and following information:  for round wire the nominal diameter;  the desired quantity;  the unit and type of delivery;  if cumar residue coating is required (see 6.1.3);  if an adhesion test is required and if
...
