EN 1863-2:2004

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Glass in building - Heat strengthened soda lime silicate glass - Part 2: Evaluation of conformity/Product standardSteklo v stavbah - Toplotno utrjeno natrij-kalcijevo silikatno steklo - 2. del: Ovrednotenje skladnosti/standard za izdelekVerre dans la construction - Verre de silicate sodo-calcique thermoduci - Partie 2: Evaluation de la conformitéGlas im Bauwesen - Teilvorgespanntes Kalknatronglas - Teil 2: Konformitätsbewertung/Produktnorm81.040.20Steklo v gradbeništvuGlass in buildingICS:SIST EN 1863-2:2005enTa slovenski standard je istoveten z:EN 1863-2:200401-marec-2005SIST EN 1863-2:2005SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1863-2
October 2004 ICS 81.040.20
English version
Glass in building - Heat strengthened soda lime silicate glass - Part 2: Evaluation of conformity/Product standard
Verre dans la construction - Verre de silicate sodo-calcique thermodurci - Partie 2: Evaluation de la conformité
Glas im Bauwesen - Teilvorgespanntes Kalknatronglas - Teil 2: Konformitätsbewertung/Produktnorm This European Standard was approved by CEN on 27 May 2004.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36
B-1050 Brussels © 2004 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 1863-2:2004: E

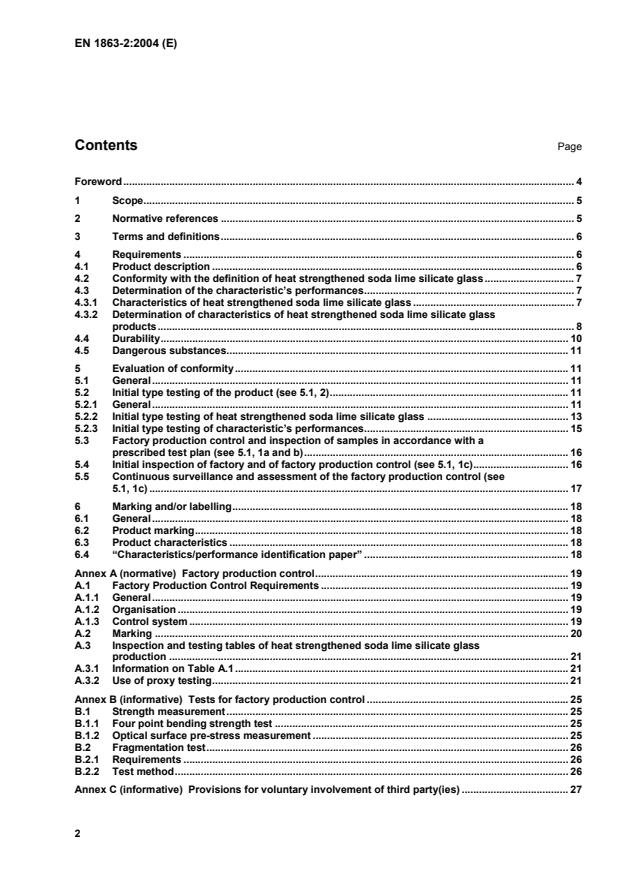

Factory production control.19 A.1 Factory Production Control Requirements.19 A.1.1 General.19 A.1.2 Organisation.19 A.1.3 Control system.19 A.2 Marking.20 A.3 Inspection and testing tables of heat strengthened soda lime silicate glass production.21 A.3.1 Information on Table A.1.21 A.3.2 Use of proxy testing.21 Annex B (informative)
Tests for factory production control.25 B.1 Strength measurement.25 B.1.1 Four point bending strength test.25 B.1.2 Optical surface pre-stress measurement.25 B.2 Fragmentation test.26 B.2.1 Requirements.26 B.2.2 Test method.26 Annex C (informative)
Provisions for voluntary involvement of third party(ies).27

Annex ZA (informative)
Clauses of this European Standard addressing the provisions of EU Construction Products Directive.28 Bibliography.38

1 Scope This document covers the evaluation of conformity and the factory production control of flat heat strengthened soda lime silicate glass for use in buildings.
Note: For glass products with electrical wiring or connections for, e.g. alarm or heating purposes, other directives, e.g. Low Voltage Directive, may apply.
2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 356, Glass in building - Security glazing - Testing and classification of resistance against manual attack EN 410, Glass in building - Determination of luminous and solar characteristics of glazing EN 572 – 1, Glass in building - Basic soda lime silicate glass products – Part 1: Definition and general physical and mechanical properties EN 572 – 2, Glass in building - Basic soda lime silicate glass products – Part 2: Float glass EN 572 – 4, Glass in building - Basic soda lime silicate glass products –Part 4: Drawn sheet glass EN 572 – 5, Glass in building - Basic soda lime silicate glass products – Part 5: Patterned glass EN 673, Glass in building – Determination of thermal transmittance (U value) – Calculation method EN 1063, Glass in building - Security glazing - Testing and classification of resistance against bullet attack EN 1096-1, Glass in building - Coated glass - Part 1: Definitions and classification EN 1096-2, Glass in building - Coated glass - Part 2: Requirements and test methods for class A, B and S coatings EN 1096-3, Glass in building - Coated glass - Part 3: Requirements and test methods for class C and D coatings EN 1863-1:2000, Glass in building – Heat strengthened soda lime silicate glass - Definition and description EN 12600, Glass in building - Pendulum test - Impact test method and classification for flat glass
EN 12758, Glass in building - Glazing and airborne sound insulation – Product descriptions and determination of properties
EN 12898, Glass in building - Determination of the emissivity prEN 13474, Glass in building - Design of glass panes

data from fire exposure roof tests EN 13541, Glass in building - Security glazing - Testing and classification of resistance against explosion pressure 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN 1863-1:2000 and the following apply. 3.1 initial type testing determination of the performance of a product (characteristic, durability), on the basis of either actual tests or other procedures (such as conventional, standardised, tabulated or general accepted values, standardised or recognised calculation methods, test reports when made available, …), in accordance with this document that demonstrates compliance with this document 3.2 test report document that covers the results of tests undertaken on a representative sample of the product from production or on a prototype design of the product 3.3 product description document that details the relevant parameters, e.g. process conditions, structure, etc, for defining a product that complies with the standard. It includes specific references to characteristics that are modified by the production process 3.4 significant change variation in performance beyond the permitted tolerance for the characteristic 4 Requirements 4.1 Product description For con
...
