EN ISO 717-1:2013
(Main)Acoustics - Rating of sound insulation in buildings and of building elements - Part 1: Airborne sound insulation (ISO 717-1:2013)
Acoustics - Rating of sound insulation in buildings and of building elements - Part 1: Airborne sound insulation (ISO 717-1:2013)
ISO 717-1:2013: a) defines single-number quantities for airborne sound insulation in buildings and of building elements such as walls, floors, doors, and windows; b) takes into consideration the different sound level spectra of various noise sources such as noise sources inside a building and traffic outside a building; c) gives rules for determining these quantities from the results of measurements carried out in one-third-octave or octave bands in accordance with ISO 10140-2, ISO 140-4, and ISO 140-5.
The single-number quantities in accordance with ISO 717-1:2013 are intended for rating airborne sound insulation and for simplifying the formulation of acoustical requirements in building codes. An additional single-number evaluation in steps of 0,1 dB is indicated for the expression of uncertainty (except for spectrum adaptation terms). The required numerical values of the single-number quantities are specified according to varying needs. The single-number quantities are based on results of measurements in one-third-octave bands or octave bands.
For laboratory measurements made in accordance with ISO 10140, single-number quantities should be calculated using one-third-octave bands only.
The rating of results of measurements carried out over an enlarged frequency range is dealt with in an annex.
Akustik - Bewertung der Schalldämmung in Gebäuden und von Bauteilen - Teil 1: Luftschalldämmung (ISO 717-1:2013)
Dieser Teil von ISO 717
a) legt Einzahlangaben für die Luftschalldämmung in Gebäuden und von Bauteilen wie Wänden, Decken, Türen und Fenstern fest;
b) berücksichtigt die verschiedenen Schallpegelspektren verschiedener Geräuschquellen wie die für Geräusche in einem Gebäude und die für Verkehrsgeräusche außerhalb eines Gebäudes;
c) enthält Regeln für die Ermittlung dieser Einzahlangaben aus den Ergebnissen von Messungen in Terz oder Oktavbändern nach ISO 10140 2, ISO 140 4 und ISO 140 5.
Die Einzahlangaben nach diesem Teil von ISO 717 sind für die Bewertung der Luftschalldämmung und für die Vereinfachung der Formulierung von akustischen Anforderungen in Bauvorschriften vorgesehen. Zum Zwecke der Angabe der Unsicherheit ist die Ermittlung einer zusätzlichen Einzahlangabe in 0,1-dB-Schritten enthalten (ausgenommen sind die Spektrum Anpassungswerte). Die erforderlichen numerischen Werte dieser Einzahlangaben werden für verschiedene Bedürfnisse festgelegt. Grundlage für die Einzahlangaben sind Ergebnisse aus Messungen in Terzbändern oder in Oktavbändern.
Bezüglich der Messungen in Prüfständen nach ISO 10140 sollten Einzahlangaben nur auf der Grundlage von Terzbändern berechnet werden.
Die Bewertung der Ergebnisse von Messungen über einen erweiterten Frequenzbereich wird im Anhang B behandelt.
Acoustique - Évaluation de l'isolement acoustique des immeubles et des éléments de construction - Partie 1: Isolement aux bruits aériens (ISO 717-1:2013)
L'ISO 717-1:2013
a) définit des valeurs uniques de l'isolement aux bruits aériens des immeubles et des éléments de construction tels que murs, planchers, portes et fenêtres,
b) prend en considération les différents spectres sonores de sources de bruit variées telles que des sources de bruit à l'intérieur d'un immeuble et du trafic à l'extérieur d'un immeuble, et
c) spécifie des règles de détermination de ces valeurs d'après les résultats de mesurages effectués dans des bandes de fréquences d'une largeur de tiers d'octave ou d'octave conformément à l'ISO 10140‑2, l'ISO 140‑4 et l'ISO 140‑5.
Les valeurs uniques spécifiées dans l'ISO 717-1:2013 sont destinées à indiquer la qualité de l'isolement aux bruits aériens et à faciliter l'énoncé des exigences en matière d'acoustique dans les règles techniques de la construction. Une évaluation unique complémentaire par pas de 0,1 dB est indiquée pour exprimer l'incertitude (sauf pour les termes d'adaptation à un spectre). Les valeurs numériques requises pour ces valeurs uniques sont spécifiées suivant les besoins. Les valeurs uniques sont basées sur des résultats de mesurages effectués par bandes de fréquences de tiers d'octave ou par bandes d'octave.
En ce qui concerne les mesures en laboratoire effectuées selon l'ISO 10140, il convient de calculer les valeurs uniques sur la base des bandes de tiers d'octave seulement.
L'évaluation des résultats des mesurages effectués dans une gamme étendue de fréquences est abordée dans une annexe.
Akustika - Vrednotenje zvočne izolirnosti v stavbah in zvočne izolirnosti gradbenih elementov - 1. del: Izolirnost pred zvokom v zraku (ISO 717-1:2013)
Ta del standarda ISO 717:
a) določa enoštevilčne vrednosti za izolirnost pred zvokom v zraku v stavbah in izolirnost gradbenih elementov, kot so stene, tla, vrata in okna;
b) upošteva različne spektre zvočnih ravni različnih virov hrupa, kot so viri hrupa v stavbi in hrup prometa zunaj nje;
c) določa pravila za opredeljevanje teh količin na podlagi rezultatov meritev, opravljenih v pasovih ene tretjine oktave ali oktavnih pasovih v skladu s standardi ISO 10140-2, ISO 140-4 in ISO 140-5. Enoštevilčne vrednosti v skladu s tem delom standarda ISO 717 so namenjene vrednotenju izolirnosti pred zvokom v zraku in poenostavitvi formulacije akustičnih zahtev v gradbenih predpisih. Dodatna ocena enoštevilčne vrednosti v korakih po 0,1 dB je navedena za izražanje merilne negotovosti (razen faktorjev prilagoditve spektra). Zahtevane številske vrednosti enoštevilčnih količin so opredeljene glede na različne potrebe. Enoštevilčne vrednosti temeljijo na rezultatih meritev v pasovih ene tretjine oktave ali oktavnih pasovih. Za laboratorijske meritve, opravljene v skladu s standardom ISO 10140, naj bi se enoštevilčne vrednosti izračunale izključno s pasovi ene tretjine oktave. Vrednotenje rezultatov meritev, opravljenih v večjem frekvenčnem obsegu, je obravnavano v dodatku B.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-maj-2013
1DGRPHãþD
SIST EN ISO 717-1:1997
SIST EN ISO 717-1:1997/A1:2006
$NXVWLND9UHGQRWHQMH]YRþQHL]ROLUQRVWLYVWDYEDKLQ]YRþQHL]ROLUQRVWLJUDGEHQLK
HOHPHQWRYGHO,]ROLUQRVWSUHG]YRNRPY]UDNX,62
Acoustics - Rating of sound insulation in buildings and of building elements - Part 1:
Airborne sound insulation (ISO 717-1:2013)
Akustik - Bewertung der Schalldämmung in Gebäuden und von Bauteilen - Teil 1:
Luftschalldämmung (ISO 717-1:2013)
Acoustique - Évaluation de l'isolement acoustique des immeubles et des éléments de
construction - Partie 1: Isolement aux bruits aériens (ISO 717-1:2013)
Ta slovenski standard je istoveten z: EN ISO 717-1:2013
ICS:
91.120.20 $NXVWLNDYVWDYEDK=YRþQD Acoustics in building. Sound
L]RODFLMD insulation
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN ISO 717-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2013
ICS 91.120.20 Supersedes EN ISO 717-1:1996
English Version
Acoustics - Rating of sound insulation in buildings and of
building elements - Part 1: Airborne sound insulation (ISO 717-
1:2013)
Acoustique - Évaluation de l'isolement acoustique des Akustik - Bewertung der Schalldämmung in Gebäuden und
immeubles et des éléments de construction - Partie 1: von Bauteilen - Teil 1: Luftschalldämmung (ISO 717-
Isolement aux bruits aériens (ISO 717-1:2013) 1:2013)
This European Standard was approved by CEN on 5 January 2013.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2013 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 717-1:2013: E
worldwide for CEN national Members.

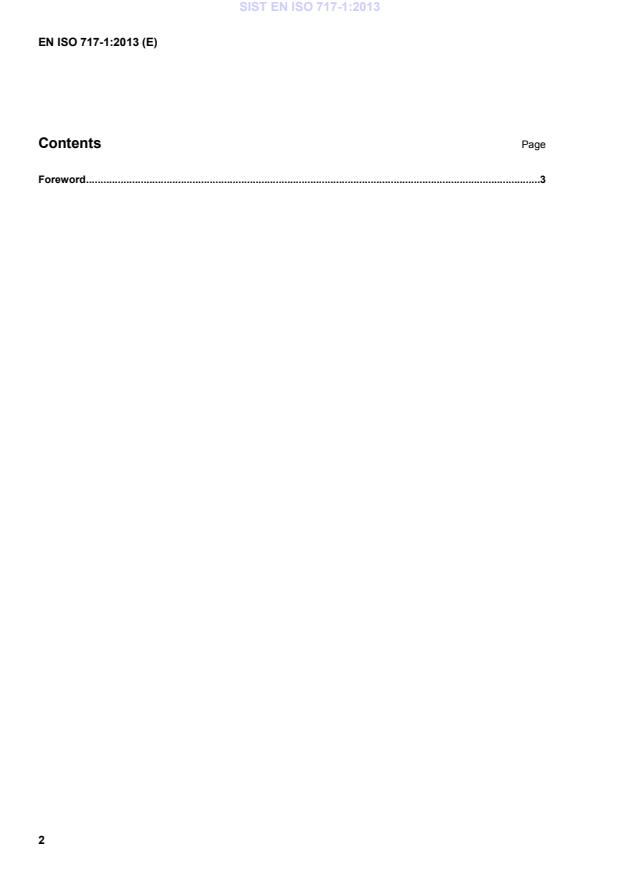

Contents Page
Foreword .3
Foreword
This document (EN ISO 717-1:2013) has been prepared by Technical Committee ISO/TC 43 “Acoustics” in
collaboration with Technical Committee CEN/TC 126 “Acoustic properties of building elements and of
buildings” the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by September 2013, and conflicting national standards shall be
withdrawn at the latest by September 2013.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 717-1:1996.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
Endorsement notice
The text of ISO 717-1:2013 has been approved by CEN as EN ISO 717-1:2013 without any modification.
INTERNATIONAL ISO
STANDARD 717-1
Third edition
2013-03-01
Acoustics — Rating of sound insulation
in buildings and of building elements —
Part 1:
Airborne sound insulation
Acoustique — Évaluation de l’isolement acoustique des immeubles et
des éléments de construction —
Partie 1: Isolement aux bruits aériens
Reference number
ISO 717-1:2013(E)
©
ISO 2013
ISO 717-1:2013(E)
© ISO 2013
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2013 – All rights reserved
ISO 717-1:2013(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Procedure for evaluating single-number quantities. 2
4.1 General . 2
4.2 Reference values . 3
4.3 Sound spectra . 3
4.4 Method of comparison . 3
4.5 Calculation of spectrum adaptation terms . 8
5 Statement of results . 8
5.1 General . 8
5.2 Statement of performance of building elements . 9
5.3 Statement of requirements and of performance of buildings . 9
Annex A (informative) Use of spectrum adaptation terms .10
Annex B (informative) Terms and spectra for an enlarged frequency range .12
Annex C (informative) Examples of the calculation of single-number quantities and spectrum
adaptation terms .15
Bibliography .18
ISO 717-1:2013(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International
Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies
casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 717-1 was prepared by Technical Committee ISO/TC 43, Acoustics, Subcommittee SC 2, Building acoustics.
This third edition cancels and replaces the second edition (ISO 717-1:1996), which has been technically
revised. It also incorporates the Amendment ISO 717-1:1996/Amd. 1:2006.
The purpose of this revised version is to:
— allow weighting steps of 0,1 dB to be used for expression of uncertainty;
— update references.
ISO 717 consists of the following parts, under the general title Acoustics — Rating of sound insulation in
buildings and of building elements:
— Part 1: Airborne sound insulation
— Part 2: Impact sound insulation
iv © ISO 2013 – All rights reserved
ISO 717-1:2013(E)
Introduction
Methods of measurement of airborne sound insulation of building elements and in buildings have been
standardized e.g. in ISO 10140-2, ISO 140-4, and ISO 140-5. The purpose of this part of ISO 717 is to
standardize a method whereby the frequency-dependent values of airborne sound insulation can be
converted into a single number characterizing the acoustical performance.
References to standards which provide data for single-number evaluation are meant to be examples and
therefore are not complete.
INTERNATIONAL STANDARD ISO 717-1:2013(E)
Acoustics — Rating of sound insulation in buildings and of
building elements —
Part 1:
Airborne sound insulation
1 Scope
This part of ISO 717:
a) defines single-number quantities for airborne sound insulation in buildings and of building elements
such as walls, floors, doors, and windows;
b) takes into consideration the different sound level spectra of various noise sources such as noise
sources inside a building and traffic outside a building;
c) gives rules for determining these quantities from the results of measurements carried out in one-
third-octave or octave bands in accordance with ISO 10140-2, ISO 140-4, and ISO 140-5.
The single-number quantities in accordance with this part of ISO 717 are intended for rating airborne
sound insulation and for simplifying the formulation of acoustical requirements in building codes. An
additional single-number evaluation in steps of 0,1 dB is indicated for the expression of uncertainty
(except for spectrum adaptation terms). The required numerical values of the single-number quantities
are specified according to varying needs. The single-number quantities are based on results of
measurements in one-third-octave bands or octave bands.
For laboratory measurements made in accordance with ISO 10140, single-number quantities should be
calculated using one-third-octave bands only.
The rating of results of measurements carried out over an enlarged frequency range is dealt with in Annex B.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 140-4:1998, Acoustics — Measurement of sound insulation in buildings and of buil
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
