EN 845-2:2003
(Main)Specification for ancillary components for masonry - Part 2: Lintels
Specification for ancillary components for masonry - Part 2: Lintels
This EN specifies requirements for prefabricated lintels for spans over clear openings up to a maximum of 4,5 m and made from steel, autoclaved aerated concrete, manufactured stone, concrete, prestressed concrete, fired clay units, calcium silicate units, natural stone units, or using a combination of these materials.
Festlegungen für Ergänzungsbauteile für Mauerwerk - Teil 2: Stürze
Diese Europäische Norm legt die Anforderungen an vorgefertigte Stürze, die aus Stahl, Porenbeton, Betonwerk-steinen, Beton, Mauerziegeln, Kalksandsteinen, Natursteinen oder aus einer Kombination dieser Baustoffe bestehen, für Stützweiten mit einer lichten Weite bis zu maximal 4,5 m fest.
Vorgefertigte Stürze können entweder vollständige Stürze oder der vorgefertigte Teil eines bauseits zu ergänzenden Sturzes sein.
Diese Europäische Norm gilt nicht für:
a) vollständig auf der Baustelle hergestellte Stürze;
b) Stürze, deren Zugzonen auf der Baustelle hergestellt werden;
c) Holzstürze;
d) unbewehrte Stürze aus Naturstein.
Lineare Bauteile für Stützweiten über 4,5 m in Mauerwerkswänden und lineare Bauteile, die unabhängig eine tragende Funktion erfüllen (z.B. Balken), sind nicht Gegenstand dieser Norm.
Spécifications pour composants accessoires de maçonnerie - Partie 2: Linteaux
La présente Norme européenne spécifie les prescriptions concernant les linteaux préfabriqués d'une portée maximale de 4,5 m au-dessus de l'ouverture libre, et réalisés en acier, béton cellulaire autoclavé, pierre artificielle, béton, éléments en terre cuite, éléments en silicate de calcium, éléments en pierre naturelle, ou en combinant ces matériaux.
Les linteaux préfabriqués peuvent être des linteaux complets ou constituer la partie préfabriquée d'un linteau composite.
Les types de linteau suivants ne sont pas couverts par la présente norme :
a) linteaux entièrement réalisés sur le chantier ;
b) linteaux dont les parties tendues sont réalisée sur le chantier ;
c) les linteaux en bois ;
d) linteaux en pierre naturelle, sans armature.
La présente norme ne traite pas des composants linéaires posés au-dessus d'ouvertures supérieures à 4,5 m dans des murs en maçonnerie et des composants linéaires destinés à être utilisés indépendamment, dans des rôles structurels (par exemple, les poutres).
Specifikacija za dodatne komponente zidovine - 2. del: Preklade
General Information
- Status
- Withdrawn
- Publication Date
- 15-Apr-2003
- Withdrawal Date
- 28-May-2013
- Technical Committee
- CEN/TC 125 - Masonry
- Drafting Committee
- CEN/TC 125 - Masonry
- Current Stage
- 9960 - Withdrawal effective - Withdrawal
- Start Date
- 29-May-2013
- Completion Date
- 29-May-2013
- Directive
- 89/106/EEC - Construction products
Relations
- Effective Date
- 22-Dec-2008
- Effective Date
- 08-Jun-2022
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Refers
EN 771-5:2011+A1:2015 - Specification for masonry units - Part 5: Manufactured stone masonry units - Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Refers
EN 10080:2005 - Steel for the reinforcement of concrete - Weldable reinforcing steel - General - Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Get Certified
Connect with accredited certification bodies for this standard

ICC Evaluation Service
Nonprofit organization that performs technical evaluations of building products.

Aboma Certification B.V.
Specialized in construction, metal, and transport sectors.
BBA (British Board of Agrément)
UK construction product certification.
Sponsored listings
Frequently Asked Questions
EN 845-2:2003 is a standard published by the European Committee for Standardization (CEN). Its full title is "Specification for ancillary components for masonry - Part 2: Lintels". This standard covers: This EN specifies requirements for prefabricated lintels for spans over clear openings up to a maximum of 4,5 m and made from steel, autoclaved aerated concrete, manufactured stone, concrete, prestressed concrete, fired clay units, calcium silicate units, natural stone units, or using a combination of these materials.
This EN specifies requirements for prefabricated lintels for spans over clear openings up to a maximum of 4,5 m and made from steel, autoclaved aerated concrete, manufactured stone, concrete, prestressed concrete, fired clay units, calcium silicate units, natural stone units, or using a combination of these materials.
EN 845-2:2003 is classified under the following ICS (International Classification for Standards) categories: 91.060.10 - Walls. Partitions. Facades; 91.080.30 - Masonry. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 845-2:2003 has the following relationships with other standards: It is inter standard links to EN 845-2:2001, EN 845-2:2013, EN 10088-2:2024, EN 846-9:2016, EN 990:2002, EN 10130:2006, EN ISO 1461:2022, EN 206-1:2000, EN 771-5:2011+A1:2015, EN 771-4:2011+A1:2015, EN 10080:2005, EN 12620:2002+A1:2008, EN 10346:2015, EN 772-11:2011, EN 771-1:2011+A1:2015. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 845-2:2003 is associated with the following European legislation: EU Directives/Regulations: 305/2011, 89/106/EEC; Standardization Mandates: M/116. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 845-2:2003 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-januar-2004
1DGRPHãþD
SIST EN 845-2:2002
Specifikacija za dodatne komponente zidovine - 2. del: Preklade
Specification for ancillary components for masonry - Part 2: Lintels
Festlegungen für Ergänzungsbauteile für Mauerwerk - Teil 2: Stürze
Spécifications pour composants accessoires de maçonnerie - Partie 2: Linteaux
Ta slovenski standard je istoveten z: EN 845-2:2003
ICS:
91.060.10
91.080.30
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 845-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2003
ICS 91.060.10; 91.080.30 Supersedes EN 845-2:2001
English version
Specification for ancillary components for masonry - Part 2:
Lintels
Spécification pour composants accessoires de maçonnerie Festlegungen für Ergänzungsbauteile für Mauerwerk - Teil
- Partie 2: Linteaux 2: Stürze
This European Standard was approved by CEN on 29 November 2002.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels
© 2003 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 845-2:2003 E
worldwide for CEN national Members.

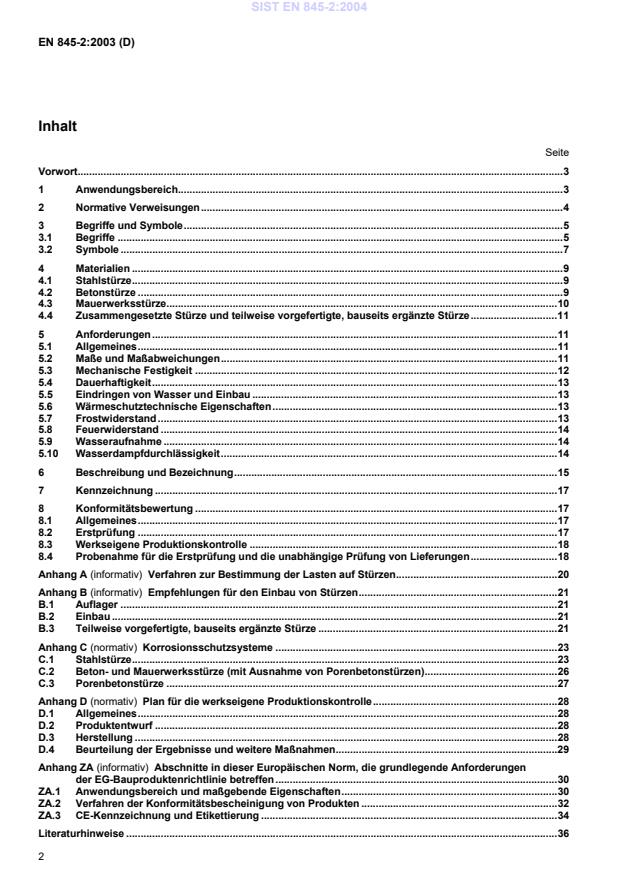

Contents Page
Foreword .4
1 Scope.5
2 Normative references.5
3 Terms, definitions and symbols .7
3.1 Terms and definitions.7
3.2 Symbols .9
4 Materials.12
4.1 Steel lintels .12
4.2 Concrete lintels .12
4.3 Masonry lintels .13
4.4 Combined and composite lintels.14
5 Requirements .14
5.1 General .14
5.2 Dimensions, mass and limit deviations.14
5.2.1 Dimensions .14
5.2.2 Mass per unit area.15
5.2.3 Bearing length .15
5.2.4 Deviation from declared values.15
5.3 Mechanical performance .15
5.3.1 General .15
5.3.2 Load bearing capacity and load ratios.15
5.3.3 Flexural resistance.16
5.3.4 Deflection .16
5.3.5 Shear resistance.16
5.4 Durability.16
5.4.1 General .16
5.4.2 Steel lintels .17
5.4.3 Concrete lintels and masonry lintels .17
5.5 Water penetration and installation .17
5.6 Thermal properties.17
5.7 Freeze/thaw resistance.17
5.7.1 General .17
5.7.2 Steel lintels .17
5.7.3 Concrete lintels .17
5.7.4 Masonry lintels .17
5.8 Resistance to fire .18
5.9 Water absorption.18
5.9.1 General .18
5.9.2 Steel lintels .18
5.9.3 Other lintels .18
5.10 Water vapour permeability .18
6 Description and designation.18
7 Marking.20
8 Evaluation of conformity .21
8.1 General .21
8.2 Initial type tests .21
8.3 Factory production control .22
8.4 Sampling for initial type testing and independent testing of consignments.22
Annex A (informative) Method for assessment of loads on lintels .24
(informative)
Annex B Recommendations for installation of lintels .25
B.1 Bearings .25
B.2 Installation .25
B.3 Composite lintels .26
(normative)
Annex C Corrosion protection systems .27
C.1 Steel lintels .27
C.2 Concrete and masonry lintels (except those manufactured using autoclaved
aerated concrete) .29
C.3 Lintels manufactured using autoclaved aerated concrete .30
Annex D (normative) Scheme of factory production control.32
D.1 General .32
D.2 Design .32
D.2.1 Design process.32
D.2.2 Communications .32
D.3 Production .32
D.3.1 Raw or incoming materials .32
D.3.2 Production process.32
D.3.3 Tests on the finished or part finished product .32
D.3.4 Equipment.32
D.4 Assessment of results and other actions.33
D.4.1 General .33
D.4.2 Assessment of results.33
D.4.3 Records .33
D.4.4 Traceability .33
D.4.5 Corrective action for non-conforming materials and products .33
Annex ZA (informative) Clauses of this European Standard addressing the provisions of
the EU Construction Products Directive .34
Bibliography .40
Foreword
This document (EN 845-2:2003) has been prepared by Technical Committee CEN/TC125 ’Masonry’, the
Secretariat of which is held by BSI, following initial preparation by Working Group 3.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by October 2003, and conflicting national standards
shall be withdrawn at the latest by January 2005.
This European Standard has been prepared under a mandate given to CEN by the European
Commission and the European Free Trade Association and supports the essential requirements of the
EU Construction Products Directive (89/106/EEC).
For relationship with EU Directives, see informative Annex ZA which is an integral part of this
standard.
In this European Standard the Annexes A and B are informative and the Annexes C and D are
normative.
This document supersedes EN 845-2:2001.
This Part has been modified, including the introduction of additional requirements, taking into account
the detailed answer by CEN/TC 125 to EC mandate M116 for masonry as well as details of the
relationship of this new harmonized European Standard with the EU Directives.
EN 845 “Specification for ancillary components for masonry” consists of the following Parts:
— Part 1: Wall ties, tension straps, hangers and brackets.
— Part 2: Lintels.
— Part 3: Bed joint reinforcement of steel meshwork.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Czech
Republic, Denmark, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Luxembourg,
Malta, Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and the United
Kingdom.
1 Scope
This European Standard specifies requirements for prefabricated lintels for spans over clear openings
in a masonry wall up to a maximum of 4,5 m and made from steel, autoclaved aerated concrete,
manufactured stone, concrete, fired clay units, calcium silicate units, natural stone units, or using a
combination of these materials.
Prefabricated lintels can be either complete lintels or the prefabricated part of a composite lintel.
This European Standard is not applicable to:
a) Lintels completely made on site;
b) Lintels, the tensile parts of which are made on site;
c) Timber lintels;
d) Natural stone lintels, not reinforced.
Linear components spanning clear openings greater than 4,5 m in masonry walls and linear
components intended for use independently in a structural role (e.g. beams) are not covered by this
standard.
2 Normative references
This European Standard incorporates by dated or undated reference, provisions from other
publications. These normative references are cited at the appropriate places in the text and the
publications are listed hereafter. For dated references, subsequent amendments to or revisions of any
of these publications apply to this European Standard only when incorporated in it by amendment or
revision. For undated references the latest edition of the publication referred to applies (including
amendments).
EN 206-1: 2000, Concrete — Part1: Specifications, performance, production and conformity.
EN 771-1, Specification for masonry units — Part 1: Clay masonry units.
EN 771-2, Specification for masonry units — Part 2: Calcium silicate masonry units.
prEN 771-3, Specification for masonry units — Part 3: Aggregate concrete masonry units. (Dense and
light-weight aggregates)
prEN 771-4, Specification for masonry units — Part 4: Autoclaved aerated concrete masonry units.
prEN 771-5, Specification for masonry units — Part 5: Manufactured stone.
prEN 771-6, Specification for masonry units — Part 6: Natural stone masonry units.
EN 772-1, Methods of test for masonry units — Part 1: Determination of compressive strength.
EN 772-11, Methods of test for masonry units — Part 11: Determination of water absorption of
aggregate concrete, manufactured stone and natural stone masonry units due to capillary action and
the initial rate of water absorption of clay masonry units.
EN 772-22, Methods of test for masonry units — Part 22: Determination of freeze/thaw resistance of
clay masonry units.
EN 846-9, Methods of test for ancillary components for masonry — Part 9: Determination of flexural
resistance, and shear resistance of lintels.
EN 846-11, Methods of test for ancillary components for masonry — Part 11: Determination of
dimensions and bow of lintels.
EN 846-13, Methods of test for ancillary components for masonry — Part 13: Determination of
resistance to impact, abrasion and corrosion of organic coatings.
EN 990: 2002, Test methods for verification of corrosion protection of reinforcement in autoclaved
aerated concrete and lightweight aggregate concrete with open structure.
EN 998-2, Specification for mortar for masonry — Part 2: Masonry mortar.
Masonry and masonry products - Methods for determining design thermal values.
EN 1745
EN 10025, Hot rolled products of non-alloy structural steels; Technical delivery conditions.
prEN 10080, Steel for the reinforcement of concrete — Weldable reinforcing steel.
EN 10088-1, Stainless steels - Part 1: List of stainless steels.
EN 10088-2, Stainless steels - Part 2: Technical delivery conditions for sheet/plate and strip for
general purposes.
EN 10088-3, Stainless steels - Part 3: Technical delivery conditions for semi-finished products, bars,
rods and sections for general purposes.
EN 10111, Continuously hot rolled low carbon steel sheet and strip for cold forming — Technical
delivery conditions.
EN 10130, Cold rolled low carbon steel flat products for cold forming — Technical delivery conditions.
prEN 10138, Prestressing steels.
EN 10142, Continuously hot-dip zinc coated low carbon steels strip and sheet for cold forming —
technical delivery conditions.
EN 10147, Continuously hot-dip zinc coated structural steels strip and sheet — Technical delivery
conditions.
prEN 12602, Prefabricated reinforced components of autoclaved aerated concrete.
EN 12620, Aggregates for concrete
prEN 13501-2, Fire classification of construction products and building elements —
Part 2: Classification using data from fire resistance tests excluding ventilation services.
EN ISO 1461, Hot dip galvanized coatings on fabricated iron and steel articles — Specifications and
test methods ISO 1461:1999.
ISO 1463, Metallic and oxide coatings. Measurement of coating thickness — Microscopical method.
3 Terms, definitions and symbols
3.1 Terms and definitions
For the purposes of this European Standard the following terms and definitions apply.
NOTE 1 Examples of lintel types are shown in Figures 1 to 3. The figures are only for illustration of lintel
types. Other details such as bearings, thermal insulation systems and damp proof courses are not shown.
NOTE 2 General dimensions defined in clause 3 are illustrated in Figures 3 and 4.
3.1.1
bearing length
length of the end of a lintel which bears on its support
3.1.2
clear opening
clear distance between lintel supports
3.1.3
combined lintel
lintel consisting of two or more structural elements each one acting with compression and tension
zones
3.1.4
composite lintel
lintel comprising a prefabricated part and a complementary element of in-situ masonry or concrete
above, acting together
3.1.5
composite lintel height
overall height of the tension and compression zones of a composite lintel
3.1.6
concrete lintel
lintel manufactured using reinforced or prestressed concrete or manufactured stone or autoclaved
aerated concrete
3.1.7
declared value
value for a product property, determined in accordance with this standard, that a manufacturer is
confident of achieving bearing, in mind the variability of the manufacturing process
3.1.8
effective span
distance between the centres of the bearing of a lintel, or the clear opening spanned by the lintel plus
the overall height of the lintel including any complementary element, whichever is the lesser
3.1.9
flexural resistance
mean uniformly distributed load at which failure of a sample of lintel specimens occurs (or a lower
load at which tests are stopped in accordance with the recommendations of the manufacturer of the
lintel)
3.1.10
flexural load at the stated deflection
total of the uniformly distributed load which can be sustained by a lintel without resulting in a
deflection greater than the stated deflection
3.1.11
lintel
lineal element supporting load over an opening in a masonry wall
3.1.12
lintel height
overall height of the prefabricated part of a lintel
3.1.13
lintel length
overall length of the prefabricated lintel
3.1.14
load bearing capacity
mean value for a sample of lintels of the total of the uniformly distributed load at failure or at an
extreme deflection, whichever is the lesser
3.1.15
load ratio
the ratio of inner leaf load to outer leaf load on a lintel supporting a double-leaf or cavity wall
3.1.16
masonry lintel
lintel comprising one or more shell casing units completed by the incorporation within the shell casing
of reinforced or prestressed concrete
3.1.17
shear resistance
mean shear load at which failure of a sample of lintel specimens occurs (or a lower load at which tests
are stopped in accordance with the recommendations of the manufacturer of the lintel)
3.1.18
shell casing unit
preformed component with one or more channels into which is incorporated either reinforced or
prestressed concrete
3.1.19
single lintel
prefabricated lintel acting alone
3.1.20
stated deflection
manufacturer's chosen value of deflection that is not to be exceeded in the intended use of the lintel
3.1.21
steel lintel
lintel manufactured from steel
3.1.22
structural shell casing unit
shell casing unit which is made of a material with a compressive strength not less than that of the infill
concrete
3.2 Symbols
NOTE General dimensions are illustrated in Figures 3 and 4.
B is the smallest width of a structural shell casing unit specimen, in mm, (see Figure 5);
b is the bearing length, in mm;
d is the composite lintel height, in mm;
c
d is the lintel height, in mm;
l
dis the deflection at the flexural load P, in mm;
dis the stated deflection, in mm;
d
H is the cut length of a structural shell casing unit specimen, in mm, (see Figure 5);
l is the lintel length, in mm;
l is the clear opening, in mm;
o
l is the effective span, in mm;
e
P is the flexural load at the deflection d, in kN or kN/m;
P is the declared value of flexural load at the stated deflection d, in kN or kN/m;
d
d
Key
1 Supported masonry
2 Single lintel
Figure 1 — Example of a single lintel (see 3.1.19)
Key
1 Supported masonry
2 Complementary element (masonry or concrete)
3 Prefabricated part
Figure 2 — Example of a composite lintel (see 3.1.4)
d
l
d d
c
l
Key
1 supported masonry - outer leaf 3 Inner leaf lintel
2 Outer leaf lintel 4 Supported masonry – inner leaf
Figure 3 — Example of a combined lintel (see 3.1.3)
d
l
l
l
b
O
l
E
Key
1 Lintels other than composite lintels
2 Composite lintel
Figure 4 — General dimensions
4 Materials
4.1 Steel lintels
Steel lintels shall be fabricated from carbon steel conforming to EN 10025, EN 10142, EN 10147,
EN 10130, EN 10111, or from stainless steels conforming to EN 10088.
4.2 Concrete lintels
Concrete lintels shall be fabricated from reinforced or prestressed concrete with or without non
structural shell casing units.
Stainless steel reinforcement shall conform to EN 10088.
d
l
d
l
d
c
Until the availability of weldable reinforcing steels in accordance with EN 10080 and prestressing
steels in accordance with EN 10138, such reinforcement shall conform to national specifications valid
in the intended place of use.
For lintels covered by this standard, wire diameters shall be 2,5 mm or greater.
The concrete shall conform to EN 206-1 (material clauses only).
Autoclaved aerated concrete shall conform to prEN 12602 (definition and material clauses only).
4.3 Masonry lintels
Masonry lintels shall be fabricated using reinforced or prestressed concrete, masonry mortar, and
structural or non-structural shell casing masonry units in accordance with the following standards:
a) concrete and steel (see 4.2);
b) masonry mortar (see EN 998-2);
c) shell casing units shall be made from:
1) clay (see EN 771-1, materials clauses only);
2) calcium silicate (see EN 771-2, materials clauses only);
3) aggregate concrete (see prEN 771-3, materials clauses only);
4) autoclaved aerated concrete (see prEN 771-4, materials clauses only);
5) manufactured stone (see prEN 771-5, materials clauses only);
6) natural stone (see prEN 771-6, materials clauses only).
NOTE All shell casing units may contribute to the mechanical performance of the lintel. However, where
their contribution is verified by calculation methods or the shell casing units are taken into account in
providing cover to the reinforcement, they are deemed to be structural shell casing units.
The compressive strength of structural shell casing units shall be determined in accordance with the
principles of EN 772-1 using a cut specimen. Specimen set up and dimensional relationships are
given in Figure 5.
Key
1 Two specimens tested together to achieve symmetrical loading
2 Cut length H equals smallest width B
Figure 5 — Specimens for compressive strength test on structural shell casing units
Corresponding mortar joints shall be selected to meet the design performance requirements of
e
the lintel, see footnote to Table C.3.
4.4 Combined and composite lintels
Where materials or component parts of either a combined lintel or composite lintel are not supplied as
part of the product, the materials or components required to complete the lintel shall be specified in
accordance with this or other European Standards or European technical approval.
5 Requirements
5.1 General
The requirements and properties specified in this standard shall be defined in terms of the test
methods and procedures referred to in this European Standard.
NOTE 1 Guidance on the use and installation of lintels is given in Annexes A and B.
NOTE 2 The conformity criteria given in 5.2 to 5.10 inclusive relate to initial type tests (see 8.2) and, where
relevant, consignment testing (see 8.4).
For production evaluation, conformity criteria in the factory production control documentation shall be
defined.
5.2 Dimensions, mass and limit deviations
5.2.1 Dimensions
The length, width and height of the lintel shall be declared and, in the case of non rectangular shapes
or cross sections, a drawing of the configuration with dimensions shall be given.
B
H
5.2.2 Mass per unit area
The mass and the mass per unit area on elevation of the lintel shall be declared. The mass shall be
determined from specimens sampled in accordance with clause 8 using instruments capable of
measuring and weighing the specimen to an error limit of 0,1 % of each reading. The mean mass of
the specimens shall be divided by the product of the mean overall length and the mean overall height
to give the mass per unit area on elevation. The deviation from the declared value of mass shall not
exceed 5 %.
5.2.3 Bearing length
The required minimum bearing length which shall be not less than 100 mm shall be declared.
NOTE The nature of the material upon which the lintel is to be supported may require a longer bearing
length.
5.2.4 Deviation from declared values
When sampled in accordance with clause 8 and measured by the method of EN 846-11, the
deviations from the declared values for dimensions and intended shapes or cross-sections shall not
exceed those given in Table 1.
Table 1 — Dimensional deviations
Dimension Limit deviation
Length ± 15 mm
Width and height ± 5 mm
Straightness or bow (horizontal and 0,5 % of the length, subject to a maximum value of
vertical curvature) 10 mm from the intended profile
Camber of prefabricated part of the 0,7 % of the length from the intended profile
composite lintel
5.3 Mechanical performance
5.3.1 General
The load bearing capacity and the flexural load at a stated deflection shall be declared from the
interpretation of test results. Where interpretation methods are used for a range of lintels, it shall be
possible to demonstrate a correlation between the adopted method and the relevant test methods
specified in this standard or, when required, the ultimate demonstration of compliance with this
standard shall be by testing.
NOTE See 3.1.7 for definition of the term ‘declared value’.
5.3.2 Load bearing capacity and load ratios
The requirements for flexural resistance in accordance with 5.3.3 and shear load resistance in
accordance with 5.3.5 shall be met in all cases.
NOTE The declared value of load bearing capacity is based on the lesser of the flexural resistance
(see 5.3.3) and twice the shear load resistance (see 5.3.5).
The load bearing capacity of the lintel shall be declared. Unless otherwise stated, this shall be the
value corresponding to the maximum clear opening taking into account the declared values of the
required minimum bearing length and the length of the lintel.
For composite lintels the load bearing capacity shall be the value for the complete lintel including the
complementary element, for which the information listed in Table 3 shall be specified.
For combined lintels the load bearing capacity shall be the value for the complete lintel for which the
information listed in Table 2 shall be specified.
Where lintels are intended to support two or more leaves of masonry, any restrictions on the
distribution of load across the width of the lintel in terms of the range of load ratios that can be used
shall be declared.
5.3.3 Flexural resistance
When sampled in accordance with clause 8 and tested by the method of EN 846-9, the flexural
resistance shall be greater than or equal to the declared value of load bearing capacity in accordance
with 5.3.2 and no individual value of flexural failure load shall be less than 90 % of the declared value
of load bearing capacity.
5.3.4 Deflection
The flexural load, P , at a stated deflection, d, which is not to be exceeded in use and which is not
d d
greater than 1/200 of the effective span shall be declared. When sampled in accordance with clause 8
and tested in accordance with EN 846-9, for flexural resistance, the mean deflection of the sample
measured at the flexural load, P , shall be less than or equal to the stated deflection d.
d d
Where lintels deflect horizontally as well as vertically, the stated deflection shall be the maximum
permitted in either direction.
NOTE Where users need to restrict the deflection in practice, d, to a value smaller than the stated deflection,
d, then the flexural load should be adjusted as follows:
d
dP
d
P =
d
d
5.3.5 Shear resistance
When sampled in accordance with clause 8 and tested by the method of EN 846-9, the shear
resistance shall be greater than or equal to 50 % of the declared value of load bearing capacity in
accordance with 5.3.2 and the shear failure load of any individual specimen shall be not less than
45 % of the declared value of load bearing capacity.
5.4 Durability
5.4.1 General
The materials for the manufacture of the lintels and their corrosion protection systems shall be
selected in accordance with 5.4.2 or 5.4.3 and the material/coating reference in accordance with
Annex C shall be declared.
NOTE The durability of performance characteristics against corrosion is dependent on both the condition of
exposure of the masonry and the material/coating specification. This European standard follows the state of
the art by giving material/coating specifications to suit.
5.4.2 Steel lintels
Steel lintels, other than those made from austenitic stainless steel, shall be protected against
corrosion in accordance with the requirements of C.1.
NOTE The corrosion protection required in any individual application will depend on the type of lintel,
whether a separate damp proof system is used, the degree of exposure and the climatic conditions and
therefore several grades of protection are given.
5.4.3 Concrete lintels and masonry lintels
The reinforcement of concrete and masonry lintels shall be protected against corrosion in accordance
with the requirements of C.2 and C.3.
The joints between the structural shell casing units and any grooves they contain shall be filled with
concrete or mortar. Where the joints are not filled, the units shall be considered to be non-structural.
5.5 Water penetration and installation
All necessary information on the correct procedure for installing the lintel to avoid the risk of water
penetration shall be provided.
NOTE For installation see Annex B.
5.6 Thermal properties
Details shall be provided of the thermal properties of the materials from which the lintel is made by
reference to thermal conductivity values given in EN 1745, or, where not given in that standard, by
reference to thermal conductivity values given in European Standards for the materials of
construction.
5.7 Freeze/thaw resistance
5.7.1 General
When relevant to the uses for which the lintel is put on the market and in all cases for lintels intended
to be used in external elements, lintels shall be declared as ‘freeze/thaw resistant’ or ‘not freeze/thaw
resistant’.
5.7.2 Steel lintels
Steel lintels may be classified as freeze/thaw resistant.
5.7.3 Concrete lintels
Lintels made with concrete conforming to EN 206-1 and meeting the requirements for exposure class
XF1 of EN 206-1: 2000 may be classified as ‘freeze thaw/resistant’.
NOTE Recommended limiting values according to EN 206 for class XF1 are maximum w/c ratio 0,55,
minimum strength class C30/37 and minimum cement content of 300 kg/m³ and aggregate in accordance
with prEN 12620 with sufficient freeze/thaw resistance.
5.7.4 Masonry lintels
Masonry lintels may be classified as ‘freeze/thaw resistant’ where the following conditions are met:
a) the concrete part meets the requirements of 5.7.3 to be classified as freeze/thaw resistant and;
b) the masonry material is similar to that used for masonry units conforming to the freeze/thaw
resistance requirements of the relevant Part of EN 771.
5.8 Resistance to fire
Where relevant to the uses for which the lintel type is put on the market, the resistance to fire shall be
classified on the basis of testing of a lintel, either as part of a wall with or without fire separating
function or as a beam, in accordance with prEN 13501-2. Alternatively, the classification may be
based on tabulated values for the material type and form as given in European Standards meeting the
provisions of the place of use.
NOTE All lintels can form part of a fire resisting construction when suitably protected. Where classification
is relevant, a lintel type may be classified for use in particular forms of construction, as verified from
tabulated values or by the interpretation of test data. Where a lintel type is intended for use in more than one
form of construction, tests may need to be performed on one or more test systems.
5.9 Water absorption
5.9.1 General
Where relevant to the uses for which the lintel is put on the market and in all cases for concrete and
masonry lintels to be used in exposed external elements, the water absorption coefficient due to
capillary action or the initial rate of water absorption, as relevant, shall be declared.
5.9.2 Steel lintels
Steel lintels may be classified as having a water absorption coefficient of zero.
5.9.3 Other lintels
When lintels other than steel lintels are sampled in accordance with clause 8 and tested by the
method of EN 772-11, for immersion times as specified in the relevant Part of EN 771, the initial rate
of water absorption of clay masonry lintels and the coefficient of water absorption of other lintels shall
be not greater than the declared values.
5.10 Water vapour permeability
When relevant to the uses for which a lintel, other than a steel lintel, is put on the market, the water
vapour diffusion coefficient (lower and upper values) in accordance with EN 1745 shall be declared.
NOTE This characteristic is not relevant for steel lintels.
6 Description and designation
The information to be supplied shall be as given in Tables 2 and 3.
Table 2 — Information to be provided for single lintel and combined lintel
Information Single lintel and combined lintel
reference
number
1 Load bearing capacity, in kN
Flexural load P at a stated deflection d, in kN or kN/m
d d
3 Water absorption of masonry unit, concrete and mortar components
4 Water vapour permeability where relevant
5 Mass (kg) and Mass per unit area of the lintel, in kg/m
6 freeze/thaw resistance where relevant
7 Material/coating specification in accordance with Annex C
8 Thermal performance
Resistance to fire (where relevant)
10 Lintel type
11 Minimum bearing length, in mm
12 Length, in mm
13 Width and Height, in mm
14 Configuration
15 Whether concrete lintels and masonry lintels are required to be rendered
16 Whether a damp proof course is required
17 Where relevant, the component parts of a combined lintel that are not supplied as part of
the product
Table 3 — Information to be provided for composite lintel
Information Composite lintel
reference
number
Load bearing capacity, in kN
Flexural load P at a stated deflection d, in kN or kN/m
d d
Water absorption of masonry unit, concrete and mortar components
Water vapour permeability where relevant
Mass (kg) Mass per unit area on elevation of the prefabricated part only of the
Lintel, in kg/m
freeze/thaw resistance where relevant
Material/coating specification in accordance with Annex C
Thermal performance
Resistance to fire
Table 3 — Information to be provided for composite lintel
Information Composite lintel
Lintel type
Minimum bearing length, in mm
Length, in mm
Width and height of the prefabricated part, in mm
Configuration
Minimum width of the complementary element, in mm
Height of the complementary element, in mm
Minimum bearing length, in mm
Whether concrete lintels and masonry lintels are required to be rendered
Whether a damp proof course is required
Types of masonry units that may be used
Specification of the materials in the complementary element including the minimum
compressive strength of masonry units in the direction parallel to the span of the
Lintel, in N/mm
Minimum mortar strength, in N/mm²
Minimum strength class of concrete
Instructions for the propping the lintel during construction including the maximum spacing
of props, in mm, and the load that can be applied during the installation of the lintel.
7 Marking
The following information shall be clearly and indelibly marked on the lintel or on its packaging,
delivery note, invoice or in the accompanying documentation, supplied with the product, the following
information:
a) The number and date of issue of this European Standard, EN 845-2;
b) The name or identifying mark and registered address of the manufacturer, or the manufacturer’s
authorised representative;
c) A unique reference number, name or code which will identify the product type, and relate it to its
description and designation and intended use.
In addition, the lintel shall be suitably marked to indicate its orientation in use and in the case of lintels
intended to support more than one masonry leaf that portion of the lintel which is to carry the inner
leaf and that which is to carry the outer.
NOTE For CE marking and labelling, ZA.3 applies. When annex ZA.3 requires the CE marking to be
accompanied by the same information as required by this clause the requirements of this clause can be
considered to have been met.
8 Evaluation of conformity
8.1 General
The manufacturer or his agent shall demonstrate compliance for his product with the requirements of
this European Standard and with the declared values for the product properties by carrying out both:
initial type testing of the product (see 8.2);
factory production control (see 8.3).
Alternative methods of test to the methods specified in this European Standard may be adopted
except for the initial type tests and in case of dispute, provided that these alternative methods satisfy
the following:
a) a relationship can be shown to exist between the results from the specified test and those from
the alternative test; and
b) the information on which the relationship is based is available.
8.2 Initial type tests
After completion of the development of a new product type and before commencement of
manufacture and offering for sale, appropriate initial type tests shall be carried out to confirm that the
properties predicted from the development meet the requirements of this standard and the values to
be declared for the product. The manufacturer shall also consider what constitutes a product type and
whether variations in certain dimensions in a specific range of lintels, especially length of the lintel,
can be encompassed within that product type for the purposes of determining the relevant product
performance characteristics. Whenever a change in the basic materials or manufacturing procedures
occurs, leading to what is considered to constitute a new product type being produced, the
appropriate initial type tests shall be repeated.
The tests to be conducted shall be the tests and/or interpretations as described in this standard for the
properties selected from the following list consistent with the product type's intended use:
a) material properties (compressive strength of shell casing units only)(see clause 4);
b) dimensions, mass and limit deviations (see 5.2);
c) load bearing capacity (see 5.3.);
d) flexural load, P , corresponding to stated deflection d (see 5.3.4);
d d
e) durability (see 5.4);
f) fire resistance (see 5.8);
g) water absorption (see 5.9).
The results of initial type tests shall be recorded and be available for inspection. Sampling for initial
type testing shall be in accordance with 8.4.
NOTE For the performance characteristics to be determined in order to address the CE marking provisions
(see Table ZA.1).
8.3 Factory production control
A factory production control scheme shall be established and documented in a manual prior to a new
product type being offered for sale. Subsequently, any fundamental changes in basic materials,
manufacturing procedures or the control scheme that affects the properties or use of a product shall
be recorded in the manual.
The manual shall includ
...
SLOVENSKI STANDARD
01-januar-2004
1DGRPHãþD
SIST EN 845-2:2002
Specifikacija za dodatne komponente zidovine - 2. del: Preklade
Specification for ancillary components for masonry - Part 2: Lintels
Festlegungen für Ergänzungsbauteile für Mauerwerk - Teil 2: Stürze
Spécifications pour composants accessoires de maçonnerie - Partie 2: Linteaux
Ta slovenski standard je istoveten z: EN 845-2:2003
ICS:
91.060.10 Stene. Predelne stene. Walls. Partitions. Facades
Fasade
91.080.30 Zidane konstrukcije Masonry
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPÄISCHE NORM
EN 845-2
EUROPEAN STANDARD
NORME EUROPÉENNE
April 2003
ICS 91.060.10; 91.080.30 Ersatz für EN 845-2:2001
Deutsche Fassung
Festlegungen für Ergänzungsbauteile für Mauerwerk - Teil 2:
Stürze
Specification for ancillary components for masonry - Part 2: Spécification pour composants accessoires de maçonnerie
Lintels - Partie 2: Linteaux
Diese Europäische Norm wurde vom CEN am 29.November 2002 angenommen.
Die CEN-Mitglieder sind gehalten, die CEN/CENELEC-Geschäftsordnung zu erfüllen, in der die Bedingungen festgelegt sind, unter denen
dieser Europäischen Norm ohne jede Änderung der Status einer nationalen Norm zu geben ist. Auf dem letzen Stand befindliche Listen
dieser nationalen Normen mit ihren bibliographischen Angaben sind beim Management-Zentrum oder bei jedem CEN-Mitglied auf Anfrage
erhältlich.
Diese Europäische Norm besteht in drei offiziellen Fassungen (Deutsch, Englisch, Französisch). Eine Fassung in einer anderen Sprache,
die von einem CEN-Mitglied in eigener Verantwortung durch Übersetzung in seine Landessprache gemacht und dem Management-
Zentrum mitgeteilt worden ist, hat den gleichen Status wie die offiziellen Fassungen.
CEN-Mitglieder sind die nationalen Normungsinstitute von Belgien, Dänemark, Deutschland, Finnland, Frankreich, Griechenland, Irland,
Island, Italien, Luxemburg, Malta, Niederlande, Norwegen, Österreich, Portugal, Schweden, Schweiz, der Slowakei, Spanien, der
Tschechischen Republik und dem Vereinigten Königreich.
EUROPÄISCHES KOMITEE FÜR NORMUNG
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
Management-Zentrum: rue de Stassart, 36 B-1050 Brüssel
© 2003 CEN Alle Rechte der Verwertung, gleich in welcher Form und in welchem Ref. Nr. EN 845-2:2003 D
Verfahren, sind weltweit den nationalen Mitgliedern von CEN
vorbehalten.
Inhalt
Seite
Vorwort.3
1 Anwendungsbereich.3
2 Normative Verweisungen.4
3 Begriffe und Symbole.5
3.1 Begriffe .5
3.2 Symbole .7
4 Materialien .9
4.1 Stahlstürze.9
4.2 Betonstürze .9
4.3 Mauerwerksstürze.10
4.4 Zusammengesetzte Stürze und teilweise vorgefertigte, bauseits ergänzte Stürze.11
5 Anforderungen.11
5.1 Allgemeines.11
5.2 Maße und Maßabweichungen.11
5.3 Mechanische Festigkeit .12
5.4 Dauerhaftigkeit.13
5.5 Eindringen von Wasser und Einbau .13
5.6 Wärmeschutztechnische Eigenschaften.13
5.7 Frostwiderstand.13
5.8 Feuerwiderstand .14
5.9 Wasseraufnahme .14
5.10 Wasserdampfdurchlässigkeit.14
6 Beschreibung und Bezeichnung.15
7 Kennzeichnung .17
8 Konformitätsbewertung .17
8.1 Allgemeines.17
8.2 Erstprüfung .17
8.3 Werkseigene Produktionskontrolle .18
8.4 Probenahme für die Erstprüfung und die unabhängige Prüfung von Lieferungen.18
Anhang A (informativ) Verfahren zur Bestimmung der Lasten auf Stürzen.20
Anhang B (informativ) Empfehlungen für den Einbau von Stürzen.21
B.1 Auflager .21
B.2 Einbau .21
B.3 Teilweise vorgefertigte, bauseits ergänzte Stürze .21
Anhang C (normativ) Korrosionsschutzsysteme .23
C.1 Stahlstürze.23
C.2 Beton- und Mauerwerksstürze (mit Ausnahme von Porenbetonstürzen).26
C.3 Porenbetonstürze .27
Anhang D (normativ) Plan für die werkseigene Produktionskontrolle.28
D.1 Allgemeines.28
D.2 Produktentwurf .28
D.3 Herstellung .28
D.4 Beurteilung der Ergebnisse und weitere Maßnahmen.29
Anhang ZA (informativ) Abschnitte in dieser Europäischen Norm, die grundlegende Anforderungen
der EG-Bauproduktenrichtlinie betreffen.30
ZA.1 Anwendungsbereich und maßgebende Eigenschaften.30
ZA.2 Verfahren der Konformitätsbescheinigung von Produkten .32
ZA.3 CE-Kennzeichnung und Etikettierung .34
Literaturhinweise .36
Vorwort
Dieses Dokument (EN 845-2:2003) wurde vom Technischen Komitee CEN/TC 125 “Mauerwerk” erarbeitet, dessen
Sekretariat vom BSI gehalten wird.
Diese Europäische Norm muss den Status einer nationalen Norm erhalten, entweder durch Veröffentlichung eines
identischen Textes oder durch Anerkennung bis Oktober 2003, und etwaige entgegenstehende nationale Normen
müssen bis Januar 2005 zurückgezogen werden.
Diese Europäische Norm wurde auf der Grundlage eines von der Europäischen Kommission und der Europäischen
Freihandelszone an CEN erteilten Mandates erstellt und unterstützt die wesentlichen Anforderungen der EG-
Bauproduktenrichtlinie (89/106/EWG).
Die Beziehungen zu EG-Richtlinien ergeben sich aus dem informativen Anhang ZA, der Bestandteil dieser Norm ist.
Die Anhänge A und B dieser Europäischen Norm sind informativ; die Anhänge C und D sind normativ.
Dieses Dokument ersetzt EN 845-2:2001.
Diese Norm enthält Änderungen gegenüber der vorherigen Fassung einschließlich der Aufnahme zusätzlicher
Anforderungen durch das CEN/TC 125, um das EG-Mandat M 116 für Mauerwerk zu berücksichtigen, sowie
Angaben zu der Beziehung dieser neuen harmonisierten Europäischen Norm zu EG-Richtlinien.
Die Normenreihe EN 845 Festlegungen für Ergänzungsbauteile für Mauerwerk besteht aus den folgenden Teilen:
� Teil 1: Maueranker, Zugbänder, Auflager und Konsolen
� Teil 2: Stürze
� Teil 3: Lagerfugenbewehrung aus Stahl
Entsprechend der CEN/CENELEC-Geschäftsordnung sind die nationalen Normungsinstitute der folgenden Länder
gehalten, diese Europäische Norm zu übernehmen: Belgien, Dänemark, Deutschland, Finnland, Frankreich,
Griechenland, Irland, Island, Italien, Luxemburg, Malta, die Niederlande, Norwegen, Österreich, Portugal,
Schweden, die Schweiz, die Slowakei, Spanien, die Tschechische Republik, Ungarn und das Vereinigte
Königreich.
1 Anwendungsbereich
Diese Europäische Norm legt die Anforderungen an vorgefertigte Stürze, die aus Stahl, Porenbeton,
Betonwerksteinen, Beton, Mauerziegeln, Kalksandsteinen, Natursteinen oder aus einer Kombination dieser Baustoffe
bestehen, für Stützweiten mit einer lichten Weite bis zu maximal 4,5 m fest.
Vorgefertigte Stürze können entweder vollständige Stürze oder der vorgefertigte Teil eines bauseits zu ergänzenden
Sturzes sein.
Diese Europäische Norm gilt nicht für:
a) vollständig auf der Baustelle hergestellte Stürze;
b) Stürze, deren Zugzonen auf der Baustelle hergestellt werden;
c) Holzstürze;
d) unbewehrte Stürze aus Naturstein.
Lineare Bauteile für Stützweiten über 4,5 m in Mauerwerkswänden und lineare Bauteile, die unabhängig eine
tragende Funktion erfüllen (z.B. Balken), sind nicht Gegenstand dieser Norm.
2 Normative Verweisungen
Diese Europäische Norm enthält durch datierte oder undatierte Verweisungen Festlegungen aus anderen
Publikationen. Diese normativen Verweisungen sind an den jeweiligen Stellen im Text zitiert, und die Publikationen
sind nachstehend aufgeführt. Bei datierten Verweisungen gehören spätere Änderungen oder Überarbeitungen
dieser Publikationen nur zu dieser Europäischen Norm, falls sie durch Änderung oder Überarbeitung eingearbeitet
sind. Bei undatierten Verweisungen gilt die letzte Ausgabe der in Bezug genommenen Publikation (einschließlich
Änderungen).
EN 206-1:2000, Beton – Teil 1: Festlegung, Eigenschaften, Herstellung und Konformität.
EN 771-1, Festlegungen für Mauersteine – Teil 1: Mauerziegel.
EN 771-2, Festlegungen für Mauersteine – Teil 2: Kalksandsteine.
prEN 771-3, Festlegungen für Mauersteine – Teil 3: Mauersteine aus Beton (mit dichten und porigen Zuschlägen).
prEN 771-4, Festlegungen für Mauersteine – Teil 4: Porenbetonsteine.
prEN 771-5, Festlegungen für Mauersteine – Teil 5: Betonwerksteine.
prEN 771-6, Festlegungen für Mauersteine – Teil 6: Natursteine.
EN 772-1, Prüfverfahren für Mauersteine – Teil 1: Bestimmung der Druckfestigkeit.
EN 772-11, Prüfverfahren für Mauersteine – Teil 11: Bestimmung der kapillaren Wasseraufnahme von Mauersteinen
aus Beton, Betonwerksteinen und Natursteinen sowie der anfänglichen Wasseraufnahme von Mauerziegeln.
EN 772-22, Prüfverfahren für Mauersteine – Teil 22: Bestimmung des Frost-Tau-Widerstandes von Mauerziegeln.
EN 846-9, Prüfverfahren für Ergänzungsbauteile für Mauerwerk — Teil 9: Bestimmung der Biege- und
Schubwiderstandsfähigkeit von Stürzen.
EN 846-11, Prüfverfahren für Ergänzungsbauteile für Mauerwerk — Teil 11: Bestimmung der Maße und der
Überhöhung von Stürzen.
EN 846-13, Prüfverfahren für Ergänzungsbauteile für Mauerwerk — Teil 13: Bestimmung der Schlagfestigkeit, des
Abriebwiderstands und der Korrosionsbeständigkeit von organischen Beschichtungen.
EN 990:2002, Prüfverfahren zur Überprüfung des Korrosionsschutzes der Bewehrung in dampfgehärtetem
Porenbeton und in haufwerksporigem Leichtbeton.
EN 998-2, Festlegungen für Mörtel für Mauerwerk – Teil 2: Mauermörtel.
EN 1745 , Mauerwerk und Mauerwerksprodukte — Verfahren zur Ermittlung von Wärmeschutzrechenwerten.
EN 10025, Warmgewalzte Erzeugnisse aus unlegierten Baustählen; Technische Lieferbedingungen.
prEN 10080, Betonbewehrungsstahl — Schweißgeeigneter gerippter Betonstahl.
EN 10088-1, Nichtrostende Stähle — Teil 1: Verzeichnis der nichtrostenden Stähle.
EN 10088-2, Nichtrostende Stähle — Teil 2: Technische Lieferbedingungen für Blech und Band für allgemeine
Verwendung.
EN 10088-3, Nichtrostende Stähle — Teil 3: Technische Lieferbedingungen für Halbzeug, Stäbe, Walzdraht und
Profile für allgemeine Verwendung.
EN 10111, Kontinuierlich warmgewalztes Band und Blech aus weichen Stählen zum Kaltumformen – Technische
Lieferbedingungen.
EN 10130, Kaltgewalzte Flacherzeugnisse aus weichen Stählen zum Kaltumformen – Technische Lieferbedingungen.
prEN 10138, Spannstähle.
EN 10142, Kontinuierlich feuerverzinktes Band und Blech aus weichen Stählen zum Kaltumformen — Technische
Lieferbedingungen.
EN 10147, Kontinuierlich feuerverzinktes Band und Blech aus Baustählen – Technische Lieferbedingungen.
prEN 12602, Vorgefertigte bewehrte Bauteile aus dampfgehärtetem Porenbeton.
EN 12620, Gesteinskörnungen für Beton.
prEN 13501-2, Klassifizierung von Bauprodukten und Bauarten zu ihrem Brandverhalten — Teil 2: Klassifizierung mit
den Ergebnissen aus den Feuerwiderstandsprüfungen, mit Ausnahme von Lüftungsanlagen.
EN ISO 1461, Durch Feuerverzinken auf Stahl aufgebrachte Zinküberzüge (Stückverzinken) — Anforderungen und
Prüfung (ISO 1461:1999).
ISO 1463, Metallic and oxide coatings; Measurement of coating thickness — Microscopical method.
3 Begriffe und Symbole
3.1 Begriffe
Für die Anwendung dieser Europäischen Norm gelten die folgenden Begriffe.
ANMERKUNG 1 Beispiele für Sturzarten sind in den Bildern 1 bis 3 dargestellt. Die Bilder dienen lediglich der
Veranschaulichung der Sturzarten. Weitere Einzelheiten wie Auflager, Wärmedämmsysteme und Feuchtesperrschichten sind
nicht dargestellt.
ANMERKUNG 2 Die in Abschnitt 3 definierten Hauptmaße sind in den Bildern 3 und 4 dargestellt.
3.1.1
Auflagerlänge
Länge des Endes eines Sturzes, das auf dem Auflager liegt
3.1.2
lichte Weite
lichter Abstand zwischen den Auflagern des Sturzes
3.1.3
zusammengesetzter Sturz
Sturz aus zwei oder mehreren tragenden Bauteilen, von denen jedes mit Zug- und Druckzonen wirkt
3.1.4
teilweise vorgefertigter, bauseits ergänzter Sturz
Sturz, der aus einem vorgefertigten Bauteil besteht und bauseits durch Aufsetzen eines Bauteils aus Mauerwerk oder
Aufbringen von Beton ergänzt wird, wobei die beiden Bauteile zusammenwirken
3.1.5
Höhe des vorgefertigten, bauseits ergänzten Sturzes
Gesamthöhe der Zug- und Druckzonen eines vorgefertigten, bauseits ergänzten Sturzes
3.1.6
Betonsturz
Sturz, der aus Stahlbeton, Spannbeton, Beton für Betonwerkstein oder Porenbeton hergestellt wurde
3.1.7
deklarierter Wert
Wert, von dessen zuverlässiger Einhaltung der Hersteller unter Berücksichtigung der Prüfgenauigkeit und der im
Rahmen des Herstellungsverfahrens liegenden Schwankungen ausgeht
3.1.8
Stützweite
Abstand zwischen den Auflagermitten eines Sturzes oder die vom Sturz überspannte lichte Weite zuzüglich der
Gesamthöhe des Sturzes einschließlich ergänzender Bauteile, wobei der kleinere Wert maßgebend ist
3.1.9
Biegefestigkeit
mittlere gleichmäßig verteilte Last, die bei einer Sammelprobe aus Sturzprüfkörpern zum Versagen führt (oder eine
geringere Last, bei der die Prüfungen nach den Empfehlungen des Herstellers der Stürze beendet werden)
3.1.10
Belastung bei festgelegter Durchbiegung
Gesamtwert der gleichmäßig verteilten Last, die ein Sturz aufnehmen kann, ohne dass die festgelegte Durchbiegung
überschritten wird
3.1.11
Sturz
Balken, der Lasten über einer Öffnung in einer Mauerwerkswand aufnimmt
3.1.12
Höhe des Sturzes
Gesamthöhe des vorgefertigten Teils eines Sturzes
3.1.13
Länge des Sturzes
Gesamtlänge des vorgefertigten Sturzes
3.1.14
Tragfähigkeit
Mittelwert aus den an einer Sammelprobe aus Sturzprüfkörpern erzielten Ergebnissen entweder bei einer
gleichmäßig verteilten Bruchlast oder bei einem Grenzwert der Durchbiegung, wobei der kleinere Wert maßgebend
ist.
3.1.15
Lastaufteilung
Verhältnis der Last der inneren Wandschale zur Last der äußeren Wandschale auf einen Sturz, der eine Wand aus
zweischaligem Mauerwerk stützt
3.1.16
Mauerwerkssturz
Sturz, der aus einem oder mehreren trogförmigen Formstein(en) besteht und durch das Einbringen von Stahl- oder
Spannbeton in den trogförmigen Formstein vervollständigt wird
3.1.17
Schubtragfähigkeit
mittlere Schublast, die bei einer Sammelprobe aus Sturzprüfkörpern zum Versagen führt (oder eine geringere Last,
bei der die Prüfungen nach den Empfehlungen des Herstellers beendet werden)
3.1.18
trogförmiger Formstein
vorgeformtes Bauteil mit einem oder mehreren Kanälen, in die entweder Stahl- oder Spannbeton eingebracht wird
3.1.19
vorgefertigter Sturz
einzeln wirkender vorgefertigter Sturz
3.1.20
festgelegte Durchbiegung
vom Hersteller gewählter Wert für die Durchbiegung, der beim vorgesehenen Einsatz des Sturzes nicht überschritten
werden darf
3.1.21
Stahlsturz
aus Stahl hergestellter Sturz
3.1.22
tragender trogförmiger Formstein
Formstein, der aus einem Baustoff besteht, dessen Druckfestigkeit mindestens der des Füllbetons entspricht
3.2 Symbole
ANMERKUNG Die Hauptmaße sind in den Bildern 3 und 4 dargestellt.
B kleinste Breite des Prüfkörpers eines tragenden trogförmigen Formsteins, in mm (siehe Bild 5);
b Auflagerlänge, in mm;
d Höhe des teilweise vorgefertigten, bauseits ergänzten Sturzes, in mm;
c
d Höhe des Sturzes, in mm;
l
� Durchbiegung bei der Biegebeanspruchung P, in mm;
� festgelegte Durchbiegung, in mm;
d
H Schnittlänge eines Prüfkörpers aus einem tragenden trogförmigen Formstein, in mm (siehe Bild 5);
l Länge des Sturzes, in mm;
l lichte Weite, in mm;
o
l Stützweite, in mm;
e
P Belastung bei der Durchbiegung �, in kN oder kN/m;
P deklarierter Wert für die Belastung bei der festgelegten Durchbiegung � , in kN oder kN/m.
d d
Legende
1 aufliegendes Mauerwerk
2 vorgefertigter Sturz
Bild 1 — Beispiel eines vorgefertigten Sturzes (siehe 3.1.19)
Legende
1 aufliegendes Mauerwerk
2 ergänzendes Bauteil (Mauerwerk oder Beton)
3 vorgefertigtes Bauteil
Bild 2 — Beispiel eines teilweise vorgefertigten, bauseits ergänzten Sturzes (siehe 3.1.4)
Legende
1 aufliegendes Mauerwerk – äußere Wandschale 3 innere Wandschale des Sturzes
2 äußere Wandschale des Sturzes 4 aufliegendes Mauerwerk – innere Wandschale
Bild 3 — Beispiel eines zusammengesetzten Sturzes (siehe 3.1.3)
Legende
1 Stürze mit Ausnahme von teilweise vorgefertigten, bauseits ergänzten Stürzen
2 teilweise vorgefertigter, bauseits ergänzter Sturz
Bild 4 — Hauptmaße
4 Materialien
4.1 Stahlstürze
Stahlstürze sind aus Kohlenstoffstählen nach EN 10025, EN 10142, EN 10147, EN 10130, EN 10111 oder aus nicht-
rostenden Stählen nach EN 10088 zu fertigen.
4.2 Betonstürze
Betonstürze sind aus Stahl- oder Spannbeton mit oder ohne tragende(n) trogförmige(n) Formsteine(n) herzustellen.
Die Bewehrung aus nichtrostendem Stahl muss EN 10088 entsprechen.
Bis schweißbare Bewehrungsstähle nach EN 10080 sowie Spannstähle nach EN 10138 verfügbar sind, müssen
Bewehrungen aus diesen Materialien die national festgelegten Anforderungen, die am vorgesehenen Ort der
Verwendung gelten, erfüllen.
Für die in dieser Norm behandelten Stürze müssen die Stabdurchmesser � 2,5 mm betragen.
Der Beton muss EN 206-1 entsprechen (dies gilt nur für die materialbezogenen Abschnitte).
Porenbeton muss prEN 12602 entsprechen (dies gilt nur für die Definitionen und die materialbezogenen Abschnitte).
4.3 Mauerwerksstürze
Mauerwerksstürze sind aus Stahl- oder Spannbeton, Mauermörtel und tragenden oder nichttragenden trogförmigen
Formsteinen nach den folgenden Normen herzustellen:
a) Beton und Stahl (siehe 4.2);
b) Mauermörtel (siehe EN 998-2);
c) trogförmige Formsteine aus:
1) Ziegelmaterial (siehe EN 771-1, nur materialbezogene Abschnitte);
2) Kalksandstein (siehe EN 771-2, nur materialbezogene Abschnitte);
3) Beton (siehe prEN 771-3, nur materialbezogene Abschnitte);
4) Porenbeton (siehe prEN 771-4, nur materialbezogene Abschnitte);
5) Betonwerkstein (siehe prEN 771-5, nur materialbezogene Abschnitte);
6) Naturstein (siehe prEN 771-6, nur materialbezogene Abschnitte).
ANMERKUNG Alle trogförmigen Formsteine können zur mechanischen Festigkeit des Sturzes beitragen. Wird jedoch ihr
Beitrag durch Berechnung nachgewiesen bzw. werden sie bei der Berechnung der Betondeckung berücksichtigt, gelten sie als
tragende Bauteile.
Die Druckfestigkeit tragender trogförmiger Formsteine ist nach EN 772-1 an einem herausgeschnittenen Prüfkörper
zu bestimmen. Die Anordnung des Prüfkörpers und die Maßverhältnisse sind in Bild 5 dargestellt.
Legende
1 Um eine symmetrische Belastung zu erzielen, werden zwei Prüfkörper zusammen geprüft.
2 Die Länge des herausgeschnittenen Teils H entspricht der kleinsten Breite B.
Bild 5 — Prüfkörper für die Druckfestigkeitsprüfung von tragenden trogförmigen Formsteinen
e
Die Mörtelfugen sind so zu wählen, dass die Leistungsanforderungen für den Sturz erfüllt werden, siehe Fußnote in
Tabelle C.3.
4.4 Zusammengesetzte Stürze und teilweise vorgefertigte, bauseits ergänzte Stürze
Werden Materialien oder Bestandteile von zusammengesetzten Stürzen bzw. von teilweise vorgefertigten, bauseits
ergänzten Stürzen nicht als Teil des Produktes mitgeliefert, sind die Materialien oder Bauteile, die zur Ergänzung
des Sturzes benötigt werden, nach dieser oder einer anderen Europäischen Norm oder nach einer Europäischen
Technischen Zulassung festzulegen.
5 Anforderungen
5.1 Allgemeines
Die in dieser Norm festgelegten Anforderungen und Eigenschaften sind hinsichtlich der Prüfverfahren sowie der
anderen Verfahren, auf die in dieser Europäischen Norm Bezug genommen wird, zu definieren.
ANMERKUNG 1 Hinweise zur Verwendung und zum Einbau von Stürzen werden in den Anhängen A und B gegeben.
ANMERKUNG 2 Die in 5.2 bis 5.10 angegebenen Konformitätskriterien beziehen sich auf Erstprüfungen (siehe 8.2) und –
sofern erforderlich - die Prüfung von Lieferungen (siehe 8.4).
Zur Bewertung der Produktion sind Konformitätskriterien im Handbuch der werkseigenen Produktionskontrolle
festzulegen.
5.2 Maße und Maßabweichungen
5.2.1 Maße
Die Länge, Breite und Höhe des Sturzes sind anzugeben. Bei nicht rechtwinkligen Formen oder Querschnitten ist
eine bemaßte Ausführungszeichnung beizufügen.
5.2.2 Längenbezogene Masse
Sowohl die Masse als auch die längenbezogene Masse des Sturzes sind anzugeben. Die Masse ist an Prüfkörpern,
die nach Abschnitt 8 entnommen wurden, mit einer Wägeeinrichtung zu bestimmen, mit der eine Wägung der
Prüfkörper auf 0,1 % der Masse des Prüfkörpers vorgenommen werden kann. Die mittlere Masse der Prüfkörper ist
durch das Produkt aus dem Mittelwert der Gesamtlänge multipliziert mit dem Mittelwert der Höhe zu teilen, um die
längenbezogene Masse zu erhalten. Die Abweichung vom deklarierten Wert darf 5 % nicht überschreiten.
5.2.3 Auflagerlänge
Die erforderliche Mindestauflagerlänge, die mindestens 100 mm sein muss, ist anzugeben.
ANMERKUNG Aufgrund der Beschaffenheit des Materials, auf dem der Sturz aufgelagert wird, kann eine größere
Auflagerlänge erforderlich sein.
5.2.4 Abweichungen von den deklarierten Werten
Erfolgt die Probenahme nach Abschnitt 8 und die Messung nach EN 846-11, darf die Abweichung der Maße und der
vorgesehenen Formen oder Querschnitte von den deklarierten Werten die in Tabelle 1 angegebenen Werte nicht
überschreiten.
Tabelle 1 — Maßabweichungen
Maß Abweichung
Länge ± 15
Breite und Höhe ± 5
Geradlinigkeit oder Überhöhung (horizontale und 0,5 % der Länge, höchstens jedoch 10 mm vom
vertikale Krümmung) vorgesehenen Profil
Krümmung des vorgefertigten Teils des teilweise 0,7 % der Länge vom vorgesehenen Profil
vorgefertigten, bauseits ergänzten Sturzes
5.3 Mechanische Festigkeit
5.3.1 Allgemeines
Die Werte für die Tragfähigkeit und die Belastung bei einer festgelegten Durchbiegung sind anzugeben, wobei die
Werte auf Prüfergebnissen beruhen müssen. Sofern Verfahren der Auslegung auf eine Reihe von Stürzen
angewendet werden, ist eine Korrelation zwischen dem gewählten Verfahren und den in dieser Norm festgelegten
Prüfverfahren nachzuweisen, oder - sofern erforderlich - hat der endgültige Nachweis der Übereinstimmung mit dieser
Norm durch eine Prüfung zu erfolgen.
ANMERKUNG Siehe 3.1.7 für die Definition des Begriffes "deklarierter Wert".
5.3.2 Tragfähigkeit und Lastaufteilungen
Die Anforderungen an die Biegetragfähigkeit nach 5.3.3 und die Schubtragfähigkeit nach 5.3.5 sind stets zu erfüllen.
ANMERKUNG Der deklarierte Wert der Tragfähigkeit beruht entweder auf der Biegetragfähigkeit (siehe 5.3.3) oder dem
zweifachen Wert der Schubtragfähigkeit (siehe 5.3.5), wobei der kleinere Wert maßgebend ist.
Die Tragfähigkeit des Sturzes ist anzugeben. Sofern nicht anders angegeben, ist dies der Wert für die maximale lichte
Weite, wobei die deklarierten Werte für die erforderliche Mindestauflagerung der Enden des Sturzes und die Länge
des Sturzes zu berücksichtigen sind.
Bei teilweise vorgefertigten, bauseits ergänzten Stürzen, für die Angaben nach der Tabelle 3 zu machen sind, muss
die Tragfähigkeit dem Wert für den vollständigen Sturz einschließlich des Ergänzungsbauteils entsprechen.
Bei zusammengesetzten Stürzen, für die Angaben nach der Tabelle 2 zu machen sind, muss die Tragfähigkeit dem
Wert für den vollständigen Sturz entsprechen.
Wenn Stürze für die Auflagerung von zwei oder mehreren Mauerwerksschalen vorgesehen sind, sind sämtliche
Einschränkungen bezüglich der Lastverteilung über die Breite des Sturzes hinsichtlich der anzuwendenden
Lastaufteilungen anzugeben.
5.3.3 Biegetragfähigkeit
Erfolgt die Probenahme nach Abschnitt 8 und die Prüfung nach EN 846-9, muss die Biegetragfähigkeit mindestens
dem deklarierten Tragfähigkeitswert nach 5.3.2 entsprechen, und kein Einzelwert für die Biegebruchlast darf weniger
als 90 % des deklarierten Tragfähigkeitswertes betragen.
5.3.4 Durchbiegung
Die Belastung P bei einer festgelegten Durchbiegung � , die beim Einsatz nicht überschritten werden und höchstens
d d
1/200 der Stützweite betragen darf, ist anzugeben. Erfolgt die Probenahme nach Abschnitt 8 und die Prüfung der
Biegetragfähigkeit nach EN 846-9, darf die bei der Belastung P gemessene mittlere Durchbiegung der Probe die
d
festgelegte Durchbiegung � nicht überschreiten.
d
Wenn sich Stürze sowohl in horizontaler als auch in vertikaler Richtung durchbiegen, muss die festgelegte Durchbie-
gung die höchstzulässige Durchbiegung für jede Richtung sein.
ANMERKUNG Wenn der Anwender in der Praxis eine Beschränkung der Durchbiegung � auf einen niedrigeren Wert als die
festgelegte Durchbiegung � wünscht, sollte die Belastung wie folgt angepasst werden:
d
�P
d
P �
�
d
5.3.5 Schubtragfähigkeit
Erfolgt die Probenahme nach Abschnitt 8 und die Prüfung nach EN 846-9, muss die Schubtragfähigkeit mindestens
50 % des deklarierten Wertes der Tragfähigkeit nach 5.3.2 entsprechen, und die Schubbruchlast darf bei keinem
Prüfkörper 45 % des deklarierten Wertes der Tragfähigkeit unterschreiten.
5.4 Dauerhaftigkeit
5.4.1 Allgemeines
Die Materialien für die Herstellung der Stürze und ihre Korrosionsschutzsysteme sind nach 5.4.2 oder 5.4.3 auszu-
wählen. Das Kurzzeichen für das Material und den Überzug ist nach Anhang C anzugeben.
ANMERKUNG Die Dauerhaftigkeit gegenüber Korrosion hängt sowohl von der Art der Beanspruchung des Mauerwerks als
auch vom festgelegten Material und Überzug ab. Diese Europäische Norm widerspiegelt den Stand der Technik, indem darin
geeignete Festlegungen zum Material und Überzug angegeben werden.
5.4.2 Stahlstürze
Stahlstürze, die nicht aus austenitischem rostfreien Stahl hergestellt wurden, sind nach den Anforderungen von C.1
gegen Korrosion zu schützen.
ANMERKUNG Das für die jeweilige Anwendung erforderliche Korrosionsschutzsystem richtet sich nach der Art des Sturzes,
der Verwendung eines separaten Feuchtesperrsystems, dem Beanspruchungsgrad und den klimatischen Bedingungen,
weshalb mehrere Güteklassen für den Schutz angegeben sind.
5.4.3 Beton- und Mauerwerksstürze
Die Bewehrung von Stürzen aus Beton oder Mauerwerk ist nach den Anforderungen von C.2 und C.3 gegen
Korrosion zu schützen.
Die Fugen zwischen den tragenden trogförmigen Formsteinen und sämtliche enthaltenen Nuten sind mit Beton oder
Mörtel zu verfüllen. Werden die Fugen nicht verfüllt, so gelten die Steine als nichttragend.
5.5 Eindringen von Wasser und Einbau
Sämtliche zur ordnungsgemäßen Durchführung des Einbaus des Sturzes benötigten Angaben sind zur Verfügung
stellen, um die Gefahr des Eindringens von Wasser zu vermeiden.
ANMERKUNG Bezüglich des Einbaus wird auf Anhang B verwiesen.
5.6 Wärmeschutztechnische Eigenschaften
Einzelheiten bezüglich des wärmeschutztechnischen Verhaltens der Materialien, aus denen die Stürze bestehen,
sind durch Bezugnahme auf die in EN 1745 angegebenen Werte für die Wärmeleitfähigkeit bzw. – sofern nicht dort
enthalten - auf Werte für die Wärmeleitfähigkeit der Baustoffe nach Europäischen Normen anzugeben.
5.7 Frostwiderstand
5.7.1 Allgemeines
Sofern für die Einsatzbereiche, für die die Stürze in den Handel gebracht werden, maßgebend sowie für alle Stürze,
die für die Verwendung in Außenbauteilen vorgesehen sind, sind Stürze entweder als "frostbeständig" oder "nicht
frostbeständig" zu deklarieren.
5.7.2 Stahlstürze
Stahlstürze dürfen als frostbeständig eingestuft werden.
5.7.3 Betonstürze
Stürze aus Beton nach EN 206-1, die die Anforderungen der Expositionsklasse XF1 nach EN 206-1:2000 erfüllen,
dürfen als frostbeständig eingestuft werden.
ANMERKUNG Nach EN 206 sind die empfohlenen Grenzwerte für die Klasse XF1: maximaler Wasserzementwert 0,55,
Mindestdruckfestigkeitsklasse C30/37 und Mindestzementgehalt 300 kg/m³ sowie Gesteinskörnungen nach EN 12620 mit
ausreichendem Frostwiderstand.
5.7.4 Mauerwerksstürze
Mauerwerksstürze dürfen als frostbeständig eingestuft werden, wenn die folgenden Bedingungen erfüllt werden:
a) der Betonteil erfüllt die in 5.7.3 angegebenen Anforderungen und darf daher als frostbeständig eingestuft
werden;
b) hinsichtlich des Materials gleicht das Mauerwerk Mauersteinen, die den Anforderungen an den
Frostwiderstand nach dem entsprechenden Teil von EN 771 genügen.
5.8 Feuerwiderstand
Sofern für die Verwendungszwecke, für die die Sturzart in den Handel gebracht wird, erforderlich, ist der
Feuerwiderstand auf der Grundlage einer Prüfung am Sturz entweder als Teil einer Mauer mit oder ohne
raumabschließende Funktion oder als Träger nach prEN 13501-2 einzustufen. Alternativ dazu darf die
Klassifizierung auf Tabellenwerten für die jeweilige Materialart und Form nach Europäischen Normen entsprechend
den Bestimmungen des Verwendungsortes beruhen.
ANMERKUNG Sofern sie entsprechend geschützt sind, dürfen alle Stürze einen Bestandteil einer feuerwiderstandsfähigen
Konstruktion bilden. Sofern eine Klassifizierung erforderlich ist, darf eine Sturzart für die Verwendung in bestimmten
Konstruktionen eingestuft werden, sofern der Nachweis nach Tabellenwerten oder durch Auslegung von Prüfergebnissen
erfolgt. Ist eine Sturzart für die Verwendung in mehreren Konstruktionsarten vorgesehen, könnten Prüfungen an einem oder
mehreren Prüfsystemen erforderlich sein.
5.9 Wasseraufnahme
5.9.1 Allgemeines
Sofern für die Verwendungszwecke, für die der Sturz in den Handel gebracht wird, erforderlich sowie bei allen
Stürzen aus Beton oder Mauerwerk für die Verwendung in ungeschützten Außenbauteilen ist der
Wasseraufnahmekoeffizient auf Grund der Kapillarwirkung oder die anfängliche Wasseraufnahme, wie zutreffend,
anzugeben.
5.9.2 Stahlstürze
Stahlstürze dürfen als Bauteile mit einem Wasseraufnahmekoeffizienten von Null eingestuft werden.
5.9.3 Weitere Stürze
Werden Stürze, ausgenommen Stahlstürze, nach Abschnitt 8 als Proben entnommen und nach dem in EN 772-11
beschriebenen Verfahren geprüft, darf die anfängliche Wasseraufnahme von Stürzen aus Ziegelmauerwerk bzw.
der Wasseraufnahmekoeffizient aller anderen Stürze bei Eintauchzeiten nach dem entsprechenden Teil der
Normenreihe EN 771 den deklarierten Wert nicht überschreiten.
5.10 Wasserdampfdurchlässigkeit
Sofern für die Verwendungszwecke, für die die Stürze in den Handel gebracht werden, erforderlich, ist sowohl der
Mindest- als auch der Höchstwert des Wasserdampf-Diffusionskoeffizienten nach EN 1745 anzugeben.
ANMERKUNG Diese Eigenschaft gilt nicht für Stahlstürze.
6 Beschreibung und Bezeichnung
Die zur Verfügung zu stellenden Angaben sind in den Tabellen 2 und 3 angegeben.
Tabelle 2 — Angaben zu vorgefertigten und zusammengesetzten Stürzen, die zur Verfügung zu stellen sind
Laufende
Vorgefertigte und zusammengesetzte Stürze
Nummer
1 Tragfähigkeit, in kN
Belastung P bei einer festgelegten Durchbiegung � in kN oder kN/m
d d,
3 Wasseraufnahme von Mauersteinen bzw. von Beton- oder Mörtelbauteilen
4 Wasserdampfdurchlässigkeit, sofern erforderlich
5 Masse (kg) und längenbezogene Masse des Sturzes, in kg/m²
6 Frostwiderstand, sofern erforderlich
7 Festlegungen zu Material/Überzug nach Anhang C
8 Wärmeschutztechnische Eigenschaften
9 Feuerwiderstand (sofern erforderlich)
10 Art des Sturzes
11 Mindestauflagerlänge, in mm
12 Länge, in mm
13 Breite und Höhe, in mm
14 Geometrie
15 Angabe, ob Beton- und Mauerwerksstürze verputzt werden müssen
16 Angabe, ob eine Feuchtesperrschicht erforderlich ist
17 Sofern erforderlich, Angabe der Bestandteile eines zusammengesetzten Sturzes, die nicht als Teil des
Produktes mitgeliefert werden.
Tabelle 3 — Angaben zu teilweise vorgefertigten, bauseits ergänzten Stürzen,
die zur Verfügung zu stellen sind
Laufende
Teilweise vorgefertigte, bauseits ergänzte Stürze
Nummer
1 Tragfähigkeit, in kN
Belastung P bei einer festgelegten Durchbiegung � in kN oder kN/m
d d,
3 Wasseraufnahme von Mauersteinen bzw. von Beton- oder Mörtelbauteilen
4 Wasserdampfdurchlässigkeit, sofern erforderlich
5 Masse (kg) und längenbezogene Masse des vorgefertigten Teil des Sturzes, in kg/m²
6 Frostwiderstand, sofern erforderlich
7 Festlegungen zu Material/Überzug nach Anhang C
8 Wärmeschutztechnische Eigenschaften
9 Feuerwiderstand
10 Art des Sturzes
11 Mindestauflagerlänge, in mm
12 Länge, in mm
13 Breite und Höhe des vorgefertigten Teils, in mm
14 Geometrie
15 Mindestbreite des ergänzenden Bauteils, in mm
16 Höhe des ergänzenden Bauteils, in mm
17 Mindestauflagerlänge, in mm
18 Angabe, ob Beton- und Mauerwerksstürze verputzt werden müssen
19 Angabe, ob eine Feuchtesperrschicht erforderlich ist
20 Angabe zu den Mauersteinarten, die verwendet werden dürfen.
21 Festlegungen für die Materialien, aus denen das Ergänzungsbauteil besteht, einschließlich der
Mindestdruckfestigkeit der Mauersteine in der Richtung, die parallel zur Stützweite des Sturzes
verläuft, in N/mm²
22 Mindestfestigkeit des Mörtels, in N/mm²
23 Mindest-Betonfestigkeitsklasse
24 Anleitung zum Abstützen des Sturzes während des Errichtens einschließlich des höchstzulässigen
Abstandes der Abstützungen, in mm, und der Last, die während des Einbaus des Sturzes aufgebracht
werden darf.
7 Kennzeichnung
Die folgenden Angaben sind deutlich und dauerhaft auf dem Sturz oder auf dessen Verpackung, dem Lieferschein,
der Rechnung oder in den dem gelieferten Produkt beigefügten Unterlagen zu kennzeichnen:
a) Nummer und Ausgabedatum dieser Europäischen Norm, EN 845-2;
b) Name oder Erkennungsmerkmal und eingetragene Anschrift des Herstellers oder seines Bevollmächtigten;
c) eine eindeutige Kennzeichnungsnummer, Bezeichnung oder Kodierung, mit deren Hilfe der Produkttyp
identifiziert werden kann und die sich auf seine Beschreibung und Bezeichnung bezieht
Ferner ist der Sturz in geeigneter Weise so zu kennzeichnen, dass seine Anordnung beim Einbau und – bei
Stürzen für die Auflagerung von zwei oder mehreren Mauerwerksschalen – die Zuordnung der jeweiligen Sturzteile
zur inneren bzw. zur äußeren Wandschale ersichtlich ist.
ANMERKUNG Für CE-Kennzeichnung und Beschriftung gilt der Abschnitt ZA.3. Wird dort festgelegt, dass die CE-
Kennzeichnung durch die gleichen Angaben ergänzt werden soll, die in diesem Abschnitt festgelegt sind, gelten die
Anforderungen nach diesem Abschnitt als erfüllt.
8 Konformitätsbewertung
8.1 Allgemeines
Der Hersteller (oder sein Vertreter) hat die Übereinstimmung seines Produktes mit den Anforderungen nach dieser
Europäischen Norm und mit den für die Produkteigenschaften deklarierten Werten nachzuweisen durch:
� Erstprüfung des Produktes (siehe 8.2);
� werkseigene Produktionskontrolle (siehe 8.3).
Anstelle der Referenzprüfverfahren nach dieser Europäischen Norm dürfen alternative Prüfverfahren angewendet
werden, jedoch nicht bei Erstprüfungen und in Streitfällen. Voraussetzung ist, dass die alternativen Prüfverfahren
folgende Bedingungen erfüllen:
a) Zwischen den Ergebnissen nach dem Referenzprüfverfahren einerseits und dem alternativen Prüfverfahren
andererseits muss eine Übereinstimmung bestehen und
b) Einzelheiten, worauf sich diese Übereinstimmung begründet, müssen zur Verfügung stehen.
8.2 Erstprüfung
Nach Abschluss der Entwicklung eines neuen Produkttyps und vor Beginn der Herstellung und Vermarktung sind
angemessene Erstprüfungen durchzuführen, um sicherzustellen, dass die während der Entwicklung angestrebten
Eigenschaften die Anforderungen dieser Norm erfüllen und den zu deklarierenden Werten entsprechen. Vom
Hersteller ist außerdem zu berücksichtigen, was einen Produkttyp kennzeichnet und ob Schwankungen bestimmter
Maße in einem festgelegten Bereich der Stürze, besonders der Länge eines Sturzes, innerhalb dieses Produkttyps
bei der Bestimmung der maßgebenden Leistungskennwerte des Produktes erfasst werden. Erstprüfungen sind immer
dann zu wiederholen, wenn sich Veränderungen bei den Ausgangsstoffen oder im Herstellungsprozess ergeben, die
zu einem neuen Produkttyp führen.
Die durchzuführenden Prüfungen müssen die in dieser Norm festgelegten Prüfungen und/oder Berechnungen sein,
sie sind unter Berücksichtigung des vorgesehenen Einsatzbereiches des Produkts anhand der nachfolgend aufge-
führten Eigenschaften auszuwählen:
a) Materialeigenschaften (bei trogförmigen Formsteinen: nur Druckfestigkeit) (siehe Abschnitt 4);
b) Maße, Masse und Grenzabmaße (siehe 5.2);
c) Tragfähigkeit (siehe 5.3);
d) Belastung P , der festgelegten Durchbiegung � entsprechend (siehe 5.3.4);
d d
e) Dauerhaftigkeit (siehe 5.4);
f) Feuerwiderstand (siehe 5.8);
g) Wasseraufnahme (siehe 5.9).
Die Ergebnisse der Erstprüfungen sind aufzuzeichnen und müssen für Überwachungen zur Verfügung stehen. Die
Probenahme für die Erstprüfung ist nach 8.4 durchzuführen.
ANMERKUNG Für die Eigenschaften, die zur Erfüllung der Bestimmungen bezüglich der CE-Kennzeichnung zu ermitteln
sind, siehe die Tabelle ZA.1.
8.3 Werkseigene Produktionskontrolle
Bevor ein neues Produkt in den Handel gebracht wird, ist ein Plan für die werkseigene Produktionskontrolle
einzurichten und in einem Handbuch zu dokumentieren. Von diesem Zeitpunkt an sind sämtliche grundlegenden
Veränderungen der Ausgangsmaterialien, der Herstellungsverfahren oder des Überwachungsplans, die sich auf die
Eigenschaften oder Verwendung eines Produkts auswirken, in diesem Handbuch aufzuzeichnen.
Im Handbuch sind die Verfahren für die werkseigene Produktionskontrolle, die für die deklarierten und durch
Erstprüfungen bestätigten Eigenschaftswerte gelten, aufzuführen.
Die Verfahren zur werkseigenen Produktionskontrolle müssen ein System zur ständigen Kontrolle der Produktion im
Herstellwerk umfassen, um sicherzustellen, dass die anschließend in den Handel gebrachten Produkte mit dieser
Norm und mit den deklarierten Werten übereinstimmen.
Die ständige Kontrolle im Herstellwerk umfasst einen oder mehrere der folgenden Punkte:
a) Überwachungen und Prüfungen des Produktentwurfs;
b) Überwachungen und Prüfungen mit Nutzung der Ergebnisse zur Kontrolle der Ausrüstung, der Ausgangsstoffe
oder angelieferter Materialien und des Herstellungsverfahrens;
c) Überwachungen und Prüfungen des Endproduktes.
Der Hersteller muss a) (sofern zutreffend), b) und/oder c) auswählen und im Handbuch für die werkseigene
Produktionskontrolle aufzeichnen. Anhang D enthält eine Aufzählung sämtlicher bei der Überwachung des Produkts
zu berücksichtigenden Punkte.
ANMERKUNG Ein Hersteller, der nach einem Qualitätsmanagementsystem nach EN ISO 9001 arbeitet, sollte die in diesem
Abschnitt u
...
