EUROPEAN STANDARD
EN 845-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
May 2013
ICS 91.080.30 Supersedes EN 845-2:2003
English Version
Specification for ancillary components for masonry - Part 2:
Lintels
Spécifications pour composants accessoires de Festlegungen für Ergänzungsbauteile für Mauerwerk - Teil
maçonnerie - Partie 2: Linteaux 2: Stürze
This European Standard was approved by CEN on 21 March 2013.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2013 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 845-2:2013: E
worldwide for CEN national Members.

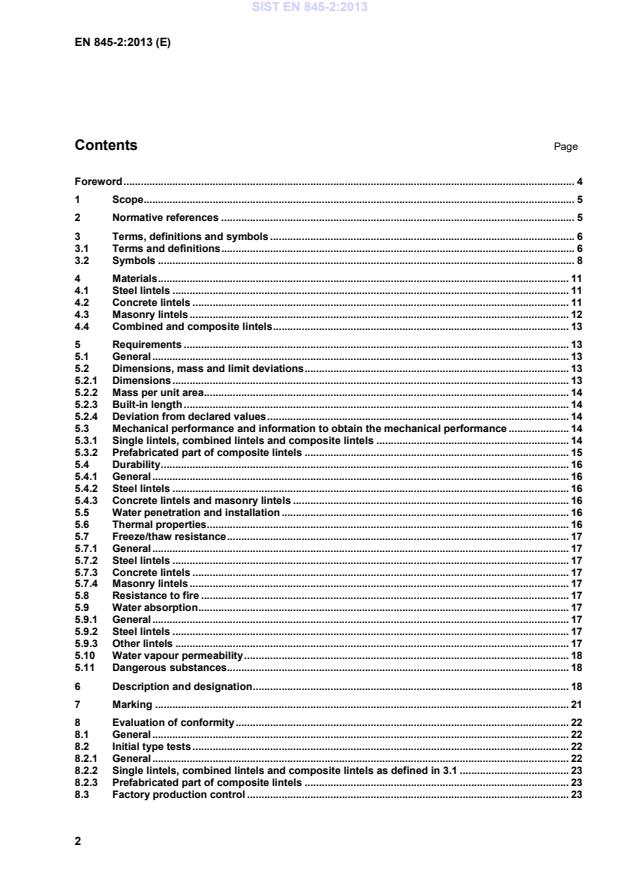

Contents Page
Foreword . 4
1 Scope. 5
2 Normative references . 5
3 Terms, definitions and symbols . 6
3.1 Terms and definitions . 6
3.2 Symbols . 8
4 Materials . 11
4.1 Steel lintels . 11
4.2 Concrete lintels . 11
4.3 Masonry lintels . 12
4.4 Combined and composite lintels . 13
5 Requirements . 13
5.1 General . 13
5.2 Dimensions, mass and limit deviations . 13
5.2.1 Dimensions . 13
5.2.2 Mass per unit area . 14
5.2.3 Built-in length . 14
5.2.4 Deviation from declared values . 14
5.3 Mechanical performance and information to obtain the mechanical performance . 14
5.3.1 Single lintels, combined lintels and composite lintels . 14
5.3.2 Prefabricated part of composite lintels . 15
5.4 Durability . 16
5.4.1 General . 16
5.4.2 Steel lintels . 16
5.4.3 Concrete lintels and masonry lintels . 16
5.5 Water penetration and installation . 16
5.6 Thermal properties . 16
5.7 Freeze/thaw resistance . 17
5.7.1 General . 17
5.7.2 Steel lintels . 17
5.7.3 Concrete lintels . 17
5.7.4 Masonry lintels . 17
5.8 Resistance to fire . 17
5.9 Water absorption . 17
5.9.1 General . 17
5.9.2 Steel lintels . 17
5.9.3 Other lintels . 17
5.10 Water vapour permeability . 18
5.11 Dangerous substances. 18
6 Description and designation . 18
7 Marking . 21
8 Evaluation of conformity . 22
8.1 General . 22
8.2 Initial type tests . 22
8.2.1 General . 22
8.2.2 Single lintels, combined lintels and composite lintels as defined in 3.1 . 23
8.2.3 Prefabricated part of composite lintels . 23
8.3 Factory production control . 23
8.3.1 General . 23
8.3.2 Testing and measuring equipment . 24
8.3.3 Production equipment . 24
8.3.4 Raw materials . 24
8.3.5 Production process . 24
8.3.6 Finished product testing . 24
8.3.7 Statistical techniques . 24
8.3.8 Marking and stock control of products . 25
8.3.9 Traceability . 25
8.3.10 Nonconforming products . 25
8.4 Sampling for initial type testing and independent testing of consignments . 25
Annex A (informative) Method for assessment of loads on lintels . 26
Annex B (informative) Recommendations for installation of lintels . 27
B.1 Bearings . 27
B.2 Installation . 27
B.3 Composite lintels . 27
Annex C (normative) Corrosion protection systems . 28
C.1 Steel lintels . 28
C.2 Concrete and masonry lintels (except those manufactured using autoclaved

aerated concrete) . 31
C.3 Lintels manufactured using autoclaved aerated concrete . 31
Annex D (informative) Guidance on FPC frequencies . 32
Annex ZA (informative) Clauses of this European Standard addressing the provisions of
the EU Construction Products Directive . 34
Bibliography . 41

Foreword
This document (EN 845-2:2013) has been prepared by Technical Committee CEN/TC 125 “Masonry”,
the secretariat of which is held by BSI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by November 2013, and conflicting national standards
shall be withdrawn at the latest by November 2013.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such
patent rights.
This document has been prepared under a mandate given to CEN by the European Commission and
the European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this
document.
This document supersedes EN 845-2:2003.
This part has been modified to take into account comments made in the five-year review on the 2003
version. A change has been made in the permission to use historic test data when arriving at declared
values; a limited permission is also given for the use of calculation methods in certain cases.
EN 845, Specification for ancillary components for masonry, consists of the following parts:
 Part 1: Wall ties, tension straps, hangers and brackets
 Part 2: Lintels
 Part 3: Bed joint reinforcement of steel meshwork
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of
Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland, Turkey and the United Kingdom.
1 Scope
This European Standard specifies requirements for prefabricated lintels for maximum spans of 4,5 m
and made from steel, autoclaved aerated concrete, manufactured stone, concrete, fired clay units,
calcium silicate units, natural stone units, or a combination of these materials. Concrete and steel
beams conforming to EN 1090-1, EN 12602 and EN 13225, as appropriate, are not covered by this
standard.
Prefabricated lintels can be either complete lintels or the prefabricated part of a composite lintel.
This European Standard is not applicable to:
a) lintels completely made on site;
b) lintels of which the tensile parts are made on site;
c) timber lintels;
d) natural stone lintels, not reinforced.
Linear components spanning clear openings greater than 4,5 m in masonry walls and linear
components intended for use independently in a structural role (e.g. beams) are not covered by this
standard.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
EN 206-1:2000, Concrete — Part 1: Specification, performance, production and conformity
EN 771 (all parts), Specification for masonry units
EN 772-1, Methods of test for masonry units — Part 1: Determination of compressive strength
EN 772-11, Methods of test for masonry units — Part 11: Determination of water absorption of
aggregate concrete, autoclaved aerated concrete, manufactured stone and natural stone masonry
units due to capillary action and the initial rate of water absorption of clay masonry units
EN 846-9, Methods of test for ancillary components for masonry — Part 9: Determination of flexural
resistance and shear resistance of lintels
EN 846-11, Methods of test for ancillary components for masonry — Part 11: Determination of
dimensions and bow of lintels
EN 846-13:2001, Methods of test for ancillary components for masonry — Part 13: Determination of
resistance to impact, abrasion and corrosion of organic coatings
EN 846-14, Methods of test for ancillary components for masonry — Part 14: Determination of the
initial shear strength between the prefabricated part of a composite lintel and the masonry above it
EN 990, Test methods for verification of corrosion protection of reinforcement in autoclaved aerated
concrete and lightweight aggregate concrete with open structure
EN 998-2:2010, Specification for mortar for masonry — Part 2: Masonry mortar
EN 1745, Masonry and masonry products — Methods for determining thermal properties
EN 10080, Steel for the reinforcement of concrete — Weldable reinforcing steel — General
EN 10088 (all parts), Stainless steels
prEN 10138 (all parts), Prestressing steels
EN 10346:2009, Continuously hot-dip coated steel flat products — Technical delivery conditions
EN 12602:2008, Prefabricated reinforced components of autoclaved aerated concrete
EN 13501-2, Fire classification of construction products and building elements — Part 2: Classification
using data from fire resistance tests, excluding ventilation services
EN ISO 1461, Hot dip galvanized coatings on fabricated iron and steel articles — Specifications and
test methods (ISO 1461)
EN ISO 1463, Metallic and oxide coatings — Measurement of coating thickness — Microscopical
method (ISO 1463)
3 Terms, definitions and symbols
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
NOTE 1 Examples of lintel types are shown in Figures 1 to 3. The figures are only for illustration of lintel
types. Other details such as bearings, thermal insulation systems and damp proof courses are not shown.
NOTE 2 General dimensions defined in Clause 3 are illustrated in Figures 3 and 4.
3.1.1
autoclaved aerated concrete lintel
lintel manufactured using reinforced autoclaved aerated concrete
3.1.2
bearing length
length of the end of a lintel which bears on its support
3.1.3
built-in length
minimum length needed to anchor the reinforcing bars
3.1.4
clear opening
clear distance between lintel supports
3.1.5
combined lintel
lintel consisting of two or more structural elements each one acting with compression and tension
zones
3.1.6
composite lintel
lintel comprising a prefabricated part and a complementary element of in-situ masonry or concrete
above, acting together
3.1.7
composite lintel height
overall height of the tension and compression zones of a composite lintel
3.1.8
concrete lintel
lintel manufactured using reinforced or prestressed concrete
3.1.9
declared value
value for a product property, determined in accordance with this standard, that a manufacturer is
confident of achieving, bearing in mind the variability of the manufacturing process
3.1.10
effective span
distance between the centres of the bearing of a lintel, or the clear opening spanned by the lintel plus
the overall height of the lintel including any complementary element, whichever is the lesser
3.1.11
flexural resistance
mean uniformly distributed load at which failure of a sample of lintel specimens occurs (or a lower
load at which tests are stopped in accordance with the recommendations of the manufacturer of the
lintel)
3.1.12
lintel
lineal element supporting load over an opening in a masonry wall
3.1.13
lintel height
overall height of the prefabricated part of a lintel
3.1.14
lintel length
overall length of the prefabricated lintel
3.1.15
load bearing capacity
mean value for a sample of lintels of the total of the uniformly distributed load at failure or at an
extreme deflection, whichever is the lesser
3.1.16
load ratio
ratio of inner leaf load to outer leaf load on a lintel supporting a double-leaf or cavity wall
3.1.17
masonry lintel
lintel comprising one or more shell casing units completed by the incorporation within the shell casing
of reinforced or prestressed concrete
3.1.18
shear resistance
mean shear load at which failure of a sample of lintel specimens occurs (or a lower load at which tests
are stopped in accordance with the recommendations of the manufacturer of the lintel)
3.1.19
shell casing unit
preformed component with one or more channels into which is incorporated either reinforced or
prestressed concrete
3.1.20
single lintel
prefabricated lintel acting alone
3.1.21
declared deflection
deflection at one third of the declared load capacity of the lintel
3.1.22
steel lintel
lintel manufactured from steel
3.1.23
structural shell casing unit
shell casing unit which is made of a material with a compressive strength not less than that of the infill
concrete
3.2 Symbols
NOTE General dimensions are illustrated in Figures 3 and 4.
b is the smallest width of a structural shell casing unit specimen, in mm (see Figure 5);
s
b is the bearing length, in mm;
d is the height of the prefabricated part of the composite lintel;
ppcl
d is the composite lintel height, in mm;
c
d is the lintel height, in mm;
l
δ is the declared deflection in a vertical direction, in mm;
dv
δ is the declared deflection in a horizontal direction, in mm;
dh
h is the height of the masonry unit;
u
t is the thickness of the bedjoint;
bj
h is the cut length of a structural shell casing unit specimen, in mm (see Figure 5);
s
l is the lintel length, in mm;
l is the clear opening, in mm;
l is the effective length, in mm;
e
F is the tensile resistance of the prefabricated part in the ultimate limit state;
tkl
f is the initial shear strength between the prefabricated part of the lintel and the mortar in the bed
vk0i
joint above.
Key
1 supported masonry
2 single lintel
Figure 1 — Example of a single lintel (see 3.1.20)

Key
1 supported masonry
2 complementary element (masonry or concrete)
3 prefabricated part
Figure 2 — Example of a composite lintel (see 3.1.6)

Key
1 supported masonry - outer leaf 3 inner leaf lintel
2 outer leaf lintel 4 supported masonry – inner leaf
Figure 3 — Example of a combined lintel (see 3.1.5)

Key
1 lintels other than composite lintels
2 composite lintel
Figure 4 — General dimensions
4 Materials
4.1 Steel lintels
Materials for the manufacture of steel lintels covered by this standard shall be selected from Annex
C.1 and the material/coating reference shall be declared.
4.2 Concrete lintels
Concrete lintels shall be fabricated from reinforced or prestressed concrete with or without
non-structural shell casing units.
Steel for the reinforcement of concrete shall conform to EN 10080.
Stainless steel for reinforcement shall conform to EN 10088-5.
Prestressing steels shall conform to prEN 10138 (all parts).
For lintels covered by this standard, wire diameters shall be 2,5 mm or greater.
The concrete shall conform with the material requirements clauses of EN 206-1.
Autoclaved aerated concrete shall conform to EN 12602 (definition and material requirement clauses
only).
4.3 Masonry lintels
Masonry lintels shall be fabricated using reinforced or prestressed concrete, masonry mortar, and
structural or non-structural shell casing masonry units as follows:
a) concrete and steel in accordance with 4.2;
b) masonry mortar in accordance with EN 998-2;
c) shell casing units shall be made from:
1) clay in accordance with the material requirement clauses of EN 771-1;
2) calcium silicate in accordance with the material requirement clauses of EN 771-2;
3) aggregate concrete in accordance with the material requirement clauses of EN 771-3;
4) autoclaved aerated concrete in accordance with the material requirement clauses of
EN 771-4;
5) manufactured stone in accordance with the material requirement clauses of EN 771-5;
6) natural stone in accordance with the material requirement clauses of EN 771-6.
NOTE All shell casing units can contribute to the mechanical performance of the lintel. However, where
their contribution is verified by calculation methods or the shell casing units are taken into account in
providing cover to the reinforcement, they are deemed to be structural shell casing units.
The compressive strength of structural shell casing units shall be determined in accordance with the
principles of EN 772-1 using a cut specimen. Specimen set up and dimensional relationships are
given in Figure 5.
Key
1 two specimens tested together to achieve symmetrical loading
2 cut length h equals smallest width b
s s
Figure 5 — Specimens for compressive strength test on structural shell casing units
Corresponding mortar joints shall be selected to meet the design performance requirements of the
lintel.
4.4 Combined and composite lintels
If the declaration or additional information for composite lintels includes an assumption about
materials or components needed, but not supplied by the lintel manufacturer, to complete the lintel,
then the required properties shall be specified in accordance with this or other relevant European
Standards or European Technical Approvals.
5 Requirements
5.1 General
The requirements and properties specified in this standard shall be defined in terms of the test
methods and procedures referred to in this European Standard.
NOTE 1 Guidance on the use and installation of lintels is given in informative Annexes A and B.
NOTE 2 The conformity criteria given in 5.2 to 5.11 inclusive relate to initial type tests (see 8.2) and, where
relevant, consignment testing (see 8.4).
For production evaluation, conformity criteria in the factory production control documentation shall be
defined.
5.2 Dimensions, mass and limit deviations
5.2.1 Dimensions
The length, width and height of the lintel shall be declared and, in the case of non-rectangular shapes
or cross sections, a drawing of the configuration with dimensions shall be given.
5.2.2 Mass per unit area
The mass and the mass per unit area on elevation of the lintel shall be declared. The mass shall be
determined from specimens sampled in accordance with Clause 8 using instruments capable of
measuring and weighing the specimen to an error limit of 0,1 % of each reading. The mean mass of
the specimens shall be divided by the product of the mean overall length and the mean overall height
to give the mass per unit area on elevation. The deviation from the declared value of mass shall not
exceed 5 %.
5.2.3 Built-in length
The minimum built-in length, which shall be not less than 100 mm, shall be declared.
5.2.4 Deviation from declared values
When sampled in accordance with Clause 8 and measured by the method of EN 846-11, the
deviations from the declared values for dimensions and intended shapes or cross-sections shall not
exceed those given in Table 1.
Table 1 — Dimensional deviations
Dimension Limit deviation
Length ± 15 mm
Width and height ± 5 mm
Straightness or bow (horizontal and 0,5 % of the length, subject to a maximum value of
vertical curvature) 10 mm from the intended profile
Camber of prefabricated part of the 0,7 % of the length from the intended profile
composite lintel
5.3 Mechanical performance and information to obtain the mechanical performance
5.3.1 Single lintels, combined lintels and composite lintels
5.3.1.1 General
The load bearing capacity shall be declared from the results of tests, using test methods specified in
this standard, or from their interpretation.
When calculation models are used to interpret and extend the results obtained from testing they
should be based on a mechanical approach and appropriate material properties. Historic test data
may be used to demonstrate the validity of the calculation model.
The ultimate demonstration of compliance with this standard shall be by testing, in accordance with
the methods in EN 846-9, on samples selected in accordance with Clause 8.
5.3.1.2 Load bearing capacity and load ratio
The requirements for flexural resistance in accordance with 5.3.1.3 and shear load resistance in
accordance with 5.3.1.5 shall be met in all cases.
NOTE The declared value of load bearing capacity is based on the lower of the flexural resistance
(see 5.3.1.3) and twice the shear load resistance (see 5.3.1.5).
The load bearing capacity in kN/m of the lintel shall be declared as a mean value. When required, the
characteristic value shall also be declared. Unless otherwise stated, these values shall be those
corresponding to the applicable maximum clear opening taking into account the declared values of
the minimum bearing length and the length of the lintel.
Where lintels are intended to support two or more leaves of masonry, any restrictions on the
distribution of load across the width of the lintel in terms of the range of load ratios that can be used
shall be declared.
5.3.1.3 Flexural resistance
When sampled in accordance with Clause 8 and tested by the method of EN 846-9, the flexural
resistance shall be greater than or equal to the declared value of load bearing capacity in accordance
with 5.3.1.2 and no individual value of flexural failure load shall be less than 90 % of the declared
value of load bearing capacity.
When it is required to declare a characteristic value in addition to declaring the vertical load capacity
according to EN 846-9 as a mean of the test results, the characteristic value should be taken as 0,9 of
the mean value.
5.3.1.4 Short term deflection
The short term vertical deflection, δ and also the horizontal deflection,δ , when relevant, at one
dv, dh
third of the declared load bearing capacity shall be declared. When sampled in accordance with
Clause 8 and tested in accordance with EN 846-9, for flexural resistance, the appropriate mean
deflections of the sample, as relevant, measured at one third of the declared load bearing capacity
shall be less than or equal to the declared deflections δ andδ .
dv dh
It is only necessary to declare the horizontal deflection δ if it is relevant.
dh
If it is required to know the long-term deflection, then the short term one may be increased according
to the loading regime, creep and shrinkage values given in the appropriate Eurocodes.
5.3.1.5 Shear resistance
When sampled in accordance with Clause 8 and tested by the method of EN 846-9, the shear
resistance shall be greater than or equal to 50 % of the declared value of load bearing capacity
evaluated in accordance with 5.3.1.2 and the shear failure load of any individual specimen shall be
not less than 45 % of the declared value of load bearing capacity.
When required, the shear resistance shall be declared additionally as a characteristic value.
When it is required to declare a characteristic value in addition to declaring the vertical load capacity
according to EN 846-9 as a mean of the test results, the characteristic value should be taken as 0,9 of
the mean value.
5.3.2 Prefabricated part of composite lintels
If the load bearing capacity of a composite lintel is not declared by the manufacturer, the following
parameters shall be declared for the prefabricated part:
 Geometry and configuration of the prefabricated part of the lintel including the position, diameter
and yield strength of the reinforcement.
 Characteristic tensile resistance, F , of the prefabricated part of the lintel in the ultimate limit
tkl
state. If relevant for durability, the tensile resistance shall also be given in the serviceability limit
state.
 Characteristic initial shear strength f between the prefabricated part of the lintel and the mortar
vk0i
in the bed joint above. The declaration may either be made on the basis of fixed values or tests.
The declaration shall indicate whether the initial shear strength has been obtained from fixed
values or from tests. When the declaration is based on fixed values the characteristic initial shear
strength may be declared by using the appropriate value of characteristic initial shear strength
given in Annex C of EN 998-2:2010. When the declared value is based on tests then the test
shall follow the procedure given in EN 846-14 and the initial shear strength of specimens when
sampled in accordance with Clause 8 and tested by the method given in EN 846-14 shall be
greater than or equal to the declared value.
5.4 Durability
5.4.1 General
The materials for the manufacture of the lintels and their corrosion protection systems shall be
selected in accordance with 5.4.2 or 5.4.3 and the material/coating reference in accordance with
Annex C shall be declared.
NOTE The durability of performance characteristics against corrosion is dependent on both the condition of
exposure of the masonry and the material/coating specification. This European Standard follows the state of the
art by giving material/coating specifications to suit.
5.4.2 Steel lintels
Steel lintels, other than those made from ferritic stainless steel, austenitic stainless steel or austenitic
ferritic stainless steel, shall be protected against corrosion in accordance with the requirements of C.1
in Annex C.
NOTE The corrosion protection required in any individual application will depend on the type of lintel,
whether a separate damp proof system is used, the degree of exposure and the climatic conditions and therefore
several grades of protection are given.
5.4.3 Concrete lintels and masonry lintels
The reinforcement of concrete and masonry lintels shall be protected against corrosion in accordance
with the requirements of C.2 and C.3 in Annex C.
The joints between the structural shell casing units and any grooves they contain shall be filled with
concrete or mortar. Where the joints are not filled, the units shall be considered to be non-structural.
5.5 Water penetration and installation
All necessary information on the correct procedure for installing the lintel to avoid the risk of water
penetration shall be provided.
NOTE For installation, see Annex B.
5.6 Thermal properties
Details shall be provided of the thermal properties of the materials from which the lintel is made by
reference to thermal conductivity values given in EN 1745, or, where not given in that standard, by
reference to thermal conductivity values given in European Standards for the materials of
construction.
5.7 Freeze/thaw resistance
5.7.1 General
When relevant to the uses for which the lintel is placed on the market and in all cases for lintels
intended to be used in external elements, the freeze/thaw resistance of lintels shall be declared.
5.7.2 Steel lintels
Steel lintels may be classified as freeze/thaw resistant.
5.7.3 Concrete lintels
Lintels made with concrete conforming to EN 206-1 and meeting the requirements for exposure
class XF1 of EN 206-1:2000 may be classified as ‘freeze thaw/resistant’.
5.7.4 Masonry lintels
Masonry lintels may be classified as ‘freeze/thaw resistant’ where the following conditions are met:
a) the concrete part meets the requirements of 5.7.3 to be classified as freeze/thaw resistant; and
b) the masonry units in the lintel are freeze/thaw resistant according to the requirements of the
relevant part of EN 771.
5.8 Resistance to fire
Where relevant to the uses for which the lintel type is placed on the market, the resistance to fire shall
be classified on the basis of testing of a lintel, either as part of a wall with or without fire separating
function or as a beam, in accordance with EN 13501-2. Alternatively, the classification may be based
on tabulated values for the material type and form as given in the appropriate European Standards.
Where classification is relevant, a lintel type may be classified for use in particular forms of
construction, as verified from tabulated values or by the interpretation of test data.
All lintels can form part of a fire resisting construction when suitably protected. Where a lintel type is
intended for use in more than one form of construction, tests may need to be performed on one or
more test systems.
5.9 Water absorption
5.9.1 General
Where relevant to the uses for which the lintel is placed on the market and in all cases for concrete
and masonry lintels to be used in exposed external elements, the water absorption coefficient due to
capillary action or the initial rate of water absorption, as relevant, shall be declared.
5.9.2 Steel lintels
Steel lintels may be classified as having a water absorption coefficient of zero.
5.9.3 Other lintels
When lintels other than steel lintels are sampled in accordance with Clause 8 and tested by the
method of EN 772-11, for immersion times as specified in the relevant part of EN 771, the initial rate
of water absorption of clay masonry lintels and the coefficient of water absorption of other lintels shall
be not greater than the declared values.
5.10 Water vapour permeability
When relevant to the uses for which a lintel, other than a steel lintel, is placed on the market, the
water vapour diffusion coefficient (lower and upper values) in accordance with EN 1745 shall be
declared.
NOTE This characteristic is not relevant for steel lintels.
5.11 Dangerous substances
National regulations on dangerous substances may require verification and declaration on release,
and sometimes content, when construction products covered by this standard are placed on those
markets.
In the absence of European harmonised test methods, verification and declaration on release/content
should be done taking into account national provisions in the place of use.
NOTE An informative database covering European and national provisions on dangerous substances is
available at the Construction web site on EUROPA accessed through:
http://ec.europa.eu/enterprise/construction/cpd-ds/.
6 Description and designation
The information to be supplied shall be as given in Tables 2, 3 and 4.
Table 2 — Information to be provided for single lintel and combined lintel
Information
reference Single lintel and combined lintel
number
1 Load bearing capacity, in kN/m
2 Failure mode where relevant
3 Deflection δ and δ if relevant, at one-third of the load bearing capacity
dv, dh
4 Water absorption of masonry unit, concrete and mortar components
5 Water vapour permeability where relevant
6 Mass in kg and mass per unit area of the lintel, in kg/m
7 Freeze/thaw resistance where relevant
8 Material/coating specification in accordance with normative Annex C
9 Thermal performance
10 Resistance to fire where relevant
11 Lintel type
12 Minimum built-in length, in mm
13 Length, in mm
14 Width and height, in mm
15 Configuration
16 Whether concrete lintels and masonry lintels are required to be rendered
17 Whether a damp proof course is required
18 Where relevant, the component parts of a combined lintel that are not supplied as part
of the product
Table 3 — Information to be provided for composite lintel,
when the load bearing capacity is declared
Information
reference Composite lintel
number
1 Load bearing capacity, in kN/m
2 Failure mode where relevant
Deflection δ and δ where relevant, at one-third of the load bearing capacity
dv, dh
4 Water absorption of masonry unit, concrete and mortar components
5 Water vapour permeability where relevant
6 Mass per unit area on elevation of the prefabricated part only of the lintel, in kg/m
7 Freeze/thaw resistance where relevant
8 Material/coating specification in accordance with Annex C, steel grade and concrete
strength class relevant to lintel
9 Thermal performance
Resistance to fire
11 Lintel type
12 Minimum built-in length, in mm
13 Length, in mm
14 Width and height of the prefabricated part, in mm
15 Configuration
16 Minimum width of the complementary element, in mm
17 Height of the complementary element, in mm
18 Whether concrete lintels and masonry lintels are required to be rendered
19 Whether a damp proof course is required
20 Types of masonry units that may be used
21 Specification of the materials in the complementary element including the minimum
compressive strength of masonry units in the direction parallel to the span of the lintel,
in N/mm
22 Minimum mortar strength, in N/mm²
23 Minimum strength class of concrete
24 Instructions for propping the lintel during construction including the maximum spacing
of props, in mm, and the load that can be applied during the installation of the lintel.

Table 4 — Information to be provided when only the properties of the
prefabricated part of composite lintel are declared
Information
reference Prefabricated part of composite lintel
number
1 Water absorption of masonry unit, concrete and mortar components
2 Water vapour permeability where relevant
3 Mass per unit area on elevation of the prefabricated part only of the lintel, in kg/m
4 Freeze/thaw resistance where relevant
5 Material/coating specification in accordance with normative Annex C, steel grade and
concrete strength class relevant to lintel
6 Thermal performance
7 Resistance to fire
8 Lintel type
9 Minimum built-in length, in mm
10 Length, in mm
11 Width and height of the prefabricated part, in mm
12 Geometry and configuration of the prefabricated part including the position, diameter
and yield strength of the reinforcement
13 Whether concrete lintels and masonry lintels are required
...
