EN 10324:2004
(Main)Steel wire and wire products - Hose reinforcement wire
Steel wire and wire products - Hose reinforcement wire
This document specifies the composition, dimensions and mechanical properties of high carbon steel wire for reinforcing high pressure hoses. It is applicable to wire used as a multiple parallel wire braided or spirally wrapped reinforcement in a rubber or synthetic hose which is made to withstand relatively high bursting pressure.
Stahldraht und Drahterzeugnisse - Schlaucharmierungsdraht
Dieses Dokument legt die Zusammensetzung, die Maße und die mechanischen Eigenschaften fest von Stahldraht mit hohem Kohlenstoffgehalt zur Armierung von Hochdruckschläuchen. Es gilt für Draht, der als mehrfach parallel gewickelte oder spiralförmig gewickelte Bewehrung in einem Gummi- oder Synthetikschlauch verwendet wird, der relativ hohem Berstdruck widerstehen muss.
Fils et produits tréfilés en acier - Fil d'armature pour flexibles
La présente Norme européenne spécifie la composition, les dimensions, les propriétés mécaniques du fil en acier dur au carbone destiné au renforcement de flexibles haute pression. Elle est applicable aux fils de renforcement multiples parallèles tressés ou enroulés en spirale dans un flexible en caoutchouc ou en matière synthétique conçu pour résister à une pression d'éclatement relativement élevée.
Jeklena žica in žični izdelki – Žica za armiranje cevi
General Information
- Status
- Published
- Publication Date
- 01-Sep-2004
- Withdrawal Date
- 30-Mar-2005
- Technical Committee
- ECISS/TC 106 - Wire rod and wires
- Drafting Committee
- ECISS/TC 30/SC 2 - Steel wire for springs
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 03-Sep-2025
- Completion Date
- 23-Sep-2025
Relations
- Effective Date
- 22-Dec-2008
Overview
EN 10324:2004 - "Steel wire and wire products - Hose reinforcement wire" (CEN) defines requirements for high‑carbon steel wire used as braided or spirally wrapped reinforcement in high‑pressure rubber or synthetic hoses. The standard covers material composition, mechanical performance, surface/coating, dimensional tolerances, testing, labelling and packaging to ensure reliable hose reinforcement for applications that must withstand relatively high bursting pressures.
Key topics and technical requirements
- Material and chemical composition: Wire is manufactured from steel rod complying with EN 10016 series. Chemical limits are specified for carbon, silicon, manganese, phosphorus and sulfur for different tensile classes.
- Tensile strength classes: Three classes - NT (Normal), HT (High) and ST (Super) - with defined tensile ranges and elongation requirements. Classification is used to select wire suitable for required burst performance.
- Mechanical tests: Mandatory tensile testing (EN 10002‑1 / EN 10218‑1), reverse‑bend and torsion tests after thermal ageing (150 °C for 1 h). Minimum numbers of reverse bends and torsions are given per diameter/class.
- Surface and coating: Default coating is brass (Cu ≈ 67% ±5). Coating mass requirements are specified (values differ for smaller and larger diameters). Surface must be clean, smooth and provide good adhesion to rubber.
- Dimensions and tolerances: Nominal diameter tolerance ±0.01 mm and out‑of‑roundness ≤ 0.01 mm.
- Delivery and packaging: Wire is supplied on spools; recommended spool types and lengths are provided. Welds at final size are permitted if cleaned and meeting a minimum breaking force (≥ 40% of the specified minimum).
- Designation & ordering: Standard prescribes a designation format (e.g., “Hose wire brass coated EN 10324 HT 2750 MPa to 3050 MPa 0,30”) and lists purchaser information to be supplied (diameter, quantity, package, coating, inspection document).
Applications and users
- Hose manufacturers specifying reinforcement wire for hydraulic, industrial and mobile equipment hoses.
- Wire producers and suppliers certifying material, mechanical properties and coatings to meet industry requirements.
- OEMs and procurement teams ensuring traceability, inspection documents and correct designation when ordering reinforcement wire.
- Testing laboratories and quality managers performing tensile, bend, torsion and coating mass tests in line with EN 10324:2004.
Keywords: EN 10324:2004, hose reinforcement wire, steel wire, high carbon steel wire, tensile strength classes, brass coating, reverse bend test, torsion test, spool packaging.
Related standards
Referenced standards that support EN 10324:2004 include EN 10002‑1, EN 10016‑1/2/4, EN 10021, EN 10204, EN 10218‑1/2, EN 10244‑1/6 and CR 10261. These cover testing methods, rod requirements, inspection documents and coating mass determination.
Frequently Asked Questions
EN 10324:2004 is a standard published by the European Committee for Standardization (CEN). Its full title is "Steel wire and wire products - Hose reinforcement wire". This standard covers: This document specifies the composition, dimensions and mechanical properties of high carbon steel wire for reinforcing high pressure hoses. It is applicable to wire used as a multiple parallel wire braided or spirally wrapped reinforcement in a rubber or synthetic hose which is made to withstand relatively high bursting pressure.
This document specifies the composition, dimensions and mechanical properties of high carbon steel wire for reinforcing high pressure hoses. It is applicable to wire used as a multiple parallel wire braided or spirally wrapped reinforcement in a rubber or synthetic hose which is made to withstand relatively high bursting pressure.
EN 10324:2004 is classified under the following ICS (International Classification for Standards) categories: 77.140.65 - Steel wire, wire ropes and link chains. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 10324:2004 has the following relationships with other standards: It is inter standard links to EN 10324:2004/AC:2008. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 10324:2004 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Stahldraht und Drahterzeugnisse - SchlaucharmierungsdrahtFils et produits tréfilés en acier - Fil d'armature pour flexiblesSteel wire and wire products - Hose reinforcement wire77.140.65Jeklene žice, jeklene vrvi in verigeSteel wire, wire ropes and link chainsICS:Ta slovenski standard je istoveten z:EN 10324:2004SIST EN 10324:2004en01-november-2004SIST EN 10324:2004SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 10324September 2004ICSEnglish versionSteel wire and wire products - Hose reinforcement wireFils et produits tréfilés en acier - Fil d'armature pourflexiblesStahldraht und Drahterzeugnisse -SchlaucharmierungsdrahtThis European Standard was approved by CEN on 1 July 2004.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2004 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 10324:2004: ESIST EN 10324:2004

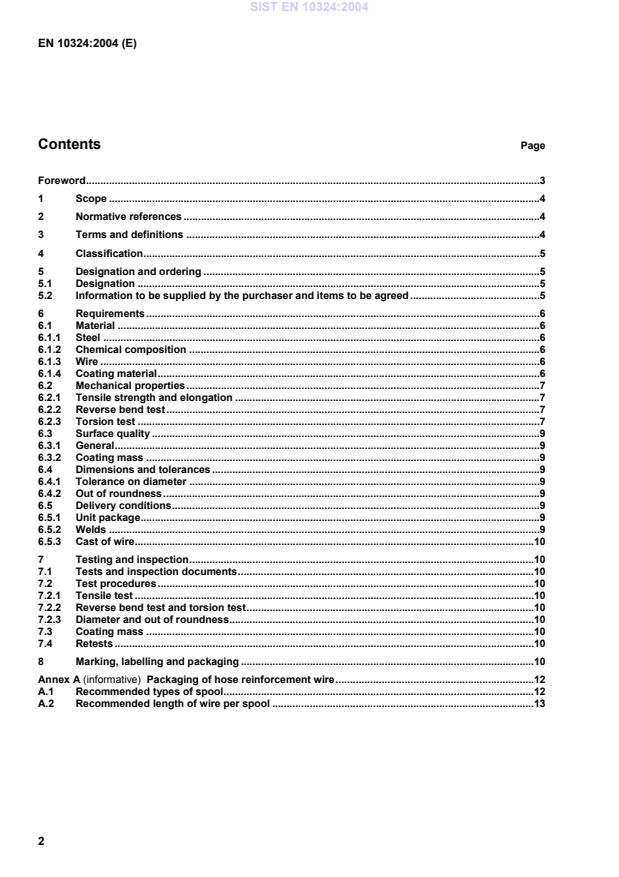

Packaging of hose reinforcement wire.12 A.1 Recommended types of spool.12 A.2 Recommended length of wire per spool.13
EN 10218-2, Steel wire and wire products — General — Part 2: Wire dimensions and tolerances EN 10244-1, Steel wire and wire products – Non-ferrous metallic coatings on steel wire – Part 1: General principles EN 10244-6, Steel wire and wire products – Non-ferrous metallic coatings on steel wire – Part 6: Copper, bronze or brass coatings CR 10261, ECISS Information Circular 11 – Iron a
...
