EN 13110:2012

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Flüssiggas-Geräte und -Ausrüstungsteile - Ortsbewegliche, wiederbefüllbare geschweißte Flaschen aus Aluminium für Flüssiggas (LPG) - Auslegung und BauEquipements pour gaz de pétrole liquéfiés et leurs accessoires - Bouteilles soudées transportables et rechargeables en aluminium pour gaz de pétrole liquéfié (GPL) - Conception et constructionLPG equipment and accessories - Transportable refillable welded aluminium cylinders for liquefied petroleum gas - Design and construction77.150.10Aluminijski izdelkiAluminium products23.020.30MHNOHQNHPressure vessels, gas cylindersICS:Ta slovenski standard je istoveten z:EN 13110:2012SIST EN 13110:2012en,fr,de01-september-2012SIST EN 13110:2012SLOVENSKI
STANDARDSIST EN 13110:20031DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13110
May 2012 ICS 23.020.30 Supersedes EN 13110:2002English Version
LPG equipment and accessories - Transportable refillable welded aluminium cylinders for liquefied petroleum gas (LPG) - Design and construction
Equipements pour gaz de pétrole liquéfiés et leurs accessoires - Bouteilles soudées transportables et rechargeables en aluminium pour gaz de pétrole liquéfié (GPL) - Conception et construction
Flüssiggas-Geräte und Ausrüstungsteile - Ortsbewegliche wiederbefüllbare geschweißte Flaschen aus Aluminium für Flüssiggas (LPG) - Auslegung und Bau This European Standard was approved by CEN on 13 April 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13110:2012: ESIST EN 13110:2012

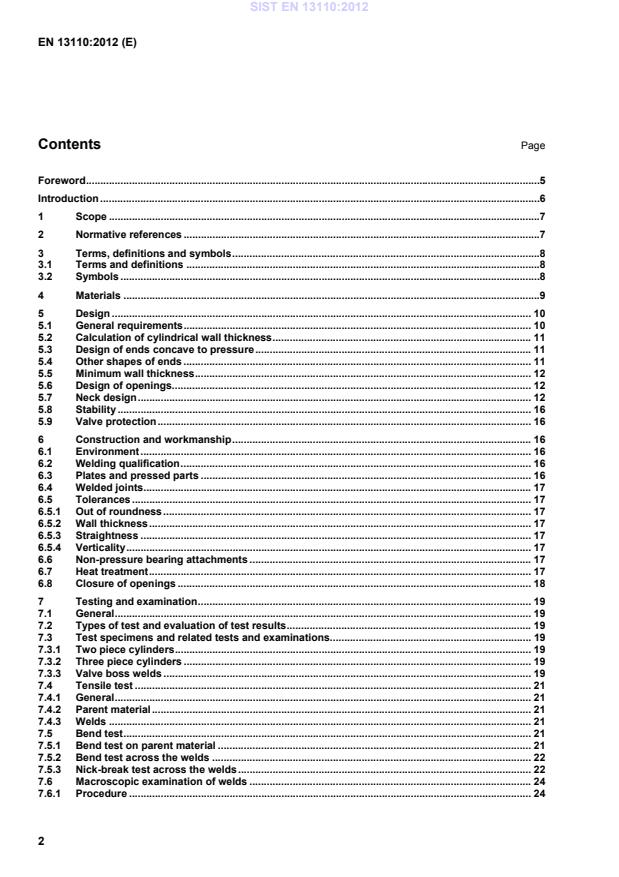

Corrosion tests . 36A.1 Test for assessing susceptibility to intercrystalline corrosion . 36A.1.1 Specimens . 36A.1.2 Pre-treatment of the specimen before corrosive etching . 36A.1.3 Corrosive etching process . 37A.1.4 Preparation of specimens for examination. 38A.1.5 Micrographic examination of specimens . 38A.1.6 Interpretation of the micrographic examination. 38A.2 Tests for assessing susceptibility to stress corrosion . 38A.2.1 Specimens . 38A.2.2 Surface preparation before test . 38A.2.3 Method . 39A.2.4 Interpretation of the results . 43SIST EN 13110:2012

Environmental checklist . 44Bibliography . 45 SIST EN 13110:2012

 the introduction of radioscopy as a permitted alternative to radiographic examination of welds;  simplification of the marking requirements by reference to EN 14894; and  environmental considerations recorded in Annex B. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
EN 14784-2, Non-destructive testing – Industrial computed radiography with storage phosphor imaging plates – Part 2: General principles for testing of metallic materials using X-rays and gamma rays EN 14894, LPG equipment and accessories – Cylinder and drum marking EN ISO 4136, Destructive tests on welds in metallic materials – Transverse tensile test (ISO 4136) EN ISO 5173, Destructive tests on welds in metallic materials – Bend tests (ISO 5173)
EN ISO 5178, Destructive tests on welds in metallic materials – Longitudinal tensile test on weld metal in fusion welded joints (ISO 5178) EN ISO 6892-1, Metallic materials – Tensile testing – Part 1: Method of test at room temperature (ISO 6892-1) EN ISO 9606-2, Qualification testing of welders – Fusion welding – Part 2: Aluminium and aluminium alloys (ISO 9606-2) SIST EN 13110:2012

document, the following terms and definitions apply. 3.1.1 liquefied petroleum gas LPG low pressure liquefied gas composed of one or more light hydrocarbons which are assigned to UN 1011, UN 1075, UN 1965, UN 1969 or UN 1978 only and which consists mainly of propane, propene, butane, butane isomers, butene with traces of other hydrocarbon gases
3.1.2 cylinder transportable, refillable pressure receptacle with a water capacity from 0,5 l up to and including 150 l 3.1.3 yield strength 0,2 % proof strength Rea (non-proportional elongation) for aluminium alloys, and the 1 % proof strength for unalloyed aluminium in the unhardened state 3.1.4 heat treatment solution heat treatment, quenching and artificial or natural ageing that ensures the strength values required 3.2 Symbols a Calculated minimum thickness of the cylindrical part, in mm. Aa Actual elongation after fracture, determined by the tensile test specified in X7.4X, in %. SIST EN 13110:2012

NOTE For further guidance, see EN ISO 14021, EN ISO 14024 and EN ISO 14025. 4.2 The alloys used shall be in accordance with Table 1, except as permitted in 4.3. The pressure bearing parts of the cylinder shall be AlMgSi1 or AlMg1Si1, providing that for AIMgSi1 the requirements for corrosion resistance according to Annex A are satisfied. For non-pressure bearing parts AlMgSi0,5 can be used. SIST EN 13110:2012

4.3 Unalloyed aluminium, containing at least 99,5 % aluminium, or aluminium alloys other than those specified in Table 1 can also be used provided that all requirements of this European Standard, with the exception of 4.2, are met and;
a) LPG/material compatibility is checked in accordance with EN ISO 11114-1; b) the requirements for corrosion resistance according to Annex A are satisfied; and c) the manufacturer shall demonstrate that the material used is suitable for the manufacture of cylinders, the expected service life and the likely conditions of use. 4.4 The welding materials selected by the manufacturer shall be compatible with the base materials and shall produce welds which meet the minimum strength values used in the design of the cylinder and guaranteed by the manufacturer in the finished cylinders.
4.5 The manufacturer shall keep certificates in accordance with EN 10204:2004 type 3.1, or higher, covering ladle analysis and mechanical properties for material used for pressure retaining parts of the cylinder. 4.6 The manufacturer shall maintain a system of identification for materials used in the manufacture so that all materials used in the manufacture of the cylinder can be traced back to their origin. 5 Design 5.1 General requirements 5.1.1 Calculation of the wall thickness of the pressure bearing parts shall be related to the minimum guaranteed yield strength (Reg) in the finished cylinder. 5.1.2 For calculation purposes the value of Reg shall be limited to a maximum of 0,85 Rmg. SIST EN 13110:2012

5.5 Minimum wall thickness The minimum wall thickness of the cylindrical shell “a” and of the end “b” shall not be less than the value derived from the following formula: 51200,+==Dba The formula applies to cylindrical shells and ends, including any integral cylindrical part, irrespective of whether they are designed by calculation as specified in 5.2 and 5.3 or by testing as specified in 5.4. 5.6 Design of openings 5.6.1 The location of all openings shall be restricted to one end of the cylinder. 5.6.2 Each opening in the cylinder shall be reinforced by a valve boss (or by other means) so that it is of adequate strength and does not result in harmful stress concentrations. This shall be confirmed by design calculations or a fatigue test in accordance with 7.8. 5.7 Neck design 5.7.1 Internal neck threads for single hole cylinders shall be in accordance with EN ISO 11363-1. 5.7.2 The internal neck threads of multi-hole cylinders shall conform to an established dimensional specification. 5.7.3 The external diameter and thickness of the valve boss or neck end of the cylinder shall be adequate for the torque applied in fitting the valve, including any additional turning for valve alignment. The manufacturer shall specify the maximum permitted torque and shall demonstrate by tests that the neck and thread can withstand the specified torque without significant damage. NOTE The torque required can vary according to the thread diameter and form, and the type of sealant used. EN ISO 13341 gives guidance on the torque for valve fitting.
Key 1 torispherical end 2 semi-ellipsoidal end Figure 1 — Illustration of cylinder ends concave to pressure
Figure 3 — Values of shape factor C for H/D between 0,25 and 0,5
6.7.3 The manufacturer shall specify forming technology, pressing, drawing, forging, etc. Should the temperature of the material during the forming not exceed 400 °C, stabilising or stress relieving shall be applied. The applied temperature and duration shall be specified. 6.7.4 The cylinder manufacturer shall maintain records of the heat treatment. 6.7.5 Localised heat treatment shall not be permitted. 6.7.6 The heat treatment process shall be designed to minimise energy consumption and the use of coolants, and ensure environmentally friendly disposal of insulating material and other waste. 6.8 Closure of openings To protect the thread from damage and to prevent ingress of moisture into the cylinder, openings in finished cylinders shall be fitted with: a) a plug of impermeable compatible material; or b) the appropriate valve or fitting. Table 3 – Applicability of tests/examinations Test/Examination Sub-clause Type testProduction test Specified in sub-clause Specified in sub-clause Mechanical Tensile 7.4 X 8.2 b) X 9.7 9.8 Bend/Nick-break 7.5 X 8.2 b) X 9.7
9.8 Macro 7.6 O 8.2 b) O X Y 9.4 9.3 9.5 9.6 Burst 7.7 X 8.2 c) X 9.7 9.8 Fatigue 7.8 X 8.2 a) - - Drop test 7.9 X 8.2 d) - - Visual 7.10 X 8.2 e) X 9.1.1 9.1.2
Radiographic 7.11 O 8.2 b) O X Y 9.4 9.2 9.6 Pressure 7.12 - - X 9.1.2 O - This allows for an option of a radiograph or macro X - No option permitted – test to be performed Y - Retest required under certain circumstances SIST EN 13110:2012

The mechanical tests and the macro examination for checking the properties of the parent material and welds of the pressure containing parts of the cylinders shall be carried out on test specimens taken from finished cylinders. The dimensions and positions of test specimens shall be in accordance with 7.3. NOTE
Consideration should be given to minimising the environmental impact of the tests specified by including the possible recovery of test fluids, recycling of mechanical test specimens, safe disposal of chemicals etc. 7.2 Types of test and evaluation of test results The tests and examinations to be applied to cylinders shall be in accordance with Clause 8 and Clause 9. This is illustrated in Table 3. 7.3 Test specimens and related tests and examinations 7.3.1 Two piece cylinders For two piece cylinders (i.e. those containing only one circumferential weld), the test specimens detailed in Table 4 shall be taken from the places shown in Figure 4a and Figure 4b as appropriate. In addition, one sample from each welding process of non-pressure bearing attachments shall be taken for macro examination. 7.3.2 Three piece cylinders For three piece cylinders (i.e. those containing longitudinal and circumferential welds), the test specimens detailed in Table 4 shall be taken from the places shown in Figure 4c. In addition, one sample from each welding process of non-pressure bearing attachments shall be taken for macro examination. 7.3.3 Valve boss welds The welding of the valve boss shall be checked by radiographic examination in accordance with 7.11 or by macroscopic examination in accordance with 7.6. Table 4 — Tests and specimens Type of test Standard Key1 Description Tensile test
EN ISO 4136 or EN ISO 5178 T1 specimen taken across each butt weld or, if not possible, along the weld Tensile test
EN ISO 6892-1 T2 specimen taken from parent material Bend test
EN ISO 5173 B1 specimen taken across each butt weld with outer surface in tension Bend test
EN ISO 5173 B2 specimen taken across each butt weld with inner surface in tension Bend test
EN
...
