EN 1852-1:2009
(Main)Plastics piping systems for non-pressure underground drainage and sewerage - Polypropylene (PP) - Part 1: Specifications for pipes, fittings and the system
Plastics piping systems for non-pressure underground drainage and sewerage - Polypropylene (PP) - Part 1: Specifications for pipes, fittings and the system
This part of EN 1852 specifies the requirements for solid wall pipes, fittings and the system of polypropylene (PP) piping systems intended for use for:
non-pressure underground drainage and sewerage outside the building structure (application area code "U"), and
non-pressure underground drainage and sewerage for both buried in ground within the building structure (application area code "D") and outside the building structure.
This is reflected in the marking of products by "U" and "UD".
This standard covers PP materials without mineral modifiers.
It also specifies the test parameters for the test methods referred to in this standard.
This standard covers a range of nominal sizes, and pipe series and gives recommendations concerning colours.
NOTE 1 It is the responsibility of the purchaser or specifier to make the appropriate selection from these aspects, taking into account their particular requirements and any relevant national regulations and installation practices or codes.
In conjunction with Part 2 and Part 3 of EN 1852 it is applicable to PP pipes and fittings, their joints and to joints with components of other plastics and non-plastics materials intended to be used for buried piping systems for non-pressure underground drainage and sewerage.
This standard is applicable to PP pipes and fittings with or without an integral socket.
NOTE 2 The fittings can be manufactured by injection-moulding or be fabricated from pipes and/or mouldings.
NOTE 3 Requirements and limiting values for application area code "D" are given in Table 3, Table 7 and Table 14.
NOTE 4 Pipes, fittings and other components conforming to any of the plastics product standards listed in Annex C can be connected to pipes and fittings conforming to this standard, when they conform to the requirements for joint dimensions given in Clause 6 and to the requirements of Table 14.
Kunststoff-Rohrleitungssysteme für erdverlegte drucklose Abwasserkanäle und -leitungen - Polypropylen (PP) - Teil 1: Anforderungen an Rohre, Formstücke und das Rohrleitungssystem
Dieser Teil der EN 1852 legt Anforderungen an Vollwandrohre, Formstücke und das Rohrleitungssystem aus
Polypropylen (PP) für Abwasserkanäle und -leitungen fest, die in erdverlegten Schwerkraftentwässerungssystemen
- außerhalb der Gebäudestruktur (Anwendungskennzeichen „U“) sowie
- innerhalb der Gebäudestruktur (Anwendungskennzeichen „D“) und außerhalb der Gebäudestruktur
eingesetzt werden.
Die Wahl des Anwendungsgebietes wird durch die Kennzeichnung „U“ bzw. „UD“ der Rohrleitungsteile
angezeigt.
Diese Norm gilt für Werkstoffe aus Polypropylen (PP) ohne mineralische Additive.
Sie legt auch die Prüfparameter für die Prüfverfahren fest, auf die in dieser Norm verwiesen wird.
Diese Norm enthält darüber hinaus Festlegungen für Nennweiten und Rohrserien und gibt Empfehlungen für
die Auswahl der Einfärbung von Rohrleitungsteilen.
ANMERKUNG 1 Der Anwender bzw. Auftraggeber ist unter Berücksichtigung der eigenen Anforderungen sowie der
geltenden nationalen Festlegungen und Verlegepraktiken für die entsprechende Auswahl dieser Kriterien verantwortlich.
ANMERKUNG 1 Der Anwender bzw. Auftraggeber ist unter Berücksichtigung der eigenen Anforderungen sowie der geltenden nationalen Festlegungen und Verlegepraktiken für die entsprechende Auswahl dieser Kriterien verantwortlich.
Zusammen mit EN 1852-2 und EN 1852-3 gilt dieser Teil für Rohre und Formstücke aus PP, ihre Ver-bindungen untereinander sowie mit Rohrleitungsteilen aus anderen Kunststoffen oder Rohrwerkstoffen, die für erdverlegte Abwasserkanäle und leitungen vorgesehen sind.
Diese Norm ist anwendbar auf Rohre und Formstücke aus PP sowohl mit oder ohne angeformter Muffe.
ANMERKUNG 2 Die Formstücke können im Spritzguss, aus Rohren und/oder aus Spritzgussteilen hergestellt sein.
ANMERKUNG 3 Anforderungen und mögliche Einschränkungen für Anwendungsgebiete mit Anwendungskennzeichen „D“ sind in Tabelle 3, Tabelle 67 bzw. in Tabelle 124 aufgeführt.
Systèmes de canalisations en plastique pour les branchements et les collecteurs d'assainissement enterrés sans pression - Polypropylène (PP) - Partie 1 : Spécifications pour tubes, raccords et le système
La présente partie de l'EN 1852 spécifie les exigences pour les tubes à paroi compacte, les raccords et le système de canalisations en polypropylène (PP) destinés à être utilisés pour :
- les branchements et des collecteurs d'assainissement enterrés sans pression à l'extérieur de la structure du bâtiment (code de zone d'application « U ») ; et
- les branchements et des collecteurs d'assainissement enterrés sans pression aussi bien à l'intérieur de la structure du bâtiment (code de zone d'application « D ») qu'à l'extérieur de celle-ci.
Ceci se retrouve dans le marquage « U » et « UD » des produits.
La présente norme couvre les matières PP sans modificateurs minéraux.
Elle spécifie également les paramètres d'essai pour les méthodes d'essai auxquelles se réfère cette norme.
La présente Norme couvre une gamme de dimensions nominales, une gamme de séries de tubes et donne des recommandations concernant les couleurs.
NOTE 1 Il est de la responsabilité de l'acheteur ou du prescripteur de procéder aux choix appropriés, prenant en compte les exigences particulières et les règlements nationaux et pratiques nationales appropriés.
Conjointement aux Parties 2 et 3 de l'EN 1852, elle s'applique aux tubes et aux raccords en PP, à leurs assemblages ainsi qu'aux assemblages avec des composants en d'autres matières plastiques ou non, destinés à être utilisés pour les systèmes de canalisations pour branchements et collecteurs d'assainissement enterrés sans pression.
La présente Norme européenne est applicable aux tubes et aux raccords en PP avec ou sans emboîture.
NOTE 2 Les raccords peuvent être fabriqués par moulage par injection ou peuvent être façonnés à partir de tubes et/ou de pièces moulées.
NOTE 3 Les exigences et les valeurs limites pour le code de zone d'application « D » sont données aux Tableau 4, Tableau 7 et Tableau 14.
[...]
Cevni sistemi iz polimernih materialov za odpadno vodo in kanalizacijo, ki delujejo po težnostnem principu in so položeni v zemljo - Polipropilen (PP) - 1. del: Specifikacije za cevi, fitinge in sistem
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-junij-2009
1DGRPHãþD
SIST EN 1852-1:1997/A1:2003
SIST EN 1852-1:1999
Cevni sistemi iz polimernih materialov za odpadno vodo in kanalizacijo, ki delujejo
po težnostnem principu in so položeni v zemljo - Polipropilen (PP) - 1. del:
Specifikacije za cevi, fitinge in sistem
Plastics piping systems for non-pressure underground drainage and sewerage -
Polypropylene (PP) - Part 1: Specifications for pipes, fittings and the system
Kunststoff-Rohrleitungssysteme für erdverlegte drucklose Abwasserkanäle und -
leitungen - Polypropylen (PP) - Teil 1: Anforderungen an Rohre, Formstücke und das
Rohrleitungssystem
Systemes de canalisations en plastique pour les branchements et les collecteurs
d'assainissement enterrés sans pression - Polypropylene (PP) - Partie 1 : Spécifications
pour tubes, raccords et le systeme
Ta slovenski standard je istoveten z: EN 1852-1:2009
ICS:
23.040.01 Deli cevovodov in cevovodi Pipeline components and
na splošno pipelines in general
93.030 Zunanji sistemi za odpadno External sewage systems
vodo
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 1852-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2009
ICS 23.040.01; 93.030 Supersedes EN 1852-1:1997
English Version
Plastics piping systems for non-pressure underground drainage
and sewerage - Polypropylene (PP) - Part 1: Specifications for
pipes, fittings and the system
Systèmes de canalisations en plastique pour les Kunststoff-Rohrleitungssysteme für erdverlegte drucklose
branchements et les collecteurs d'assainissement enterrés Abwasserkanäle und -leitungen - Polypropylen (PP) - Teil
sans pression - Polypropylène (PP) - Partie 1 : 1: Anforderungen an Rohre, Formstücke und das
Spécifications pour tubes, raccords et le système Rohrleitungssystem
This European Standard was approved by CEN on 14 February 2009.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the
official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2009 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 1852-1:2009: E
worldwide for CEN national Members.

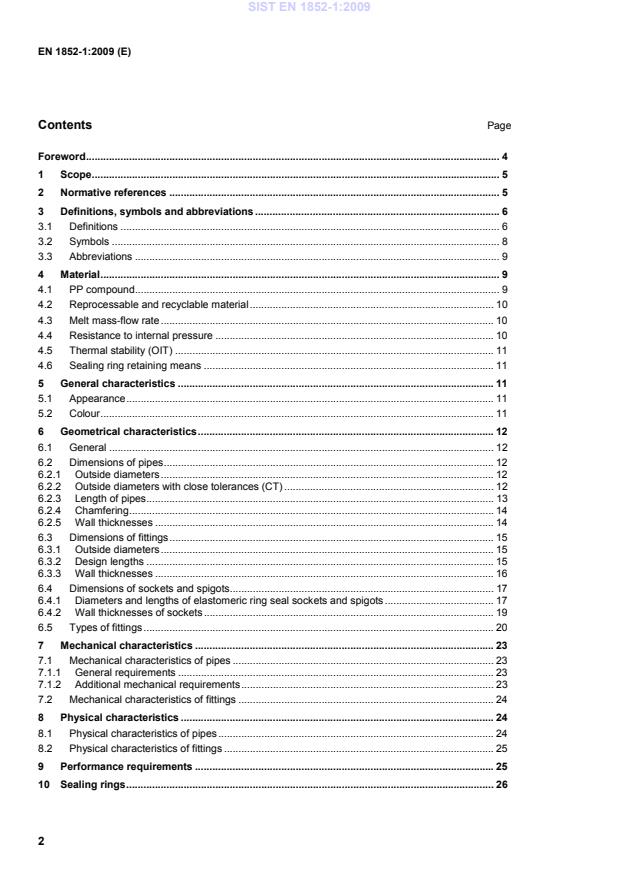

Contents Page
Foreword . 4
1 Scope . 5
2 Normative references . 5
3 Definitions, symbols and abbreviations . 6
3.1 Definitions . 6
3.2 Symbols . 8
3.3 Abbreviations . 9
4 Material . 9
4.1 PP compound. 9
4.2 Reprocessable and recyclable material . 10
4.3 Melt mass-flow rate . 10
4.4 Resistance to internal pressure . 10
4.5 Thermal stability (OIT) . 11
4.6 Sealing ring retaining means . 11
5 General characteristics . 11
5.1 Appearance . 11
5.2 Colour . 11
6 Geometrical characteristics . 12
6.1 General . 12
6.2 Dimensions of pipes . 12
6.2.1 Outside diameters . 12
6.2.2 Outside diameters with close tolerances (CT) . 12
6.2.3 Length of pipes . 13
6.2.4 Chamfering . 14
6.2.5 Wall thicknesses . 14
6.3 Dimensions of fittings . 15
6.3.1 Outside diameters . 15
6.3.2 Design lengths . 15
6.3.3 Wall thicknesses . 16
6.4 Dimensions of sockets and spigots. 17
6.4.1 Diameters and lengths of elastomeric ring seal sockets and spigots . 17
6.4.2 Wall thicknesses of sockets . 19
6.5 Types of fittings . 20
7 Mechanical characteristics . 23
7.1 Mechanical characteristics of pipes . 23
7.1.1 General requirements . 23
7.1.2 Additional mechanical requirements . 23
7.2 Mechanical characteristics of fittings . 24
8 Physical characteristics . 24
8.1 Physical characteristics of pipes . 24
8.2 Physical characteristics of fittings . 25
9 Performance requirements . 25
10 Sealing rings . 26
11 Marking . 26
11.1 General . 26
11.2 Minimum required marking of pipes . 27
11.3 Minimum required marking of fittings . 27
11.4 Additional marking . 28
Annex A (normative) Geometrical characteristics of pipes following S-series 11,2 . 29
A.1 General . 29
A.2 Wall thickness of pipes . 29
A.3 Wall thickness of sockets. 30
Annex B (informative) General characteristics of PP pipes and fittings . 31
B.1 General . 31
B.2 Material characteristics . 31
B.3 Ring stiffness . 31
B.4 Creep ratio . 31
B.5 Chemical resistance . 32
B.6 Abrasion resistance . 32
B.7 Hydraulic roughness . 32
B.8 Diametric deflection . 32
Annex C (informative) Product standards of components that can be connected to components
conforming to this standard . 33
Bibliography . 34
Foreword
This document (EN 1852-1:2009) has been prepared by Technical Committee CEN/TC 155 “Plastics piping
systems and ducting systems”, the secretariat of which is held by NEN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by September 2009, and conflicting national standards shall be
withdrawn at the latest by September 2009.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 1852-1:1997.
The System Standards are based on the results of the work undertaken in ISO/TC 138 "Plastics pipes, fittings
and valves for the transport of fluids", which is a Technical Committee of the International Organization for
Standardization (ISO).
The System Standards are supported by separate standards on test methods to which references are made
throughout the System Standard.
The System Standards are consistent with general standards on functional requirements and on
recommended practice for installation.
EN 1852 consists of the following parts, under the general title Plastics piping systems for non-pressure
underground drainage and sewerage − Polypropylene (PP)
Part 1: Specifications for pipes, fittings and the system (the present standard);
Part 2: Guidance for the assessment of conformity (CEN Technical Specification);
Part 3: Guidance for installation (CEN Technical Specification).
This part of EN 1852 includes Annex A (normative): Geometrical characteristics of pipes following S-series
11,2, Annex B (informative): General characteristics of PP pipes and fittings and Annex C (informative):
Product standards of components that can be connected to components conforming to this standard.
Plastics piping systems made of PP with mineral modifiers (PP-MD) are covered by EN 14758-1 [1].
The main change in the revised document is: EN 1852 gave wall thicknesses for two different E-modulus and
S-series, and for E-modulus above 1 700
...
