EN 1677-4:2000

(Main)

Components for slings - Safety - Part 4: Links, Grade 8

Components for slings - Safety - Part 4: Links, Grade 8

This part of EN 1677 specifies requirements for forged or welded steel master links, intermediate master links, master link assemblies and lower terminal links of grade 8 up to 132 t WLL, mainly for use in:- chain slings according to EN 818-4 - steel wire rope slings - textile slings according to prEN 1492-1:1994, prEN 1492-2:1994 . intended for lifting objects, materials or goods.This Part of EN 1677 does not apply to hand forged links.The hazards covered by this Part of EN 1677 are identified in clause 4.Annex ZA gives the relationship with EU-Directives

Einzelteile für Anschlagmittel - Sicherheit - Teil 4: Einzelglieder, Güteklasse 8

Dieser Teil von EN 1677 legt Anforderungen für geschweißte oder geschmiedete Aufhänge-, Zwischen- und Endglieder und Aufhängegarnituren aus Stahl in Güteklasse 8 im Bereich bis 132 t Tragfähigkeit fest, die hauptsäch-lich Verwendung finden in:
- Anschlagketten nach EN 818-4; - Anschlagseilen aus Stahldraht und - textilen Anschlagmitteln nach prEN 1492-1 : 1994 und prEN 1492-2 : 1994, die zum Heben von Gegenständen, Materialien und Gütern vorgesehen sind. Dieser Teil von EN 1677 gilt nicht für handgeschmiedete Einzelglieder. Die Gefährdungen, die durch diesen Teil von EN 1677 abgedeckt werden, sind in Abschnitt 4 aufgeführt. Anhang ZA gibt den Zusammenhang mit EU-Richtlinien an.

Accessoires pour élingues - Sécurité - Partie 4: Mailles, Classe 8

La présente partie de l'EN 1677 spécifie les prescriptions requises pour les mailles de tête, les mailles de tête intermédiaires, les assemblages de mailles de tête et les mailles d'extrémité inférieure forgés ou soudés de classe 8 de charge maximale d'utilisation inférieure à 132 tonnes utilisés principalement dans - des élingues en chaînes selon l'EN 818-4 ; - des élingues en câbles d'acier ; - des élingues textiles selon les prEN 1492-1:1994 et prEN 1492-2:1994. prévues pour le levage d'objets, de matériels ou de marchandises. La présente partie de l'EN 1677 ne s'appplique pas aux mailles forgées à la main. Les risques couverts par la présente norme sont identifiés dans l'article 4. L'annexe ZA donne la relation avec les Directives UE.

Sestavni deli obes - Varnost - 4. del: Členi, kakovostni razred 8

General Information

Status
Withdrawn
Publication Date
17-Oct-2000
Withdrawal Date
11-Nov-2008
ICS
53.020.30 - Accessories for lifting equipment
Technical Committee
CEN/TC 168 - Chains, ropes, webbing, slings and accessories - safaty
Drafting Committee
CEN/TC 168/WG 4 - Hooks and other accessories
Current Stage
9960 - Withdrawal effective - Withdrawal
Start Date
12-Nov-2008
Completion Date
12-Nov-2008
Directive
98/37/EC - Machinery
Mandate
M/BC/CEN/91/1 - Standardization request to CEN/CENELEC concerning machines presenting hazards due to mobility or load lifting
Ref Project
SIST EN 1677-4:2001 - Components for slings - Safety - Part 4: Links, Grade 8

Relations

Merged Into
EN 1677-4:2000+A1:2008 - Components for slings - Safety - Part 4: Links, Grade 8
Effective Date
22-Dec-2008

Buy Standard

EN 1677-4:2001EN 1677-4:2001
PreviousNext
Standard
EN 1677-4:2001
English language
20 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

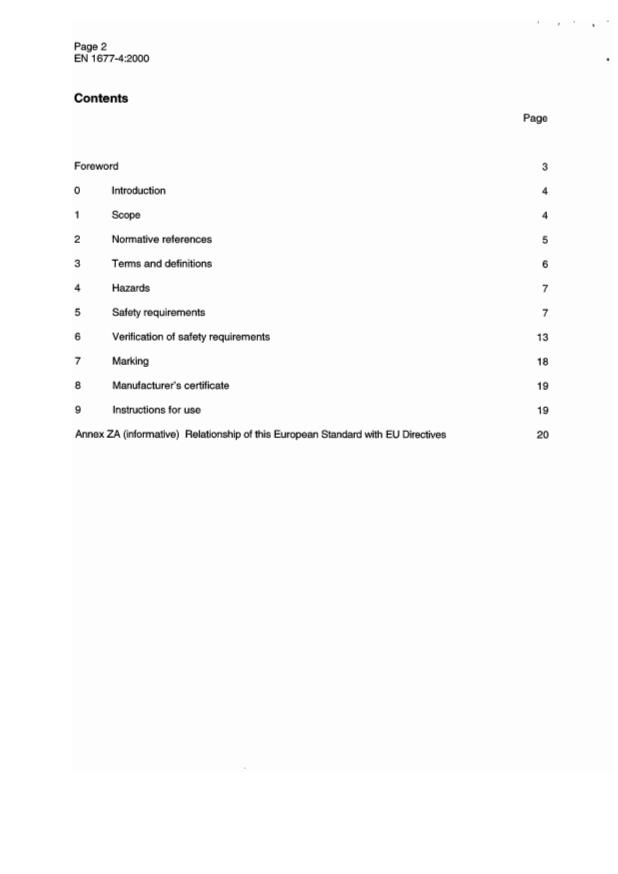

Standards Content (Sample)
