(Main)Winter maintenance equipment — Spreading machines (gritting machines) — Part 1: General requirements and definitions for spreading machines
Winter maintenance equipment — Spreading machines (gritting machines) — Part 1: General requirements and definitions for spreading machines
Demands on design and construction of bulk spreaders, trailer spreaders and towed spreaders with speed related spreading for winter service are determined by this document. At the same time, information is given on the minimum content required for operating manuals.
The standard is valid for machines which are used to spread the following media:
a) spreading agents with or without pre-wetted agent;
b) abrasive spreading agents;
c) brine.
The following points are not covered by this standard:
- requirements for registration and approval;
- requirements made by automobile manufacturers;
- requirements on safety – these are dealt with in EN 13021.
Winterdienstausrüstung - Streumaschinen - Teil 1: Allgemeine Anforderungen und Angaben für Streumaschinen
Die Norm legt Anforderungen an Ausführung und Bauweise von aufgesetzten, aufgebauten und gezogenen Streumaschinen mit geschwindigkeitsabhängiger Streuung für den Winterdienst fest. Gleichzeitig enthält sie Angaben zu dem erforderlichen Mindestinhalt der Betriebsanleitungen.
Diese Norm gilt für Maschinen, die zum Streuen folgender Stoffe eingesetzt werden:
a) feste Taustoffe mit oder ohne Anfeuchtung;
b) abstumpfende Streustoffe;
c) Taustofflösungen.
Die folgenden Punkte werden in dieser Norm nicht behandelt:
- Anforderungen an Registrierung und Zulassung;
- Anforderungen seitens der Automobilhersteller;
Sicherheitsanforderungen - Diese werden in EN 13021 behandelt.
Équipement de viabilité hivernale - Épandeuses - Partie 1 : Exigences générales et définitions relatives aux épandeuses
Le présent document détermine les exigences relatives à la conception et à la fabrication des épandeuses, des remorques d'épandage et des épandeuses tractées, avec un épandage qui dépend de la vitesse, pour le service hivernal. Des informations relatives au contenu minimum exigé dans les manuels d'utilisation sont décrites en parallèle.
La présente norme est valable pour des machines servant à épandre les produits suivants :
a) produits d'épandage avec ou sans agent liquide ;
b) produits d'épandage abrasifs ;
c) saumure.
La présente norme ne couvre pas les aspects suivants :
- exigences d'enregistrement et d'agrément ;
- exigences imposées par les constructeurs d'automobiles ;
- exigences de sécurité - celles-ci sont traitées par l'EN13021.
Oprema za zimska vzdrževalna dela - Posipalnik - 1. del: Splošne zahteve in definicije za posipalnike
Ta dokument opredeljuje zahteve glede načrtovanja in izgradnje silosnih, priklopnih in vlečnih posipalnikov za zimske storitve in s posipanjem, odvisnim od hitrosti. Hkrati podaja informacije o minimalni vsebini, ki mora biti zajeta v navodilih za uporabo. Standard velja za stroje, ki se uporabljajo za posipanje naslednjih sredstev: a) sredstva za posipanje z ali brez vnaprej navlaženih sredstev; b) abrazivna sredstva za posipanje; c) slanica. Standard ne pokriva naslednjih točk: zahtev za registracijo in odobritev; zahtev avtomobilskih proizvajalce; zahtev glede varnosti – le-te obravnava EN 13021.
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Oprema za zimska vzdrževalna dela - Posipalnik - 1. del: Splošne zahteve in definicije za posipalnikeWinterdienstausrüstung - Streumaschinen - Teil 1: Allgemeine Anforderungen und Angaben für StreumaschinenÉquipement de viabilité hivernale - Épandeuses - Partie 1: Exigences générales et définitions relatives aux épandeusesWinter maintenance equipment - Spreading machines (gritting machines) - Part 1: General requirements and definitions for spreading machines43.160Vozila za posebne nameneSpecial purpose vehiclesICS:Ta slovenski standard je istoveten z:EN 15597-1:2009SIST EN 15597-1:2010en,de01-januar-2010SIST EN 15597-1:2010SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 15597-1
October 2009 ICS 13.030.40 English Version
Winter maintenance equipment - Spreading machines (gritting machines) - Part 1: General requirements and definitions for spreading machines
Équipement de viabilité hivernale - Épandeuses -Partie 1 : Exigences générales et définitions relatives aux épandeuses
Winterdienstausrüstung - Streumaschinen - Teil 1: Allgemeine Anforderungen und Angaben für Streumaschinen This European Standard was approved by CEN on 29 September 2009.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2009 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 15597-1:2009: ESIST EN 15597-1:2010

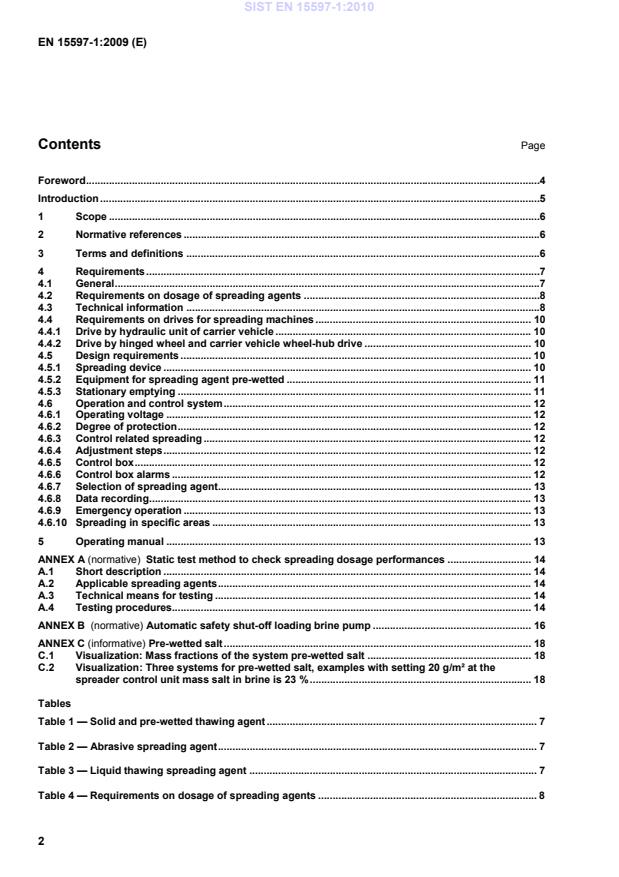

Static test method to check spreading dosage performances . 14A.1Short description . 14A.2Applicable spreading agents . 14A.3Technical means for testing . 14A.4Testing procedures. 14ANNEX B
(normative) Automatic safety shut-off loading brine pump . 16ANNEX C (informative) Pre-wetted salt . 18C.1Visualization: Mass fractions of the system pre-wetted salt . 18C.2Visualization: Three systems for pre-wetted salt, examples with setting 20 g/m² at the spreader control unit mass salt in brine is 23 % . 18 Tables Table 1 — Solid and pre-wetted thawing agent . 7 Table 2 — Abrasive spreading agent . 7 Table 3 — Liquid thawing spreading agent . 7 Table 4 — Requirements on dosage of spreading agents . 8 SIST EN 15597-1:2010
Figures Figure 1 — Dimensions of spreading machines (G quote centre of gravity) . 9Figure 2 — Spreading device . 11Figure B.1 — Type connector . 16Figure B.2 — Schematic diagram spreader/loading brine plant . 17Figure C.1 — Visualization mass fractions . 18Figure C.2 — System 1 . 18Figure C.3 — System 2 . 19Figure C.4 — System 3 . 19 SIST EN 15597-1:2010
Introduction This document is meant to assess the demands made on mobile spreading machines operated in traffic. Spreaders/gritters are to be operated in such way that homogeneous distribution of spreading agents is given within the set spreading dosage, spreading width and spreading track asymmetry. SIST EN 15597-1:2010
Table 2 — Abrasive spreading agent Conditions Driving speed Spreading dosage Spreading width km/h g/m2 m Minimum 10 20 2 Nominal 20 – 40 50 – 150 2 – 6 Maximum 50 250 8
Table 3 — Liquid thawing spreading agent (brine) Conditions Driving speed Spreading dosage Spreading width km/h g/m2 m Minimum 10 15 3,5 Nominal 30 – 50 15 – 60 3,5 – 10,5 Maximum 60 80 14
The spreading machine shall be able to spread a total amount of spreading agents at least 70 % of the maximum of setting values. SIST EN 15597-1:2010
4.2 Requirements on dosage of spreading agents Requirements on dosage are shown in Table 4. The test method is given in Annex A. Table 4 — Requirements on dosage of spreading agents Spreading agents admitted deviation % Solid thawing media (with pre-wetting liquids measured separately) ± 6 Abrasive spreading agent ± 15 Liquid spreading agent (brine) ± 6
A positive deviation up to 3 kg/min for total amount is acceptable when the required amount spread is less than 10 kg/min. 4.3 Technical information Producer of spreading machine shall supply the: a) technical data as given in the key of Figure 1; b) minimum and maximum spreading parameters (see Tables 1 to 3); c) range of spreading track asymmetry according to spreading pattern; d) sp
...
