EN 14427:2004
(Main)Transportable refillable fully wrapped composite cylinders for Liquefied Petroleum Gases (LPG) - Design and Construction
Transportable refillable fully wrapped composite cylinders for Liquefied Petroleum Gases (LPG) - Design and Construction
This European Standard specifies minimum requirements for materials, design, construction, prototype testing and routine manufacturing inspections of fully wrapped composite cylinders with a water capacity from 0,5 litre up to and including 150 litres for liquefied petroleum gases (LPG) exposed to ambient temperatures, with a test pressure of 30 bar.
This standard is only applicable to cylinders which are fitted with a pressure relief valve (see 4.1.3).
NOTE 1 Cylinders made to this standard are suitable for the temperature range of -40 °C to 50 °C.
This standard is applicable to cylinders with a liner of metallic material (welded or seamless) or non-metallic material (or a mixture thereof), reinforced by fibres of glass, carbon or aramid (or a mixture thereof).
This standard is also applicable to composite cylinders without liners.
NOTE 2 This standard does not address the design, fitting and performance of removable protective sleeves. Where these are fitted, the choice of material and sleeve performance should be considered separately.
Ortsbewegliche wiederbefüllbare vollumwickelte Flaschen aus Verbundwerkstoff für Flüssiggas (LPG) - Gestaltung und Konstruktion
Diese Norm enthält Mindestanforderungen an die Werkstoffe, die Gestaltung, Konstruktion, die Bauartprüfungs-, Baureihen- und Abnahmeprüfungen von Flaschen aus Verbundwerkstoffen mit einem Fassungsraum von 0,5 Liter bis einschliesslich 150 Liter für Flüssiggas (LPG), die Umgebungstemperaturen ausgesetzt sind, mit einem Prüfdruck von 30 bar..
ANMERKUNG 1 Flaschen nach dieser Norm sind für einen Temperaturbereich von -40°C bis 50°C geeignet.
Diese Norm ist auf Flaschen anwendbar, die aus einem Liner mit metallischem Werkstoff (geschweißt oder nahtlos) oder mit nicht-metallischem Werkstoff (oder einer Kombination aus beidem) bestehen, und die mit einem in einer Matrix eingebetteten Wickelverbund aus Glas-, Kohlenstoff-, Aramid- oder sonstigen Faserwerkstoffen verstärkt sind.
Diese Norm gilt auch für Flaschen aus Verbundwerkstoff ohne Liner.
ANMERKUNG 2 Diese Spezifikation beinhaltet nicht die Gestaltung, Verbindung und Durchführung von abnehmbaren Schutzhüllen. Die Verbindung sollte separat betrachtet werden.
Bouteilles entièrement bobinées en matériau composite, transportables et rechargeables pour gaz de pétrole liquéfié (GPL) - Conception et fabrication
La présente Norme européenne spécifie les exigences minimales relatives aux matériaux, à la conception, à la fabrication, aux essais de qualification de modèle de conception et aux contrôles courants de production des bouteilles pour gaz de pétrole liquéfié (GPL) entièrement bobinées en matériau composite, d'une capacité en eau comprise entre 0,5 l et 150 l inclus, exposées aux températures ambiantes, pour une pression d'essai de 30 bar.
Cette norme s'applique uniquement aux bouteilles qui sont dotées d'une soupape de sûreté (voir en 4.1.3).
NOTE 1 Les bouteilles fabriquées selon cette norme sont adaptées à une plage de température de - 40 °C à 50 °C.
La présente norme s'applique aux bouteilles constituées d'un liner métallique (avec ou sans soudure) ou non métallique (ou constitué d'un mélange de ces matériaux), renforcé par des fibres de verre, de carbone ou d'aramide (ou un mélange de ces matériaux).
La présente norme s'applique également aux bouteilles à gaz en matériau composite sans liner.
NOTE 2 La présente norme ne traite pas de la conception, du montage et des performances des enveloppes de protection amovibles. Lorsque celles-ci sont montées, il convient de considérer séparément le choix du matériau et les performances des enveloppes.
Premične, ponovno polnljive, popolnoma obvite jeklenke iz kompozitnih materialov za utekočinjeni naftni plin (LPG) - Konstruiranje in izdelava
General Information
- Status
- Withdrawn
- Publication Date
- 25-May-2004
- Withdrawal Date
- 03-Jun-2014
- Technical Committee
- CEN/TC 286 - Liquefied petroleum gas equipment and accessories
- Drafting Committee
- CEN/TC 286/WG 1 - Design and manufacture of LPG pressure vessels
- Current Stage
- 9960 - Withdrawal effective - Withdrawal
- Start Date
- 04-Jun-2014
- Completion Date
- 04-Jun-2014
Relations
- Effective Date
- 11-Jun-2014
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 08-Jun-2022
Frequently Asked Questions
EN 14427:2004 is a standard published by the European Committee for Standardization (CEN). Its full title is "Transportable refillable fully wrapped composite cylinders for Liquefied Petroleum Gases (LPG) - Design and Construction". This standard covers: This European Standard specifies minimum requirements for materials, design, construction, prototype testing and routine manufacturing inspections of fully wrapped composite cylinders with a water capacity from 0,5 litre up to and including 150 litres for liquefied petroleum gases (LPG) exposed to ambient temperatures, with a test pressure of 30 bar. This standard is only applicable to cylinders which are fitted with a pressure relief valve (see 4.1.3). NOTE 1 Cylinders made to this standard are suitable for the temperature range of -40 °C to 50 °C. This standard is applicable to cylinders with a liner of metallic material (welded or seamless) or non-metallic material (or a mixture thereof), reinforced by fibres of glass, carbon or aramid (or a mixture thereof). This standard is also applicable to composite cylinders without liners. NOTE 2 This standard does not address the design, fitting and performance of removable protective sleeves. Where these are fitted, the choice of material and sleeve performance should be considered separately.
This European Standard specifies minimum requirements for materials, design, construction, prototype testing and routine manufacturing inspections of fully wrapped composite cylinders with a water capacity from 0,5 litre up to and including 150 litres for liquefied petroleum gases (LPG) exposed to ambient temperatures, with a test pressure of 30 bar. This standard is only applicable to cylinders which are fitted with a pressure relief valve (see 4.1.3). NOTE 1 Cylinders made to this standard are suitable for the temperature range of -40 °C to 50 °C. This standard is applicable to cylinders with a liner of metallic material (welded or seamless) or non-metallic material (or a mixture thereof), reinforced by fibres of glass, carbon or aramid (or a mixture thereof). This standard is also applicable to composite cylinders without liners. NOTE 2 This standard does not address the design, fitting and performance of removable protective sleeves. Where these are fitted, the choice of material and sleeve performance should be considered separately.
EN 14427:2004 is classified under the following ICS (International Classification for Standards) categories: 23.020.30 - Pressure vessels, gas cylinders; 23.020.35 - Gas cylinders. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 14427:2004 has the following relationships with other standards: It is inter standard links to EN 14427:2014, EN 1097-5:2008, EN ISO 7866:2012, EN ISO 22479:2022, EN 1964-3:2000, EN ISO 175:2010, EN ISO 75-3:2025, EN ISO 7784-3:2006, EN 13055-2:2004, EN 14140:2014, EN ISO 11507:2001, EN 1440:2008+A1:2012, EN 1439:2008, EN 14427:2004/A1:2005. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 14427:2004 is associated with the following European legislation: EU Directives/Regulations: 94/55/EC, 96/49/EC, 96/86/EC, 96/87/EC, TRRTP121; Standardization Mandates: M/086. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 14427:2004 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

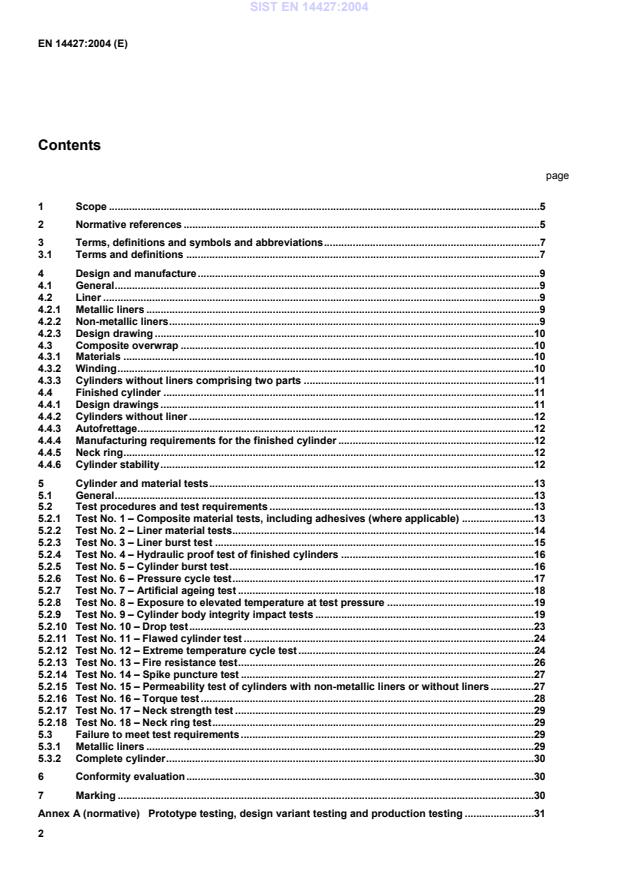

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.WQLK]GHODYDOrtsbewegliche wiederbefüllbare vollumwickelte Flaschen aus Verbundwerkstoff für Flüssiggas (LPG) - Gestaltung und KonstruktionBouteilles entierement bobinées en matériau composite, transportables et rechargeables pour gaz de pétrole liquéfié (GPL) - Conception et fabricationTransportable refillable fully wrapped composite cylinders for Liquefied Petroleum Gases (LPG) - Design and Construction23.020.30MHNOHQNHPressure vessels, gas cylindersICS:Ta slovenski standard je istoveten z:EN 14427:2004SIST EN 14427:2004en01-september-2004SIST EN 14427:2004SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 14427May 2004ICS 23.020.30English versionTransportable refillable fully wrapped composite cylinders forLiquefied Petroleum Gases (LPG) - Design and ConstructionBouteilles entièrement bobinées en matériau composite,transportables et rechargeables pour gaz de pétrole liquéfié(GPL) - Conception et fabricationOrtsbewegliche wiederbefüllbare vollumwickelte Flaschenaus Verbundwerkstoff für Flüssiggas (LPG) - Gestaltungund KonstruktionThis European Standard was approved by CEN on 18 March 2004.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2004 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 14427:2004: ESIST EN 14427:2004
Prototype testing, design variant testing and production testing.31 SIST EN 14427:2004
Examples of type approval and production testing certificates.41 B.1 Type approval certificate - composite cylinders with metallic liners.41 B.2 Type approval certificate - composite cylinders with non-metallic liners.42 B.3 Type approval certificate - composite cylinders without liners.43 B.4 Design variant approval certificate - composite cylinders with metallic liners.44 B.5 Production test certificate.45 Annex C (informative)
Manufacturers marking.47
3.1.16 non-metallic liner liner made from thermoplastic, thermosetting, or elastomer material 3.1.17 matrix material which is used to bind and hold the fibres in place 3.1.18 thermoplastic plastics capable of being repeatedly softened by increase of temperature and hardened by decrease of temperature 3.1.19 thermoset plastics which when cured by the application of heat or chemical means changes into a substantially infusible and insoluble product 3.1.20 removable protective sleeve external sleeve intended to provide protection to the cylinder during operation which is not an integral part of the design, not permanently fixed to the cylinder but which can be removed during service without destroying the sleeve without the use of special tools SIST EN 14427:2004
EN 1964-1 or EN 1964-2, as appropriate; b) seamless stainless steel liners:
EN 1964-3; c) seamless aluminium alloy liners:
EN 1975; d) welded steel liners:
EN 1442 or EN 14140; e) brazed steel liners:
EN 12807; f) welded aluminium liners:
EN 13110. 4.2.1.2 The relevant clauses are those covering: materials, thermal treatments, neck design, construction and workmanship, mechanical tests. NOTE This excludes the design requirements, since the design is determined by the manufacturer in accordance with this standard for the design of the composite cylinder. 4.2.2 Non-metallic liners 4.2.2.1 A cylinder with a non-metallic liner shall be designed as if the liner will be non-load sharing. The liner material shall be compatible with LPG as determined by EN ISO 11114-2. SIST EN 14427:2004
EN ISO 75-3; for thermoset materials, the glass transition temperature as determined by differential scanning calorimetry; composition; compatibility with LPG as determined by EN ISO 11114-2; end boss material specification: minimum yield stress; minimum tensile strength; minimum elongation of the boss material. 4.3 Composite overwrap 4.3.1 Materials Material requirements for the fibre and the matrix, if applicable, shall be as specified by the manufacturer. 4.3.2 Winding Procedures shall be defined for the winding and curing process to ensure good repeatability and traceability. For all cylinders, the following parameters shall be defined and monitored: a) the batch numbers of the fibres used; b) the number of strands used; c) the winding tension per strand, (if applicable); SIST EN 14427:2004
prototype testing of new cylinder designs (see A.2);
design variant testing (see A.3); and
production testing (see A.4). The tests listed are mandatory or optional, as identified in the schedule of testing and inspections in annex A. Cylinders subjected to the tests shall include all permanently fixed parts, unless otherwise specified. No tests shall be performed with a removable protective sleeve fitted to the cylinder, except where specified (see test 10, 5.2.10.1). NOTE Attention is drawn to the risks associated with testing pressurised cylinders. Appropriate safety precautions should be taken in order to reduce the risks to testing personnel e.g. during positioning and handling of cylinders they can be depressurised between individual tests. 5.2 Test procedures and test requirements 5.2.1 Test No. 1 – Composite material tests, including adhesives (where applicable) 5.2.1.1 Tests on all cylinders 5.2.1.1.1 Procedure Tests on the composite materials to establish their mechanical properties shall be carried as follows for: a) Tensile properties of fibres in accordance with the following standards: For glass, aramid:
- ASTM D 2290-00 and ASTM D 2291-98;
- ASTM D 2343-95; For carbon:
- ASTM D 4018-99. Alternative standards are acceptable providing that they give equivalent results. b) Shear properties in accordance with the following standard:
- ASTM D 2344-84. Alternative standards are acceptable providing that they give equivalent results. c) Impact properties Impact tests on the material shall be carried out at room temperature (+20 °C) and at –20 °C. At each temperature three specimens shall be tested. As an alternative, the cylinder impact tests (Test No. 9, see 5.2.9) with the cylinders at –20 °C shall be carried out.
- as described in EN 1964-1 or EN 1964-2, as appropriate; b) seamless stainless steel - as described in EN 1964-3; c) welded stainless steel
- as described in EN 14140; d) seamless aluminium
- as described in EN 1975; e) welded steel
- as described in EN 1442 or EN 14140; f) Welded aluminium
- as described in EN 13110; g) Brazed steel
- as described in EN 12807;
...
