EN 12566-3:2005+A1
January 2009 ICS 13.060.30 Supersedes EN 12566-3:2005English Version
Small wastewater treatment systems for up to 50 PT - Part 3: Packaged and/or site assembled domestic wastewater treatment plants
Petites installations de traitement des eaux usées jusqu'à 50 PTE - Partie 3: Stations d'épuration des eaux usées domestiques prêtes à l'emploi et/ou assemblées sur site
Kleinkläranlagen für bis zu 50 EW - Teil 3: Vorgefertigte und/oder vor Ort montierte Anlagen zur Behandlung von häuslichem Schmutzwasser This European Standard was approved by CEN on 20 June 2005 and includes Amendment 1 approved by CEN on 15 December 2008.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36
B-1050 Brussels © 2009 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 12566-3:2005+A1:2009: ESIST EN 12566-3:2005+A1:2009

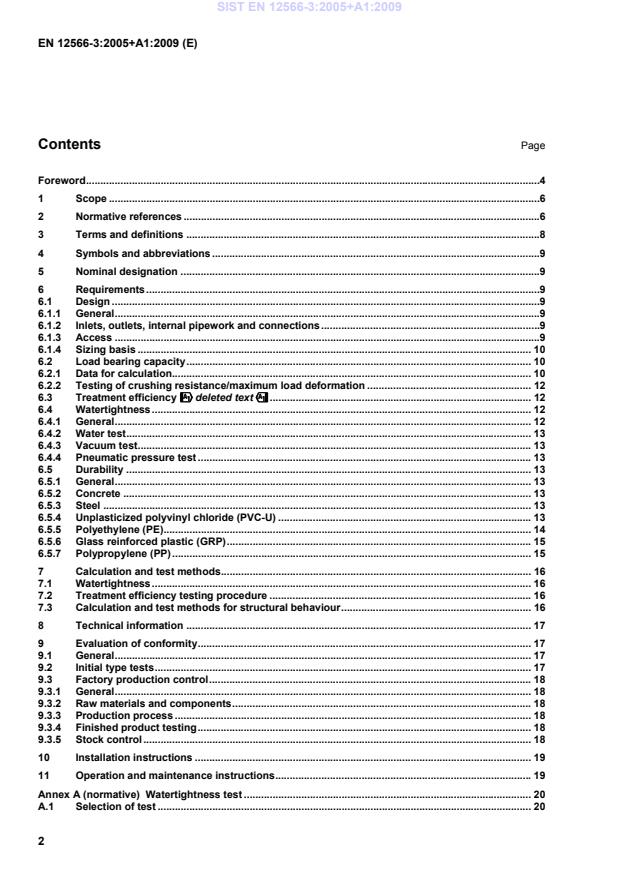

Watertightness test . 20A.1Selection of test . 20SIST EN 12566-3:2005+A1:2009

Treatment efficiency test procedure . 23B.1Responsibility and testing location . 23B.2Plant selection and preliminary evaluation . 23B.2.1General . 23B.2.2Installation and commissioning . 23B.2.3Operation and maintenance procedures during testing . 23B.2.4Data to be monitored . 24B.3Test procedure . 24B.3.1Time for establishment . 24B.3.2Influent characteristics . 24B.3.3Daily flow pattern for testing . 25B.3.4Test procedure . 25B.3.5Influent and effluent samplings . 27B.4Sample analysis . 28B.5Test report . 28Annex C (normative)
Calculation and test methods for structural behaviour . 30C.1General . 30C.2Concrete plant . 30C.2.1Crushing test methods . 30C.2.2Test procedures . 31C.3Polyethylene and polypropylene plant . 34C.3.1Vertical load test . 34C.4Determination of mechanical characteristics of test samples used for calculation . 35C.4.1Concrete . 35C.4.2Glass reinforced plastic (GRP) . 35C.4.3PVC-U . 36C.4.4PE, PP . 36C.4.5Steel . 36C.5Vacuum test for Glass Reinforced Plastic . 36C.6Pit test . 37C.6.1Sample . 37C.6.2Procedure . 37C.6.3Expression of results . 38Annex ZA (informative)
Clauses of this European Standard addressing the provisions of the EU Construction Products Directive . 39ZA.1Scope and relevant characteristics . 39ZA.2Procedure of attestation of conformity of !!!!packaged and/or site assembled domestic wastewater treatment plants"""" . 41ZA.2.1System of attestation of conformity . 41ZA.2.2Declaration of conformity . 41ZA.3CE Marking . 42Bibliography . 45 SIST EN 12566-3:2005+A1:2009

The following Parts are in preparation: 
Part 4: Septic tanks built in situ from prefabricated kits – Execution standard;  Part 5: Pre-treated Effluent Filtration systems. Figure 1 shows the relationship between the parts of EN 12566. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom. SIST EN 12566-3:2005+A1:2009

Key A Domestic waste water (influent) B Pre-treated waste water C Infiltration into the ground D
Outlet of treated waste water (effluent) 1 Prefabricated septic tank (see Part 1) 2 Infiltration system (into the ground) (see Part 2;) 3 Waste water treatment plant (see Part 3) 4
Septic tank built in situ (see Part 4; in preparation) 5 Filtration systems (see Part 5; in preparation)
National regulations may specify different arrangements between the products described in the standards series EN 12566. Figure 1 – Scheme related to the arrangement of the parts of EN 12566 SIST EN 12566-3:2005+A1:2009

!EN 1085:2007", Wastewater treatment – Vocabulary EN 1905, Plastics piping systems – Unplasticized poly(vinyl chloride) (PVC-U) pipes fittings and material – Method for assessment of the PVC content based on total chlorine content EN 12255-1, Wastewater treatment plants – Part 1: General construction principles EN 12255-4, Wastewater treatment plants – Part 4: Primary settlement SIST EN 12566-3:2005+A1:2009

NOTE 1 It permits accessibility and maintenance work.
NOTE 2 It may be either a vertical extension piece of the tank, or components, which are fitted only over certain points for example to allow maintenance or observation. SIST EN 12566-3:2005+A1:2009

4 Symbols and abbreviations BOD5 (or BOD7) Biochemical oxygen demand at 5 or 7 days (definition 3110 in !EN 1085:2007") SS
Suspended solids (definition 3160 in !EN 1085:2007") KN
Kjeldahl Nitrogen (definition 3210 in !EN 1085:2007") NH4-N
Ammonium nitrogen COD
Chemical oxygen demand (definition 3120 in !EN 1085:2007") PE
Polyethylene PVC-U
Unplasticized Poly-vinyl Chloride GRP
Glass reinforced plastic 5 Nominal designation !The nominal organic daily load expressed in kg of BOD5 (or BOD7) per day and the nominal hydraulic daily flow (QN) expressed in cubic metres per day shall be declared." 6 Requirements 6.1 Design 6.1.1 General Plants shall be structurally stable, durable, watertight and corrosion resistant. Plants shall be provided with an alarm to indicate operational failure (for example electrical, mechanical or hydraulic failure). The manufacturer shall indicate which kind of failure is detected with the alarm. 6.1.2 Inlets, outlets, internal pipework and connections The minimum internal diameter of inlet and outlet pipes for gravity flow is specified below:  100 mm for nominal hydraulic daily flow ≤ 4 m3/d;  150 mm for nominal hydraulic daily flow > 4 m3/d. The hydraulic design of the equipment, the internal pipework and connections shall ensure that no back-flows, blockage or surcharging occur during normal operation. 6.1.3 Access Plants shall be designed to prevent unauthorised access and ensure operational safety. The design shall provide access to the inlet and outlet areas; this access may allow routine maintenance sampling, removal of sludge, cleaning and maintenance. SIST EN 12566-3:2005+A1:2009

total depth of the plant
1 inlet H w
height of exterior water level (groundwater)
2 outlet K
coefficient of horizontal soil pressure h
depth of the backfill from the top of the tank to ground level Figure 2 – Definition of parameters 6.2.1.2 Backfill load Calculation of backfill loads shall take account of the effect of ground conditions, backfill materials and tank shape factors. A vertical and a horizontal component shall be calculated as follows:  vertical component: h x 18 (expressed in kN/m2), where 18 (kN/m3) is the specific weight of the soil;  horizontal component: K x D x 18 (expressed in kN/m2), where D is the distance from the ground level to the point where the load applies:  sand: K
= 0,33;  gravel: K
= 0,27;  other backfill materials: K
= 0,5. 6.2.1.3 Hydrostatic loads A vertical and a horizontal component shall be calculated as follows:  vertical component: Hw x 10 (expressed in kN/m2), where 10 (kN/m3) is the action resulting from the specific weight of water;  horizontal component: D x 10 (expressed in kN/m2). On sites where the groundwater table is significant (the highest level of the groundwater table is above the bottom of the tank), the stability conditions of the product in relation to the water pressure shall be indicated in the manufacturer's instructions. In this case, the specific load of soil is 10 kN/m3 and shall be added to the water load. SIST EN 12566-3:2005+A1:2009

is the efficiency ratio for a given parameter (COD, BOD, SS…); Pi
is the value of the given parameter at the inlet; Po
is the value of the same given parameter at the outlet. The ratio declared by the manufacturer shall not be greater than those obtained by the test made according to Annex B. In addition, another way of expression of the efficiency may be used for BOD, COD and suspended solid. EXAMPLE Minimum and maximum concentrations of the effluent and/or the influent. NOTE The ratios obtained do not automatically mean that the regulatory requirements on effluent qualities in a given country are met. A calculation should be made to indicate the final effluent qualities which should be compared to the requirements valid in the place of use. These ratios may not always be obtained when the plant is operating in practice. !In addition, the following parameters shall be declared: nominal organic daily load and nominal hydraulic daily flow. Total power consumption shall be declared, if applicable." Where required, i.e. by national regulations, parameters described in B.2.4 shall be declared. 6.4 Watertightness 6.4.1 General The plant shall be watertight up to the height declared by the manufacturer; the minimum declared height shall be the top of the tank (see Figure A.1). The plant shall be tested according to at least one of the requirements given in 6.4.2 to 6.4.4 when tested according to the methods described in Annex A. SIST EN 12566-3:2005+A1:2009

6.5.6 Glass reinforced plastic (GRP) The characteristics of the GRP used for the plant shall be:  material shall be constructed using resins, reinforcement materials, processing agents and other materials in accordance with EN 976-1:1997, Clause 3;  creep factor (.material) shall be ≥ 0,3. It is determined by using the following equation: iEfEtmaterial,=α (2) where initial flexural modulus (Ef,i) is determined at (23 ± 5) °C according to EN ISO 14125:1998, method A and corrigendum 1; long term flexural modulus (Et) is determined according to EN ISO 899-2 (temperature (23 ± 5)°C; extrapolation procedure according to EN ISO 9967);  ageing factor () shall be ≥ 0,3. It is determined by using the following formula: iEfEf,,aged=β (3) where Ef,aged and Ef,i are determined according to the following procedure: a) specimen samples of laminate from the plant shall be prepared. The exposed edges shall be coated with the resin used in the manufacture of the plant. The samples shall be post-cured in air at (50 ± 2) °C for a minimum of 72 h; b) half of the specimen samples shall be immersed in water for (1 000 ± 16) h at (50 ± 1) °C or alternatively for (3 000 ± 16) h at (40 ± 1) °C. The flexural modulus (Ef,aged) shall be determined according to method A of EN ISO 14125:1998 at (23 ± 5) °C; c) half of the specimen samples shall be stored for the time as above at (23 ± 5) °C. The flexural modulus (Ef,i) shall be determined according to method A of EN ISO 14125:1998 at (23 ± 5) °C. 6.5.7 Polypropylene (PP) 6.5.7.1 Injection moulding The characteristics of the PP-injection moulding used for the plant shall be:  MFR (230/2,16) = (5,0 ± 3,0 g)/10 min according to EN ISO 1133;  density ≥ 905 kg/m3 according to EN ISO 1133;  yield stress ≥ 30 MPa according to EN ISO 527-2, test temperature (23 ± 2) °C. SIST EN 12566-3:2005+A1:2009

6.5.7.2 Extrusion The characteristics of the PP-extrusion used for the plant shall be:  MFR (230/2,16) = (0,5 ± 0,1) g/10 min according to EN ISO 1133;  density ≥ 908 kg/m3 according to EN ISO 1133;  yield stress ≥ 30 MPa according to EN ISO 527-2, test temperature (23 ± 2) °C. 6.5.7.3 Injection moulding with foam The characteristics of Injection moulding with foam shall be:  MFR (230/2,16) = (5,0 ± 3,0) g/10 min according to EN ISO 1133;  density ≥ 720 kg/m3 according to EN ISO 1133;  yield stress ≥ 24 MPa according to EN ISO 527, flexural strength ≥ 30 MPa according to EN ISO 178, compressive strength ≥ 450 MPa according to EN ISO 179, test temperature (23 ± 2) °C. 7 Calculation and test methods 7.1 Watertightness Plants shall be tested to at least one of the tests described in Annex A. 7.2 Treatment efficiency testing procedure The treatment efficiency of a plant shall be tested according to the method described in Annex B. 7.3 Calculation and test methods for structural behaviour Plants shall be subjected to a test or to a calculation taking into account the loads given in 6.2.1. Test methods for plants or mechanical characteristics used for calculation are given in Annex C. Where plants include watertight extension shafts, the loads at the maximum installed depth shall be taken into account and appropriate tests or calculations made to prove the structural adequacy. SIST EN 12566-3:2005+A1:2009

8 Technical information The manufacturer shall provide the following information for each product: a) manufacturer and product identification; b) number of this European Standard, EN 12566-3; c) !nominal organic daily load of BOD5 or BOD7 (kg/d) and nominal hydraulic daily flow of wastewater (m3/d);" d) conditions of use; e) date of manufacture; f) name of laboratory (where appropriate); g) test report number (where appropriate); h) electrical supply (if required). Where ZA.3 requires the same information, the requirements of this clause are met. 9 Evaluation of conformity 9.1 General The conformity of the products with the requirements of this European Standard shall be demonstrated by: a) initial type tests (see 9.2); b) factory production control (see 9.3), including finished product test (see 9.3.4). NOTE For CE marking, Annex ZA applies. For the purposes of testing, products may be grouped into ranges. 9.2 Initial type tests Initial type tests shall be performed to demonstrate conformity with this European Standard. Tests previously performed in accordance with provision of this European Standard (same product, same characteristics, test methods, sampling procedure and system of attestation of conformity) may be taken into account. In addition, when a new product (outside an existing range) or product range is developed, appropriate initial type tests shall be carried out in accordance with the Table 1 to confirm that its final properties conform to the requirements of this European Standard. If a modification, likely to alter the functional properties of the finished product, takes place, the initial
...
