EN 12561-5:2011
(Main)Railway applications - Tank wagons - Part 5: Devices for vapour return while filling or emptying of liquid products
Railway applications - Tank wagons - Part 5: Devices for vapour return while filling or emptying of liquid products
This European Standard specifies the requirements on and characteristics of top devices of tank wagons fitted for bottom emptying only and filling through the manhole and used for liquid substances of RID. Safety functions of these devices are subject to RID requirements and not described in this document.
This European Standard specifies in particular the important dimensions and arrangements for the connections of such tank wagons.
This European Standard applies to new tank wagons built after the 1st January 2010.
NOTE To take account of the loading gauge restrictions within Great Britain this European Standard does not apply to tank wagons operating exclusively therein.
Bahnanwendungen - Kesselwagen - Teil 5: Gaspendeleinrichtungen für Be- und Entladung von flüssigen Stoffen
Diese Europäische Norm legt Anforderungen und Eigenschaften für die oberen Ausrüstungsteile von Kesselwagen mit untenliegenden Entleereinrichtungen zum Transport von Stoffen des RID im flüssigen Zustand fest. Sicherheitsfunktionen dieser Einrichtungen unterliegen den Anforderungen der RID und werden in diesem Dokument nicht beschrieben.
Diese Europäische Norm legt die wichtigsten Abmessungen und Anordnungen der Anschlüsse fest.
Diese Norm gilt für neue Kesselwagen, die nach dem 1. Januar 2010 gebaut werden.
ANMERKUNG Um die Einschränkungen des Lademaßes in Großbritannien zu berücksichtigen, gilt diese Europäische Norm nicht für Kesselwagen, die ausschließlich dort eingesetzt werden.
Applications ferroviaires - Wagons citernes - Partie 5: Dispositifs de récupération de vapeur pour remplissage ou vidange de produits liquides
La présente Norme européenne spécifie les exigences et les caractéristiques des dispositifs supérieurs de wagons citernes à vidange par le bas uniquement et chargés par le trou d’homme et utilisés pour le transport de matières du RID à l’état liquide. Les fonctions de sécurité de ces dispositifs sont soumises aux exigences du RID et ne sont pas décrites dans le présent document.
La présente Norme européenne spécifie en particulier les dimensions essentielles et les dispositions des raccordements de ces wagons citernes.
La présente Norme européenne s’applique aux nouveaux wagons citernes fabriqués après le 1er janvier 2010.
NOTE Compte tenu des restrictions du gabarit de chargement propres à la Grande-Bretagne, la présente Norme européenne n’est pas applicable aux wagons citernes exploités exclusivement à l’intérieur de ce pays.
Železniške naprave - Vagoni-cisterne - 5. del: Naprave za preprečevanje izparevanja pri polnjenju ali praznjenju tekočin
Ta evropski standard določa zahteve in značilnosti za naprave, nameščene na vrhu vagonov-cistern, namenjene samo za praznjenje z dna in polnjenje skozi vhodno odprtino, ki se uporabljajo za tekoče snovi RID. Za varnostne funkcije naprav veljajo zahteve RID in niso opisane v tem dokumentu. Ta evropski standard določa najpomembnejše mere in razporeditve priključkov takih vagonov-cistern. Ta evropski standard velja za nove vagone-cisterne, narejene po 1. januarju 2010.
General Information
Relations
Overview
EN 12561-5:2011 - published by CEN - is the European standard for top vapour-return devices on railway tank wagons that are fitted for bottom emptying only and filled through the manhole. It defines the requirements, important dimensions and arrangements for depressurisation vapour connectors, manholes and related top‑of‑tank equipment used with liquid substances regulated by RID. The standard applies to new tank wagons built after 1 January 2010 (with a specific exclusion for wagons operating exclusively within Great Britain due to loading‑gauge restrictions). Safety functions remain subject to RID and are not described in this document.
Key topics and technical requirements
- Scope: Top devices for tank wagons bottom‑emptying / top‑filling through manhole for RID liquids.
- Manhole:
- Swing‑bolt manholes located on the top centre line and near the longitudinal centre line.
- Nominal minimum internal diameter: 500 mm; top opening in a horizontal plane.
- Vertical projection of the manhole onto the tank bottom must be ≥ 100 mm from any part of the internal bottom valve.
- Manhole must not restrict operation of the vapour sealing device on a loading arm.
- Depressurisation vapour connector:
- Connecting face in a horizontal plane.
- Provided with a closure having an attachment (chain or stainless steel wire cable) of minimum length to avoid contact with the overhead electric line.
- Flame trap fitted when required by RID.
- Safety valves and bursting discs:
- Pressure/vacuum relief valves must conform to EN ISO 4126-1.
- Where required by RID, a bursting disc according to EN ISO 4126-2 shall precede the safety valve.
- Safety valve assemblies to be fitted in the vapour space on nozzles DN 80 PN 10 per ISO 7005-1.
- Dimensions and tolerances: All dimensions in millimetres; tolerances per EN ISO 286-1.
- Positioning: Manhole and vapour connector faces positioned within reserved areas (see standard Figure 1); vapour connector close to the manhole and opposite the manlid hinge.
Applications and who uses this standard
- Wagon designers and manufacturers specifying top‑filling and vapour‑return hardware for new tank wagons.
- Operators and fleet owners ensuring compatibility with filling stations and compliance with RID transport rules.
- Station and loading arm designers that integrate vapour recovery systems with tank wagon manholes and connectors.
- Inspection, maintenance and certification bodies verifying dimensional arrangement, fittings and conformity.
- Regulatory and procurement teams referencing standard requirements in contracts and technical specifications.
Related standards
- EN 12561-2 (bottom emptying devices and vapour return)
- EN 12561-6 (manholes)
- EN 14564 (terminology for tanks)
- EN ISO 4126-1 / EN ISO 4126-2 (safety valves and bursting discs)
- ISO 7005-1 (metallic flanges)
- EN ISO 286-1 (tolerances)
Keywords: EN 12561-5:2011, tank wagons, vapour return, railway applications, depressurisation vapour connector, manhole, RID, safety valves, loading arm, CEN.
Frequently Asked Questions
EN 12561-5:2011 is a standard published by the European Committee for Standardization (CEN). Its full title is "Railway applications - Tank wagons - Part 5: Devices for vapour return while filling or emptying of liquid products". This standard covers: This European Standard specifies the requirements on and characteristics of top devices of tank wagons fitted for bottom emptying only and filling through the manhole and used for liquid substances of RID. Safety functions of these devices are subject to RID requirements and not described in this document. This European Standard specifies in particular the important dimensions and arrangements for the connections of such tank wagons. This European Standard applies to new tank wagons built after the 1st January 2010. NOTE To take account of the loading gauge restrictions within Great Britain this European Standard does not apply to tank wagons operating exclusively therein.
This European Standard specifies the requirements on and characteristics of top devices of tank wagons fitted for bottom emptying only and filling through the manhole and used for liquid substances of RID. Safety functions of these devices are subject to RID requirements and not described in this document. This European Standard specifies in particular the important dimensions and arrangements for the connections of such tank wagons. This European Standard applies to new tank wagons built after the 1st January 2010. NOTE To take account of the loading gauge restrictions within Great Britain this European Standard does not apply to tank wagons operating exclusively therein.
EN 12561-5:2011 is classified under the following ICS (International Classification for Standards) categories: 13.300 - Protection against dangerous goods; 45.060.20 - Trailing stock. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 12561-5:2011 has the following relationships with other standards: It is inter standard links to EN 12561-5:2002. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase EN 12561-5:2011 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.

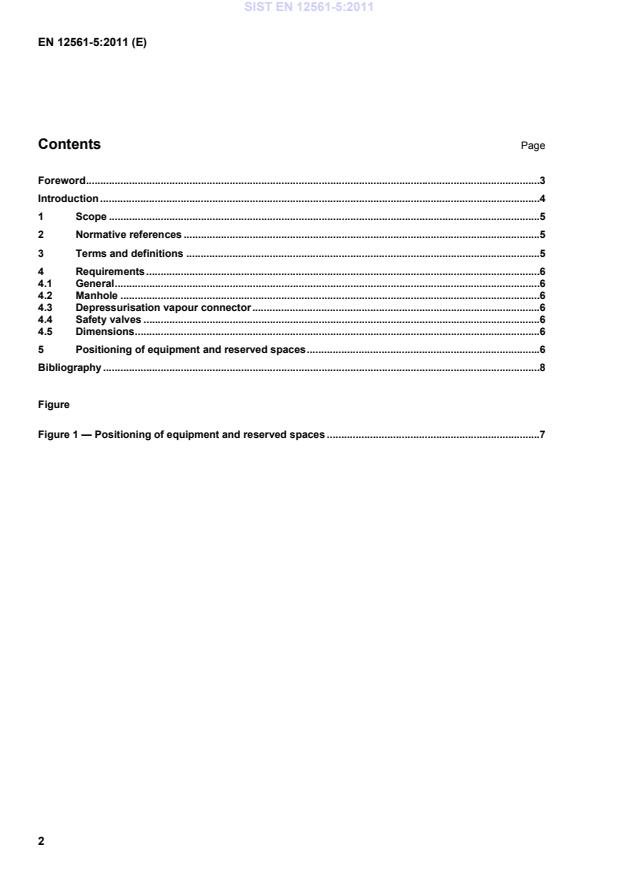

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.HYDQMHBahnanwendungen - Kesselwagen - Teil 5: Gaspendeleinrichtungen für Be- und Entladung von flüssigen StoffenApplications ferroviaires - Wagons citernes - Partie 5: Dispositifs de vidange par le bas et de remplissage par le haut pour produits liquidesRailway applications - Tank wagons - Part 5: Devices for vapour return while filling or emptying of liquid products45.060.20Železniški vagoniTrailing stock13.300Varstvo pred nevarnimi izdelkiProtection against dangerous goodsICS:Ta slovenski standard je istoveten z:EN 12561-5:2011SIST EN 12561-5:2011en,fr,de01-oktober-2011SIST EN 12561-5:2011SLOVENSKI
STANDARDSIST EN 12561-5:20041DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 12561-5
June 2011 ICS 13.300; 45.060.20 Supersedes EN 12561-5:2002English Version
Railway applications - Tank wagons -Part 5: Devices for vapour return while filling or emptying of liquid products
Applications ferroviaires - Wagons citernes - Partie 5: Dispositifs de récupération de vapeur pour remplissage ou vidange de produits liquides
Bahnanwendungen - Kesselwagen - Teil 5: Gaspendeleinrichtungen für Be- und Entladung von flüssigen Stoffen This European Standard was approved by CEN on 3 June 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2011 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 12561-5:2011: ESIST EN 12561-5:2011
The changes made during this revision are editorial because of the ch
...
