EN 13446:2002
(Main)Wood-based panels - Determination of withdrawal capacity of fasteners
Wood-based panels - Determination of withdrawal capacity of fasteners
This European Standard specifies a test method for determining the withdrawal capacity of nails, screws and staples inserted into wood-based panels.
This test method can be used for any combination of fastener type and wood-based panel product.
NOTE This method differs from EN 320 which characterises fibreboards in terms of their resistance to the withdrawal load of only a single type of screw.
Holzwerkstoffe - Bestimmung des Haltevermögens von Verbindungsmitteln
Diese Europäische Norm legt ein Prüfverfahren zur Bestimmung des Haltevermögens von Nägeln, Schrauben und Klammern fest, die in Holzwerkstoffe eingetrieben wurden.
Dieses Prüfverfahren kann für jegliche Kombination von Verbindungsmittel mit einem Holzwerkstoff angewendet werden.
ANMERKUNG Dieses Verfahren weicht von EN 320 ab, die nur für den Ausziehwiderstand einer bestimmten Schraube in Faserplatten gilt.
Panneaux à base de bois - Détermination de la capacité à l'arrachement d'éléments de fixation
La présente Norme européenne spécifie une méthode d'essai permettant de déterminer la capacité à l'arrachement des clous, vis et agrafes insérés dans des panneaux à base de bois.
Il est possible d'utiliser la présente méthode d'essai avec toutes les combinaisons de tout type d'éléments de fixation et de tout type de produits en panneaux à base de bois.
NOTE La présente méthode est différente de celle de l'EN 320 qui caractérise les panneaux en fibres de bois grâce à la détermination de leur résistance à la force d'arrachement d'un seul type de vis.
Lesne plošče – Ugotavljanje izvlečne sile žebljev, sponk in vijakov
General Information
- Status
- Published
- Publication Date
- 21-May-2002
- Withdrawal Date
- 29-Nov-2002
- Technical Committee
- CEN/TC 112 - Woodbased panels
- Drafting Committee
- CEN/TC 112/WG 4 - Test methods
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 04-Dec-2023
- Completion Date
- 14-Apr-2025
- Directive
- 89/106/EEC - Construction products
Overview
EN 13446:2002 (CEN) specifies a standardized test method for determining the withdrawal capacity of fasteners (nails, screws and staples) inserted into wood‑based panels. The method applies to any combination of fastener type and wood‑based panel product and produces a withdrawal parameter (f) expressed in N/mm² derived from the measured maximum withdrawal load. This standard is intended for product testing, quality control and comparative evaluation of fastener performance in panels.
Key topics and technical requirements
- Scope: Measures resistance to axial withdrawal of fasteners from panel surfaces and edges; complements but differs from EN 320 (which addresses fibreboards with a single screw type).
- Apparatus:
- Testing machine with tensile loading and load measurement to ±1% tolerance.
- Self‑aligning grip (ball‑and‑socket); wide grip for staples to avoid bending.
- Stiff test jig with central hole/slot; hole edge located 5–10 mm from fastener edge.
- Measuring instruments for thickness/penetration to ±0.1 mm.
- Conditioning chambers for (20 ± 2) °C at 65 ± 5% RH and 85 ± 5% RH.
- Test pieces & sampling:
- Typical test piece size 50 × 50 × t mm (or user‑defined).
- Sampling: three side‑matched pieces from six panel locations.
- Insertion & positioning:
- Fastener axis perpendicular to panel surface/edge.
- Typical penetration: 8 × nominal diameter (8d) or full thickness if shorter; specified positions for surface and edge tests.
- Test procedure:
- Determine thickness and density (EN 325, EN 323).
- Apply tensile load at constant crosshead rate so maximum load is reached in (60 ± 30) s.
- Record maximum withdrawal load Fmax and penetration lp.
- Result expression:
- Withdrawal parameter f (N/mm²) is calculated from measured Fmax, penetration depth, test piece thickness and nominal fastener dimension (a factor of 2 applies for staples). Exact formulae are given in the standard.
- Reporting: Includes panel specification, conditioning, fastener details, individual results, mean and standard deviation, and failure mode.
Applications and users
- Manufacturers of wood‑based panels (particleboard, MDF, OSB, plywood) and fasteners.
- Test laboratories and quality control teams validating product performance.
- Product developers and R&D performing comparative fastener trials.
- Specifiers, certification bodies and engineers assessing suitability of fasteners for furniture, joinery and structural/non‑structural applications.
Related standards
- EN 320 (fibreboards - withdrawal of screws)
- EN 323 (density)
- EN 325 (test piece dimensions)
- EN 1381 / EN 1382 (timber fastener test methods)
- EN 10230‑1 (nail specifications)
Keywords: EN 13446:2002, wood‑based panels, withdrawal capacity, fasteners, nails screws staples, test method, CEN, withdrawal test, panel testing, quality control.
Frequently Asked Questions
EN 13446:2002 is a standard published by the European Committee for Standardization (CEN). Its full title is "Wood-based panels - Determination of withdrawal capacity of fasteners". This standard covers: This European Standard specifies a test method for determining the withdrawal capacity of nails, screws and staples inserted into wood-based panels. This test method can be used for any combination of fastener type and wood-based panel product. NOTE This method differs from EN 320 which characterises fibreboards in terms of their resistance to the withdrawal load of only a single type of screw.
This European Standard specifies a test method for determining the withdrawal capacity of nails, screws and staples inserted into wood-based panels. This test method can be used for any combination of fastener type and wood-based panel product. NOTE This method differs from EN 320 which characterises fibreboards in terms of their resistance to the withdrawal load of only a single type of screw.
EN 13446:2002 is classified under the following ICS (International Classification for Standards) categories: 21.060.01 - Fasteners in general; 79.060.01 - Wood-based panels in general. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 13446:2002 is associated with the following European legislation: EU Directives/Regulations: 305/2011, 89/106/EEC. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 13446:2002 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

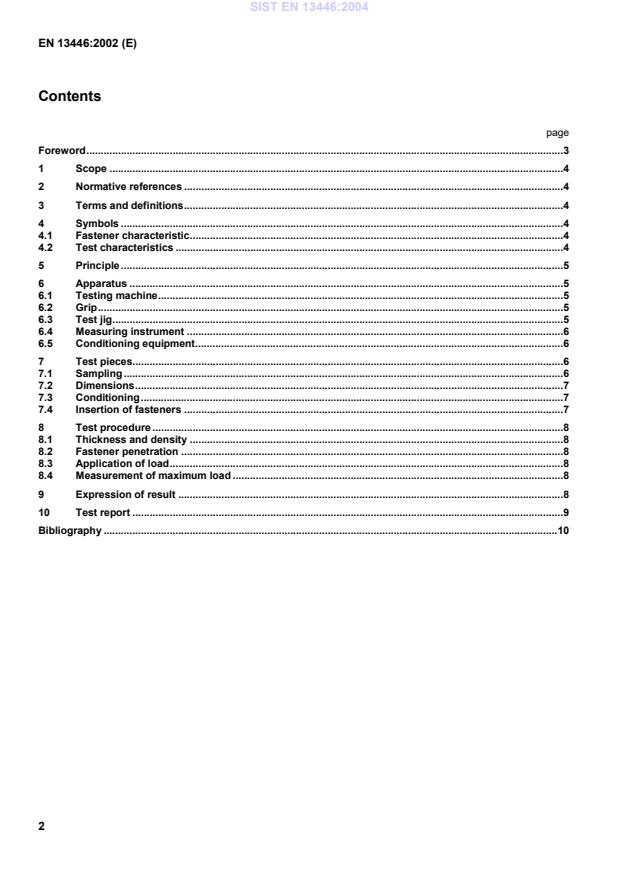

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.RYHolzwerkstoffe - Bestimmung des Haltevermögens von VerbindungsmittelnPanneaux a base de bois - Détermination de la capacité a l'arrachement d'éléments de fixationWood-based panels - Determination of withdrawal capacity of fasteners79.060.01Wood-based panels in generalICS:Ta slovenski standard je istoveten z:EN 13446:2002SIST EN 13446:2004en01-januar-2004SIST EN 13446:2004SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13446May 2002ICS 79.060.01English versionWood-based panels - Determination of withdrawal capacity offastenersPanneaux à base de bois - Détermination de la capacité àl'arrachement d'éléments de fixationHolzwerkstoffe - Bestimmung des Haltevermögens vonVerbindungsmittelnThis European Standard was approved by CEN on 25 March 2002.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2002 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13446:2002 ESIST EN 13446:2004
...
