EN 13977:2005

SLOVENSKI STANDARD
01-maj-2005
Železniške naprave – Zgornji ustroj – Varnostne zahteve za prenosne stroje in
lahko tirno mehanizacijo, ki se uporabljajo pri gradnji in vzdrževanju
Railway applications - Track - Safety requirements for portable machines and trolleys for
construction and maintenance
Bahnanwendungen - Oberbau - Sicherheitsanforderungen an tragbare Maschinen und
Rollwagen für Bau und Instandhaltung
Applications ferroviaires - Voie - Prescriptions de sécurité pour machines et lorries
portables pour la construction et la maintenance
Ta slovenski standard je istoveten z: EN 13977:2005
ICS:
45.120 2SUHPD]DJUDGQMRLQ Equipment for
Y]GUåHYDQMHåHOH]QLFR] railway/cableway
åLþQLF construction and
maintenance
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 13977
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2005
ICS 45.120
English version
Railway applications - Track - Safety requirements for portable
machines and trolleys for construction and maintenance
Applications ferroviaires - Voie - Prescriptions de sécurité Bahnanwendungen - Oberbau - Sicherheitsanforderungen
pour machines et lorries portables pour la construction et la an tragbare Maschinen und Rollwagen für Bau- und
maintenance Instandhaltung
This European Standard was approved by CEN on 23 August 2004.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2005 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13977:2005: E
worldwide for CEN national Members.

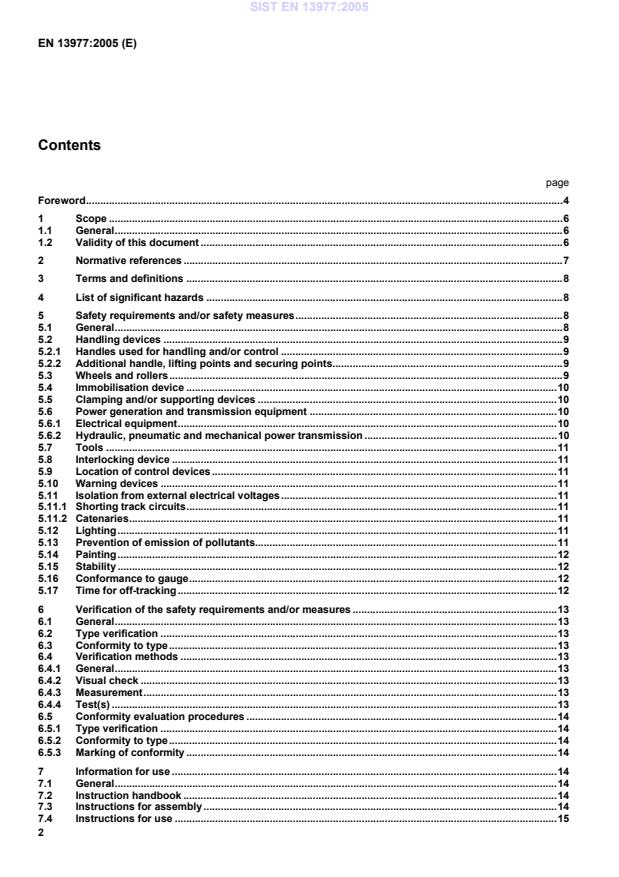

Contents
page
Foreword.4
1 Scope .6
1.1 General.6
1.2 Validity of this document .6
2 Normative references .7
3 Terms and definitions .8
4 List of significant hazards .8
5 Safety requirements and/or safety measures.8
5.1 General.8
5.2 Handling devices .9
5.2.1 Handles used for handling and/or control .9
5.2.2 Additional handle, lifting points and securing points.9
5.3 Wheels and rollers.9
5.4 Immobilisation device .10
5.5 Clamping and/or supporting devices .10
5.6 Power generation and transmission equipment .10
5.6.1 Electrical equipment.10
5.6.2 Hydraulic, pneumatic and mechanical power transmission .10
5.7 Tools .11
5.8 Interlocking device .11
5.9 Location of control devices .11
5.10 Warning devices .11
5.11 Isolation from external electrical voltages.11
5.11.1 Shorting track circuits.11
5.11.2 Catenaries.11
5.12 Lighting.11
5.13 Prevention of emission of pollutants.11
5.14 Painting.12
5.15 Stability .12
5.16 Conformance to gauge.12
5.17 Time for off-tracking.12
6 Verification of the safety requirements and/or measures .13
6.1 General.13
6.2 Type verification .13
6.3 Conformity to type.13
6.4 Verification methods .13
6.4.1 General.13
6.4.2 Visual check .13
6.4.3 Measurement.13
6.4.4 Test(s) .13
6.5 Conformity evaluation procedures .14
6.5.1 Type verification .14
6.5.2 Conformity to type.14
6.5.3 Marking of conformity .14
7 Information for use .14
7.1 General.14
7.2 Instruction handbook .14
7.3 Instructions for assembly .14
7.4 Instructions for use .15
7.4.1 Additional instructions.15
7.4.2 Restriction of use .15
7.4.3 Use in the vicinity of conductor rails.15
7.4.4 Eye protection.16
7.4.5 Engine exhaust emissions.16
7.4.6 Fuel tank .16
7.4.7 Mass.16
7.4.8 Stability.16
7.4.9 Remaining within gauge .16
7.4.10 Off-tracking .16
7.4.11 Interlocking devices .16
7.4.12 Instructions for maintenance .17
7.4.13 Instructions for training .17
7.5 Marking .18
7.5.1 Basic marking .18
7.5.2 Additional marking .18
7.6 Symbols and warning devices .18
Annex A (normative)  List of significant hazards.19
Annex B (normative)  Clearance gauge for portable machines and trolleys .21
Annex C (normative)  Type verification.23
C.1 Identification.23
C.2 Technical documents .23
C.3 Conformance check to EN 13977 .23
Annex D (informative)  Declaration of type verification .26
Annex E (normative)  Portable machine and trolley marking .27
Annex F (normative)  Conformity to type verification .28
F.1 Identification .28
F.2 Conformance check to EN 13977.28
F.3 Declaration of conformity to type .30
Annex G (informative)  Special conditions .31
Annex H (informative)  Rail cutting off machines .32
Annex ZA (informative)  Relationship between this European Standard and the Essential
Requirements of EU Directive 98/37/EC.33
Bibliography.34

Foreword
This document (EN 13977:2005) has been prepared by Technical Committee CEN/TC 256 "Railway applications",
the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an identical text or
by endorsement, at the latest by September 2005, and conflicting national standards shall be withdrawn at the
latest by September 2005.
This document has been prepared under a mandate given to CEN by the European Commission and the European
Free Trade Association, and supports essential requirements of EU Directive.
For relationship with EU Directive, see informative annex ZA, which is an integral part of this document.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic, Denmark,
Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
0 Introduction
This document is a type C standard as stated in EN ISO 12100-1 and EN ISO 12100-2.
The machinery concerned and the extent to which hazards, hazardous situations and events are covered are
indicated in the scope of this document.
When the provisions of this type C standard are different from those which are stated in type A or B standards, the
provisions of this type C standard take precedence over the provisions of the other standards, for machines that
have been designed and built according to the provisions of this type C standard.
Because the EU Directive “Machines” does not consider railway specific problems of construction and maintenance
machines, additional requirements and verifications are necessary and these are dealt with in this document (see
6.2). Portable machines and trolleys for track construction and maintenance, which comply with these
requirements, receive a special marking in accordance with 6.5.3, in addition to the CE mark.
Technical characteristics, deviations or special national conditions will be the subject of special requirements of the
infrastructure manager controller and/or negotiation between the user and the manufacturer, see annex G.
1 Scope
1.1 General
This document deals with the technical requirements to minimise the railway specific significant hazards of portable
machines and trolleys used for work on tracks as listed in clause 4 and annex A which can arise during the
commissioning, the operation and the maintenance of portable machines and trolleys when used as intended and
under the conditions foreseen by the manufacturer. It does not deal with the general function of the machines (e.g.
cutting, drilling, grinding).
This document applies to portable machines and portable trolleys designed for work on the track with nominal track
gauges of 1 435 mm and 1 668 mm and clearance gauge as defined in annex B including cutting machines and
those designed for working on wooden sleepers.
This document does not apply to portable trolleys coupled together, whether or not self propelled, and trolleys used
for transporting personnel.
For portable machines and trolleys used on railway lines with a different clearance gauge to that defined in

1)
annex B specific requirements concerning the clearance gauge may apply .
This document does not apply to the following:
 requirements for quality of the work or performance of the machine;
 regulations defined by each infrastructure controller for portable machine and trolley operation which shall
be the subject of negotiation between the user and the manufacturer;
 portable machines used from railway vehicles.
This document does not establish the additional requirements for the following:
 operation in severe conditions (e.g. extreme environmental conditions such as: freezing applications, high
temperatures, corrosive environment, tropical environment, contaminating environments, strong magnetic
fields);
 operation subject to special rules as potentially explosive atmospheres;
 electromagnetic compatibility, due to e.g. electronic components;
 hazards occurring during decommissioning and/or recycling;
 hazards due to vibration;
 hazards due to wind speed greater than 35 m/s;
 hazards due to natural causes e.g. earthquake, lightning, flooding etc.
 noise.
NOTE Noise of machines which are dealt with by this document is regarded as a significant hazard. Noiseis not covered by
this document but will be dealt with in an Amendment to the first edition of this standard. This Amendment will give:
 clauses dealing with noise emission according to EN 1746.
 a noise test code using as a basis for preparation the designation of noise-emission according to the requirements of
the Machinery-Directive 98/37/EC, annex I, clause 1.7.4f.
1.2 Validity of this document
This document applies to portable machines and trolleys that are ordered after the date of publication of this
standard.
1) E.g. the specific rules of the infrastructure manager.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references,
only the edition cited applies. For undated references, the latest edition of the referenced document (including any
amendments) applies.
EN 457, Safety of machinery — Auditory danger signals — General requirements, design and testing (ISO
7731:1986, modified).
EN 982, Safety of machinery — Safety requirements for fluid power systems and their components — Hydraulics.
EN 983, Safety of machinery — Safety requirements for fluid power systems and their components — Pneumatics.
EN 1050:1996, Safety of machinery — Principles for risk assessment.
EN 1837, Safety of machinery — Integral lighting of machines.
EN 60204-1, Safety of machinery — Electrical equipment of machines — Part 1: General requirements (IEC
60204-1:1997) .
EN ISO 12100-1:2003, Safety of machinery – Basic concepts, general principles for design – Part 1: Basic
terminology, methodology (ISO 12100-1:2003).
EN ISO 12100-2:2003, Safety of machinery – Basic concepts, general principles for design – Part 2: Technical
principles (ISO 12100-2:2003).
ISO 3864-1:2002, Graphical symbols — Safety colours and safety signs — Part 1: Design principles for safety
signs in workplaces and public areas.
ISO 3864-2:2002, Graphical symbols —- Safety colours and safety signs — Part 2: Design principles for product
safety labels.
ISO 6405-1, Earth-moving machinery — Symbols for operator controls and other displays — Part 1: Common
symbols.
ISO 6405-2, Earth-moving machinery — Symbols for operator controls and other displays — Part 2: Specific
symbols for machines, equipment and accessories.
UIC 505-1:1997, Railway transport stock — Rolling stock construction gauge.
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN ISO 12100-1:2003, EN ISO 12100-2:2003
and the following apply.
3.1
portable machine
machine designed or adapted to be worked on the track, transportable by hand with or without trolleys or separate
supports for movement on rail(s), and be operated by internal combustion, electrical, mechanical, hydraulic,
pneumatic energy sources or from an external supply. It is designed so that the machine and/or its separate
component parts may be manually placed on or off the track
3.2
portable trolley
equipment for transport of materials, tools and/or various equipment moving on wheels or runners and operated
either by human force or by an energy source. It is designed so that it can be manually placed on or off the track
3.3
type verification
procedure for verification of the conformity of the type of portable machine or trolley to the requirements of this
standard
3.4
declaration of type verification
document issued after tests, which certifies suitability of the technical design for the operation of a portable
machine or trolley
3.5
conformity to type
procedure for verification of the conformity of the individual portable machine or trolley to the machine or trolley
which underwent type verification
3.6
stability coefficient
ratio of restoring moment to overturning moment
4 List of significant hazards
The risks referred to in this document are listed in annex A.
5 Safety requirements and/or safety measures
5.1 General
Portable machines and trolleys shall conform to the requirements and/or safety measures of this clause.
In addition the portable machine and trolley shall be designed according to the principles of EN ISO 12100 for
hazards relevant but not significant which are not dealt with by this document (e.g. sharp edges).
For the application of type B standards EN 60204-1, EN 982, EN 983, EN 457 the manufacturer shall carry out a
risk assessment thereof where choice is necessary. This specific risk assessment is part of the general risk
assessment relating to the hazards not covered by the present document.
5.2 Handling devices
5.2.1 Handles used for handling and/or control
The handles used for handling and/or control shall be sufficient for the mass of the portable machine or the trolley
and to allow removal of the portable machine or the trolley from the track.
The handles are to be positioned to ensure the sharing of the weight equally. The weight on each handle shall not
exceed 25 kg.
The handles shall be positioned at least 400 mm above the standing level of the operator and shall be freely
reached in the vertical direction.
If one of the above requirements cannot be fulfilled the mass per handle shall not exceed 10 kg.
Handles shall be designed as encircling handles, the diameter of material of the grip shall be between
20 mm and 30 mm and the grip opening shall have a minimum length of 250 mm and a minimum width of 50 mm.
The handles shall be positioned so that they are inside the vertical limits of the gauge indicated in annex B with the
operator in the work position intended by the manufacturer (see 7.4.10).
When such handles are also used for control purposes they shall, when used for handling, be in the stop position.
If more than one person is recommended for putting the machine or trolley on or off the track the number of people
necessary shall be indicated on the portable machine or trolley as appropriate (see 7.6).
5.2.2 Additional handle, lifting points and securing points
If the portable machine or portable trolley weighs more than 25 kg, or it is not designed to be lifted by one person,
then an additional handle and a lifting point shall be provided suitable for the weight, for maintaining the equilibrium
of the machine and for preventing spillage of liquids (e.g. fuel, lubricants). For transport in vehicles points to secure
the machine shall be provided.
5.3 Wheels and rollers
The wheels and rollers used for moving and guidance of machines or trolleys on rail(s) shall:
 be arranged and in sufficient numbers to ensure the stability of the machine on the track (see 5.15);
 be shaped and of the correct width to ensure good guidance on the rails and to take account of gauges
between 1 430 mm and 1 470 mm with a 1 435 mm nominal gauge, and gauges 1 665 mm and 1 698 mm
with a 1 668 mm nominal gauge;
 not damage the electrical connections to the rails (see annex G);
 not damage signalling equipment (see annex G);
 allow the free running on rail through switches and crossings, level crossings and other installations.
Where this is not achievable the handbook (see 7.2) shall make an indication of this limitation.
5.4 Immobilisation device
To avoid the risk of running away, each portable machine (considered as an assembly) and trolley fitted with rail
wheels or rollers shall be capable of being immobilised either by an automatic brake or automatic transmission
brake or by design effective on a gradient as steep as 40 ‰.
Trolleys shall also be equipped with a braking device and release control (dead-man type) that can assure, at full
load and at a reference speed of 6 km/h, that the braking distance will not exceed the values indicated in Table 1.
This applies also to portable machines that can roll away when working.
Table 1 — Braking distances
Gradient i Maximum braking distance
‰
m
Machines Trolleys
Dry rail Damp rail Dry rail Damp rail
0 < i < 15 3 5 6 10
15 < i < 25 4 6 8 12
25 < i < 40 5 7 10 14
5.5 Clamping and/or supporting devices
If portable machines and trolleys are fitted with clamping and/or supporting devices they shall:
 be able to resist vibrations and forces generated by the work of the machine.
They shall not cause:
 permanent deformation of these devices;
 reduction of the stability of the track;
 damage to the rails, sleepers, or track fastenings.
5.6 Power generation and transmission equipment
5.6.1 Electrical equipment
Electrical equipment and the degree of electrical protection shall meet the requirements of EN 60204-1.
Portable machines shall use voltages less than 500 V AC or 750 V DC.
In order to avoid shorting track circuits, any flexible cables shall not have external metallic covering.
5.6.2 Hydraulic, pneumatic and mechanical power transmission
If a portable machine is fed by exterior hydraulic, pneumatic or mechanical power transmission, risks according to
EN 982 and EN 983 shall be taken into consideration. In order to avoid shorting of track circuits, the flexible pipes
shall not be covered by metallic protection.
5.7 Tools
The release of a machine from its tools, when jammed or failed, shall be possible in order to clear the track during
the time indicated in 5.17.
5.8 Interlocking device
Machines which are hand held and/or guided by hand and which may present a danger in their use without a
guiding mechanism shall have an interlocking device that will ensure that the machine can be started only if the
guiding mechanism is in place.
Cutting off machines which are used for making a cut to the rail before welding shall be guided by a device which is
fixed to the rail.
5.9 Location of control devices
The location of control devices, in the conditions for work foreseen by the constructor, shall allow the operator in
control of the machine to remain within the zone delineated within the vertical limits of the gauge (position 1) and
below the horizontal limits (position 2) of the gauge defined in annex B.
5.10 Warning devices
Warning devices fitted to the machine shall be constructed according to EN 457 and be clearly distinguishable from
other railway specific signals.
5.11 Isolation from external electrical voltages
5.11.1 Shorting track circuits
Portable machines and trolleys having contact with both rails (rollers, clamps etc.), or on the same line of rail shall
always have an electrical resistance between the points of contact of > 1 MΩ . The resistance measurement shall
be taken under a 500 V DC tension.
5.11.2 Catenaries
Portable machines and trolleys in working configuration shall not have parts above the higher limit of the gauge
(position 2) shown in annex B.
5.12 Lighting
The machine lighting is to be adapted to the required visual task at the tool and shall ensure a luminance level of at
least 50 lx and meet the requirements of EN 1837.
Dazzling of for example train drivers or workers on the site shall be prevented by appropriate measures.
The position of the lights shall not cause confusion with railway signalling.
5.13 Prevention of emission of pollutants
Effective measures to prohibit or reduce leak or development of dust, smoke, steam, gas and other particles shall
be taken, if there is a danger to safety or health.
Machine design shall take into account the use of biodegradable lubricants.
5.14 Painting
The use of lead based paints is forbidden.
Portable machines shall be principally yellow in colour, meeting the requirements of ISO 3864-1, Figure 22 with the
values x = 0,487 and y = 0,475.
NOTE The above mentioned colour according ISO 3864, corresponds for example, to the following standards:
 RAL 1004 as specified in DIN 6164;
 NCS (Natural Colour System) target value 1080-Y10 R, and the NCS exact value 1475-Y 11R;
 EC 222.69.79 in the Eurocolour table.
5.15 Stability
Portable machines and trolleys shall be designed in order that their stability is assured in working, transport and
resting positions also on the ballast or on uneven ground.
The stability of portable machines equipped with trolleys with wheels or rollers, in the most unfavourable positions,
shall be assured on a track up to a maximum cant of 200 mm and on a slope of 40 ‰ and a stability coefficient
> 1,25. If portable machines are equipped with stands, these shall be adapted to the size, mass and use of the
machine in order that its stability is assured.
5.16 Conformance to gauge
The reference gauge given in annex B is the UIC gauge. For infrastructures with different gauges the
corresponding applicable gauge shall be used.
When moving or rotating about their vertical axis, portable machines equipped with running gear and trolleys the
design shall ensure conformance to the envelope defined in annex B consisting of:
 UIC 505-1 gauge (position 1);
 the upper horizontal limit (position 2);
 low gauge contour (position 3).
Conformance to the above shall take into account all cumulative wear on all components of the machine or of the
trolley.
In all cases guards, either movable or fixed, shall not exceed the gauge as defined in annex B with the exception of
the low contour (position 3).
If there is a need to leave a machine on a line open to traffic, then the machine design shall be such that it is
contained below the “low” contours of the running gauge of position 3.
Where a machine or trolley design necessitates exceedance of the clearance gauge as defined in annex B there
shall be an indication in the instruction handbook indicating the need to apply further railway specific operational
measures.
5.17 Time for off-tracking
Portable machines and trolleys, which are used on tracks open to traffic and which present an obstruction to the
passage of trains shall be designed in such a way that the time necessary for off-tracking is the shortest possible
but shall not exceed 15 s.
6 Verification of the safety requirements and/or measures
6.1 General
The safety requirements and/or safety measures of clauses 5 and 7 of this document shall be verified according to
the following sub-clauses:
6.2 Type verification
Type verification of the portable machine or trolley is required to ensure conformity with the requirements of this
Standard (see annex C).
6.3 Conformity to type
Conformity to type of each portable machine or trolley put on the market is required, to prove that before despatch,
each machine satisfies all the safety requirements of this document (see annex F). Where the machine or trolley is
assembled on site, any part of the verification that cannot be made before despatch shall be carried out at the
place of use.
6.4 Verification methods
6.4.1 General
The following methods of verification shall be utilised:
6.4.2 Visual check
To establish, whether something is present on the portable machine or trolley, system or component (e.g. guarding,
visual warning device, marking) or that documents, drawings are provided and are adequate to meet the
requirements of this document (Symbol “V”).
6.4.3 Measurement
To establish whether the stated measurable parameters have been met (e.g. geometric dimensions, safety
distance, insulation of electrical circuits, vibration) (Symbol “M”).
6.4.4 Test(s)
The tests may consist of one of the following:
 functional test: to establish whether, in an unloaded working condition the machine, including all safety
devices, works as intended and all functions comply with the requirements and with the technical
documentation (symbol “FT”);
 loading test(s): the intention of which is to establish the strength and/or stability when the equipment is
loaded and whether all the safety devices and their adjustments are in accordance with the requirements
of this document (symbol “LT”);
 specific verification/ measurements to establish whether the stated parameters have been met (symbol
“SV”).
6.5 Conformity evaluation procedures
6.5.1 Type verification
For type verification the schedule in annex C of this document shall be used.
6.5.2 Conformity to type
For verification of conformity to type of each portable machine or trolley the schedule in annex F of this document
shall be used.
6.5.3 Marking of conformity
Conformity is denoted by special marking according to the requirements of annex E.
7 Information for use
7.1 General
The instruction handbook shall be in accordance with EN ISO 12100-2 and shall include information mentioned in
EN ISO 12100-2:2003, clause 6.
7.2 Instruction handbook
This information shall include the duties and conditions under which the portable machine or trolley is intended to
be used, in particular with regard to:
 working areas and railway traffic areas;
 operating conditions (e.g. operating hours per day, indication of the operating mode(s));
 range of intended environmental conditions (e.g. wind, temperature, relative humidity);
 restrictions of use.
Details of safety functions and list and locations of safety devices shall also be provided.
The instruction handbook shall also contain information on prohibited applications.
7.3 Instructions for assembly
When the portable machine or trolley is supplied unassembled, the manufacturer shall provide with the equipment
assembly specifications preferably with drawings showing:
 instructions for assembling the portable component parts;
 any special requirements for storage;
 masses, dimensions and lifting points of the separate components supplied;
 methods for safe handling of the components;
 assembly phases;
 any fixing positions and fixing methods to ensure stability during assembly;
 electric, hydraulic and pneumatic connections;
 any special equipment for assembly.
7.4 Instructions for use
7.4.1 Additional instructions
The instruction handbook shall include, in addition to EN ISO 12100-2, the following requirements (non-exhaustive
list):
 only authorised personnel shall start, operate or interfere with the normal working of the equipment;
 specification of any personal protective equipment needed for the operation of the equipment and the hazards
which it is designed to protect against;
 stopping modes, in particular means of operation of normal and emergency-stopping devices shall be made
known to all appropriate personnel. Areas giving access to them shall be kept clear of obstacles. Their proper
working shall be periodically checked;
 cleaning requirements;
 if an emergency switch is fitted it shall not be used for normal stopping;
 all restarting operations on equipment which has been inoperative because of an emergency or accidental
stoppage shall be preceded by an inspection aiming at:
 determining the cause of the emergency or accidental stoppage;
 repairing the fault;
 details of a restarting procedure to be followed after an emergency or accidental stoppage;
 the user shall be careful to use the machine in the normal way avoiding over-loading;
 the user shall not modify the design or configuration of the equipment without consulting the manufacturer.
7.4.2 Restriction of use
The instruction handbook shall indicate the restrictions of use of the portable machine or trolley according to the
requirements of this document e.g.
• if the machine cannot negotiate switches, crossings, level crossings and other installations;
• if special conditions apply when the machine is working in track circuited areas;
• if special conditions apply in the presence of live conductor rails (see 7.4.3);
• cannot be immobilised on gradient steeper than 40 ‰ and therefore special measurements shall be fixed by
the infrastructure controller.
7.4.3 Use in the vicinity of conductor rails
The instruction handbook shall clearly indicate that the portable machine or trolley can only be used on a live
conductor rail system with the approval of the infrastructure controller.
In this case the manual shall give the following information:
 distances between the portable machine or trolley and the conductor rails;
 where the machine is powered by an external supply (e.g. electric, hydraulic, pneumatic), information on the
safety measures to be met;
 the position of the operator while using the portable machine or trolley in relation to the live conductor rails.
7.4.4 Eye protection
If a machine involves a risk for the operator’s eyes, the instruction handbook shall advise use of appropriate
protective glasses.
This is applicable for rail head grinding and rail cutting machines.
7.4.5 Engine exhaust emissions
The instruction handbook shall indicate the values of the engine exhaust emissions.
7.4.6 Fuel tank
The instruction handbook shall indicate the fuel tank capacity as well as the consumption per operational hour.
7.4.7 Mass
The instruction handbook shall indicate:
 total mass of the machine in its operational condition with its tanks full;
 mass of its separate parts;
 sketch indicating the distribution of weight so that the user can establish an appropriate method of handling the
machine and/or its components.
7.4.8 Stability
The value of the stability coefficient and the limits of cant and/or gradient for which the stability of the portable
machine or the trolley is assured shall be indicated in the instruction handbook.
7.4.9 Remaining within gauge
The instruction handbook shall indicate dimensions of the portable machine or trolley in all its working
configurations in relation to annex B as well as to the operator position during work.
7.4.10 Off-tracking
The instruction handbook shall inform the operator about the method to be used and the minimum duration for off-
tracking the portable machine or trolley:
 in normal working conditions;
 in case of failure or perturbation (freeing of the tool etc.).
The instruction handbook shall also indicate the necessary number of persons required for off tracking the portable
machine or the trolley.
7.4.11 Interlocking devices
Interlocking devices between the machine and its support, if present, shall be detailed in the instruction handbook.
7.4.12 Instructions for maintenance
The instruction handbook shall specify in particular the following according to EN ISO 12100-2:
 technical knowledge and skills of the maintenance staff for particular operations which need specific training,
and shall specify that all adjustments, whether mechanical or electrical, shall only be carried out by persons
authorised to do so in accordance with a safe system of work and the manufacturer’s instructions;
 conditions under which maintenance work and rectification of faults that can be performed (e.g. the equipment
is isolated, protected against unexpected start-up and m
...
