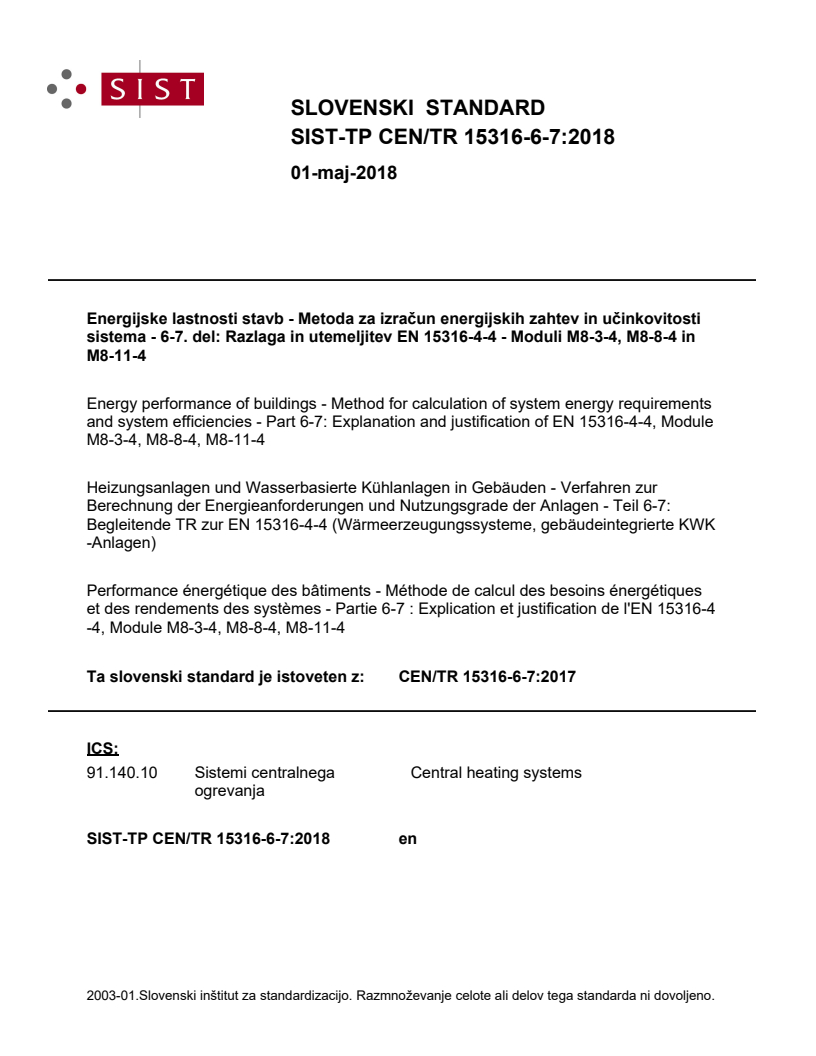

CEN/TR 15316-6-7:2017

SLOVENSKI STANDARD
01-maj-2018
(QHUJLMVNHODVWQRVWLVWDYE0HWRGD]DL]UDþXQHQHUJLMVNLK]DKWHYLQXþLQNRYLWRVWL
VLVWHPDGHO5D]ODJDLQXWHPHOMLWHY(10RGXOL00LQ
0
Energy performance of buildings - Method for calculation of system energy requirements
and system efficiencies - Part 6-7: Explanation and justification of EN 15316-4-4, Module
M8-3-4, M8-8-4, M8-11-4
Heizungsanlagen und Wasserbasierte Kühlanlagen in Gebäuden - Verfahren zur
Berechnung der Energieanforderungen und Nutzungsgrade der Anlagen - Teil 6-7:
Begleitende TR zur EN 15316-4-4 (Wärmeerzeugungssysteme, gebäudeintegrierte KWK
-Anlagen)
Performance énergétique des bâtiments - Méthode de calcul des besoins énergétiques
et des rendements des systèmes - Partie 6-7 : Explication et justification de l'EN 15316-4
-4, Module M8-3-4, M8-8-4, M8-11-4
Ta slovenski standard je istoveten z: CEN/TR 15316-6-7:2017
ICS:
91.140.10 Sistemi centralnega Central heating systems
ogrevanja
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

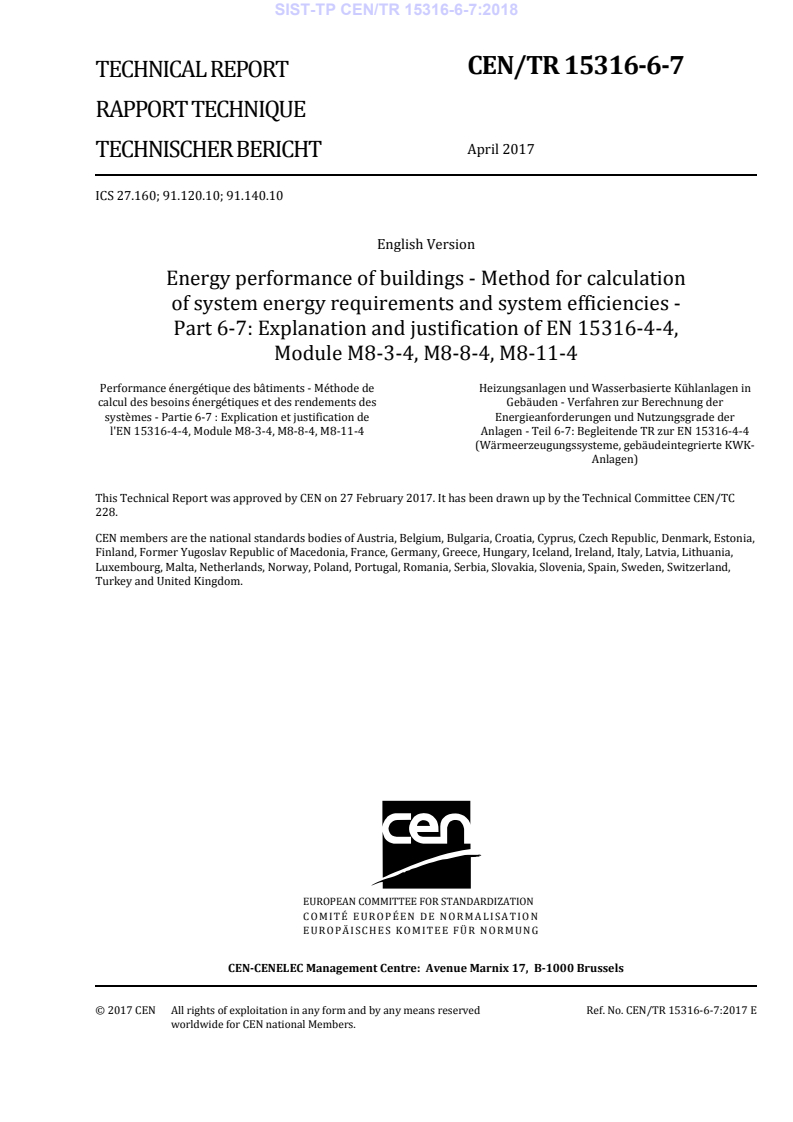

CEN/TR 15316-6-7
TECHNICAL REPORT
RAPPORT TECHNIQUE
April 2017
TECHNISCHER BERICHT
ICS 27.160; 91.120.10; 91.140.10
English Version
Energy performance of buildings - Method for calculation
of system energy requirements and system efficiencies -
Part 6-7: Explanation and justification of EN 15316-4-4,
Module M8-3-4, M8-8-4, M8-11-4
Performance énergétique des bâtiments - Méthode de Heizungsanlagen und Wasserbasierte Kühlanlagen in
calcul des besoins énergétiques et des rendements des Gebäuden - Verfahren zur Berechnung der
systèmes - Partie 6-7 : Explication et justification de Energieanforderungen und Nutzungsgrade der
l'EN 15316-4-4, Module M8-3-4, M8-8-4, M8-11-4 Anlagen - Teil 6-7: Begleitende TR zur EN 15316-4-4
(Wärmeerzeugungssysteme, gebäudeintegrierte KWK-
Anlagen)
This Technical Report was approved by CEN on 27 February 2017. It has been drawn up by the Technical Committee CEN/TC
228.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TR 15316-6-7:2017 E
worldwide for CEN national Members.

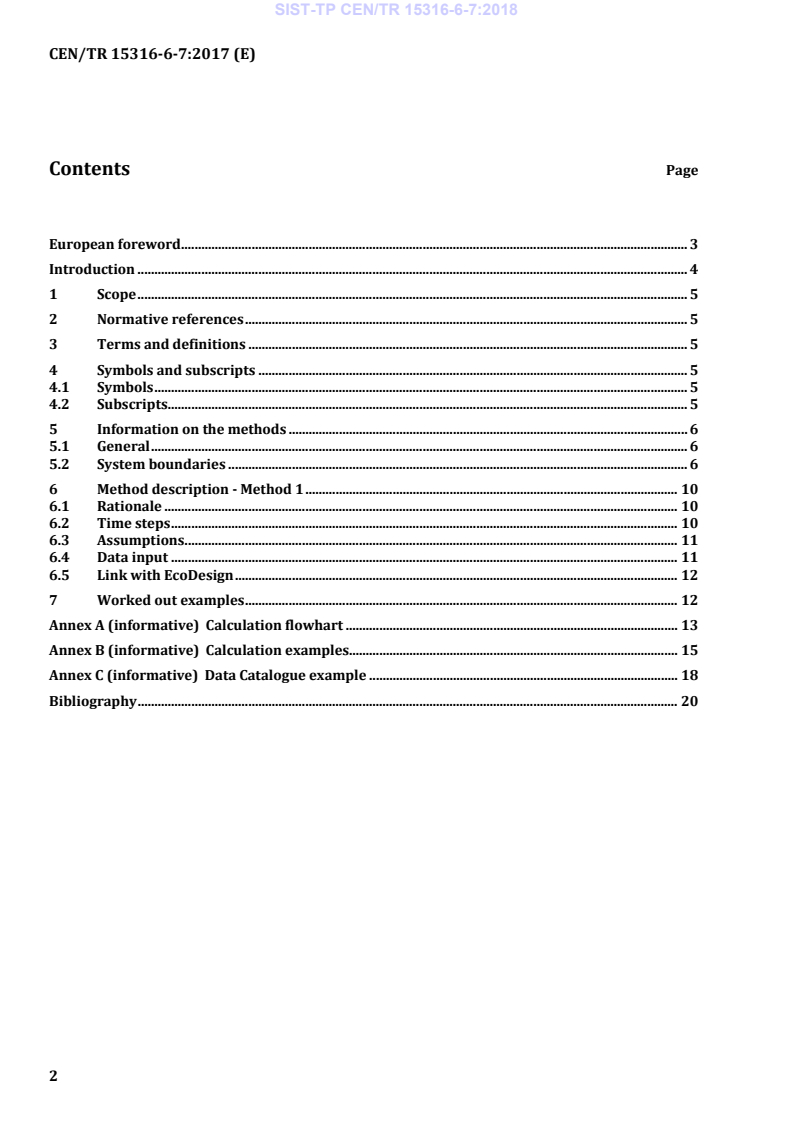

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Symbols and subscripts . 5
4.1 Symbols . 5
4.2 Subscripts . 5
5 Information on the methods . 6
5.1 General . 6
5.2 System boundaries . 6
6 Method description - Method 1 . 10
6.1 Rationale . 10
6.2 Time steps . 10
6.3 Assumptions . 11
6.4 Data input . 11
6.5 Link with EcoDesign . 12
7 Worked out examples . 12
Annex A (informative) Calculation flowhart . 13
Annex B (informative) Calculation examples. 15
Annex C (informative) Data Catalogue example . 18
Bibliography . 20

European foreword
This document (CEN/TR 15316-6-7:2017) has been prepared by Technical Committee CEN/TC 228
“Project committee on energy performance in buildings”, the secretariat of which is held by DIN.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent
rights.
Introduction
In order to facilitate the necessary overall consistency and coherence, in terminology, approach,
input/output relations and formats, for the whole set of EPB-standards, the following documents and
tools are available:
a) a document with basic principles to be followed in drafting EPB-standards: CEN/TS 16628:2014,
Energy Performance of Buildings - Basic Principles for the set of EPB standards [1];
b) a document with detailed technical rules to be followed in drafting EPB-standards:
CEN/TS 16629:2014, Energy Performance of Buildings - Detailed Technical Rules for the set of
EPB-standards [2];
c) the detailed technical rules are the basis for the following tools:
1) a common template for each EPB-standard, including specific drafting instructions for the
relevant clauses;
2) a common template for each technical report that accompanies an EPB standard or a cluster of
EPB standards, including specific drafting instructions for the relevant clauses;
3) a common template for the spreadsheet that accompanies each EPB standard, to demonstrate
the correctness of the EPB calculation procedures.
Each EPB-standards follows the basic principles and the detailed technical rules and relates to the
overarching EPB-standard, EN ISO 52000-1:2017.
One of the main purposes of the revision of the EPB-standards is to enable that laws and regulations
directly refer to the EPB-standards and make compliance with them compulsory. This requires that the
set of EPB-standards consists of a systematic, clear, comprehensive and unambiguous set of energy
performance procedures. The number of options provided is kept as low as possible, taking into
account national and regional differences in climate, culture and building tradition, policy and legal
frameworks (subsidiarity principle). For each option, an informative default option is provided
(Annex B).
Rationale behind the EPB technical reports
There is a risk that the purpose and limitations of the EPB standards will be misunderstood, unless the
background and context to their contents – and the thinking behind them – is explained in some detail
to readers of the standards. Consequently, various types of informative contents are recorded and made
available for users to properly understand, apply and nationally or regionally implement the EPB
standards.
If this explanation would have been attempted in the standards themselves, the result is likely to be
confusing and cumbersome, especially if the standards are implemented or referenced in national or
regional building codes.
Therefore each EPB standard is accompanied by an informative technical report, like this one, where all
informative content is collected, to ensure a clear separation between normative and informative
contents (see CEN/TS 16629 [2]):
- to avoid flooding and confusing the actual normative part with informative content,
- to reduce the page count of the actual standard, and
- to facilitate understanding of the set of EPB standards.
This was also one of the main recommendations from the European CENSE project [5] that laid the
foundation for the preparation of the set of EPB standards.
1 Scope
This Technical Report refers to EN 15316-4-4:2017, Heating systems and water based cooling systems in
buildings - Method for calculation of system energy requirements and system efficiencies - Part 4-4: Heat
generation systems, building-integrated cogeneration systems.
Building-integrated cogeneration systems are commonly known as micro or small scale cogeneration,
or micro or small scale CHP.
It contains information to support the correct understanding, use and national adaptation of
EN 15316-4-4:2017.
This Technical Report does not contain any normative provision.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
EN 15316-4-4:2017, Heating systems and water based cooling systems in buildings - Method for
calculation of system energy requirements and system efficiencies - Part 4-4: Heat generation systems,
building-integrated cogeneration systems
EN 50465, Gas appliances - Fuel cell gas heating appliances - Fuel cell gas heating appliance of nominal
heat input inferior or equal to 70 kW
EN ISO 7345:1995, Thermal insulation - Physical quantities and definitions (ISO 7345:1987)
EN ISO 52000-1:2017, Energy performance of buildings - Overarching EPB assessment - Part 1: General
framework and procedures (ISO 52000-1:2017)
ISO 3046-1, Reciprocating internal combustion engines — Performance — Part 1: Declarations of power,
fuel and lubricating oil consumptions, and test methods — Additional requirements for engines for general
use
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN ISO 7345:1995,
EN ISO 52000-1:2017, EN 15316-4-4:2017 apply.
4 Symbols and subscripts
4.1 Symbols
For the purposes of this document, the symbols given in EN ISO 52000-1:2017 and in
EN 15316-4-4:2017 apply.
4.2 Subscripts
For the purposes of this document, subscripts given in EN ISO 52000-1:2017 and in EN 15316-4-4:2017
apply.
5 Information on the methods
5.1 General
This standard defines a method for the performance assessment of building-integrated cogeneration
units by the calculation of the electricity production, auxiliary power and recoverable losses. Such units
are commonly known as micro or small scale cogeneration, or micro or small scale CHP.
The principle of the assessment of the cogenerator performance is to associate for each heat output
(load from 0 %–100 % including the supplementary heat generator if relevant):
- the electricity output;
- the auxiliary power;
- the heat losses.
The calculation is based on the performance characteristics of the units, defined in product standards,
and on operation conditions such the needed heat output.
The product data based on testing according to EN 50465 and ISO 3046-1 are used for that calculation.
EN 50465 provides data:
- at 0 % load (standby);
- at CHP 100 % and Sup 0 % (primary heat and power generator only);
- at CHP 100 % and Sup 100 % (primary heat and power generator, and supplementary heat
generator).
Between these points, linear interpolation is proposed in order to estimate electricity output, auxiliary
power, heat losses for each point between 0 % and 100 % loads.
Operating parameters, as the temperature, are influencing the performance of a cogenerator. But as
these parameters are not tested according to EN 50465, nor ISO 3046-1, they cannot be taken into
account in the performance assessment.
5.2 System boundaries
The cogeneration unit may be of any type, possibly including a supplementary burner and thermal
storage, provided it has been tested as a whole to provide the energy performance information needed.
The figures below illustrate typical setups.
