EN 131-1:2007+A1:2011

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Lestve - 1. del: Terminologija, tipi, funkcionalne velikostiLeitern - Teil 1: Benennungen, Bauarten, FunktionsmaßeEchelles - Partie 1: Terminologie, types, dimensions fonctionnellesLadders - Part 1: Terms, types, functional sizes97.145LestveLadders01.040.97Oprema za dom in trgovino. Razvedrilo. Šport (Slovarji)Domestic and commercial equipment. Entertainment. Sports (Vocabularies)ICS:Ta slovenski standard je istoveten z:EN 131-1:2007+A1:2011SIST EN 131-1:2007+A1:2011en,fr,de01-september-2011SIST EN 131-1:2007+A1:2011SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 131-1:2007+A1
June 2011 ICS 01.040.97; 97.145 Supersedes EN 131-1:2077English Version
Ladders - Part 1: Terms, types, functional sizes
Echelles - Partie 1: Terminologie, types, dimensions fonctionnelles
Leitern - Teil 1: Benennungen, Bauarten, Funktionsmaße This European Standard was approved by CEN on 22 March 2007 and includes Amendment 1 approved by CEN on 5 May 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2011 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 131-1:2007+A1:2011: ESIST EN 131-1:2007+A1:2011

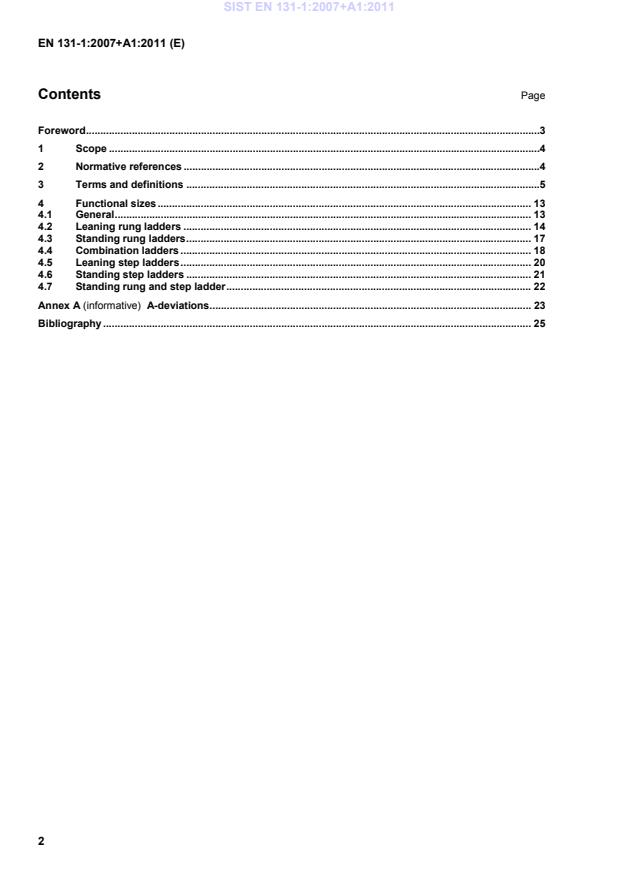

Page Foreword .31Scope .42Normative references .43Terms and definitions .54Functional sizes . 134.1General . 134.2Leaning rung ladders . 144.3Standing rung ladders . 174.4Combination ladders . 184.5Leaning step ladders . 204.6Standing step ladders . 214.7Standing rung and step ladder . 22Annex A (informative)
A-deviations . 23Bibliography . 25 SIST EN 131-1:2007+A1:2011

December 2011. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document supersedes !EN 131-1:2007". This document includes Amendment 1, approved by CEN on 2011-05-05. The start and finish of text introduced or altered by amendment is indicated in the text by tags ! ". This draft standard is a revised version of EN 131-1:1993. Compared to the version EN 131-1:1993 the following modifications have been made: a) Further terms added in Clause 3; b) Provisions for the platform of standing step ladders added in 4.6; c) Standing ladders with both steps and rungs added as 4.7. This European Standard is one of a series about ladders. The other standards of this series are listed in Clause 2 and in the Bibliography. On stability tests and ladder classes no consensus could be reached. These issues will be addressed in the next revision. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom. SIST EN 131-1:2007+A1:2011

3.2 portable ladder ladder which can be trans-ported and set up by hand
3.3 mobile ladder ladder which is brought to each operational place by means of mobile support
Figure 1 3.4 rung ladder portable ladder with rungs, which have a standing surface from front to back of less than 80 mm
3.5 leaning rung ladder rung ladder which does not have its own support
3.6 one-piece leaning rung ladder leaning rung ladder consisting of one part only
Figure 2 SIST EN 131-1:2007+A1:2011

Figure 3 3.8 extending ladder leaning rung ladder consisting of two or more parts and having stiles which are arranged parallel to one another in each part of the ladder NOTE The length may be regulated by one rung at a time
Figure 4 3.10 rope-operated extending ladder extending ladder where the upper parts are extended by means of a rope or other means such as chains, straps or cables
Figure 5 3.11 standing rung ladder two-piece self-supporting rung ladder, unilaterally or bilaterally ascendable
Figure 6 SIST EN 131-1:2007+A1:2011

Figure 7
Figure 8 3.13 step ladder portable ladder with steps horizontal during use and a standing surface from front to back equal to or greater than 80 mm
3.14 leaning step ladder step ladder that does not have its own support consisting of one or several parts
Figure 9 SIST EN 131-1:2007+A1:2011

unilaterally ascendable step ladder
Figure 10
bilaterally ascendable step ladder
Figure 11
unilaterally ascendable step ladder with platform and hand-/knee rail
Figure 12
bilaterally ascendable step ladder with platform and hand-/knee rail
Figure 13 SIST EN 131-1:2007+A1:2011

3.17 standing rung and step ladder standing ladder, one section with rungs and the other section with steps
3.18 stile lateral part of a ladder which supports the rungs or steps as well as cross struts of supporting legs
3.19 rung climbing support with a standing surface from front to back of less than 80 mm and at least 20 mm
Figure 14
3.20 step Climbing support with a standing surface from front to back equal to or greater than 80 mm.
Figure 15
Figure 16 3.22 ascending leg leg of a ladder with climbing supports 3.23 supporting leg leg of a ladder without climbing supports 3.24 hand-/knee rail device for holding onto or gaining support from at the upper end of a standing ladder 3.25 cross strut horizontal connection of the stiles of the supporting leg 3.26 bottom brace device which secures the lower end of the stile against buckling 3.27 opening restraint device device on standing ladders which secures the two legs of the ladder from sliding apart 3.28 locking device device to keep ladder hooks engaged on the rung or step during use 3.29 hinge-joint device on standing ladder which secures the two legs of the ladder 3.30 foot device fitted permanently to the bottom of ladders to prevent the ladder from slipping. In the case of a wooden ladder the bottom of the stile
Figure 17 3.31 inner width b1 the usable distance between the inner sides of the stiles measured at the upper edge of the shortest rung/step/platform
Figure 18 3.32 outside width b2 distance between the outer side of stiles measured at the lower end of stiles or the outer width of the supporting points of the stabilizer SIST EN 131-1:2007+A1:2011

Figure 19 3.37 distance between the topmost rung and the upper end l3 distance between the upper edge of the topmost rung to the upper end of the ladder, measured in the middle line between the stiles 3.38 distance between the bottom end and the lowest rung/step l4 distance from the lower end of the ladder to the upper edge of the lowest rung/step, measured in the middle line between the stiles 3.39 distance between rungs/steps l5 distance between the rungs/steps, measured in the middle line between the stiles from the upper edge of rung/step to the upper edge of rung/step or to the upper edge of platform 3.40 touch-down height h1 vertical height measured from floor level to the top contact point, upper edge of a touch down rail or a hooking-in bar when the ladder is standing in its correct working position 3.41 height to upper edge of rung/step/platform h2 distance measured vertically from the floor level to the upper edge of the topmost rung/step or platform of the ladder when the ladder is standing in its correct working position (see Figure 31) SIST EN 131-1:2007+A1:2011

angle (α
for ascending leg, β
for supporting leg) between the horizontal plane and the legs of the ladder
Figure 20 3.43 width of platform l6 distance between the left and the right edges of the platform
Figure 21 3.44 depth of platform l7 distance between the front and the rear edges of the platform 3.45 platform overhang c distance from the rear side of the support legs to the rear edge of the platform 3.
...
