Ladders - Part 1: Terms, types, functional sizes

This European Standard defines terms and specifies the general design characteristics of ladders.
It applies to portable ladders. It does not apply to step stools for which EN 14183 applies. It does also not apply to ladders designed for specific professional use such as fire brigade ladders, roof ladders and mobile ladders.

Leitern - Teil 1: Benennungen, Bauarten, Funktionsmaße

Echelles - Partie 1: Terminologie, types, dimensions fonctionnelles

La présente Norme européenne définit les termes et spécifie les caractéristiques générales de construction des échelles.
Elle s’applique aux échelles portables. En revanche, elle ne s’applique pas aux tabourets et escabeaux qui sont traités dans la norme EN 14183. Elle ne s’applique pas non plus aux échelles à usage professionnel spécifique telles que les échelles de pompiers, de couvreurs-ardoisiers et les échelles remorquables.

Lestve - 1. del: Terminologija, tipi, funkcionalne velikosti

General Information

Status
Withdrawn
Publication Date
08-May-2007
Withdrawal Date
14-Jun-2011
Technical Committee
Drafting Committee
Current Stage
9960 - Withdrawal effective - Withdrawal
Start Date
15-Jun-2011
Completion Date
15-Jun-2011

Relations

Buy Standard

Standard
EN 131-1:2007
English language
25 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Ladders - Part 1: Terms, types, functional sizesLestve - 1. del: Terminologija, tipi, funkcionalne velikostiEchelles - Partie 1: Terminologie, types, dimensions fonctionnellesLeitern - Teil 1: Benennungen, Bauarten, FunktionsmaßeTa slovenski standard je istoveten z:EN 131-1:2007SIST EN 131-1:2007en;de97.145LestveLadders01.040.97Oprema za dom in trgovino. Razvedrilo. Šport (Slovarji)Domestic and commercial equipment. Entertainment. Sports (Vocabularies)ICS:SIST EN 131-1:1996/AC:2001SIST EN 131-1:19961DGRPHãþDSLOVENSKI
STANDARDSIST EN 131-1:200701-junij-2007

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 131-1May 2007ICS 97.145Supersedes EN 131-1:1993
English VersionLadders - Part 1: Terms, types, functional sizesEchelles - Partie 1: Terminologie, types, dimensionsfonctionnellesLeitern - Teil 1: Benennungen, Bauarten, FunktionsmaßeThis European Standard was approved by CEN on 22 March 2007.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2007 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 131-1:2007: E

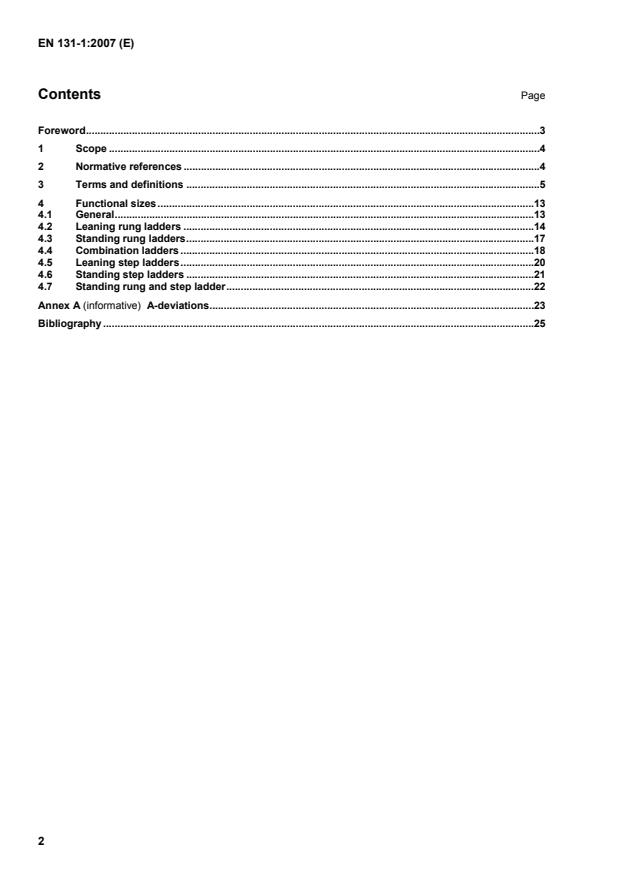

Page Foreword.3 1 Scope.4 2 Normative references.4 3 Terms and definitions.5 4 Functional sizes.13 4.1 General.13 4.2 Leaning rung ladders.14 4.3 Standing rung ladders.17 4.4 Combination ladders.18 4.5 Leaning step ladders.20 4.6 Standing step ladders.21 4.7 Standing rung and step ladder.22 Annex A (informative)
A-deviations.23 Bibliography.25

3.2 portable ladder ladder which can be trans-ported and set up by hand
3.3 mobile ladder ladder which is brought to each operational place by means of mobile support
Figure 1 3.4 rung ladder portable ladder with rungs, which have a standing surface from front to back of less than 80 mm
3.5 leaning rung ladder rung ladder which does not have its own support
3.6 one-piece leaning rung ladder leaning rung ladder consisting of one part only
Figure 2
Figure 3 3.8 extending ladder leaning rung ladder consisting of two or more parts and having stiles which are arranged parallel to one another in each part of the ladder NOTE The length may be regulated by one rung at a time

Figure 4 3.10 rope-operated extending ladder extending ladder where the upper parts are extended by means of a rope or other means such as chains, straps or cables
Figure 5 3.11 standing rung ladder two-piece self-supporting rung ladder, unilaterally or bilaterally ascendable
Figure 6
Figure 7
Figure 8 3.13 step ladder portable ladder with steps horizontal during use and a standing surface from front to back equal to or greater than 80 mm
3.14 leaning step ladder step ladder that does not have its own support consisting of one or several parts
Figure 9
unilaterally ascendable step ladder
Figure 10
bilaterally ascendable step ladder
Figure 11
unilaterally ascendable step ladder with platform and hand-/knee rail
Figure 12
bilaterally ascendable step ladder with platform and hand-/knee rail
Figure 13
3.17 standing rung and step ladder standing ladder, one section with rungs and the other section with steps
3.18 stile lateral part of a ladder which supports the rungs or steps as well as cross struts of supporting legs
3.19 rung climbing support with a standing surface from front to back of less than 80 mm and at least 20 mm
Figure 14
3.20 step Climbing support with a standing surface from front to back equal to or greater than 80 mm.
Figure 15
Figure 16 3.30 foot device fitted permanently to the bottom of ladders to prevent the ladder from slipping. In the case of a wooden ladder the bottom of the stile
Figure 17 3.31 inner width b1 the usable distance between the inner sides of the stiles measured at the upper edge of the shortest rung/step/platform 3.32 outside width b2 distance between the outer side of stiles measured at the lower end of stiles or the outer width of the supporting points of the stabilizer
Figure 18
Figure 19 3.41 height to upper edge of rung/step/platform h2 distance measured vertically from the floor level to the upper edge of the topmost rung/step or platform of the ladder when the ladder is standing in its correct working position (see Figure 31)

angle (α
for ascending leg, β
for supporting leg) between the horizontal plane and the legs of the ladder
Figure 20 3.43 width of platform l6 distance between the left and the right edges of the platform 3.44 depth of platform l7 distance between the front and the rear edges of the platform 3.45 platform overhang c distance from the rear side of the support legs to the rear edge of the platform 3.46 hand-/knee rail height d vertical distance from the top edge of the platform to the top edge of the hand-/knee rail
Figure 21 3.47 thickness of stile t outside dimension of the stile, measured perpendicular to the stile axis in the plane of the ladder (see Figures 25 to 29) 3.48 clearance e horizontal distance between the rungs of two parallel parts of the ladder, when the locking devices are in the use position (see Figure 24)
4 Functional sizes 4.1 General The drawings are examples only and products need not correspond. However, dimensions are binding. The rungs and steps of a ladder shall be equally spaced with a tolerance of ± 2 mm. The inner width b1 shall be measured at the upper edge of the shortest rung/step. The outside width b2 shall be measured at the lower end of the ladder. In addition to tests on the complete ladder sections which can be dismantled without the use of tools shall conform, section by section, with the requirements
...
