EN ISO 14906:2011

SLOVENSKI STANDARD
01-december-2011
1DGRPHãþD
SIST EN ISO 14906:2005
Elektronsko pobiranje pristojbin - Definicija aplikacijskega vmesnika za posebne
komunikacije kratkega dosega (ISO 14906:2011)
Electronic fee collection - Application interface definition for dedicated short-range
communication (ISO 14906:2011)
Elektronische Gebührenerfassung (EFC) - Anforderungen an die EFC-Schnittstelle für
Fahrzeug-Baken-Kommunikation (ISO 14906:2011)
Perception du télépéage - Définition de l'interface d'application relative aux
communications dédiées à courte portée (ISO 14906:2011)
Ta slovenski standard je istoveten z: EN ISO 14906:2011
ICS:
03.220.20 Cestni transport Road transport
35.240.60 Uporabniške rešitve IT v IT applications in transport
transportu in trgovini and trade
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 14906
NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2011
ICS 03.220.20; 35.240.60 Supersedes EN ISO 14906:2004
English Version
Electronic fee collection - Application interface definition for
dedicated short-range communication (ISO 14906:2011)
Perception du télépéage - Définition de l'interface Elektronische Gebührenerhebung -
d'application relative aux communications dédiées à courte Anwendungsschnittstelle zur dezidierten Nahbereich-
portée (ISO 14906:2011) Kommunikation (ISO 14906:2011)
This European Standard was approved by CEN on 20 August 2011.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2011 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 14906:2011: E
worldwide for CEN national Members.

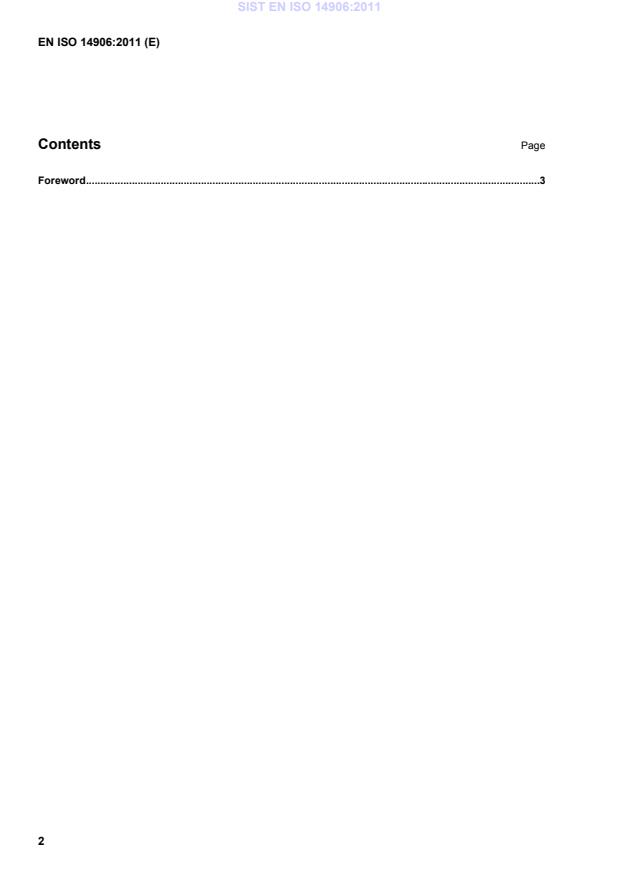

Contents Page
Foreword .3

Foreword
This document (EN ISO 14906:2011) has been prepared by Technical Committee ISO/TC 204 "Intelligent
transport systems" in collaboration with Technical Committee CEN/TC 278 “Road transport and traffic
telematics” the secretariat of which is held by NEN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by April 2012, and conflicting national standards shall be withdrawn at the
latest by April 2012.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 14906:2004.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.
Endorsement notice
The text of ISO 14906:2011 has been approved by CEN as a EN ISO 14906:2011 without any modification.

INTERNATIONAL ISO
STANDARD 14906
Second edition
2011-10-15
Electronic fee collection — Application
interface definition for dedicated short-
range communication
Perception du télépéage — Définition de l'interface d'application relative
aux communications dédiées à courte portée

Reference number
ISO 14906:2011(E)
©
ISO 2011
ISO 14906:2011(E)
©  ISO 2011
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2011 – All rights reserved

ISO 14906:2011(E)
Contents Page
Foreword . iv
Introduction . v
1 Scope . 1
2 Normative references . 2
3 Terms and definitions . 2
4 Abbreviated terms . 5
5 EFC application interface architecture . 7
5.1 Relation to the DSRC communication architecture . 7
5.2 Usage of DSRC application layer by the EFC application interface . 9
5.3 Addressing of EFC attributes . 9
5.4 Addressing of components . 11
6 EFC Transaction Model . 12
6.1 General . 12
6.2 Initialisation Phase . 12
6.3 Transaction phase . 15
7 EFC Functions . 17
7.1 Overview and general concepts . 17
7.2 EFC functions . 21
8 EFC Attributes . 34
8.1 General . 34
8.2 Data group CONTRACT . 36
8.3 Data group RECEIPT . 36
8.4 Data group VEHICLE . 36
8.5 Data group EQUIPMENT . 37
8.6 Data group DRIVER . 37
8.7 Data group PAYMENT . 37
Annex A (normative) EFC data type specifications . 51
Annex B (informative) CARDME transaction . 67
Annex C (informative) Examples of EFC transaction types . 93
Annex D (informative) Functional requirements . 103
Annex E (normative) Mapping table from LatinAlphabetNo2 & 5 to LatinAlphabetNo1 . 110
Annex F (informative) Mapping table between EFC Vehicledata attribute and European
registration certificate . 111
Bibliography . 113

ISO 14906:2011(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 14906 was prepared by Technical Committee ISO/TC 204, Intelligent transport systems, in collaboration
with Technical Committee CEN/TC 278, Road transport and traffic telematics.
This second edition cancels and replaces the first edition (ISO 14906:2004), which has been technically
revised.
iv © ISO 2011 – All rights reserved

ISO 14906:2011(E)
Introduction
This International Standard specifies an application interface for electronic fee collection (EFC) systems,
which are based on dedicated short-range communication (DSRC). It supports interoperability between EFC
systems on an EFC-DSRC application interface level. This International Standard is intended for DSRC
charging applications, but specifically the definition of EFC data elements is valid beyond the use of a DSRC
charging interface and might be used for other DSRC applications (e.g. compliance checking communication)
and/or on other interfaces (e.g. the application interface of autonomous systems).
This International Standard provides specifications for the EFC transaction model, EFC data elements
(referred to as attributes) and functions, from which an EFC transaction can be built. The EFC transaction
model provides a mechanism that allows handling of different versions of EFC transactions and associated
contracts. A certain EFC transaction supports a certain set of EFC attributes and EFC functions as defined in
this International Standard. It is not envisaged that the complete set of EFC attributes and functions be
present in each piece of EFC equipment, on-board equipment (OBE) or roadside equipment (RSE).
This International Standard provides the basis for agreements between operators, which are needed to
achieve interoperability. Based on the tools specified in this International Standard, interoperability can be
reached by operators recognising each others' EFC transactions (including the exchange of security
algorithms and keys) and implementing the EFC transactions in each others' RSEs, or they can reach an
agreement to define a new transaction (and contract) that is common to both. Considerations should also be
made by each operator so that the RSE has sufficient resources to implement such additional EFC
transactions.
In order to achieve interoperability, operators should agree on issues such as
 which optional features are actually being implemented and used,
 access rights and ownership of EFC application data in the OBE,
 security policy (including encryption algorithms and key management, if applicable),
 operational issues, such as how many receipts may be stored for privacy reasons, how many receipts are
necessary for operational reasons (for example as entry tickets or as proof of payment),
 the agreements needed between operators in order to regulate the handling of different EFC transactions.
In this revision, users are faced with issues related to backward compatibility. This issue can be managed by
using the following:
 EfcModule ASN.1 module, including a version number;
 Efc-ContextMark (incl. the ContextVersion), denoting the implementation version, provides a means to
ensure co-existence of different implementation versions by means of a look-up table and associated
appropriate transaction processing. This will enable the software of the RSE to determine the version of
the OBE and his capabilty to accept the new features of this version of this International Standard.
Annex A provides the normative ASN.1 specifications of the used data types (EFC action parameters and
attributes).
Annex B presents an informative example of a transaction based on the CARDME specification, including
bit-level specification.
ISO 14906:2011(E)
Annex C presents informative examples of EFC transaction types, using the specified EFC functions and
attributes.
Annex D presents an informative listing of functional requirements, which can be satisfied by using the tools
provided by this International Standard.
Annex E presents an informative mapping table from LatinAlphabetNo2 & 5 to LatinAlphabetNo1 to ease for a
Service Provider the use of LatinAlphabetNo1 to encode an OBE for data available wiitten with non-Latin1
characters.
Annex F presents an informative mapping table between EFC vehicle data attributes and European
registration certificates to ease the task of a service provider when he needs to personalise an OBE by
obtaining vehicle data.
This application interface definition can also be used with other DSRC media which do not use a layer 7
according to ISO 15628/EN 12834. Any DSRC medium which provides services to read and write data, to
initialise communication and to perform actions is suitable to be used as a basis for this application interface.
Adaptations are medium specific and are not further covered here. As Annex B describes in detail a
transaction for central account systems, this International Standard can also be used for onboard account
systems, in conjunction with ISO/TS 25110, which provides examples of systems based on onboard accounts.

vi © ISO 2011 – All rights reserved

INTERNATIONAL STANDARD ISO 14906:2011(E)

Electronic fee collection — Application interface definition for
dedicated short-range communication
1 Scope
This International Standard specifies the application interface in the context of electronic fee collection (EFC)
systems using the dedicated short-range communication (DSRC).
The EFC application interface is the EFC application process interface to the DSRC application layer, as can
be seen in Figure 1 below. This International Standard comprises specifications of
 EFC attributes (i.e. EFC application information) that can also be used for other applications and/or
interfaces,
 the addressing procedures of EFC attributes and (hardware) components (e.g. ICC and MMI),
 EFC application functions, i.e. further qualification of actions by definitions of the concerned services,
assignment of associated ActionType values and content and meaning of action parameters,
 the EFC transaction model, which defines the common elements and steps of any EFC transaction,
 the behaviour of the interface so as to ensure interoperability on an EFC-DSRC application interface level.
RSE OBE
Application process
Application process
Attributes Attributes
(e.g. PaymentMeans, (e.g. PaymentMeans,
VehicleDimensions, …) VehicleDimensions, …)
ADU
ActionType (e.g. debit,
ActionType (e.g. debit,
set_MMI, transfer_channel, …) set_MMI, transfer_channel, …)
Scope of this
NotifyApplicationRSU
NotifyApplicationOBU
GET
GET
International
SET
SET
Standard
ACTION
EndApplication ACTION
RegisterApplicationOBU
RegisterApplicationRSU
.request .confirm DeregisterApplication
.response .indication
DeregisterApplication
EndApplication
T-ASDU T-ASDU
DSRC DSRC
I-Kernel
I-Kernel
application application
layer layer
T-APDU T-Kernel
T-Kernel
Kernel
Kernel
Figure 1 — The EFC application interface
This is an interface standard, adhering to the open systems interconnection (OSI) philosophy (see
ISO/IEC 7498-1), and it is as such not concerned with the implementation choices to be realised at either side
of the interface.
ISO 14906:2011(E)
This International Standard provides security-specific functionality as place holders (data and functions) to
enable the implementation of secure EFC transactions. Yet the specification of the security policy (including
specific security algorithms and key management) remains at the discretion and under the control of the EFC
operator, and hence is outside the scope of this International Standard.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 612, Road vehicles — Dimensions of motor vehicles and towed vehicles — Terms and definitions
ISO 1176, Road vehicles — Masses — Vocabulary and codes
ISO 3166-1, Codes for the representation of names of countries and their subdivisions — Part 1: Country
codes
ISO 3779, Road vehicles — Vehicle identification number (VIN) — Content and structure
ISO 4217, Codes for the representation of currencies and funds
ISO 7812-1, Identification cards — Identification of issuers — Part 1: Numbering system
ISO/IEC 8824-1, Information technology — Abstract Syntax Notation One (ASN.1): Specification of basic
notation
ISO/IEC 8825-2, Information technology — ASN.1 encoding rules: Specification of Packed Encoding Rules
(PER)
ISO 14816:2005, Road transport and traffic telematics — Automatic vehicle and equipment identification —
Numbering and data structure
ISO 15628:2007, Road transport and traffic telematics — Dedicated short range communication (DSRC) —
DSRC application layer
EN 12834:2003, Road transport and traffic telematics — Dedicated Short Range Communication (DSRC) —
DSRC application layer
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
access credentials
data that is transferred to on-board equipment (OBE), in order to establish the claimed identity of a roadside
equipment (RSE) application process entity
NOTE The access credentials carry information needed to fulfil access conditions in order to perform the operation
on the addressed element in the OBE. The access credentials can carry passwords as well as cryptographic based
information such as authenticators.
3.2
action
function that an application process resident at the roadside equipment can invoke in order to make the on-
board equipment (OBE) execute a specific operation during the transaction
2 © ISO 2011 – All rights reserved

ISO 14906:2011(E)
3.3
attribute
application information formed by one or by a sequence of data elements, and that is managed by different
actions used for implementation of a transaction
3.4
authenticator
data appended to, or a cryptographic transformation of, a data unit that allows a recipient of the data unit to
prove the source and/or the integrity of the data unit and protect against forgery
3.5
channel
information transfer path
[ISO 7498-2:1989, definition 3.3.13]
3.6
component
logical and physical entity composing an on-board equipment, supporting a specific functionality
3.7
contract
expression of an agreement between two or more parties concerning the use of the road infrastructure
3.8
cryptography
discipline which embodies principles, means, and methods for the transformation of data in order to hide its
information content, prevent its undetected modification and/or prevent its unauthorised use
[ISO 7498-2:1989, definition 3.3.20]
3.9
data group
collection of closely related EFC data attributes which together describe a distinct part of an EFC transaction
3.10
data integrity
property that data has not been altered or destroyed in an unauthorised manner
[ISO 7498-2:1989, definition 3.3.21]
3.11
element
DSRC directory containing application information in the form of attributes
3.12
empty list
container for attributeValues (OCTET STRING) with the length equal to zero
3.13
on-board equipment
equipment fitted within or on the outside of a vehicle and used for toll purposes
NOTE The OBE does not need to include payment means.
3.14
on-board unit
minimum component of an on-board equipment, whose functionality always includes at least the support of
the DSRC interface
ISO 14906:2011(E)
3.15
operator
entity involved in the process outside the user
NOTE An operator is a generic term which can be used for a toll service provider or a toll charger.
3.16
roadside equipment
equipment located along the road transport network, for the purpose of communication and data exchanges
with on-board equipment
3.17
service
EFC road transport related facility provided by a service provider, normally a type of infrastructure, the use of
which is offered to the user, for which the user may be requested to pay
3.18
service primitive
communication elementary communication service provided by the application layer protocol to the
application processes
NOTE The invocation of a service primitive by an application process implicitly calls upon and uses services offered
by the lower protocol layers.
3.19
session
exchange of information and interaction occurring at a specific EFC station between the roadside equipment
and the user/vehicle
3.20
toll charger
legal entity charging toll for vehicles in a toll domain
[ISO/TS 17574:2009, definition 3.27]
3.21
toll domain
area or part of a road network where a toll regime is applied
[ISO 17573:2010, definition 3.18]
3.22
toll service
EFC service enabling users having only one contract and one set of on-board equipment (OBE) to use a
vehicle in one or more toll domains
NOTE Adapted from ISO/TS 12813:2009.
3.23
toll service provider
EFC legal entity providing to his customers toll services on one or more toll domains for one or more classes
of vehicle
NOTE 1 In other documents the terms issuer or contract issuer may be used.
NOTE 2 The toll service provider may provide the OBE or may provide only a magnetic card or a smart card to be used
with OBE provided by a third party (like a mobile telephone and a SIM card can be obtained from different parties).
NOTE 3 The toll service provider is responsible for the operation (functioning) of the OBE.
[ISO/TS 17574:2009, definition 3.28]
4 © ISO 2011 – All rights reserved

ISO 14906:2011(E)
3.24
transaction
whole of the exchange of information between the roadside equipment and the on-board equipment
necessary for the completion of an EFC operation over the DSRC
3.25
transaction model
functional model describing the general structure of electronic payment fee collection transactions
3.26
user
customer of a toll service provider, one liable for toll, the owner of the vehicle, a fleet operator, a driver, etc.,
depending on the context
4 Abbreviated terms
For the purposes of this document, the following abbreviated terms apply unless otherwise specified.
4.1
APDU
Application Protocol Data Unit
4.2
AP
Application Process
4.3
ASN.1
Abstract Syntax Notation One (ISO/IEC 8824-1)
4.4
BST
Beacon Service Table
4.5
CCC
Compliance check communication
4.6
cf
Confirm
4.7
DSRC
Dedicated Short-Range communication
4.8
EID
Element Identifier
4.9
EFC
Electronic Fee Collection
4.10
GPS
Global Positioning System
ISO 14906:2011(E)
4.11
ICC
Integrated Circuit(s) Card
4.12
I-Kernel
Initialisation Kernel
4.13
IID
Invoker Identifier
4.14
ind
Indication
4.15
LAC
Localisation Augmentation Communication
4.16
L1
Layer 1 of DSRC (Physical Layer)
4.17
L2
Layer 2 of DSRC (Data Link Layer)
4.18
L7
Application Layer Core of DSRC
4.19
LID
Logical Link Control Identifier
4.20
LLC
Logical Link Control
4.21
LPDU
LLC Protocol Data Unit
4.22
MAC
Medium Access Control
4.23
MMI
Man-Machine Interface
4.24
n.a.
Not applicable
4.25
OBE
On-Board Equipment
6 © ISO 2011 – All rights reserved

ISO 14906:2011(E)
4.26
PDU
Protocol Data Unit
4.27
PER
Packed Encoding Rules (ISO/IEC 8825-2)
4.28
req
Request
4.29
rs
Response
4.30
RSE
Roadside Equipment
4.31
RTTT
Road Transport and Traffic Telematics
4.32
SAM
Secure Application Module
4.33
T-APDU
Transfer-Application Protocol Data Unit
4.34
T-ASDU
Transfer-Application Service Data Unit
4.35
T-Kernel
Transfer Kernel
4.36
VST
Vehicle Service Table
5 EFC application interface architecture
5.1 Relation to the DSRC communication architecture
The DSRC services are provided to an application process by means of the DSRC Application Layer service
primitives, which are abstract implementation interactions between a communication service user and a
provider. The services are offered by the DSRC communication entities by means of its DSRC Application
Layer (EN 12834/ISO 15628).
ISO 14906:2011(E)
RSU OBU
AP ADU AP
NotifyApplicationRSU NotifyApplicationOBU
GET GET
SET SET
EndApplication RegisterApplicationOBU
ACTION ACTION
RegisterApplicationRSU DeregisterApplication
.response .indication
.request .confirm
DeregisterApplication EndApplication
B-Kernel
B-Kernel
I-Kernel I-Kernel
n.a. for
n.a. for
EFC
EFC
DSRC-L7 DSRC-L7
T-Kernel
T-APDU T-Kernel
LLC sublayer LLC sublayer
DSRC-L2 LPDU DSRC-L2
MAC sublayer MAC sublayer
DSRC-L1 Physical layer
PPDU Physical layer DSRC-L1
Figure 2 — The EFC application process on top of the DSRC communication stack
NOTE The abbreviations used in Figure 2 are defined in Clause 4.
The Transfer Kernel of DSRC Application Layer offers the following services to application processes (see
also Figure 2 above):
 GET: The invocation of a GET service request results in retrieval (i.e. reading) of application information
(i.e. Attributes) from the peer service user (i.e. the OBE application process), a reply is always expected.
 SET: The invocation of a SET service request results in modification (i.e. writing) of application
information (i.e. Attributes) of the peer service user (i.e. the OBE application process). This service may
be requested in confirmed or non-confirmed mode, a reply is only expected in the former case.
 ACTION: The invocation of an ACTION service request results in a performance of an action by the peer
service user (i.e. the OBE application process). An action is further qualified by the value of the
ActionType. This service may be requested in confirmed or non-confirmed mode, a reply is only expected
in the former case.
8 © ISO 2011 – All rights reserved

ISO 14906:2011(E)
 EVENT-REPORT: The invocation of an EVENT-REPORT service request forwards a notification of an
event to the peer service user.
 INITIALISATION: The invocation of an initialisation service request by RSE results in an attempt to
initialise communication between a RSE and each OBE that has not yet established communication with
the concerned RSE. The Initialisation service is only used by the Initialisation Kernel as defined in
EN 12834/ISO 15628.
5.2 Usage of DSRC application layer by the EFC application interface
EFC uses the following services offered by DSRC Application Layer (as defined in EN 12834/ISO 15628):
 The INITIALISATION services:
 Notify Application RSU (at RSE);
 End Application (at RSE);
 Register Application RSU (at RSE);
 Deregister Application (at RSE and OBE);
 Notify Application OBU (at OBE);
 Register Application OBU (at OBE)
are used to realise the EFC-specific initialisation mechanism (see Clause 6);
 The GET service is used to retrieve EFC attributes (For attribute specifications see Clause 8);
 The SET service is used to set EFC attributes;
 The ACTION services are applied to realise additional EFC specific functionality needed to support EFC
application processes, such as TRANSFER_CHANNEL, SET_MMI and ECHO (see 7.2).
In the following, the EFC-specific usage of the DSRC Layer 7 services is specified in detail.
NOTE The EVENT-REPORT-service can be implicitly used by EFC application processes. It is e.g. used indirectly as
part of an already defined command to release an application process (see EN 12834/ISO 15628, Ready Application).
However as the EVENT-REPORT-service is not explicitly used by EFC application processes, this service is not further
referred to in this International Standard.
5.3 Addressing of EFC attributes
5.3.1 Basic mechanism
EFC Attributes are used to transfer the EFC application-specific information.
EFC Attributes are composed of one or more data elements of specified ASN.1 types. Each data element is
associated with, within the context of this International Standard, an unambiguous name.
To each EFC Attribute, an AttributeID is associated. The AttributeId enables to unambiguously identify and
address an EFC Attribute.
ISO 14906:2011(E)
EXAMPLE Figure 3 illustrates the basic addressing mechanism.
Attribute ID AttrlD = 0 AttrlD = 2 AttrlD = 3 AttrlD = 4 AttrlD = n
Contract Contract Contract
….
……….
Attribute
Validity Vehicle Authenticator
ContractAuthenticator ::=
ContractVehicle ::=
ASN.1-Type
ContractValidity ::= SEQUENCE {
contractRestrictions OCTET STRING (SIZE(4))
contractExpiryDate  DateCompact
}
Figure 3 — Basic addressing mechanism
5.3.2 Role of the EID
In a given OBE, the DSRC-EID (different from 0) is used to address an EFC context, identified by the
EFC-ContextMark (see 6.2.3), in which Attributes can be addressed unambiguously by AttributeIDs inside an
Element of the OBE. In the VST, the OBE specifies one or several of these EFC contexts, each corresponding
to an EFC ContextMark and the EID to be used for addressing the attributes and using the EFC functions
supported by it.
EXAMPLE
AttrlD = 0 AttrlD = 2 AttrlD = 3 AttrlD = 4 AttrlD = n
Contract Contract Contract
….
Validity Vehicle Authenticator ……….
EID = 1
A A A
Contract Contract Contract
…. ……….
Validity Vehicle Authenticator
EID = 2
B B B
Contract Contract Contract
…. ……….
EID = 3 Validity Vehicle Authenticator
C C C
Figure 4 — Role of the EID
EID equals 0 shall be used to address application-independent functions and components, e.g. SET_MMI and
TRANSFER_CHANNEL (see 7.2).
5.3.3 Multiple Instances of Attributes
There may be n, where n is an integer, instances of an Attribute available in an OBE.
The maximum number of instances N of one Attribute may be limited according to the needs of operators
max
and users. The default maximum number of instances is N =1. The value of N is determined at the time of
max max
OBE configuration.
10 © ISO 2011 – All rights reserved

ISO 14906:2011(E)
EXAMPLE
AttrlD = 0 AttrlD = 5 AttrlD = n
ReceiptServicePart2
………. ……….
ReceiptServicePart 1
EID = 1
ReceiptServicePart 0
Figure 5 — Multiple instances (0-2) of attribute 5
The handling of multiple instances and the corresponding addressing mechanism are described in detail as
part of the behaviour specification of the corresponding functions supporting multiple instances (see 7.2.6 for
GET_INSTANCE and 7.2.7 for SET_INSTANCE).
5.4 Addressing of components
Components of an OBE to be addressed via the EFC Application Interface include for example:
— OBU;
— SAM 1;
— SAM 2;
— ICC;
— Display;
— Buzzer;
— Printer;
— Serial interface;
— Parallel interface;
— GPS;
— Tachograph;
— Bluetooth.
Addressing of these components is enabled on two levels, device-specific and device-independent addressing.
The device-specific transparent addressing mechanism enables the transfer of information, which shall be
processed by the addressed device (such as an ICC-command). The addressed device is identified by a
channel Id. The EFC function TRANSFER_CHANNEL (see 7.2.10) supports this functionality.
EXAMPLE 1 Transfer of a bit string to an ICC.
The device-independent addressing mechanism uses a set of commands, which describe a certain
functionality, which can be performed by various OBE components. In this case, the operating system of the
OBE will address the corresponding components. The EFC function SET_MMI supports this functionality
(see 7.2.12).
EXAMPLE 2 Invocation of a SET_MMI(EID=0, ContactOperator) function activates an OBE MMI-device, e.g. a buzzer
or a display.
NOTE In a specific implementation, specific attributes or data elements may activate some MMI function (e.g. a SET
command on the attribute ReceiptText might display the text on an LCD display. A SET command on the attribute
ReceiptServicePart with data element SessionResultOperational other than SessionOK might activate an alert beep).
Proprietary addressing mechanisms are not defined by this International Standard.
ISO 14906:2011(E)
6 EFC Transaction Model
6.1 General
The EFC Transaction Model related to the EFC Application Interface for the DSRC comprises two phases, the
initialisation phase and the transaction phase.
NOTE The purpose of the initialisation phase is to set up the communication between the RSE and OBEs that have
entered the DSRC zone but have not yet established communication with the RSE, and to notify the application processes.
It provides amongst others a multi-application switching mechanism, allowing for execution of several RTTT applications
(in parallel) at one RSE station.
The transaction phase can only be reached after completion of the initialisation phase. The EFC functions, as
defined in Clause 7, can be performed in the transaction phase. The GET and SET services (DSRC
application layer functions) as defined in EN 12834/ISO 15628 (in 6.2) may also be used in an EFC
transaction phase.
6.2 Initialisation Phase
6.2.1 Overview
This clause provides an overview of the functionality of, and the information exchanges in, the initialisation
phase.
The Initialisation procedures, by means of beacon service table (BST) and vehicle service table (VST)
exchanges, are defined in EN 12834/ISO 15628 6.2.2 and 6.2.3 below account for the EFC application-
specific information that shall be included in the BST and VST, respectively.
NOTE The OBE evaluates the received BST, and selects the applications that it wishes to perform out of the lists of
applications supported by the RSE. If the OBE does not support any of application(s) supported by the RSE, then it is
recommended that the OBE does not exchange any information with the RSE. If the OBE supports at least one of the
application(s) supported by the RSE, then it is recommended that the OBE informs the RSE of which application it wishes
to execute in its corresponding VST.
12 © ISO 2011 – All rights reserved

ISO 14906:2011(E)
RSE OBE
EFC-
EFC-
Layer 7 Layer 7
application
application
I-Kernel T-Kernel I-Kernel T-Kernel
RegisterApplication
INIT.rq(BST) RegAppVehicle
Beacon
T-APDU(INIT.rq(BST))
BST
INIT.ind(BST)
NotifyApplication
Vehicle
T-APDU(INIT.rs(VST))
INIT.cf(VST)
VST
NotifyApplication
Beacon
Figure 6 — Initialisation phase: BST - VST exchanges
The Initialisation service associated with the initialisation phase is only used by the Initialisation Kernel
(of EN 12834/ISO 15628), which in its turn is configured by the application(s) wishing to execute applications
over a DSRC link. The Initialisation Kernels of the RSE and of the concerned OBE shall have been configured,
according to EN 12834/ISO 15628, prior to the invocation of the Initialisation service by the RSE.
6.2.2 EFC application-specific contents of the BST
An RSE supporting EFC shall have configured its Initialisation Kernel to carry the following information related
specifically to the EFC application(s):
 the application identifier (AID) shall be equal to 1 (i.e. the value assigned for EFC);
 the EFC application shall be qualified as a mandatory application;
 EID shall not be transmitted in the BST related to the EFC application;
 no Parameter shall be transmitted in the BST related to the EFC application.
NOTE 1 AID equals to 14 identifies the multi-purpose payment context. In Japan, ISO 14906 specifies the application
interface for DSRC used for multi-purpose payment (when the Aid=14 is used in Japan, the EID and parameter fields are
defined through the BST).
There shall be only one EFC application present in the BST (i.e. there shall be only one instance of AID=1 in
the BST) regardless of whether the RSE supports more than one EFC-ContextMark (see also 6.2.3).
ISO 14906:2011(E)
NOTE 2 The above is the EFC application-specific contents of the BST. The complete BST is defined in
EN 12834/ISO 15628 and is given below for readability of this International Standard:
BST ::= SEQUENCE {
beacon BeaconID,
time Time,
profile Profile,
mandApplications ApplicationList,
nonmandApplications ApplicationList OPTIONAL,
profileList SEQUENCE(0.127, .) OF Profile
}
where
ApplicationList ::= SEQUENCE (0.127,.) OF
SEQUENCE{
aid DSRCApplicationEntityID, -- AID=1
eid Dsrc-EID OPTIONAL, -- empty
parameter Container OPTIONAL -- empty
}
6.2.3 EFC application-specific contents of the VST
Each EFC application and corresponding contract shall be associated with an EFC-ContextMark, as defined
below. An OBE may support several EFC applications.
NOTE 1 It is outside the scope of this International Standard to define in which order EFC-ContextMarks shall be
presented in order to indicate a user's order of preference, in case his OBE supports several EFC applications. Such rules
for indicating the user's order of preference may be subject to agreements between operators.
An OBE supporting EFC shall have configured its Initialisation Kernel to carry the following information related
specifically to the concerned EFC application:
 the AID shall be equal to 1;
 the EID value shall be logically associated with the corresponding EFC-ContextMark, contained in the
Parameter, and shall be unique within the OBE throughout the complete DSRC session;
 the Parameter shall be of Container CHOICE type OCTET STRING and shall comprise the EFC-
ContextMark as defined below, and may also be configured to carry additional EFC attributes (as defined
in Clause 8 and Annex A).
EFC-ContextMark::=SEQUENCE{
ContractProvider Provider,
TypeOfContract OCTET STRING (SIZE(2)),
ContextVersion INTEGER(0.127,.)
}
The EFC-ContextMark denotes a specific EFC context in the OBE, comprising the organization that issued
the contract, the type of contract and the context version. ContractProvider, TypeOfContract and
ContextVersion are further defined in Clause 8 as data elements of the Attribute EFC-ContextMark.
NOTE 2 The above is the EFC application-specific contents of the VST. The complete VST is defined in
EN 12834/ISO 15628 and is given below for readability of this International Standard:
VST ::=  SEQUENCE {
fill BIT STRING (SIZE(4))
profile Profile,
applications ApplicationList,
obeConfiguration ObeConfiguration
}
14 © ISO 2011 – All rights reserved

ISO 14906:2011(E)
where:
ApplicationList ::= SEQUENCE (0.127,.) OF
SEQUENCE{
aid DSRCApplicationEntityID, -- AID =1
eid Dsrc-EID OPTIONAL, -- EID = e.g. 2
parameter Container OPTIONAL -- EFC-ContextMark
-- plus any EFC Attribute
}
NOTE 3 Means to ensure backwards compatibility and co-existence:
 EfcModule ASN.1 module, including a version number
 Efc-ContextMark (incl. the ContextVersion), denoting the implementation version, provides a means to ensure co-
existence of different implementation versions by means of a look-up table and associated appropriate transaction
...
