EN 15509:2014

SLOVENSKI STANDARD
01-december-2014
Nadomešča:
SIST EN 15509:2008
Elektronsko pobiranje pristojbin - Interoperabilnost profila aplikacije za DSRC
Electronic fee collection - Interoperability application profile for DSRC
Elektronische Gebührenerhebung - Interoperable Anwendungsprofile für DSRC
Perception de télépéage - Profil d'application d'interopérabilité pour DSRC
Ta slovenski standard je istoveten z: EN 15509:2014
ICS:
03.220.20 Cestni transport Road transport
35.240.60 Uporabniške rešitve IT v IT applications in transport
prometu
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 15509
NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2014
ICS 35.240.60 Supersedes EN 15509:2007
English Version
Electronic fee collection - Interoperability application profile for
DSRC
Perception de télépéage - Profil d'application Elektronische Gebührenerhebung - Anwendungsprofil für
d'interopérabilité pour DSRC DSRC Interoperabilität
This European Standard was approved by CEN on 18 July 2014.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 15509:2014 E
worldwide for CEN national Members.

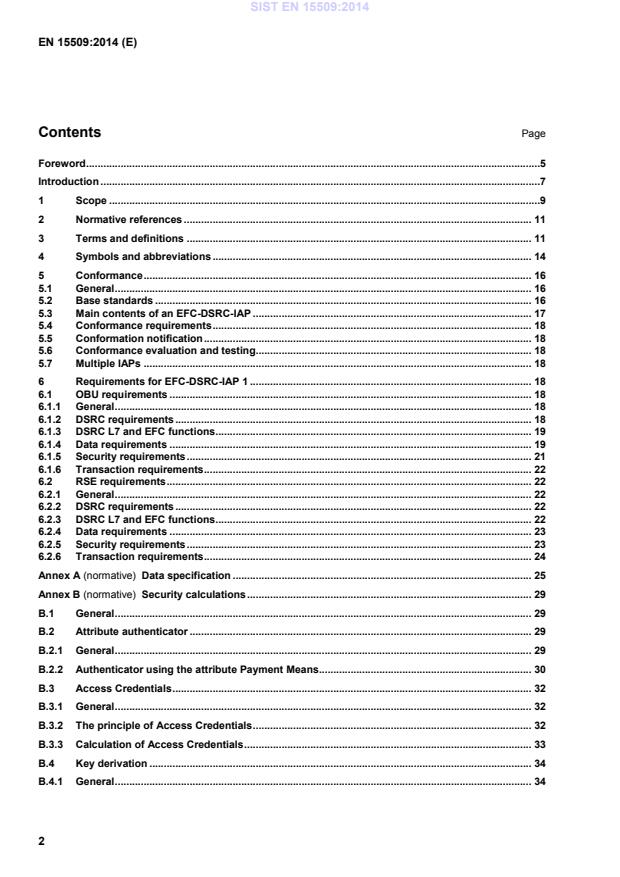

Contents Page
Foreword .5
Introduction .7
1 Scope .9
2 Normative references . 11
3 Terms and definitions . 11
4 Symbols and abbreviations . 14
5 Conformance . 16
5.1 General . 16
5.2 Base standards . 16
5.3 Main contents of an EFC-DSRC-IAP . 17
5.4 Conformance requirements . 18
5.5 Conformation notification . 18
5.6 Conformance evaluation and testing. 18
5.7 Multiple IAPs . 18
6 Requirements for EFC-DSRC-IAP 1 . 18
6.1 OBU requirements . 18
6.1.1 General . 18
6.1.2 DSRC requirements . 18
6.1.3 DSRC L7 and EFC functions . 19
6.1.4 Data requirements . 19
6.1.5 Security requirements . 21
6.1.6 Transaction requirements . 22
6.2 RSE requirements . 22
6.2.1 General . 22
6.2.2 DSRC requirements . 22
6.2.3 DSRC L7 and EFC functions . 22
6.2.4 Data requirements . 23
6.2.5 Security requirements . 23
6.2.6 Transaction requirements . 24
Annex A (normative) Data specification . 25
Annex B (normative) Security calculations . 29
B.1 General . 29
B.2 Attribute authenticator . 29
B.2.1 General . 29
B.2.2 Authenticator using the attribute Payment Means . 30
B.3 Access Credentials . 32
B.3.1 General . 32
B.3.2 The principle of Access Credentials . 32
B.3.3 Calculation of Access Credentials . 33
B.4 Key derivation . 34
B.4.1 General . 34
B.4.2 Calculation of derived Authentication Key . 34
B.4.3 Calculation of the Access Key . 34
B.5 Transaction Counter . 35
Annex C (normative) Implementation conformance statement proforma . 36
C.1 General . 36
C.2 Guidance for completing the ICS proforma . 36
C.2.1 Purposes and structure . 36
C.2.2 Abbreviations and conventions . 36
C.3 Instructions for completing the ICS proforma. 38
C.4 ICS proforma for OBU . 38
C.4.1 Identification implementation . 38
C.4.2 Identification of the standard . 39
C.4.3 Global statement of conformance . 39
C.4.4 ICS proforma for OBU . 39
C.4.5 Profile requirements list for OBU . 41
C.5 ICS proforma for RSE . 45
C.5.1 Identification implementation . 45
C.5.2 Identification of the standard . 45
C.5.3 Global statement of conformance . 45
C.5.4 ICS proforma for RSE . 45
C.5.5 Profile requirements list for RSE . 48
Annex D (informative) IAP taxonomy and numbering . 52
D.1 General . 52
D.2 Contents of an Interoperable Application Profile (IAP) . 52
D.3 IAP referencing and numbering . 53
D.3.1 IAP numbering . 53
D.3.2 Security levels numbering . 53
D.3.3 Numbering and referencing examples . 53
Annex E (informative) Security computation examples . 54
E.1 General . 54
E.2 Computation of Attribute Authenticator . 54
E.3 Computation of Access Credentials . 55
E.4 Key derivation . 55
E.4.1 Authenticator Key . 55
E.4.2 Access Credentials Key . 56
Annex F (informative) Security Considerations . 57
Annex G (informative) Interlayer management . 58
G.1 General . 58
G.2 RSE Inter Layer Management guidelines . 58
G.3 OBU Inter Layer Management guidelines . 58
G.4 State Transition Tables . 58
Annex H (informative) Mounting guidelines for the OBU . 64
H.1 General . 64
H.2 OBU mounting position . 64
Annex I (informative) Use of this standard for the EETS . 67
I.1 General . 67
I.2 Overall relationship between European standardization and the EETS . 67
I.3 European standardisation work supporting the EETS . 67
I.4 Correspondence between this standard and the EETS . 68
Bibliography . 69

Foreword
This document (EN 15509:2014) has been prepared by Technical Committee CEN/TC 278 “Intelligent
transport systems”, the secretariat of which is held by NEN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by March 2015 and conflicting national standards shall be withdrawn at
the latest by March 2015.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 15509:2007.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association.
This second edition of EN 15509 incorporates the following main modifications compared to the previous one:
— amendment of terms, in order to reflect harmonization of terms across electronic fee collection (EFC)
standards;
— addition of a new clause (i.e. Clause 5) on conformance;
— amendment of the definition of vehicle licence plate number (size constraints and clarification that only
Latin alphabet coding is supported)
— revision of the informative annex on security considerations (i.e. Annex F), and reference to
CEN/TS 16439 on Electronic fee collection – Security framework;
— addition of a new informative annex (i.e. Annex I) on how to use this standard for the European electronic
toll service;
— deletion of informative Annex H, part of the first edition, on Vehicle classification data, as it was deemed
obsolete in view of EN ISO 14906:2011;
— deletion of informative Annex I, part of the first edition, on Using this European Standard for other DSRC-
based transactions, as it was deemed obsolete in view of CEN ISO/TS 12813 and CEN ISO/TS 13141;
— amendments to reflect changes to the underlying base standards, with emphasis on backward
compatibility with the first edition of this standard.
For the revision of this European Standard, the following principles have been used:
— take into account the evolution of some of the underlying standards and technical specifications, i.e.
EN ISO 14906:2011, CEN/TS 16439, ISO/IEC 9797-1;
— maintain compatibility with the previous edition of this European Standard.
This European Standard defines an Application Profile based on a set of base standards according to the
concept of "International Standardised Profiles (ISP)" as defined in ISO/IEC/TR 10000-1. The objective is to
support technical interoperability between EFC DSRC-based systems in Europe. The principles of Application
Profiling and relations to underlying base standards are defined in the Introduction.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
Introduction
CEN/TC 278 has produced a set of standards that supports interoperable electronic fee collection (EFC)
dedicated short-range communication (DSRC)-based systems (e.g. EN ISO 14906, a “toolbox” for defining
EFC-application transactions). However, these standards are necessary but not sufficient to ensure technical
interoperability between DSRC-EFC-systems. This European Standard provides for a coherent set of
requirements of the EFC-application and that is intended to serve as a common technical platform for EFC-
interoperability.
This European Standard defines an Interoperable Application Profile for DSRC-EFC transactions. The main
objective is to support technical interoperability between EFC-systems within the scope of this European
Standard (as defined in Clause 1 below). A basic description of the EFC-service and an EFC System can be
found in ISO 17573.
This European Standard only defines a basic level of technical interoperability for EFC equipment, i.e. on-
board unit (OBU) and roadside equipment (RSE) using DSRC. It does not provide a full solution for
interoperability, and it does not define other parts of the EFC-system, other services, other technologies and
non-technical elements of interoperability.
The elaboration of this European Standard is based on the experiences from a vast number of
implementations and projects throughout Europe. The standard makes use of the results from European
projects such as CARDME, PISTA and CESARE, as they represent the fruit of European EFC harmonization
and have been used as the basis for several national implementations.
The development of a common European Electronic Toll Service (EETS) as a part of the European Directive
(2004/52/EC) also calls for the definition of an interoperable EFC-service. This European Standard provides
for effective support for the work on the definition of EETS. After publication of EN 15509:2007 an EC-decision
(2009/750/EC) on the EETS was adopted, that notes the first edition of this standard (EN 15509:2007) as a
mandatory technical reference for the EETS. This has been fully maintained in this second edition of
EN 15509.
Although there already are numerous existing base standards and specifications, there are specific needs that
motivate this Interoperable Application Profile standard:
— Definition of the necessary and sufficient EFC-DSRC requirements to support technical interoperability;
— Provision of a crucial part of the EETS and hence support for the European Directive (2004/52/EC), the
European Commission Decision (2009/750/EC of October 2009) on the definition of the European
Electronic Toll Service and its technical elements complemented by the Guide for the application of the
directive on the interoperability of electronic road toll systems;
— CARDME/PISTA/CESARE dialects are used in many countries but they need to converge, as the present
situation is not cost effective;
— Needed additional DSRC-requirements are made;
— Choice of data elements including vehicle data;
— Extended definition of the use of some data elements, including semantics and coding;
— Clear choices for security implementation;
— It facilitates a complementing test specification (with clear relations between the conformance
requirements and evaluation tests);
— Good support for procurements.
The Application Profile is described using the concept of "International Standardised Profiles (ISP)" as defined
in ISO/IEC/TR 10000-1. The ISP-concept is specifically suited for defining interoperability specifications where
a set of base standards can be used in different ways. This is exactly the case in EFC, where a set of base
standards allows for different choices that are not interoperable.
The principles of the ISP-concept can be summarized as follows:
— An ISP shall make references only to base standards or other ISPs;
— The profile shall restrict the choice of base standard options to the extent necessary to maximize the
probability of interoperability (e.g. chosen classes, conforming subsets, options and parameter values of
base standards);
— The ISP shall not copy content of the base standards (in order to avoid consistency problems with the
base standards);
— The profile shall not specify any requirements that would contradict or cause non-conformance to the
base standards;
— The profile may contain conformance requirements that are more specific and limited in scope than those
of the base standards;
— Conformance to a profile implies by definition conformance to a set of base standards, whereas
conformance to that set of base standards does not necessarily imply conformance to the profile.
The use of the Application Profiling concept also provides for a flexible framework towards adoption, migration
and use of this European Standard. Toll Chargers, Toll Service Providers and Manufacturers may use this
Application Profile as a basis for interoperable use of their equipment, without having to disturb or otherwise
affect any EFC-system used locally.
The general requirements of the Interoperable Application Profile are set out in Clause 5, whilst the specific
conformance requirements are given in Clause 6. To facilitate easy referencing, testing and look-up, these
specific requirements are divided into two parts; On-Board Unit (OBU) requirements and Roadside Equipment
(RSE) requirements.
In addition this European Standard also includes various annexes that provide further detailed specifications
as well as background, motivation and examples for the conformance requirements. The intention is that
these enhance readability and understanding of this European Standard.
The base standard EN ISO 14906:2011 has been the subject of a revision. The revision of EN 15509 takes
into account the revision introduced in this base standard.
This European Standard is complemented by a set of standards defining Conformity Evaluation of the
Conformance Requirements.
EN 15876 defines how to evaluate on-board and roadside equipment for conformity to EN 15509 (this
European Standard). EN 15876 consists of the following parts, under the general title "Electronic fee
collection — Evaluation of on-board and roadside equipment for conformity to EN 15509":
— Part 1: Test suite structure and test purposes;
— Part 2: Abstract test suite.
NOTE EN 15786-1 and EN 15786-2 will be subject to revision to accommodate the changes introduced in this
second edition of EN 15509.
1 Scope
The scope for this European Standard is limited to:
— payment method: Central account based on EFC-DSRC;
— physical systems: OBU, RSE and the DSRC interface between them (all functions and information flows
related to these parts);
— DSRC-link requirements;
— EFC transactions over the DSRC interface;
— data elements to be used by OBU and RSE used in EFC-DSRC transactions;
— security mechanisms for OBU and RSE used in EFC-DSRC transactions.
The scope of this European Standard is illustrated in Figure 1.

Figure 1 — Scope for this European Standard (within the box delimited with a dotted line)
It is outside the scope of this European Standard to define:
— contractual and procedural interoperability requirements (including issues related to a Memorandum of
Understanding, MoU);
— conformance procedures and test specification (this is provided in a separate set of standards);
— setting-up of operating organizations (e.g. toll charger, toll service provider, trusted third party, etc.);
— legal issues;
— other payment methods in DSRC-based EFC (e.g. on-board accounts using integrated circuit cards);
— other basic technologies (e.g. GNSS/CN or video registration based EFC). However, this European
Standard may be used for defining the DSRC-EFC parts for the use in applications that implement a mix
of different technologies;
— non-EFC transactions over the DSRC interface (e.g. CCC and LAC communication, which is defined in
other standards);
— other interfaces or functions in EFC-systems than those specified above (i.e. information flows and data
exchange between operators or personalization, initialization and customization of the OBU).
Some of these issues are subject to separate standards prepared by CEN/TC 278, ISO/TC 204 or ETSI ERM.
Figure 2 shows the scope of this European Standard from a DSRC-stack perspective.

Figure 2 — Relationship between this European Standard and DSRC-stack elements
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
EN 12834:2003, Road transport and traffic telematics - Dedicated Short Range Communication (DSRC) -
DSRC application layer
EN 13372:2004, Road Transport and Traffic Telematics (RTTT) - Dedicated short-range communication -
Profiles for RTTT applications
EN ISO 14906:2011, Electronic fee collection - Application interface definition for dedicated short-range
communication (ISO 14906:2011)
ETSI/TS 102 486-1-1 V1.1.1 (2006-03), Electromagnetic compatibility and Radio spectrum Matters (ERM);
Road Transport and Traffic Telematics (RTTT); Test specifications for Dedicated Short Range Communication
(DSRC) transmission equipment; Part 1: DSRC data link layer: medium access and logical link control; Sub-
Part 1: Protocol Implementation Conformance Statement (PICS) proforma specification
ETSI/TS 102 486-2-1 V1.2.1 (2008-10), Intelligent Transport Systems (ITS); Road Transport and Traffic
Telematics (RTTT); Test specifications for Dedicated Short Range Communication (DSRC) transmission
equipment; Part 2: DSRC application layer; Sub-Part 1: Protocol Implementation Conformance Statement
(PICS) proforma specification
ISO/IEC 9646-7, Information technology — Open Systems Interconnection — Conformance testing
methodology and framework — Part 7: Implementation Conformance Statements
ISO/IEC 9797-1:2011, Information technology — Security techniques — Message Authentication Codes
(MACs) — Part 1: Mechanisms using a block cipher
ISO/IEC 18033-3:2010, Information technology — Security techniques — Encryption algorithms — Part 3:
Block ciphers
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
access credentials
trusted attestation or secure module that establishes the claimed identity of an object or application
Note 1 to entry: The access credentials carry information needed to fulfil access conditions in order to perform the
operation on the addressed element in the OBE. The access credentials can carry passwords as well as cryptographic
based information such as authenticators.
3.2
attribute
addressable package of data consisting of a single data element or structured sequences of data elements
3.3
authenticator
data, possibly encrypted, that is used for authentication
3.4
base standard
approved international standard or ITU-T Recommendation
[SOURCE: ISO/IEC/TR 10000-1:1998, 3.1.1]
3.5
channel
information transfer path
[SOURCE: ISO 7498-2, 3.3.13]
3.6
cryptography
principles, means and methods for the transformation of data in order to hide its information content, prevent
its undetected modification or prevent its unauthorized use
[SOURCE: ISO 7498-2:1989, modified]
3.7
data group
class of closely related attributes
3.8
EFC service
service for electronic payment offered by a payment service provider
3.9
Element
in the context of DSRC, a directory containing application information in form of attributes
[SOURCE: EN ISO 14906:2011, 3.11]
3.10
International Standardised Profile
ISP
internationally agreed-to, harmonized document which describes one or more profiles
[SOURCE: ISO/IEC/TR 10000-1:1998, 3.1.2]
3.11
integrity
the property that data has not been altered or destroyed in an unauthorized manner
[SOURCE: ISO/TS 17574:2009]
3.12
interoperability
ability of systems to exchange information and to make mutual use of the information that has been
exchanged
[SOURCE: ISO/IEC/TR 10000-1:1998, 3.2.1]
3.13
mobile roadside equipment
equipment mounted on a mobile unit or handheld equipment to be used along the road
3.14
on-board equipment
OBE
equipment located on-board a vehicle including nomadic devices with the function of exchanging information
with external systems
Note 1 to entry: The OBE does not need to include payment means.
[SOURCE: EN ISO 14906:2011, 3.13]
3.15
on-board unit
OBU
minimum component of an on-board equipment, whose functionality always includes at least the support of
the DSRC interface
[SOURCE: EN ISO 14906:2011, 3.14]
3.16
profile
set of one or more base standards and/or ISP, and where applicable, the identification of chosen classes,
conforming subsets, options and parameters of those base standards, or ISPs necessary to accomplish a
particular function
[SOURCE: ISO/IEC/TR 10000-1:1998, 3.1.4]
3.17
roadside equipment
RSE
equipment located along the road, either fixed or mobile
3.18
service primitive
elementary communication service provided by the application layer protocol to the application processes
[SOURCE: EN ISO 14906:2011, 3.18]
Note 1 to entry: The invocation of a service primitive by an application process implicitly calls upon and uses services
offered by the lower protocol layers.
3.19
session
exchange of information and interaction occurring at a specific EFC station between the roadside equipment
and the user/vehicle
[SOURCE: EN ISO 14906:2011, 3.19]
3.20
toll charger
entity which levies toll for the use of vehicles in a toll domain
[SOURCE: ISO 17573:2010]
3.21
toll service provider
entity providing toll services in one or more toll domains
Note 1 to entry: In other documents, the terms issuer or contract issuer may be used.
Note 2 to entry: The Toll Service Provider may provide the OBE or may provide only a magnetic card or a smart card
to be used with OBE provided by a third party (like a mobile telephone and a SIM card can be obtained from different
parties).
Note 3 to entry: The Toll Service Provider is responsible for the operation (functioning) of the OBE with respect to
tolling.
[SOURCE: ISO 17573:2010]
3.22
transaction
whole of the exchange of information between two physically separated communication facilities
[SOURCE: EN ISO 14906:2011, 3.24, modified]
3.23
transaction counter
data value in the on-board unit that is incremented by the roadside equipment at each transaction
3.24
transaction model
functional model describing the structure of electronic payment transactions
[SOURCE: EN ISO 14906:2011, 3.25]
3.25
transport service
a transport infrastructure related service which is offered to the user
4 Symbols and abbreviations
For the purposes of this document, the following symbols and abbreviations apply.
AC_CR Access Credentials
ADU Application Data Unit
APDU Application Protocol Data Unit
AP Application Process
ASN.1 Abstract Syntax Notation One
AuK AuKEY
BST Beacon Service Table
CCC Compliance check communication for autonomous systems
DEA Data Encryption Algorithm
DES Data Encryption Standard
DSRC Dedicated Short-Range Communication
EETS European Electronic Toll Service
e [key] (value) encryption of the value using the key
ede [key] (value) chained encryption, decryption and encryption of the value using the key
EID Element Identifier
EFC Electronic Fee Collection
GNSS Global Navigation Satellite Systems
IAP Interoperable Application Profile
ICS Implementation Conformance Statement
ISP International Standardised Profile
IUT Implementaton Under Test
L1 Layer 1 of DSRC (Physical Layer)
L2 Layer 2 of DSRC (Physical Layer)
L7 Layer 7 of DSRC (Application Layer Core of DSRC)
LAC Localization augmentation communication for autonomous systems
LLC Logical Link Control
LID Logical Link Control identifier
LSDU Link Service Data Unit
MAC Media Access Control
MMI Man-Machine Interface
OBU On-board Unit
RL Requirements List
RSE Roadside Equipment
T-APDU Transfer-Application Protocol Data Unit
VST Vehicle Service Table
5 Conformance
5.1 General
This clause describes in general terms what it means to be conformant with (the profile in) EN 15509.
5.2 Base standards
This European Standard defines one Application Profile based on the ISP-concept. The base standards that
this Application Profiles is based upon are:
— EN ISO 14906 on EFC application interface definition for DSRC (this implies indirect references to
EN ISO 14816 on Numbering and data structures),
— EN 12834 on DSRC application layer (L7),
— EN 13372 on DSRC profiles (this implies indirect references to the DSRC L1, L2 and L7 standards:
EN 12253, EN 12795 and EN 12834).
The relationship and references between base standards and EN 15509 are illustrated in Figure 3.
Figure 3 — Relationship and references between base standards and EN 15509
All requirements defined in this standard are either choices made from these base standards or more specific
and limited requirement based on the general provisions of these standards.
5.3 Main contents of an EFC-DSRC-IAP
The conformance requirements of an IAP are divided between requirements for the On-Board Unit (OBU) and
the Road-Side Equipment (RSE). The requirements are listed separately for OBU and RSE. This applies for
all parts; requirements, PICS and conformance testing.
The conformance requirements of an IAP according to this standard shall include the following parts (divided
into separate requirements for OBU and RSE):
— DSRC requirements;
— DSRC L7 and EFC functions;
— data requirements;
— security requirements;
— transaction requirements.
5.4 Conformance requirements
Conformance requirements are listed and defined in Clause 6 supported by Annexes A and B.
NOTE Conformance requirements are deliberately expressed concisely, in order to achieve clarity of the
requirements. For motivations, explanations, etc., see the supporting parts of this European Standard (Foreword,
Introduction, Annex E to Annex I).
5.5 Conformation notification
A statement of conformance to a specific IAP shall all be done according to the ICS proforma requirements
defined in Annex C "ICS Proforma".
5.6 Conformance evaluation and testing
Conformance evaluation and testing are done according to provisions laid down in EN 15876-1 and
EN 15876-2.
NOTE The use of EN 15876 implies use of other underlying test standards for evaluation of conformance to
EN 15509.
5.7 Multiple IAPs
This standard defines one profile (EFC-DSRC-IAP-1) as in the clause for conformance requirements
(Clause 6). For future use it may be possible to define more IAPs using the same structure as is defined here.
A taxonomy for EFC-DSRC-IAP-profiles is contained in Annex D on "IAP taxonomy and numbering" below.
6 Requirements for EFC-DSRC-IAP 1
6.1 OBU requirements
6.1.1 General
6.1 contains the normative conformance requirements on the On-Board Unit (OBU) for profile number 1; EFC-
DSRC-IAP 1.
6.1.2 DSRC requirements
The OBU shall comply with:
— DSRC Profiles P0 / P1 L1-B according to EN 13372, or
— DSRC Profiles P0 / P1 L1-A according to EN 13372 with a Conversion Gain which is limited to a
maximum value of 10 dB (Parameter U12b = 10 dB) and a Cut-off power level of minimum - 60 dBm
(Parameter D12 = - 60 dBm).
NOTE This implies indirect references to and OBU’s compliance with the underlying DSRC-standards for L1, L2 and
L7 [EN 12253, EN 12795 and EN 12834].
The following DSRC-L7 according to EN 12834 features shall be supported by the OBU:
— concatenation of multiple consecutive T-APDU fragments in one layer 2 frame (i.e. LLC-service) with and
without chaining, given that the size constraint for the LLC-frames are not violated (i.e. fit into 1 L2 frame);
— fragmentation header limited to 1 octet only;
— any “fill bit” (as defined 6.3.4 in EN L7), used for octet alignment, shall be assigned the value zero.
6.1.3 DSRC L7 and EFC functions
The OBU shall support the DSRC Layer 7 services and EFC functions, defined in EN 12834 and
EN ISO 14906:2011, 7.2, in Table 1.
Table 1 — Overview of DSRC L7 and EFC functions
DSRC-L7 EFC function Action/Event Remarks
services type
INITIALIZATION N/A N/A Establishes communication, selects the application
and contract
ACTION GET_STAMPED 0 Retrieves data with an authenticator from the OBU,
with or without AC-CR
GET N/A N/A Retrieves data from the OBU, with or without AC-CR
SET N/A N/A Writes data to the OBU, with or without AC-CR
ACTION SET_MMI 10 Invokes an MMI function (e.g. signal "OK" via buzzer).
All SetMMIRq values (i.e. 0, 1, 2 and 255) defined in
Annex A of EN ISO 14906:2011 shall be supported
ACTION ECHO 15 OBU echoes received data
EVENT-REPORT RELEASE 0 Terminates communication
6.1.4 Data requirements
The addressing of the EFC system and application data shall conform to the rules defined in 5.3 in
EN ISO 14906:2011.
The EFC attributes in Table 2 as defined in EN ISO 14906:2011 (in Clause 8 and Annex A) and in EN 12834,
shall be implemented in the OBU:
Table 2 — Overview of the OBU EFC application data
b b
ATTRIBUTES (EID>0) AttrI Typ Length Read Write Remarks

a
d e (in
octets)
APPLICATION CONTEXT      This attribute is defined in EN 12834.
ApplicationContextMark N/A N/A 6 or 16 Yes No An octet string that is sent from the
OBU in the Initialization phase (VST)
that contains the identification of a
specific DSRC application context.
For EFC the first 6 octets always will
contain the EFCContextMark. Length
varies between security levels (see
Annex A, Table A.1 for details in
particular for the length in octets).
CONTRACT      Information associated with the
service rights of the toll service
provider.
EFC Context Mark 0 32 6 Yes No Contains the Contract Provider.
Transmitted as part of the VST.
PAYMENT      Data associated with the Payment
transaction.
PaymentMeans 32 64 14 Yes No Includes:
(including PAN)
- The Personal Account Number,
including the Payment Means Issuer.
- The PAN Expiry Date
- The payment means Usage Control
VEHICLE      Information pertaining to the
identification and characteristics of
the vehicle.
VehicleLicencePlateNum 16 47 13 to 17 Yes No More specific and limited in scope
ber than in EN ISO 14906 (see Annex A,
Table A.2 for details).
VehicleClass 17 49 1 Yes No More specific and limited in scope
than in EN ISO 14906 (see Annex A,
Table A.2 for details).
VehicleDimensions 18 50 3 Yes No
VehicleAxles 19 51 2 Yes No According to EN ISO 14906:2011
VehicleWeightLimits 20 52 6 Yes No
VehicleSpecificCharacter 22 54 4 Yes No
istics
EQUIPMENT      Information pertaining to the OBU.
EquipmentOBUId 24 56 5 (=1+4) Yes No Coded as an octet string with a
length determinant = 4.
EquipmentStatus 26 58 2 Yes Yes More specific and limited in scope
(transaction counter) than in EN ISO 14906 (see Annex A,
Table A.3 for details).
RECEIPT      Information associated with a
specific session, including both
financial and operational data.
ReceiptData1 (last) 33 65 28 Yes Yes
ReceiptData2 34 66 28 Yes Yes
(penultimate)
a
Including the length determinant as defined in ISO/IEC 8825-2 (packed encoding rules for ASN.1 is used in
EN ISO 14906).
b
The r
...
