EN 13081:2008+A1:2012
(Main)Tanks for transport of dangerous goods - Service equipment for tanks - Vapour collection adaptor and coupler
Tanks for transport of dangerous goods - Service equipment for tanks - Vapour collection adaptor and coupler
This European Standard covers the vapour collection adaptor and coupler used to achieve a vapour tight path between the transport tank and the stationary loading and unloading facilities.
This European Standard specifies the performance requirements and the critical dimensions of the vapour recovery adaptor fitted to the tank and the mating coupler fitted to a hose or to pipework connected to the stationary loading and unloading facilities. It also specifies the tests necessary to verify the compliance of the equipment with this standard. The equipment specified by this European Standard is suitable for use with liquid petroleum products and other dangerous substances of Class 3 of ADR [2] which have a vapour pressure not exceeding 110 kPa, at 50 °C and petrol, and which have no sub-classification as toxic or corrosive.
Tanks für die Beförderung gefährlicher Güter - Bedienungsausrüstung von Tanks - VKG- und MKG-Kupplungen für die Gassammelleitung
Diese Europäische Norm behandelt Ausrüstungen, die verwendet werden, um eine gasdichte Verbindung zwischen dem Transporttank und den stationären Befüll- und Entladeeinrichtungen herzustellen.
In dieser Europäischen Norm sind die Leistungsanforderungen und die wesentlichen Maße der VKG-Kupplung am Transporttank und der MKG-Kupplung am Rohrleitungssystem der stationären Befüll- und Entladeeinrichtungen festgelegt. Weiterhin sind die Prüfungen festgelegt, mit denen nachgewiesen werden kann, ob die Ausrüstung den Anforderungen dieser Norm entspricht. Die in dieser Europäischen Norm beschriebene Ausrüstung ist zum Umfüllen flüssiger Erdölerzeugnisse und anderer gefährlicher Güter der Klasse 3 des ADR [2] geeignet, deren Dampfdruck bei 50 °C max. 110 kPa beträgt (einschließlich Ottokraft-stoff) und die nicht als giftig oder ätzend eingestuft sind.
Citernes de transport de matières dangereuses - Equipement de service pour citernes - Adaptateur et coupleur pour la récupération des vapeurs
La présente Norme européenne traite de l’adaptateur et du coupleur pour la récupération des vapeurs utilisés pour l’établissement d’un circuit étanche aux vapeurs entre la citerne de transport et les installations fixes de chargement et de déchargement.
La présente Norme européenne spécifie les performances requises et les dimensions essentielles de l’adaptateur pour la récupération des vapeurs monté sur la citerne et du coupleur correspondant monté sur le flexible ou sur le tuyau de raccordement de l’installation fixe de chargement et de déchargement. Elle spécifie également les essais à réaliser pour vérifier la conformité des équipements à cette norme. Les équipements spécifiés dans la présente Norme européenne conviennent à une utilisation avec des produits pétroliers liquides et d’autres matières dangereuses de la classe 3 de l’ADR [2] dont la tension de vapeur ne dépasse pas 110 kPa à 50 °C (y compris l’essence) et qui n’appartiennent à aucune sous classification des produits toxiques ou corrosifs.
Cisterne za prevoz nevarnega blaga - Oprema za oskrbovanje cistern - Spojka za zbiralnik pare (vključno z dopolnilom A1)
Ta evropski standard zajema spojko za zbiralnik pare, ki se uporablja za doseganje parotesne poti med cisterno za prevoz ter stacionarnimi napravami za nalaganje in razlaganje.
Ta evropski standard določa zahteve za učinkovitost in kritične mere spojke za zbiralnik pare, pritrjene na cisterno, in spojnika, pritrjenega na cev ali cevovod, priključen na stacionarne naprave za nalaganje in razlaganje. Določa tudi preskuse, potrebne za preverjanje skladnosti opreme s tem standardom. Oprema, ki jo določa ta evropski standard, je primerna za uporabo s tekočimi naftnimi proizvodi in drugimi nevarnimi snovmi kategorije 3 ADR [2], katerih parni tlak ne presega 110 kPa pri 50 °C, ter z motornim bencinom, pri čemer niso dodatno opredeljeni kot strupeni ali korozivni.
General Information
- Status
- Published
- Publication Date
- 14-Feb-2012
- Withdrawal Date
- 30-Aug-2012
- Technical Committee
- CEN/TC 296 - Tanks for transport of dangerous goods
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 03-Dec-2024
- Completion Date
- 23-Sep-2025
Relations
- Effective Date
- 19-Jan-2023
- Effective Date
- 19-Jan-2023
Overview
EN 13081:2008+A1:2012 is a CEN European Standard that defines the vapour collection adaptor and coupler used to create a vapour‑tight path between transport tanks and stationary loading/unloading facilities. It specifies performance, critical dimensions, materials, pressure and temperature ranges, and the required production and type tests to verify compliance. The standard targets vapour recovery systems used with liquid petroleum products and other ADR Class 3 substances (non‑toxic, non‑corrosive) with vapour pressures up to 110 kPa at 50 °C, and is part of the regulatory framework implementing VOC (Directive 94/63/EC) control measures.
Key Topics
- Functionality: Quick‑action, vapour‑tight mechanical connection for vapour transfer and vapour tightness when disconnected; may include sight glass, drainage and interlock interfaces.
- Design & dimensions: Critical flange and mating dimensions are specified (example flange: max OD 174 mm, min ID 100 mm, PCD 150 mm, 8 × 14 mm holes; 4‑hole option noted). Annexes A and B give detailed drawings and tolerances.
- Performance parameters:
- Flow performance data required up to 1 500 standard m3/h of air (for vapour recovery flow characterisation).
- Pressure capability to match the Maximum Working Pressure (MWP) of the tank or facility.
- Design temperature range normally −20 °C to +50 °C (extendable to −40 °C or +70 °C where needed).
- Materials: Manufacturer must provide full material specifications for wetted parts suitable for ADR Class 3 substances.
- Testing requirements: Two test classes - production tests (shell tightness, internal seat tightness, operability) and type tests (shell strength, tightness, mechanical endurance and strength). Test procedures reference EN 12266‑1/2 and sampling per ISO 2859‑1.
- Amendment highlights: Addition of a definition for “probe” and specifications for adaptor/coupler opening and interlock devices.
Applications & Users
- Practical use: design, manufacture, selection and conformity assessment of vapour recovery adaptors and couplers on road tankers, rail tank wagons or other vehicles transporting flammable liquids.
- Who uses it: equipment manufacturers, tank builders, loading facility designers, test laboratories, conformity assessors, plant safety engineers and regulators involved in VOC control and ADR compliance.
- Benefits: ensures vapour‑tight interfaces, predictable pressure/flow behaviour, safe operation during loading/unloading and regulatory compliance for vapour recovery systems.
Related Standards
EN 13081 is part of the “Tanks for transport of dangerous goods – Service equipment for tanks” family. Relevant related standards include:
- EN 13082 (Vapour transfer valve)
- EN 13083 (Adaptor for bottom loading/unloading)
- EN 13308 / EN 13314 / EN 13315 / EN 13316 / EN 13317 (other service equipment)
- EN 15208 (sealed parcel delivery systems)
- Test standards: EN 12266‑1, EN 12266‑2; sampling: ISO 2859‑1
Keywords: EN 13081, vapour collection adaptor, vapour collection coupler, vapour recovery, tanks for transport of dangerous goods, ADR Class 3, VOC, vapour tight, production tests, type tests.
Frequently Asked Questions
EN 13081:2008+A1:2012 is a standard published by the European Committee for Standardization (CEN). Its full title is "Tanks for transport of dangerous goods - Service equipment for tanks - Vapour collection adaptor and coupler". This standard covers: This European Standard covers the vapour collection adaptor and coupler used to achieve a vapour tight path between the transport tank and the stationary loading and unloading facilities. This European Standard specifies the performance requirements and the critical dimensions of the vapour recovery adaptor fitted to the tank and the mating coupler fitted to a hose or to pipework connected to the stationary loading and unloading facilities. It also specifies the tests necessary to verify the compliance of the equipment with this standard. The equipment specified by this European Standard is suitable for use with liquid petroleum products and other dangerous substances of Class 3 of ADR [2] which have a vapour pressure not exceeding 110 kPa, at 50 °C and petrol, and which have no sub-classification as toxic or corrosive.
This European Standard covers the vapour collection adaptor and coupler used to achieve a vapour tight path between the transport tank and the stationary loading and unloading facilities. This European Standard specifies the performance requirements and the critical dimensions of the vapour recovery adaptor fitted to the tank and the mating coupler fitted to a hose or to pipework connected to the stationary loading and unloading facilities. It also specifies the tests necessary to verify the compliance of the equipment with this standard. The equipment specified by this European Standard is suitable for use with liquid petroleum products and other dangerous substances of Class 3 of ADR [2] which have a vapour pressure not exceeding 110 kPa, at 50 °C and petrol, and which have no sub-classification as toxic or corrosive.
EN 13081:2008+A1:2012 is classified under the following ICS (International Classification for Standards) categories: 13.300 - Protection against dangerous goods; 23.020.20 - Vessels and containers mounted on vehicles; 23.040.60 - Flanges, couplings and joints. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 13081:2008+A1:2012 has the following relationships with other standards: It is inter standard links to EN 13081:2008/FprA1, EN 13081:2008. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 13081:2008+A1:2012 is associated with the following European legislation: EU Directives/Regulations: 2008/68/EC; Standardization Mandates: M/086. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 13081:2008+A1:2012 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Tanks für die Beförderung gefährlicher Güter - Bedienungsausrüstung von Tanks - VKG- und MKG-Kupplungen für die GassammelleitungCiternes de transport de matières dangereuses - Equipement de service pour citernes - Adaptateur et coupleur pour la récupération des vapeursTanks for transport of dangerous goods - Service equipment for tanks - Vapour collection adaptor and coupler23.040.60Prirobnice, oglavki in spojni elementiFlanges, couplings and joints23.020.20Posode in vsebniki, montirani na vozilaVessels and containers mounted on vehicles13.300Varstvo pred nevarnimi izdelkiProtection against dangerous goodsICS:Ta slovenski standard je istoveten z:EN 13081:2008+A1:2012SIST EN 13081:2009+A1:2012en,fr,de01-junij-2012SIST EN 13081:2009+A1:2012SLOVENSKI
STANDARDSIST EN 13081:20091DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13081:2008+A1
February 2012 ICS 23.040.60; 13.300; 23.020.20 Supersedes EN 13081:2008English Version
Tanks for transport of dangerous goods - Service equipment for tanks - Vapour collection adaptor and coupler
Citernes de transport de matières dangereuses - Equipement de service pour citernes - Adaptateur et coupleur pour la récupération des vapeurs
Tanks für die Beförderung gefährlicher Güter - Bedienungsausrüstung von Tanks - VKG- und MKG-Kupplungen für die Gassammelleitung This European Standard was approved by CEN on 13 September 2008 and includes Amendment 1 approved by CEN on 24 December 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13081:2008+A1:2012: ESIST EN 13081:2009+A1:2012

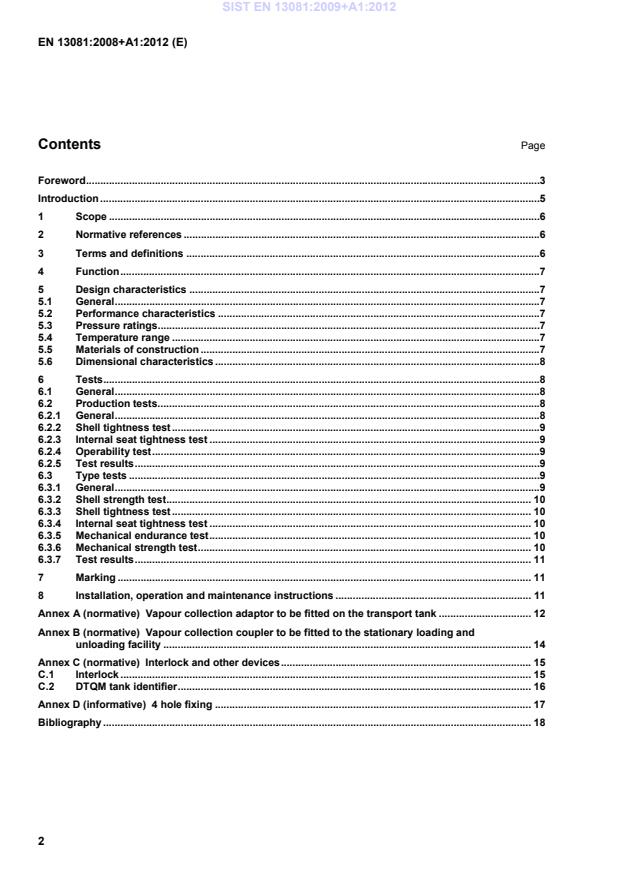

Vapour collection adaptor to be fitted on the transport tank . 12Annex B (normative)
Vapour collection coupler to be fitted to the stationary loading and unloading facility . 14Annex C (normative)
Interlock and other devices . 15C.1Interlock . 15C.2DTQM tank identifier . 16Annex D (informative)
4 hole fixing . 17Bibliography . 18 SIST EN 13081:2009+A1:2012
...
