ASTM F670-02(2022)
(Specification)Standard Specification for Tanks, 5 and 10-Gal (20 and 40-L) Lube Oil Dispensing
Standard Specification for Tanks, 5 and 10-Gal (20 and 40-L) Lube Oil Dispensing
ABSTRACT
This specification covers the material, dimensions, and construction of 5 and 10-gal (20 and 40-L) tanks purchased to store and dispense lubricating oils. The tanks are industrial safety cans mounted on a T-bar bracket, complete with drip tray. Internal air pressure test shall be performed on the tank to meet the requirements prescribed. There should be no visible seam leakage when subjected to underwater or soap bubble test.
SCOPE
1.1 This specification covers the material, dimensions, and construction of 5 and 10-gal (20 and 40-L) tanks purchased to store and dispense lubricating oils. The tanks are industrial safety cans mounted on a T-bar bracket, complete with drip tray.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
- Status
- Published
- Publication Date
- 31-Dec-2021
- Technical Committee
- F25 - Ships and Marine Technology
- Drafting Committee
- F25.03 - Outfitting and Deck Machinery
Relations
- Effective Date
- 01-Mar-2024
- Effective Date
- 01-Nov-2018
- Effective Date
- 15-Aug-2013
- Effective Date
- 01-Nov-2012
- Effective Date
- 01-May-2009
- Effective Date
- 15-May-2008
- Effective Date
- 01-Sep-2007
- Effective Date
- 01-Mar-2005
- Effective Date
- 01-Sep-2004
- Effective Date
- 01-Apr-2004
- Effective Date
- 01-Nov-2003
- Effective Date
- 01-Nov-2003
- Effective Date
- 10-May-2003
- Effective Date
- 10-Apr-2003
- Effective Date
- 10-Dec-2002
Overview
ASTM F670-02(2022) - Standard Specification for Tanks, 5 and 10-Gal (20 and 40-L) Lube Oil Dispensing provides a comprehensive framework for the material selection, dimensions, construction, and performance characteristics of small-capacity tanks for storing and dispensing lubricating oils. Developed by ASTM International, this standard is widely used in the marine, industrial, and shipping sectors where safe and reliable handling of lubricating oil is essential. The document specifies requirements for tanks typically mounted as industrial safety cans on T-bar brackets and equipped with drip trays for added safety and containment.
Key Topics
- Materials and Construction: This standard specifies the use of robust materials such as 316 stainless steel, terne plate sheet (as a purchase option), mild steel (for mounting columns and drip trays), cast brass (for faucets and drain plugs), and cast aluminum. All construction seams must be welded for durability and safety.

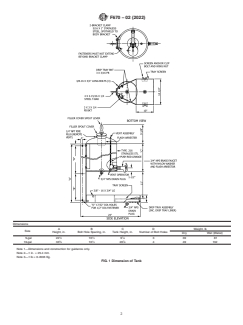

- Dimensional Requirements: The tanks are designed with capacities of 5 gal (20 L) or 10 gal (40 L), and the standard provides recommended nominal dimensions to ensure compatibility with existing mounting systems and operational requirements.
- Mounting and Accessories: Tanks are to be mounted on T-bar brackets and include components such as perforated tray liners, drain plugs, and zinc-plated fasteners. Each tank is provided complete with a drip tray assembly to prevent environmental contamination from leaks or spills.
- Finish and Appearance: The standard mandates a high level of workmanship, requiring smooth, burr-free surfaces to minimize dirt accumulation. Painted surfaces must be coated with a zinc-rich primer with stainless steel tanks left unpainted.
- Testing and Quality Assurance: To ensure safety, each tank undergoes an internal air pressure test to identify seam integrity and must show no leakage when subjected to underwater or soap bubble methods.
- Ordering Guidelines: It covers how to specify tank size, material options, and packaging details when placing an order to ensure that supplied tanks meet precise requirements.
Applications
- Marine Industry: Widely used on ships and offshore platforms for safe, compliant storage and controlled dispensing of lubricating oils.
- Industrial Facilities: Essential in maintenance workshops, factories, and machine rooms where small-volume lube oil dispensing is frequently performed.
- Transportation Sector: Beneficial for vehicle fleets, repair shops, and facilities requiring portable and reliable oil storage and dispensing systems.
- Compliance and Safety: Supports adherence to both safety regulations and marine technology standards by specifying rigorous test methods and robust construction to minimize risk of spills or contamination.
Employing tanks built to ASTM F670-02(2022) ensures compatibility with international best practices, supports regulatory compliance, and promotes the safe, effective handling of lubricating oils in demanding applications.
Related Standards
Organizations relying on ASTM F670-02(2022) for lube oil tanks may also reference or coordinate with the following standards for materials and construction:
- ASTM A36/A36M: Specification for Carbon Structural Steel
- ASTM A108: Specification for Steel Bar, Carbon and Alloy, Cold-Finished
- ASTM A164: Specification for Electrodeposited Coatings of Zinc on Steel (withdrawn)
- ASTM A167: Specification for Stainless and Heat-Resisting Chromium-Nickel Steel Plate
- ASTM A308/A308M: Specification for Steel Sheet, Terne (withdrawn)
- ASTM A569/A569M: Specification for Steel, Carbon, Hot-Rolled Sheet and Strip (withdrawn)
Following ASTM F670-02(2022) helps ensure a high standard of quality, safety, and performance for lubricating oil tanks used in marine and industrial environments. This standard not only enhances operational efficiency but also supports international trade by aligning with WTO technical barriers to trade principles.
Get Certified
Connect with accredited certification bodies for this standard
BRCGS (Brand Reputation Compliance Global Standards)
Global food safety and quality standards owner.
Sponsored listings
Frequently Asked Questions
ASTM F670-02(2022) is a technical specification published by ASTM International. Its full title is "Standard Specification for Tanks, 5 and 10-Gal (20 and 40-L) Lube Oil Dispensing". This standard covers: ABSTRACT This specification covers the material, dimensions, and construction of 5 and 10-gal (20 and 40-L) tanks purchased to store and dispense lubricating oils. The tanks are industrial safety cans mounted on a T-bar bracket, complete with drip tray. Internal air pressure test shall be performed on the tank to meet the requirements prescribed. There should be no visible seam leakage when subjected to underwater or soap bubble test. SCOPE 1.1 This specification covers the material, dimensions, and construction of 5 and 10-gal (20 and 40-L) tanks purchased to store and dispense lubricating oils. The tanks are industrial safety cans mounted on a T-bar bracket, complete with drip tray. 1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard. 1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ABSTRACT This specification covers the material, dimensions, and construction of 5 and 10-gal (20 and 40-L) tanks purchased to store and dispense lubricating oils. The tanks are industrial safety cans mounted on a T-bar bracket, complete with drip tray. Internal air pressure test shall be performed on the tank to meet the requirements prescribed. There should be no visible seam leakage when subjected to underwater or soap bubble test. SCOPE 1.1 This specification covers the material, dimensions, and construction of 5 and 10-gal (20 and 40-L) tanks purchased to store and dispense lubricating oils. The tanks are industrial safety cans mounted on a T-bar bracket, complete with drip tray. 1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard. 1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ASTM F670-02(2022) is classified under the following ICS (International Classification for Standards) categories: 55.140 - Barrels. Drums. Canisters. The ICS classification helps identify the subject area and facilitates finding related standards.
ASTM F670-02(2022) has the following relationships with other standards: It is inter standard links to ASTM A108-24, ASTM A108-18, ASTM A108-13, ASTM A36/A36M-12, ASTM A167-99(2009), ASTM A36/A36M-08, ASTM A108-07, ASTM A36/A36M-05, ASTM A167-99(2004), ASTM A36/A36M-04, ASTM A108-03e1, ASTM A108-03, ASTM A36/A36M-03a, ASTM A36/A36M-03, ASTM A36/A36M-02. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ASTM F670-02(2022) is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

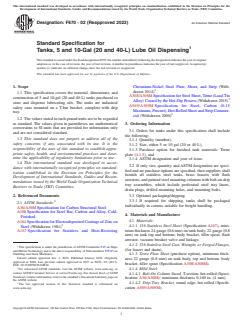

Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation: F670 −02 (Reapproved 2022) An American National Standard
Standard Specification for
Tanks, 5 and 10-Gal (20 and 40-L) Lube Oil Dispensing
ThisstandardisissuedunderthefixeddesignationF670;thenumberimmediatelyfollowingthedesignationindicatestheyearoforiginal
adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.Asuperscript
epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope Chromium-Nickel Steel Plate, Sheet, and Strip (With-
drawn 2014)
1.1 This specification covers the material, dimensions, and
A308/A308M Specification for Steel Sheet, Terne (Lead-Tin
construction of 5 and 10-gal (20 and 40-L) tanks purchased to
Alloy) Coated by the Hot-Dip Process (Withdrawn 2015)
store and dispense lubricating oils. The tanks are industrial
A569/A569M Specification for Steel, Carbon (0.15
safety cans mounted on a T-bar bracket, complete with drip
Maximum,Percent),Hot-RolledSheetandStripCommer-
tray.
cial (Withdrawn 2000)
1.2 The values stated in inch-pound units are to be regarded
as standard. The values given in parentheses are mathematical
3. Ordering Information
conversions to SI units that are provided for information only
3.1 Orders for tanks under this specification shall include
and are not considered standard.
the following:
1.3 This standard does not purport to address all of the
3.1.1 Quantity (number),
safety concerns, if any, associated with its use. It is the
3.1.2 Size, either 5 or 10 gal (20 or 40 L),
responsibility of the user of this standard to establish appro-
3.1.3 Purchase option for finished tank materials: Terne
priate safety, health, and environmental practices and deter-
plate (4.1.3), and
mine the applicability of regulatory limitations prior to use.
3.1.4 ASTM designation and year of issue.
1.4 This international standard was developed in accor-
3.2 If only size, quantity, and ASTM designation are speci-
dance with internationally recognized principles on standard-
fied and no purchase options are specified, then suppliers shall
ization established in the Decision on Principles for the
furnish all stainless steel tanks, brass faucets with flash
Development of International Standards, Guides and Recom-
arrestors,andpaintedsteelmountingcolumnswithbolt-ondrip
mendations issued by the World Trade Organization Technical
tray assemblies, which include perforated steel tray liners,
Barriers to Trade (TBT) Committee.
drain plugs, drilled mounting holes, and mounting bolts.
2. Referenced Documents 3.3 Optional packaging/shipping.
2 3.3.1 If required for shipping, tanks shall be packaged
2.1 ASTM Standards:
individually in cartons suitable for freight handling.
A36/A36M Specification for Carbon Structural Steel
A108 Specification for Steel Bar, Carbon and Alloy, Cold-
4. Materials and Manufacture
Finished
4.1 Materials:
A164 Specification for Electrodeposited Coatings of Zinc on
4.1.1 316 Stainless Steel Sheet (Specification A167), mini-
Steel (Withdrawn 1981)
mum thickness 24 gauge (0.6 mm) on tank body, 22 gauge (0.8
A167 Specification for Stainless and Heat-Resisting
mm) on tank top and bottom; body bracket, filler spout, flash
arrestor, vacuum breaker valve and linkage.
4.1.2 316StainlessSteelCast,Wrought,orForgedFlanges,
This specification is under the jurisdiction of ASTM Committee F25 on Ships
(for faucet and drain).
and Marine Technology and is the direct responsibility of Subcommittee F25.03 on
Outfitting and Deck Machinery.
4.1.3 Terne Plate Sheet (purchase option), minimum thick-
Current edition approved Jan. 1, 2022. Published January 2022. Originally
ness 22 gauge (0.8 mm) on tank body, top and bottom: body
approved in 1980. Last previous edition approved in 2017 as F670 – 02 (2017).
bracket, filler spout (Specification A308/A308M).
DOI: 10.1520/F0670-02R22.
4.1.4 Mild Steel:
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Cust
...
