ASTM D8099/D8099M-17(2023)
(Specification)Standard Specification for Asphalt Emulsion Pavement Sealer (Mineral Colloid or Chemically Stabilized Type)
Standard Specification for Asphalt Emulsion Pavement Sealer (Mineral Colloid or Chemically Stabilized Type)
ABSTRACT
This specification establishes the material and manufacturing requirements for water-based asphalt emulsion (mineral colloid or chemically stabilized type) pavement sealers suitable for use as a weather-protective coating over bituminous pavements, such as roadways, driveways, and parking areas. The base asphalt emulsion shall be made using binders prepared from crude petroleum; the mineral filler (when used), shall consist of finely ground clay, silica, limestone, slate, basalt, slag, or other inert inorganic filler materials; and the aggregate shall be either a natural or manufactured angular aggregate composed of clean, hard, durable particles free of clay or other objectionable material. The aggregate to be used shall follow the manufacturer's recommendations; however, 100% of the aggregate shall pass a 2.38 mm [No. 8] mesh-sieve at all times. Aggregate may either be added at the point of manufacture, post-added at the job site, or both. The use of an additive is optional and shall be approved by the asphalt emulsion pavement sealer manufacturer.
This specification also covers the physical requirements, sampling, inspection, and packaging and package marking for asphalt emulsion pavement sealers (mineral colloid or chemically stabilized type).
SCOPE
1.1 This specification covers water-based asphalt emulsion (mineral colloid or chemically stabilized type) pavement sealer suitable for use as a weather-protective coating over bituminous pavements, such as roadways, parking areas, and driveways.
Note 1: Application shall be made in accordance with a forthcoming ASTM standard on the application of asphalt emulsion pavement sealer.
1.2 The values stated in SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in nonconformance with the standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
- Status
- Published
- Publication Date
- 31-Dec-2022
- Technical Committee
- D08 - Roofing and Waterproofing
Relations
- Effective Date
- 01-Dec-2023
- Refers
ASTM C142/C142M-17(2023) - Standard Test Method for Clay Lumps and Friable Particles in Aggregates - Effective Date
- 01-Oct-2023
- Effective Date
- 01-Oct-2023
- Effective Date
- 15-Mar-2017
- Effective Date
- 01-Jun-2016
- Effective Date
- 01-Jun-2015
- Effective Date
- 01-Jun-2014
- Effective Date
- 15-Dec-2010
- Effective Date
- 01-May-2010
- Effective Date
- 01-Jun-2009
- Effective Date
- 01-Jun-2005
- Effective Date
- 01-Jun-2005
- Effective Date
- 10-Jul-2003
- Effective Date
- 10-Jun-1999
- Effective Date
- 10-Jun-1999
Overview
ASTM D8099/D8099M-17(2023), Standard Specification for Asphalt Emulsion Pavement Sealer (Mineral Colloid or Chemically Stabilized Type), establishes the essential requirements for material composition, manufacturing, testing, and packaging of water-based asphalt emulsion pavement sealers. Developed by ASTM International, this standard ensures quality and performance for mineral colloid or chemically stabilized sealers intended as weather-protective coatings over bituminous pavements, such as roadways, driveways, and parking areas.
Designed in alignment with internationally recognized standardization principles, ASTM D8099/D8099M-17(2023) covers both material specifications and practical considerations, helping manufacturers, contractors, and regulatory authorities maintain consistency, reliability, and durability in pavement maintenance and construction.
Key Topics
- Material Composition: Specifies the use of asphalt emulsions created with binders from crude petroleum, allowed mineral fillers (including clay, silica, limestone, and other inert inorganics), and clean, hard aggregates.
- Aggregate Requirements: Aggregate must be either natural or manufactured, and 100% must pass a 2.38 mm [No. 8] mesh sieve. Aggregates can be incorporated during manufacturing, at the site, or both.
- Optional Additives: Additives are permitted only with approval from the pavement sealer manufacturer to ensure overall compatibility and performance.
- Physical Requirements:
- The sealer must be uniform, have a consistent, homogeneous appearance, and maintain stability without significant settlement or separation.
- Key performance characteristics include proper density, water content limits, residue content, and quick drying time.
- Resistance to heat, water, and flexibility are required, ensuring no blistering, sagging, adhesion loss, flaking, or cracking.
- Testing & Sampling: Sampling procedures and physical tests follow referenced ASTM methods (e.g., ASTM D95, D140/D140M, D2939). Performance must meet standards for density, residue, water content, and set time.
- Inspection & Packaging: Inspection protocols are agreed upon between buyer and supplier. The product must be packaged to withstand normal shipping and handling.
Applications
Asphalt emulsion pavement sealers governed by ASTM D8099/D8099M-17(2023) are widely used for:
- Protective Coating: Providing a weather-resistant barrier over existing bituminous pavements, improving waterproofing and overall durability.
- Surface Renewal: Rejuvenating aged roadways, driveways, and parking areas by enhancing appearance and prolonging surface life.
- Traffic Areas: Suitable for areas with frequent vehicular or pedestrian traffic, supporting maintenance schedules and reducing overall pavement management costs.
- Versatile Application Methods: Product is designed for use with standard methods such as mechanical squeegee, brush, or spray equipment capable of handling aggregate-filled sealers without the need for heating.
Adhering to this ASTM standard delivers consistent, high-quality sealing performance critical for municipal, commercial, and residential pavement management projects.
Related Standards
ASTM D8099/D8099M-17(2023) references and aligns with several related standards for comprehensive pavement materials testing and sampling, including:
- ASTM D95: Test Method for Water in Petroleum Products and Bituminous Materials by Distillation.
- ASTM D140/D140M: Practice for Sampling Asphalt Materials.
- ASTM C136/C136M: Test Method for Sieve Analysis of Fine and Coarse Aggregates.
- ASTM C142/C142M: Test Method for Clay Lumps and Friable Particles in Aggregates.
- ASTM D2939: Test Methods for Emulsified Bitumens Used as Protective Coatings.
These associated standards provide detailed procedures for testing, sampling, and quality control, ensuring that pavement sealers meet rigorous industry expectations.
Keywords: asphalt emulsion pavement sealer, mineral colloid, chemically stabilized, ASTM D8099, bituminous pavement, protective coating, pavement maintenance, road sealer standard.
Get Certified
Connect with accredited certification bodies for this standard
Zavod za gradbeništvo Slovenije (ZAG) - Inšpekcija
ZAG inspection body for construction products, structures, and materials.
Sponsored listings
Frequently Asked Questions
ASTM D8099/D8099M-17(2023) is a technical specification published by ASTM International. Its full title is "Standard Specification for Asphalt Emulsion Pavement Sealer (Mineral Colloid or Chemically Stabilized Type)". This standard covers: ABSTRACT This specification establishes the material and manufacturing requirements for water-based asphalt emulsion (mineral colloid or chemically stabilized type) pavement sealers suitable for use as a weather-protective coating over bituminous pavements, such as roadways, driveways, and parking areas. The base asphalt emulsion shall be made using binders prepared from crude petroleum; the mineral filler (when used), shall consist of finely ground clay, silica, limestone, slate, basalt, slag, or other inert inorganic filler materials; and the aggregate shall be either a natural or manufactured angular aggregate composed of clean, hard, durable particles free of clay or other objectionable material. The aggregate to be used shall follow the manufacturer's recommendations; however, 100% of the aggregate shall pass a 2.38 mm [No. 8] mesh-sieve at all times. Aggregate may either be added at the point of manufacture, post-added at the job site, or both. The use of an additive is optional and shall be approved by the asphalt emulsion pavement sealer manufacturer. This specification also covers the physical requirements, sampling, inspection, and packaging and package marking for asphalt emulsion pavement sealers (mineral colloid or chemically stabilized type). SCOPE 1.1 This specification covers water-based asphalt emulsion (mineral colloid or chemically stabilized type) pavement sealer suitable for use as a weather-protective coating over bituminous pavements, such as roadways, parking areas, and driveways. Note 1: Application shall be made in accordance with a forthcoming ASTM standard on the application of asphalt emulsion pavement sealer. 1.2 The values stated in SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in nonconformance with the standard. 1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ABSTRACT This specification establishes the material and manufacturing requirements for water-based asphalt emulsion (mineral colloid or chemically stabilized type) pavement sealers suitable for use as a weather-protective coating over bituminous pavements, such as roadways, driveways, and parking areas. The base asphalt emulsion shall be made using binders prepared from crude petroleum; the mineral filler (when used), shall consist of finely ground clay, silica, limestone, slate, basalt, slag, or other inert inorganic filler materials; and the aggregate shall be either a natural or manufactured angular aggregate composed of clean, hard, durable particles free of clay or other objectionable material. The aggregate to be used shall follow the manufacturer's recommendations; however, 100% of the aggregate shall pass a 2.38 mm [No. 8] mesh-sieve at all times. Aggregate may either be added at the point of manufacture, post-added at the job site, or both. The use of an additive is optional and shall be approved by the asphalt emulsion pavement sealer manufacturer. This specification also covers the physical requirements, sampling, inspection, and packaging and package marking for asphalt emulsion pavement sealers (mineral colloid or chemically stabilized type). SCOPE 1.1 This specification covers water-based asphalt emulsion (mineral colloid or chemically stabilized type) pavement sealer suitable for use as a weather-protective coating over bituminous pavements, such as roadways, parking areas, and driveways. Note 1: Application shall be made in accordance with a forthcoming ASTM standard on the application of asphalt emulsion pavement sealer. 1.2 The values stated in SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in nonconformance with the standard. 1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ASTM D8099/D8099M-17(2023) is classified under the following ICS (International Classification for Standards) categories: 93.080.20 - Road construction materials. The ICS classification helps identify the subject area and facilitates finding related standards.
ASTM D8099/D8099M-17(2023) has the following relationships with other standards: It is inter standard links to ASTM D140/D140M-16(2023), ASTM C142/C142M-17(2023), ASTM D95-23, ASTM C142/C142M-17, ASTM D140/D140M-16, ASTM D140/D140M-15, ASTM D140/D140M-14, ASTM C142/C142M-10, ASTM D95-05(2010), ASTM D140/D140M-09, ASTM D95-05e1, ASTM D95-05, ASTM D2939-03, ASTM D95-99, ASTM D95-99e1. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ASTM D8099/D8099M-17(2023) is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

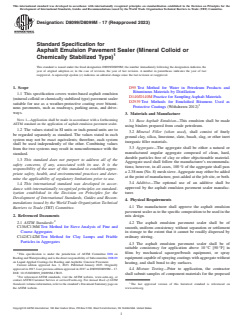

Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation:D8099/D8099M −17 (Reapproved 2023)
Standard Specification for
Asphalt Emulsion Pavement Sealer (Mineral Colloid or
Chemically Stabilized Type)
This standard is issued under the fixed designation D8099/D8099M; the number immediately following the designation indicates the
year of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last
reapproval. A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope D95 Test Method for Water in Petroleum Products and
Bituminous Materials by Distillation
1.1 This specification covers water-based asphalt emulsion
D140/D140M Practice for Sampling Asphalt Materials
(mineral colloid or chemically stabilized type) pavement sealer
D2939 Test Methods for Emulsified Bitumens Used as
suitable for use as a weather-protective coating over bitumi-
Protective Coatings (Withdrawn 2012)
nous pavements, such as roadways, parking areas, and drive-
ways.
3. Materials and Manufacture
NOTE 1—Application shall be made in accordance with a forthcoming
3.1 Base Asphalt Emulsion—This emulsion shall be made
ASTM standard on the application of asphalt emulsion pavement sealer.
using binders prepared from crude petroleum.
1.2 The values stated in SI units or inch-pound units are to
3.2 Mineral Filler (when used), shall consist of finely
be regarded separately as standard. The values stated in each
ground clay, silica, limestone, slate, basalt, slag, or other inert
system may not be exact equivalents; therefore, each system
inorganic filler materials.
shall be used independently of the other. Combining values
3.3 Aggregate—The aggregate shall be either a natural or
from the two systems may result in nonconformance with the
manufactured angular aggregate composed of clean, hard,
standard.
durable particles free of clay or other objectionable material.
1.3 This standard does not purport to address all of the
Aggregate used shall follow the manufacturer’s recommenda-
safety concerns, if any, associated with its use. It is the
tions; however, in all cases, 100 % of the aggregate shall pass
responsibility of the user of this standard to establish appro-
a 2.38 mm (No. 8) mesh sieve.Aggregate may either be added
priate safety, health, and environmental practices and deter-
at the point of manufacture, post-added at the job site, or both.
mine the applicability of regulatory limitations prior to use.
3.4 Additive—The optional use of an additive shall be
1.4 This international standard was developed in accor-
approved by the asphalt emulsion pavement sealer manufac-
dance with internationally recognized principles on standard-
turer.
ization established in the Decision on Principles for the
Development of International Standards, Guides and Recom-
4. Physical Requirements
mendations issued by the World Trade Organization Technical
4.1 The manufacturer shall approve the asphalt emulsion
Barriers to Trade (TBT) Committee.
pavement sealer as to the specific composition to be used in the
2. Referenced Documents mix design.
2.1 ASTM Standards:
4.2 The asphalt emulsion pavement sealer shall be of
C136/C136M Test Method for Sieve Analysis of Fine and smooth, uniform consistency without separation or settlement
Coarse Aggregates
in storage to the extent that it cannot be readily dispersed by
C142/C142M Test Method for Clay Lumps and Friable ordinary stirring.
Particles in Aggregates
4.3 The asphalt emulsion pavement sealer shall be of
suitable consistency for application above 10 °C [50 °F] in
1 films by mechanical squeegee/brush equipment, or spray
This specification is under the jurisdiction of ASTM Committee D08 on
Roofing and Waterproofing and is the direct responsibility of Subcommittee D08.09 equipmentcapableofsprayingcoatingswithaggregatew
...
