Overview
ASTM D6626-23: Standard Specification for Performance-Graded Trinidad Lake Modified Asphalt Binder sets out the requirements for asphalt binders modified using Trinidad Lake asphalt. This performance-graded binder is widely used in road construction, adapted according to the specific pavement design temperature range. The standard helps ensure quality, consistency, and suitability of Trinidad Lake modified asphalt binders for diverse climates and roadway conditions. The document details grading, material composition, testing, and quality assurance to ensure binders meet demanding pavement performance needs.
Key Topics
- Performance Grading: Binders are classified by average seven-day maximum, intermediate, and minimum pavement design temperatures, determined via LTPPBind Online calculations.
- Material Composition: Trinidad Lake asphalt is added to petroleum-based base asphalt. The resulting binder must be homogeneous, free of water and harmful impurities, and must not foam at 175°C.
- Solubility and Viscosity: The binder should have at least 99% solubility in N-Propyl Bromide and meet specified viscosity limits, to ensure optimal mixability and durability.
- Testing Methods: Recognized ASTM test methods (such as D92, D95, D140, D1754, D2872, D4402, D6521, D6648, D7175, and D7553) verify properties like flash point, viscosity, rheology, aging, and physical hardening.
- Sampling and Inspection: Specifies how to sample asphalt materials and outlines procedures for inspection, rejection, and retesting to ensure compliance with the specification.
- Ordering and Designations: When ordering, users must specify the required performance grade (e.g., TLG 52-16 or TLG 64-34) aligned with the table of available grades.
Applications
- Road and Pavement Construction: Performance-graded Trinidad Lake modified asphalt binders are crucial for highways, urban roads, rural access roads, and airport runways. Their adaptability to temperature extremes makes them suitable for a wide range of climatic conditions.
- Climate-Specific Projects: The grading system allows engineers to select the right binder for regions with high-temperature fluctuations, improving pavement lifespan and reducing maintenance needs.
- Pavement Rehabilitation: Used in resurfacing and maintenance projects, these binders help restore and extend the performance of existing asphalt pavements.
- Quality Assurance: Consistency in material performance aids state and municipal agencies and contractors in meeting project specifications and regulatory requirements.
Related Standards
Several key ASTM standards complement ASTM D6626-23, supporting comprehensive testing and specification:
- ASTM D8: Terminology relating to materials for roads and pavements
- ASTM D92: Flash and Fire Points by Cleveland Open Cup Tester
- ASTM D95: Water in Petroleum Products and Bituminous Materials by Distillation
- ASTM D140/D140M: Sampling Asphalt Materials
- ASTM D1754/D1754M: Effects of Heat and Air on Asphaltic Materials
- ASTM D2042, D7553: Solubility of Asphalt Materials
- ASTM D2170, D2171: Viscosity of Asphalts
- ASTM D2872: Effect of Heat and Air on Asphalt Binder (Rolling Thin-Film Oven Test)
- ASTM D4402/D4402M: Viscosity Determination at Elevated Temperatures
- ASTM D6521: Accelerated Aging Using a Pressurized Aging Vessel (PAV)
- ASTM D6648: Flexural Creep Stiffness Using Bending Beam Rheometer (BBR)
- ASTM D7175: Rheological Properties Using Dynamic Shear Rheometer
Using these related standards ensures a consistent approach to testing and qualifying Trinidad Lake modified asphalt binders for high-performance roadway applications.
Buy Documents
ASTM D6626-23 - Standard Specification for Performance-Graded Trinidad Lake Modified Asphalt Binder
REDLINE ASTM D6626-23 - Standard Specification for Performance-Graded Trinidad Lake Modified Asphalt Binder
Get Certified
Connect with accredited certification bodies for this standard
Zavod za gradbeništvo Slovenije (ZAG) - Inšpekcija
ZAG inspection body for construction products, structures, and materials.
Sponsored listings
Frequently Asked Questions
ASTM D6626-23 is a technical specification published by ASTM International. Its full title is "Standard Specification for Performance-Graded Trinidad Lake Modified Asphalt Binder". This standard covers: ABSTRACT This specification covers the standards for graded Trinidad Lake modified asphalt binders. Grading is related to the average seven-day maximum pavement design temperature, the intermediate pavement design temperature, and the minimum pavement design temperature. The Trinidad Lake modified asphalt binder shall be prepared by adding the Trinidad Lake asphalt modifier to base asphalt produced from the refining of petroleum crude. The base asphalt binder shall be homogenous, and free from water or any deleterious materials. SCOPE 1.1 This specification covers performance-graded Trinidad Lake modified asphalt binders. Grading designations are related to the LTPPBind Online calculated maximum pavement design temperature and the minimum pavement design temperature. Note 1: For more information on LTPPBind Online, see https://infopave.fhwa.dot.gov/Tools/LTPPBindOnline accessed July 10, 2023. 1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard. 1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ABSTRACT This specification covers the standards for graded Trinidad Lake modified asphalt binders. Grading is related to the average seven-day maximum pavement design temperature, the intermediate pavement design temperature, and the minimum pavement design temperature. The Trinidad Lake modified asphalt binder shall be prepared by adding the Trinidad Lake asphalt modifier to base asphalt produced from the refining of petroleum crude. The base asphalt binder shall be homogenous, and free from water or any deleterious materials. SCOPE 1.1 This specification covers performance-graded Trinidad Lake modified asphalt binders. Grading designations are related to the LTPPBind Online calculated maximum pavement design temperature and the minimum pavement design temperature. Note 1: For more information on LTPPBind Online, see https://infopave.fhwa.dot.gov/Tools/LTPPBindOnline accessed July 10, 2023. 1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard. 1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ASTM D6626-23 is classified under the following ICS (International Classification for Standards) categories: 93.080.20 - Road construction materials. The ICS classification helps identify the subject area and facilitates finding related standards.
ASTM D6626-23 has the following relationships with other standards: It is inter standard links to ASTM D6626-15(2021), ASTM D7175-23, ASTM D140/D140M-16(2023), ASTM D95-13(2018), ASTM D7175-15. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ASTM D6626-23 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation: D6626 − 23
Standard Specification for
Performance-Graded Trinidad Lake Modified Asphalt Binder
This standard is issued under the fixed designation D6626; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope D4402/D4402M Test Method for Viscosity Determination of
Asphalt at Elevated Temperatures Using a Rotational
1.1 This specification covers performance-graded Trinidad
Viscometer
Lake modified asphalt binders. Grading designations are re-
D6521 Practice for Accelerated Aging of Asphalt Binder
lated to the LTPPBind Online calculated maximum pavement
Using a Pressurized Aging Vessel (PAV)
design temperature and the minimum pavement design tem-
D6648 Test Method for Determining the Flexural Creep
perature.
Stiffness of Asphalt Binder Using the Bending Beam
NOTE 1—For more information on LTPPBind Online, see https://
Rheometer (BBR)
infopave.fhwa.dot.gov/Tools/LTPPBindOnline accessed July 10, 2023.
D6723 Test Method for Determining the Fracture Properties
1.2 The values stated in SI units are to be regarded as
of Asphalt Binder in Direct Tension (DT) (Withdrawn
standard. No other units of measurement are included in this
2021)
standard.
D7175 Test Method for Determining the Rheological Prop-
erties of Asphalt Binder Using a Dynamic Shear Rheom-
1.3 This international standard was developed in accor-
eter
dance with internationally recognized principles on standard-
D7553 Test Method for Solubility of Asphalt Materials in
ization established in the Decision on Principles for the
N-Propyl Bromide
Development of International Standards, Guides and Recom-
mendations issued by the World Trade Organization Technical
3. Terminology
Barriers to Trade (TBT) Committee.
3.1 Definitions:
3.1.1 Definitions for many terms common to asphalt cement
2. Referenced Documents
2 are found in Terminology D8.
2.1 ASTM Standards:
D8 Terminology Relating to Materials for Roads and Pave-
4. Ordering Information
ments
4.1 When ordering under this specification, include in the
D92 Test Method for Flash and Fire Points by Cleveland
purchase order the grade of Trinidad Lake modified asphalt
Open Cup Tester
binder required from Table 1 (for example, TLG 52-16 or TLG
D95 Test Method for Water in Petroleum Products and
64-34).
Bituminous Materials by Distillation
D140/D140M Practice for Sampling Asphalt Materials
5. Materials and Manufacture
D1754/D1754M Test Method for Effects of Heat and Air on
5.1 Trinidad Lake modified asphalt binder shall be prepared
Asphaltic Materials (Thin-Film Oven Test)
by the addition of Trinidad Lake asphalt modifier to base
D2042 Test Method for Solubility of Asphalt Materials in
asphalt produced from the refining of petroleum crude, with or
Trichloroethylene or Toluene
without the inclusion of organic or inorganic modifiers.
D2872 Test Method for Effect of Heat and Air on a Moving
5.2 Modifiers may be any suitable form of Trinidad Lake
Film of Asphalt Binder (Rolling Thin-Film Oven Test)
asphalt that may include also organic or inorganic modifiers of
suitable manufacture and preparation, and that is dissolved,
1 dispersed, or reacted in asphalt cement to enhance its perfor-
This specification is under the jurisdiction of ASTM Committee D04 on Road
and Paving Materials and is the direct responsibility of Subcommittee D04.40 on
mance.
Asphalt Specifications.
5.3 The base asphalt binder shall be homogeneous, free
Current edition approved Dec. 15, 2023. Published December 2023. Originally
approved 2001. Last previous edition approved in 2021 as D6626 – 15 (2021). DOI:
from water and deleterious materials, and shall not foam when
10.1520/D6626-23.
heated to 175 °C.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Standards volume information, refer to the standard’s Document Summary page on The last approved version of this historical standard is referenced on
the ASTM website. www.astm.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
D6626 − 23
TABLE 1 Performance-Graded Trinidad Lake Modified Asphalt Binder Specification
Performance Grade TLG 46- TLG 52- TLG 58- TLG 64- TLG 70- TLG 76- TLG 82-
34 40 46 10 16 22 28 34 16 22 28 34 40 10 16 22 28 34 40 10 16 22 28 34 10 16 22 28 34 10 16 22 28 34
40 46 40
LTPPBind algorithm max <46 <52 <58 <64 <70 <76 <82
Pavement Design
Temperature, °C
Minimum Pavement Design >–34 >–40 >–46 >–10 >–16 >–22 >–28 >–16 >–22 >–28 >–34 >–10 >–16 >–22 >–28 >–10 >–16 >–22 >–28 >–10 >–16 >–22 >–28 >–10 >–16 >–22 >–28
A
Temperature, °C >–34 >–40 >–46 >–40 >–34 >–40 >–34 >–40 >–34 >–34
Original Modified Asphalt Binder
Flash Point Temp, Test 230
Me
...
This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: D6626 − 15 (Reapproved 2021) D6626 − 23
Standard Specification for
Performance-Graded Trinidad Lake Modified Asphalt Binder
This standard is issued under the fixed designation D6626; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This specification covers performance-graded Trinidad Lake modified asphalt binders. Grading designations are related to the
average seven-day LTPPBind Online calculated maximum pavement design temperature, °C, the intermediate pavement design
temperature, °C, and temperature and the minimum pavement design temperature, °C. temperature.
NOTE 1—For more information on LTPPBind Online, see https://infopave.fhwa.dot.gov/Tools/LTPPBindOnline accessed July 10, 2023.
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
D8 Terminology Relating to Materials for Roads and Pavements
D92 Test Method for Flash and Fire Points by Cleveland Open Cup Tester
D95 Test Method for Water in Petroleum Products and Bituminous Materials by Distillation
D140/D140M Practice for Sampling Asphalt Materials
D1754/D1754M Test Method for Effects of Heat and Air on Asphaltic Materials (Thin-Film Oven Test)
D2170/D2170MD2042 Test Method for Kinematic Viscosity of AsphaltsSolubility of Asphalt Materials in Trichloroethylene or
Toluene
D2171/D2171M Test Method for Viscosity of Asphalts by Vacuum Capillary Viscometer
D2872 Test Method for Effect of Heat and Air on a Moving Film of Asphalt Binder (Rolling Thin-Film Oven Test)
D4402/D4402M Test Method for Viscosity Determination of Asphalt at Elevated Temperatures Using a Rotational Viscometer
D6521 Practice for Accelerated Aging of Asphalt Binder Using a Pressurized Aging Vessel (PAV)
D6648 Test Method for Determining the Flexural Creep Stiffness of Asphalt Binder Using the Bending Beam Rheometer (BBR)
D6723 Test Method for Determining the Fracture Properties of Asphalt Binder in Direct Tension (DT) (Withdrawn 2021)
D7175 Test Method for Determining the Rheological Properties of Asphalt Binder Using a Dynamic Shear Rheometer
D7553 Test Method for Solubility of Asphalt Materials in N-Propyl Bromide
This specification is under the jurisdiction of ASTM Committee D04 on Road and Paving Materials and is the direct responsibility of Subcommittee D04.40 on Asphalt
Specifications.
Current edition approved May 1, 2021Dec. 15, 2023. Published May 2021December 2023. Originally approved 2001. Last previous edition approved in 20152021 as
D6626 – 15.D6626 – 15 (2021). DOI: 10.1520/D6626-15R21.10.1520/D6626-23.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
The last approved version of this historical standard is referenced on www.astm.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
D6626 − 23
3. Terminology
3.1 Definitions:
3.1.1 Definitions for many terms common to asphalt cement are found in Terminology D8.
4. Ordering Information
4.1 When ordering under this specification, include in the purchase order the grade of Trinidad Lake modified asphalt binder
required from Table 1 (for example, TLG 52-16 or TLG 64-34).
5. Materials and Manufacture
5.1 Trinidad Lake modified asphalt binder shall be prepared by the addition of Trinidad Lake asphalt modifier to base asphalt
produced from the refining of petroleum crude, with or without the inclusion of organic or inorganic modifiers.
5.2 Modifiers may be any suitable form of Trinidad Lake asphalt that may include also organic or inorganic modifiers of suitable
manufacture and preparation, and that is dissolved, dispersed, or reacted in asphalt cement to enhance its performance.
5.3 The base asphalt binder shall be homogeneous, free from water and deleterious materials, and shall not foam when heated to
175 °C.
5.4 The base asphalt binder shall be at least 99.0 % soluble in N-Propyl Bromide as determined by Test Method D2042 or D7553.
5.5 The grades of asphalt binder shall conform to the requirements given in Table 1.
6. Sampling
6.1 The materials shall be sampled in accordance with Practice D140/D140M.
7. Test Methods
7.1 The properties outlined in 5.3 – 5.5 shall be determined in accordance with Practice D6521 and Test Methods D92, D95,
D1754/D1754M, D2042, D2872, D4402/D4402M, D6648, D6723, D7175, and D7553.
8. Inspection and Certification
8.1 Inspection and certification of the material shall be agreed upon between the purchaser and the seller. Specific requirements
shall be made part of the purchase contract.
9. Rejection and Rehearing
9.1 If the results of any test do not conform to the requirements of this specification, retesting to determine conformity is
performed as indicated in the purchase order or as otherwise agreed upon between the purchaser and the seller.
10. Keywords
10.1 asphalt binder; asphalt cement; direct tension; flash point; graded specifications; modifier; pressure aging; rheology; trinidad
lake asphalt
D6626 − 23

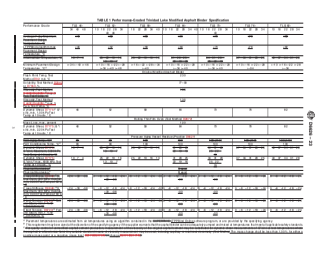

TABLE 1 Performance-Graded Trinidad Lake Modified Asphalt Binder Specification
Performance Grade TLG 46- TLG 52- TLG
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
