Designation: F1018 − 87a (Reapproved 2017) F1018 − 22 An American National Standard
Standard Specification for
Steel Emergency Gear Stowage Locker
This standard is issued under the fixed designation F1018; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This specification covers the design, material, and manufacture of steel emergency gear stowage lockers.
1.2 Emergency gear lockers shall be of four types (see Section 3).
1.3 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical
conversions to SI units that are provided for information only and are not considered standard.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
A36/A36M Specification for Carbon Structural Steel
A276 Specification for Stainless Steel Bars and Shapes
A366/A366MA1008/A1008M Specification for Commercial Steel (CS) Sheet, Carbon, (0.15 Maximum Percent) Cold-
RolledSteel, Sheet, Cold-Rolled, Carbon, Structural, High-Strength Low-Alloy, High-Strength Low-Alloy with Improved
Formability, Required Hardness, Solution Hardened, and Bake Hardenable (Withdrawn 2000)
A513 Specification for Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing
A563 Specification for Carbon and Alloy Steel Nuts (Metric) A0563_A0563M
B36/B36M Specification for Brass Plate, Sheet, Strip, And Rolled Bar
B124/B124M Specification for Copper and Copper Alloy Forging Rod, Bar, and Shapes
B176 Specification for Copper-Alloy Die Castings
2.2 ANSI Standards:
ANSI B18.1.1 Small Solid Rivets
ANSI B18.6.3 Slotted and Recessed Head Machine Screws and Machine Screw Nuts
ANSI B18.21.1 Lock Washers
ANSI B27.2 Plain Washers
This specification is under the jurisdiction of ASTM Committee F25 on Ships and Marine Technology and is the direct responsibility of Subcommittee F25.03 on
Outfitting and Deck Machinery.
Current edition approved Jan. 1, 2017April 1, 2022. Published January 2017April 2022. Originally approved in 1986. Last previous edition approved in 20102017 as
F1018 – 87a (2010). (2017). DOI: 10.1520/F1018-87AR17.10.1520/F1018-22.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Available from American National Standards Institute (ANSI), 25 W. 43rd St., 4th Floor, New York, NY 10036, http://www.ansi.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
F1018 − 22
2.3 Other Documents:
ABS Rules for Building and Classing Steel Vessels
SSPC Specification 6
AWS D1.1 Welding Code
3. Classification
3.1 Emergency gear lockers shall be classified in four types as follows:
3.1.1 Type 1—For stowage of one complete fireman’s outfit, conforming to all requirements of all sections, figures, and details of
this specification.
3.1.2 Type 2—For stowage of two complete firemen’s outfits, conforming to all requirements of all sections, figures, and details
of this specification.
3.1.3 Type 3—For stowage of one complete fireman’s outfit, with locker dimensions in accordance with Figs. 2-4 (dimensions
only), and conforming to the requirements of 3.2, 3.3, 4.1, 5.2.4, and Sections 6 and 7 inclusive.
3.1.4 Type 4—For stowage of two complete firemen’s outfits, with locker dimensions in accordance with Figs. 2-4 (dimensions
only), and conforming to the requirements of 3.2, 3.3, 4.1, 5.2.4, and Sections 6 and 7 inclusive.
3.2 One complete fireman’s outfit shall consist of the following emergency gear (not included in this specification):
3.2.1 Self-contained breathing apparatus (24 by 14 by 11 in. (610 by 355 by 280 mm)).
3.2.2 Recharge air tank (7-in. (180-mm) diameter by 22 in. (560 mm) long).
3.2.3 Set protective clothing, including helmet, gloves, and boots.
3.2.4 Lifeline (150 ft (45 m), 18 by 18 by 10 in. (455 by 455 by 255 mm)).
3.2.5 Three-cell, explosion-proof flashlight with spare cells.
3.2.6 Flame safety lamp.
3.2.7 Fire axe.
3.3 In addition to the equipment listed in 3.2, each locker shall contain space for the following (not part of this specification):
3.3.1 First-aid kit, (1), (10 by 10 by 7 in. (255 by 255 by 180 mm)).
3.3.2 Spare air tanks, as space allows (see Figs. 2-4).
4. Ordering Information
4.1 Order using this ASTM designation, year of issue, locker type, and finish.
5. Materials and Manufacture
5.1 Materials—Materials shall be as specified in Table 1.
5.2 Manufacture:
Available from American Bureau of Shipping (ABS), ABS Plaza, 16855 Northchase Dr., Houston, TX 77060, http://www.eagle.org.
Available from Society for Protective Coatings (SSPC), 800 Trumbull Dr., Pittsburgh, PA 15205, http://www.sspc.org.
Available from American Welding Society (AWS), 8669 NW 36 St., #130, Miami, FL 33166-6672, http://www.aws.org.
F1018 − 22

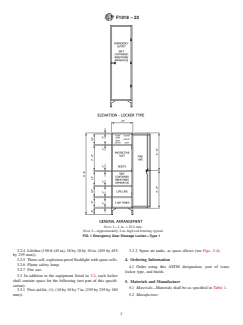

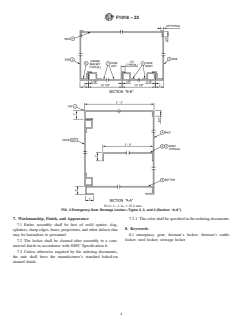

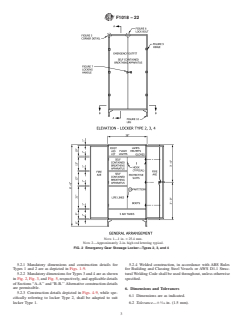

5.2.1 Mandatory dimensions and construction details for Types 1 and 2 are as depicted in Figs. 1-9.
5.2.2 Mandatory dimensions for Types 3 and 4 are as shown in Fig. 2, Fig. 3, and Fig. 5, respectively, and applicable details of
Sections “A-A’’ and “B-B.’’ Alternative construction details are permissible.
5.2.3 Construction details depicted in Figs. 4-9, while specifically referring to locker Type 2, shall be adapted to suit locker Type
1.
5.2.4 Welded construction, in accordance with ABS Rules for Building and Classing Steel Vessels or AWS D1.1 Structural
Welding Code shall be used throughout, unless otherwise specified.
F1018 − 22
6. Dimensions and Tolerances
6.1 Dimensions are as indicated.
6.2 Tolerance—6 ⁄16 in. (1.5 mm).
7. Workmanship, Finish, and Appearance
7.1 Entire assembly shall be free of weld spatter, slag, splinters, sharp edges, burrs, projections, and other defects that may be
hazardous to personnel.
7.2 The locker shall be cleaned after assembly to a commercial finish in accordance with SSPC Specification 6.
7.3 Unless otherwise required by the ordering documents, the unit shall have the manufacturer’s standard baked-on enamel finish.
7.3.1 The color shall be specified in the ordering documents.
8. Keywords
8.1 emergency gear; fireman’s locker; fireman’s outfit; locker; steel locker; stowage locker
