ASTM E2257-22

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: E2257 − 17 E2257 − 22 An American National Standard
Standard Test Method for
Room Fire Test of Wall and Ceiling Materials and
Assemblies
This standard is issued under the fixed designation E2257; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope*
1.1 This is a fire-test-response standard.
1.2 This test method is intended to evaluate, under specified fire-exposure conditions, the contribution to room fire growth
provided by wall or ceiling materials and assemblies, or both. The method is not intended to evaluate the fire endurance of
assemblies or fires originating in the wall assembly. The method provides a means to evaluate the effectiveness of thermal barriers
in restricting the contribution of combustible materials in the wall assembly to fire growth in a room fire.
1.3 This test method, simulating a fire in the corner of a 2420 mm by 3630 mm (8 ft by 12 ft) room containing a single open
doorway, provides a means to evaluate the relative performance of specified wall and ceiling materials or assemblies when they
are used together in the same relationship within an enclosure, and simulating the manner in which they will be used.
1.4 This test method is intended to evaluate the contribution to fire growth provided by a surface product using a specified ignition
source. It shall, however, be noted that the type, position and heat output of the ignition source will considerably influence fire
growth. The thermal exposure conditions from the ignition source specified in this method will result in flashover during the 20
min duration for many common finish materials, in particular if specimens are mounted on the walls and the ceiling (standard
configuration).
1.5 This test method provides a means for evaluating wall and ceiling finish materials and assemblies, including panels, tiles,
boards, sprayed or brushed coatings, etc. This test method is not intended to evaluate flooring materials or furnishings.
1.6 This method shall be used in conjunction with Guide E603, which covers instrumentation and the general effect of various
parameters, and Guide E2067, which deals with full-scale oxygen consumption calorimetry.
1.7 The values stated in SI units are to be regarded as the standard. The unitsvalues given in parentheses are for information only.
after SI units are provided for information only and are not considered standard.
1.8 The text of this standard references notes and footnotes which provide explanatory information. These notes and footnotes
(excluding those in figures) shall not be considered as requirements of the standard.
1.9 This standard is used to measure and describe the response of materials, products, or assemblies to heat and flame under
This test method is under the jurisdiction of ASTM Committee E05 on Fire Standards and is the direct responsibility of Subcommittee E05.21 on Smoke and Combustion
Products.
Current edition approved April 15, 2017April 1, 2022. Published April 2017May 2022. Originally approved in 2003. Last previous edition approved in 20162017 as
E2257-16.-17. DOI: 10.1520/E2257-17.10.1520/E2257-22.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
E2257 − 22
controlled conditions, but does not by itself incorporate all factors required for fire-hazard or fire-risk assessment of the materials,
products, or assemblies under actual fire conditions.
1.10 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety safety, health, and healthenvironmental practices and determine the
applicability of regulatory limitations prior to use.
1.11 Fire testing is inherently hazardous. Adequate safeguards for personnel and property shall be employed in conducting these
tests.
1.12 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
E84 Test Method for Surface Burning Characteristics of Building Materials
E136 Test Method for Assessing Combustibility of Materials Using a Vertical Tube Furnace at 750°C
E176 Terminology of Fire Standards
E603 Guide for Room Fire Experiments
E906/E906M Test Method for Heat and Visible Smoke Release Rates for Materials and Products Using a Thermopile Method
E1354 Test Method for Heat and Visible Smoke Release Rates for Materials and Products Using an Oxygen Consumption
Calorimeter
E2067 Practice for Full-Scale Oxygen Consumption Calorimetry Fire Tests
2.2 ISO Standards:
ISO 9705 Fire Tests—Reaction to Fire—Room Fire Test
ISO 13943 Fire Safety—Vocabulary
2.3 NFPA Standards:
NFPA 265 Standard Method of Tests for Evaluating Room Fire Growth Contribution of Textile Wall Coverings
NFPA 286 Standard Method of Tests for Evaluating Contribution of Wall and Ceiling Interior Finish to Room Fire Growth
3. Terminology
3.1 Definitions—For definitions of terms used in this standard, see Terminology E176 and ISO 13943. In case of conflict, the
definitions given in Terminology E176 shall prevail.
3.1.1 assembly, n—a unit or structure composed of a combination of materials or products, or both. E176
3.1.2 flashover, n—the rapid transitionto transition to a state of total surface involvement in a fire of combustible materials within
an enclosure.
3.1.2.1 Discussion—
Flashover is a fluid-mechanical combustion instability within an enclosure that occurs when the surface temperatures of an
enclosure and its contents rise rapidly, producing combustible gases and vapors, and the enclosure heat flux becomes sufficient to
heat these gases and vapors to their ignition temperatures. At flashover, the volume occupied by hot combustion gases rapidly
increases and ends up comprising more than 50 % of the enclosure’s volume. Experimentally it is found that flashover occurs when
the upper gas layer temperature surpasses 600 °C or when the radiant heat flux at the floor surpasses 20 kW/m . Visually, flashover
often corresponds to a transition from flaming on a few surfaces to flames throughout the volume of the enclosure. E176
3.1.3 heat flux, n—heat transfer to a surface per unit area, per unit time.
3.1.3.1 Discussion—
The heat flux from an energy source, such as a radiant heater, can be measured at the initiation of a test (such as Test Method E1354
or Test Method E906/E906M) and then reported as the initial test heat flux, with the understanding that the burning of the test
specimen can generate additional heat flux to the specimen surface. The heat flux can also be measured at any time during a fire
test, for example as described in Guide E603, on any surface, and with measurement devices responding to radiative and
2 2 2
convective fluxes. Typical units are kW/m , W/cm , or BTU/(s ft ). E176
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Available from International Organization for Standardization (ISO), 1 rue de Varembé, Case postale 56, CH-1211, Geneva 20, Switzerland.
Available from National Fire Protection Association (NFPA), 1 Batterymarch Park, Quincy, MA 02269-9101.
E2257 − 22
3.1.4 heat release rate, n—the heat evolved from the specimen per unit time.thermal energy released per unit time by an item
during combustion under specified conditions. E176
3.1.5 optical density of smoke, n—a measure of the attenuation of a light beam through smoke, expressed as the common logarithm
of the ratio of the incident flux, I , to the transmitted flux, I. E176
3.1.6 oxygen consumption principle, n—the expression of the relationship between the mass of oxygen consumed during
combustion and the heat released. E176
3.1.7 smoke, n—the airborne solid and liquid particulates and gases evolved when a material undergoes pyrolysis or combustion.
3.1.7.1 Discussion—
So-called chemical smokes are excluded from this definition. E176
3.1.8 smoke obscuration, n—reduction of light transmission by smoke, as measured by light attenuation. E176
3.2 Definitions of Terms Specific to This Standard:
3.2.1 specimen, n—representative piece of the product, which is to be tested together with any substrate or treatment.
4. Summary of Test Method
4.1 This method uses a gas burner to produce a diffusion flame in contact with the walls and ceiling in the corner of a 2420 mm
by 3630 mm by 2420 mm (8 ft by 12 ft by 8 ft) high room. The burner produces a prescribed net rate of heat output of 100 kW
(5690 Btu/min) during the first 10 min, followed by 300 kW (17 060 Btu/min) during the next 10 min. The contribution of the wall
and ceiling materials or assemblies to fire growth is measured in terms of the time history of the incident heat flux on the center
of the floor, the time history of the temperature of the gases in the upper part of the room, the time to flashover, and the rate of
heat release. The test is conducted with natural ventilation to the room provided through a single doorway 780 mm by 2015 mm
(30 in. by 80 in.) in width and height. The combustion products are collected in a hood feeding into a plenum connected to an
exhaust duct in which measurements are made of the gas velocity, temperature, light obscuration, and concentrations of oxygen,
carbon dioxide, and carbon monoxide.
5. Significance and Use
5.1 This fire test is applicable to a description of certain fire performance characteristics in appraising wall and ceiling materials,
products, or systems under specified fire-exposure conditions in an enclosure. The test indicates the maximum extent of fire growth
in a room, the rate of heat release, and if they occur, the time to flashover, and the time to flame extension beyond the doorway
following flashover. It determines the extent to which the wall and ceiling materials or assemblies contribute to fire growth in a
room and the potential for fire spread beyond the room, under the particular conditions simulated. It does not measure the
contribution of the room contents. (See Appendix X1, Commentary.)
5.2 Flashover shall be considered to have occurred when any two of the following conditions have been attained:
(a) Heat release rate exceeds 1 MW.
(b) Heat flux at the floor exceeds 20 kW/m .
(c) Average upper layer temperature exceeds 600°C.600 °C.
(d) Flames exit doorway.
(e) A paper target on the floor auto-ignites.
5.2.1 Time to flashover shall be the time from start of test until the second condition has been attained.
5.3 The potential for the spread of fire to other objects in the room, remote from the ignition source, is evaluated by measurements
of: (a) the total heat flux incident on the center of the floor, and (b) a characteristic upper level gas temperature in the room.
5.4 The potential for the spread of fire to objects outside the room of origin is evaluated by the measurement of the rate of heat
release of the fire.
5.5 Measurements of the rate of production of carbon monoxide, carbon dioxide, and visible smoke are taken.
E2257 − 22
5.6 The overall performance of the test specimen is visually documented by full-color photographic records. Video taping of the
complete fire test is an acceptable alternative to the photographic record. Such records show when each area of the test specimen
becomes involved in the fire.
5.7 In this procedure, the specimens are subjected to a specific set of laboratory fire test exposure conditions. If different test
conditions are substituted or the anticipated end-use conditions are changed, it is not known whether it is possible by use of this
test to predict changes in the performance characteristics measured. Therefore, the results are strictly valid only for the fire test
exposure conditions described in this procedure.
6. Ignition Source
6.1 The ignition source for the test shall be a gas burner with a nominal 170 mm by 170 mm (6.7 in. by 6.7 in.) porous top surface
of a refractory material, as shown in Fig. 1.
6.2 The top surface of the burner through which the gas is supplied shall be located horizontally, 170 mm (6.7 in.) off the floor,
and the burner enclosure shall be in contact with both walls in a corner of the room opposite from the door, and the edge of the
diffusion surface shall be flush with the wall.
6.3 The burner shall be supplied with C.P. grade propane (99 % purity), with a net heat of combustion of 46.5 MJ/kg 6 0.5 MJ/kg
(20 000 Btu/lb 6 200 Btu/lb.)Btu/lb) The gas flow to the burner shall be measured with an accuracy of at least 63 %. The flow
measuring equipment shall be calibrated per the manufacturer’s instructions at least once per year. The heat output to the burner
shall be controlled within 65 % of the prescribed value.
6.4 The gas supply to the burner shall produce a net heat output of 100 kW 6 3 kW (5690 Btu/min 6 170 Btu/min) for the first
10 min, followed by 300 kW 6 10 kW (17060 Btu/min 6 570 Btu/min) for the next 10 min.
NOTE 1—This corresponds to a flow of approximately 67.3 L/min at 100 kW, and 202.0 L/min at 300 kW for propane with a net heat of combustion of
46.5 MJ/kg, under standard conditions of 101 kPa pressure and 20°C 20 °C temperature.
6.5 The burner shall be ignited by a pilot burner or a remotely controlled spark igniter.
6.6 Burner controls shall be provided for automatic gas supply shut-off if flameout occurs.
7. Compartment Geometry and Construction
NOTE 2—The choices for the size of compartment fire experiments are discussed in Guide E603. The compartment dimensions and tolerances defined
in this section have been chosen to make it convenient to utilize both standard U.S. size 1.22 m by 2.44 m (4 ft by 8 ft) building materials or panels and
standard 1.2 m by 2.4 m panel sizes common outside the U.S.
7.1 The room shall consist of four walls at right angles, floor, and ceiling and shall have the following inner dimensions: 3630
mm 6 30 mm (12 ft) in length, 2420 mm 6 20 mm (8 ft) in width, and 2420 mm 6 20 mm (8 ft) in height (see Fig. 2). The room
shall be placed indoors in an essentially draft free, conditioned space, large enough to ensure that there is no influence on the test
fire. In order to facilitate the mounting of the instruments and of the ignition source, it is convenient to place the test room so that
the floor is accessible from beneath.
7.2 There shall be a doorway in the center of one of the 2420 mm by 2420 mm (8 ft by 8 ft) walls, and no other wall, floor or
ceiling openings that allow ventilation. The doorway shall have the following dimensions: 780 mm 6 20 mm (30 in.) in width,
and 2015 mm 6 15 mm (80 in.) in height.
7.3 The test compartment shall be a framed or a concrete-block structure. If the former type of structure is used, the interior walls
3 3
and ceiling of the frame shall be lined with gypsum wallboard or calcium silicate board with a density of 500 kg/m to 800 kg/m
3 3
(31 lb/ft to 50 lb/ft ). The minimum thickness of the lining material shall be 20 mm ( ⁄4 in.).
7.4 If self-supporting panels are tested, a separate exterior frame or block compartment is not required.
E2257 − 22

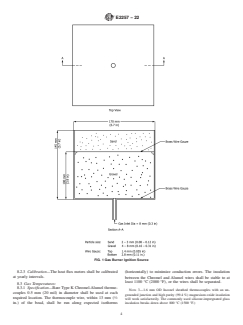

FIG. 1 Gas Burner Ignition Source
8. Instrumentation in the Fire Room
8.1 The following are minimum requirements for instrumentation for this test. Added instrumentation is desirable for further
information.
8.2 Heat Flux:
E2257 − 22
FIG. 2 Room Geometry and Placement of Heat Flux Meter
8.2.1 Specification—The total heat flux meters shall be of the Gardon (foil) or the Schmidt-Boelter (thermopile) type with a design
2 2
range of approximately 50 kW/m (4.4 Btu/ft s). The target receiving radiation, and possibly to a small extent convection, shall
be flat, circular, not more than 15 mm ( ⁄8 in.) in diameter and coated with a durable matt black finish. The target shall be contained
within a water-cooled body whose front face shall be of highly polished metal, flat, coinciding with the plane of the target and
circular, with a diameter of not more than 50 mm (2 in.) The heat flux meter shall have an accuracy of at least 6 3 % 63 % and
a repeatability within 6 0.5 %. 60.5 %. In operation, the meter shall be maintained at a constant temperature, at least 5°C 5 °C
above the dew point.
8.2.2 Location—The heat flux meter shall be mounted at the geometric center of the floor (see Fig. 2). The target area shall be
1 1
between 5 mm and 30 mm ( ⁄4 in. and 1 ⁄4 in.) above the floor surface.
8.2.3 Calibration—The heat flux meters shall be calibrated at yearly intervals.
8.3 Gas Temperatures:
8.3.1 Specification—Bare Type K Chromel-Alumel thermocouples 0.5 mm (20 mil) in diameter shall be used at each required
location. The thermocouple wire, within 13 mm ( ⁄2 in.) of the bead, shall be run along expected isotherms (horizontally) to
minimize conduction errors. The insulation between the Chromel and Alumel wires shall be stable to at least 1100°C (2000°F),
1100 °C (2000 °F), or the wires shall be separated.
NOTE 3—1.6 mm OD Inconel sheathed thermocouples with an ungrounded junction and high purity (99.4 %) magnesium oxide insulation will work
satisfactorily. The commonly used silicone-impregnated glass insulation breaks down above 800°C (1500°F.)800 °C (1500 °F.)
8.3.2 Location in Doorway—A thermocouple shall be located in the interior plane of the door opening on the door centerline, 100
mm (4 in.) down from the top (see Fig. 3).
8.3.3 Locations for Room—Thermocouples shall be located 100 mm (4 in.) down from the center of the ceiling and from the center
E2257 − 22
FIG. 3 Room Geometry and Thermocouple Placement
of each of the four ceiling quadrants, and one shall be directly over the center of the ignition burner, 100 mm (4 in.) below the
ceiling. The thermocouples shall be mounted on supports or penetrate through the ceiling with their junctions at least 100 mm (4
in.) away from a solid surface. There shall be no attachments to the test specimens. Any ceiling penetration shall be just large
enough to permit passage of the thermocouples with back filling using spackling compound or ceramic fiber insulation.
8.4 Photographic and Video Records:
8.4.1 Specification—Photographic and video equipment shall be used to record continuously the fire spread in the room and the
fire projection from the door of the room. The location of the camera shall avoid interference with the air inflow.
8.4.2 When wall linings are tested, the interior wall surfaces of the test room, adjacent to the corner in which the burner is located,
shall be clearly marked with a 0.3 m (12 in.) grid. A clock shall appear in all photographic and video records, giving time to the
nearest l s or 0.01 min from the start of the test. This clock shall be accurately synchronized with all other measurements, or other
provisions shall be made to correlate the photo record with time.
8.4.3 Location and Level of Lighting—A 300-Watt flood-type quartz halogen lamp shall be positioned diametrically opposite the
ignition source near floor level. The lamp shall be aimed at the wall corner/ceiling intersection above the ignition source.
8.4.4 Photographic Records—If 35 mm color photographs are used, they shall be taken at 15 s intervals for the first 3 min of the
test and at least at 60 s intervals thereafter for the duration of the test.
8.4.5 Type and Location of Video Camera—A video camera with a manually adjustable iris, adjusted to prevent automatic closing
of the iris opening due to brightness of the fire (at least 50 % open) shall be used. A video monitor shall be used to determine when
adjustments and compensation for the brightness of the ignition flames are needed.
8.4.5.1 The video camera mount shall be adjusted so that the camera lens is approximately 900 mm (3 ft) from the floor. The
camera angle and magnification shall be adjusted until the top of the doorway and the top of the burner are visible and the ceiling
area directly above the fire is in full view.
E2257 − 22
FIG. 4 Hood Geometry and Placement of Duct Instrumentation
8.4.5.2 A timer depicting “elapsed time” shall be included in all videos. The timer shall be permitted to be integral to the video
camera. The timer shall be clearly viewed throughout the test period.
8.4.5.3 Prior to ignition of the burner, the date and laboratory test report identification number shall be filmed. The video shall be
started at least 30 s prior to ignition of the burner, and the video recording shall be continuous for the duration of the test period.
8.4.6 Flood lights shall not raise the ambient temperature in the room above that specified in Section 12.
NOTE 4—A window, cut 600 mm (2 ft) above the floor in the front wall facing the gas burner, fitted with heat-resistant, impact-resistant glazing, provides
useful photographic access.
8.5 Place two paper targets on the floor to be used as one of the means to assess time to flashover, in accordance with 5.2.
8.5.1 Each paper target shall consist of a single piece of newsprint crumpled into a ball approximately 150 mm (6 in.) in diameter.
8.5.2 One paper target shall be placed in the center of the room at a distance of 1.2 m from the back wall of the room.
8.5.3 The other paper target shall be placed in the center of the room at a distance of 1.2 m from the doorway.
9. Canopy Hood and Exhaust Duct
9.1 Location and Design—A hood shall be installed immediately adjacent to the door of the fire room. The bottom of the hood
shall be level with the top surface of the room. The face dimensions of the hood shall be at least 2440 mm by 2440 mm (8 ft by
8 ft), and the depth shall be 1050 mm (3.5 ft) The hood shall feed into a plenum having a 914 by 914 mm (3 by 3 ft) cross section
(see Fig. 4). The plenum shall have a minimum height of 914 mm (3 ft) The maximum height is 1830 mm (6 ft). The exhaust duct
E2257 − 22
FIG. 5 Bi-directional Probe
connected to the plenum shall be 406 mm (16 in.) in diameter, horizontal, and shall have a circular aperture of 305 mm (12 in.)
or guide vanes at its entrance (see Fig. 4).
9.2 The hood shall have a draft sufficient to collect all of the combustion products leaving the room by moving at least a standard
3 3 3
2.5 m /s (5000 ft /min) Provisions shall be made to vary the draft to change the flow from 1 to 2.5 standard m /s (2000 to 5000
ft /min) Mixing vanes shall be required in the duct if concentration gradients are found to exist.
9.3 An alternative exhaust system design is permitted, provided it has been shown to produce equivalent results. (Equivalency is
shown by meeting the requirements of 9.2.)
10. Instrumentation in the Exhaust Duct
10.1 Duct Gas Velocity:
10.1.1 Specification—A bi-directional probe or an equivalent measuring system shall be used to measure gas velocity in the duct
3 7
(1). The probe shown in Fig. 5 consists of a short stainless steel cylinder 44 mm (1 ⁄4 in.) long and 22 mm ( ⁄8 in.) inside diameter
with a solid diaphragm in the center. The pressure taps on either side of the diaphragm support the probe. The axis of the probe
shall be along the centerline of the duct 3350 mm (11 ft) downstream from the entrance. The taps shall be connected to a pressure
transducer that shall be able to resolve pressure differences of 0.25 Pa (0.001 in. H O). Differential pressure measurements shall
be smoothed by filtering the transducer output signal through an RC circuit with a time constant of 5 s. Alternatively, digital
filtering of the pressure transducer output signal to simulate the effect of this RC circuit shall be permitted. One pair of
thermocouples as specified in 8.3.1 shall be placed 3350 mm (11 ft) downstream of the entrance to the horizontal duct. The pair
of thermocouples shall straddle the center of the duct and be separated 50 mm (2 in.) from each other.
The boldface numbers in parentheses refer to the list of references at the end of this standard.
E2257 − 22
FIG. 6 White-Light Smoke Photometer
NOTE 5—The bi-directional probe was chosen for measuring velocity in the exhaust duct, rather than the Pitot-static tube in order to avoid problems of
clogging with soot.
NOTE 6—Capacitance pressure transducers have been found to be most suitable for this application.
10.2 Duct Oxygen Concentration:
10.2.1 Specification—A stainless steel gas sampling tube shall be located 3660 mm (12 ft) downstream from the entrance to the
duct, to obtain a continuously flowing sample for determining the oxygen concentration of the exhaust gas as a function of time.
A suitable filter and cold trap or permeable membrane drier shall be placed in the line ahead of the analyzer, to remove particulates
and water. The oxygen analyzer shall be of the paramagnetic type and shall be capable of measuring the oxygen concentration in
the range from 21 % down to 15 % with an accuracy of 6 0.01 % 60.01 % in this concentration range. The signal from the oxygen
analyzer shall be within 5 % of its final value in 60 s after introducing a step change in composition of the gas stream flowing past
the inlet to the sampling tube.
10.3 Duct Carbon Dioxide Concentration:
10.3.1 Specification—The gas sampling tube described in 10.2.1, or an alternative tube in the same location, shall provide a
continuous sample for the measurement of the carbon dioxide concentration using an analyzer with a range of 0 to 5 %, with a
maximum error of 0.1 % of full scale. The signal from the analyzer shall be within 5 % of its final value in 60 s after introducing
a step change in composition of the gas stream flowing past the inlet to the sampling tube.
10.4 Duct Carbon Monoxide Concentration:
10.4.1 Specification—The gas sampling tube defined in 10.2.1, or an alternative tube in the same location, shall provide a
continuous sample for the measurement of the carbon monoxide concentration using an analyzer with a range from 0 to 1 % with
a maximum error of 6 0.02 %. The signal from the analyzer shall be within 5 % of its final value in 60 s after introducing a step
change in composition of the gas stream flowing past the inlet to the sampling tube.
10.5 Optical Density of Smoke in Duct:
10.5.1 A meter shall be installed to measure the optical density of the exhaust gases in a vertical path across the width of a
horizontal duct, 600 mm (2 ft) downstream of the duct velocity probe. The optical density shall be continuously recorded over the
duration of the test.
10.5.2 One photometer system found suitable consists of a lamp, lenses, an aperture, and a photocell (see Fig. 6). Construct the
system so that soot deposit on the optics during a test do not reduce the light transmission by more than 5 %.
E2257 − 22
FIG. 7 Laser Smoke Photometer
10.5.3 Alternatively, instrumentation constructed using a 0.5 to 2.0 mW helium-neon laser, instead of a white-light system, is also
acceptable (see Fig. 7).
NOTE 7—It has been shown that white light and laser systems will provide similar results (2).
10.6 Data Acquisition—The data collection system used shall have facilities for the recording of the output from the bi-directional
probe, the gas analyzers, the heat flux meter, the thermocouples, and the smoke measuring system. The data acquisition system
shall have an accuracy corresponding to at least 50 ppm oxygen for the oygen channel, 0.5°C 0.5 °C for the temperature measuring
channels, and 0.01 % of full-scale instrument output for all other instrument channels. The system shall be capable of recording
data for at least 22 min, at intervals not exceeding 6 s. The system shall be calibrated at least once per year.
11. Specimen Mounting
11.1 Specimen mounting shall be according to one of three configurations (see Appendix X1).
11.1.1 Standard Configuration—Specimens shall be mounted to cover the entire ceiling, the two side walls, and the back wall.
11.1.2 Wall Configuration—Specimens shall be mounted to completely cover the walls, except the front wall containing the door.
3 3 3 3
The entire ceiling shall be covered with gypsum board with a density of 725 kg/m 6 50 kg/m (45 lb/ft 6 5 lb/ft ) and a
minimum thickness of 13 mm ( ⁄2 in.).
11.1.3 Ceiling Configuration—Specimens shall be mounted to cover the entire ceiling. The two side walls and the back wall shall
3 3 3 3
be covered entirely with gypsum board with a density of 725 kg/m 6 50 kg/m (45(45lb/ft 6 5 lb/ft ) and a minimum thickness
of 13 mm ( ⁄2 in.).
11.2 The specimens, for example, the ceiling and wall materials whose contribution is being tested, shall be mounted on a framing
or support system comparable to that intended for their field use, using backing materials, insulation, or air gaps, as appropriate
to the intended application and representing a typical value of thermal resistance for the wall system. (See Appendix X2.)
11.3 In cases where the product to be tested is in panel form, the standard dimensions (width, length and thickness) of the panels
shall be used, if possible.
11.4 Thin surface materials, thermoplastic products that melt, paints and varnishes shall, depending on their end use, be applied
3 3
to one of the following substrates; (a) Non-combustible fiber reinforced silicate board with a dry density of 680 kg/m 6 50 kg/m
3 3
(42(42lb/ft 6 3 lb/ft ), suitable thickness is between 9 mm and 13 mm ( and ⁄2 in.); (b) Non-combustible board with a dry density
3 3 3 3
of 1650 kg/m 6 150 kg/m (103 lb/ft 6 9 lb/ft ), suitable thickness is between 9 mm and 13 mm ( and ⁄2 in.); (c) Ordinary
3 3 3 3
particleboard with a density of 680 kg/m 6 50 kg/m (42 lb/ft 6 3 lb/ft ) at normal conditioning atmosphere, that is, 50 6 5 %
of relative humidity and 23 °C 6 2°C 2 °C (73 °F 6 4°F) 4 °F) of temperature, suitable thickness is between 9 mm and 13 mm
E2257 − 22
3 3 3 3
( and ⁄2 in.); and (d) Gypsum board with a density of 725 kg/m 6 50 kg/m (45 lb/ft 6 5 lb/ft ) at normal conditioning
3 1
atmosphere, suitable thickness is between 9 mm and 13 mm ( ⁄8 in. and ⁄2 in.) Other substrates are acceptable depending on the
end use of the product, for example steel and mineral wool.
11.5 Paints and varnishes shall be applied to the appropriate substrate with the application rate specified by the sponsor.
11.6 A detailed description of the mounting method used shall be given in the test report. If a special mounting technique is used
in order to improve the physical behavior of the specimen during the test, this shall be clearly stated in the report.
12. Fire Room Environment
12.1 The temperature in the fire test room and the surroundings shall be 20 °C 6 10°C.10 °C.
12.2 The horizontal wind draft measured at a horizontal distance of 1000 mm (40 in.) from the center of the doorway shall not
exceed 0.5 m/s (1.6 ft/s).
12.3 When necessary, the specimens shall be conditioned to approximate equilibrium in an atmosphere of 50 6 5 % relative
humidity at a temperature of 23 °C 6 2°C 2 °C (73 °F 6 4°F). 4 °F). Equilibrium is considered to be reached when a representative
piece of the specimen has achieved constant mass. Constant mass is considered to be reached when two successive weighing
operations, carried out at an interval of 24 h, do not differ by more than 0.1 % of the mass of the test piece or 0.1 g, whichever
is greater. For wood based products and products where vaporization of solvents
...
