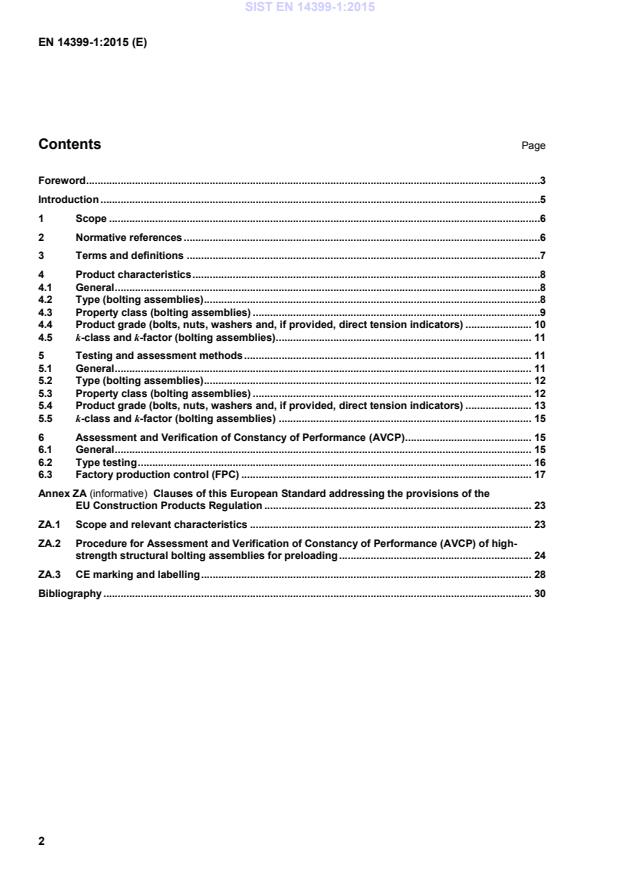

Page Foreword .3 Introduction .5 1 Scope .6 2 Normative references .6 3 Terms and definitions .7 4 Product characteristics .8 4.1 General .8 4.2 Type (bolting assemblies) .8 4.3 Property class (bolting assemblies) .9 4.4 Product grade (bolts, nuts, washers and, if provided, direct tension indicators) . 10 4.5 k-class and k-factor (bolting assemblies) . 11 5 Testing and assessment methods . 11 5.1 General . 11 5.2 Type (bolting assemblies) . 12 5.3 Property class (bolting assemblies) . 12 5.4 Product grade (bolts, nuts, washers and, if provided, direct tension indicators) . 13 5.5 k-class and k-factor (bolting assemblies) . 15 6 Assessment and Verification of Constancy of Performance (AVCP) . 15 6.1 General . 15 6.2 Type testing . 16 6.3 Factory production control (FPC) . 17 Annex ZA (informative)
Clauses of this European Standard addressing the provisions of the EU Construction Products Regulation . 23 ZA.1 Scope and relevant characteristics . 23 ZA.2 Procedure for Assessment and Verification of Constancy of Performance (AVCP) of high-strength structural bolting assemblies for preloading . 24 ZA.3 CE marking and labelling . 28 Bibliography . 30
Vk ≤ 0,06 5 Testing and assessment methods 5.1 General The geometry of test specimens, test apparatus, testing procedure and evaluation of test results are specified in supporting standards for each component of the bolting assembly and for their combinations as bolting assemblies. SIST EN 14399-1:2015

The use of GO/NO-GO gauges does not permit the specification of a value of accuracy. Table 3 — Nuts Dimensiona Accuracy mm Method Width across flats (s) ≤ 0,05 Measurement Width across corners (e) ≤ 0,05 Measurement Nut height (m) ≤ 0,05 Measurement Thread dimensions — b Gauge a Symbols and descriptions of dimensions as defined in EN ISO 225. b The use of GO/NO-GO gauges does not permit the specification of a value of accuracy. 5.4.3 Washers Assessment shall be carried out in accordance with EN ISO 4759-3 before any coatings. The tolerances of the components shall be checked by standard gauges or measuring equipment of the required accuracy as specified in Table 4. SIST EN 14399-1:2015
...
