EUROPEAN STANDARD EN 60730-2-6 NORME EUROPÉENNE
EUROPÄISCHE NORM September 2008
CENELEC European Committee for Electrotechnical Standardization Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: rue de Stassart 35, B - 1050 Brussels
© 2008 CENELEC -
All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60730-2-6:2008 E
ICS 97.120 Supersedes EN 60730-2-6:1995 + A1:1997 + A2:1998
English version
Automatic electrical controls for household and similar use -
Part 2-6: Particular requirements for automatic electrical pressure
sensing controls including mechanical requirements (IEC 60730-2-6:2007, modified)
Dispositifs de commande électrique automatiques à usage domestique
et analogue -
Partie 2-6: Règles particulières pour
les dispositifs de commande électrique automatiques sensibles à la pression
y compris les exigences mécaniques (CEI 60730-2-6:2007, modifiée)
Automatische elektrische Regel- und Steuergeräte für den Hausgebrauch und ähnliche Anwendungen -
Teil 2-6: Besondere Anforderungen an automatische elektrische Druckregel- und Steuergeräte einschließlich mechanischer Anforderungen (IEC 60730-2-6:2007, modifiziert)
This European Standard was approved by CENELEC on 2008-07-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.
SIST EN 60730-2-6:2009

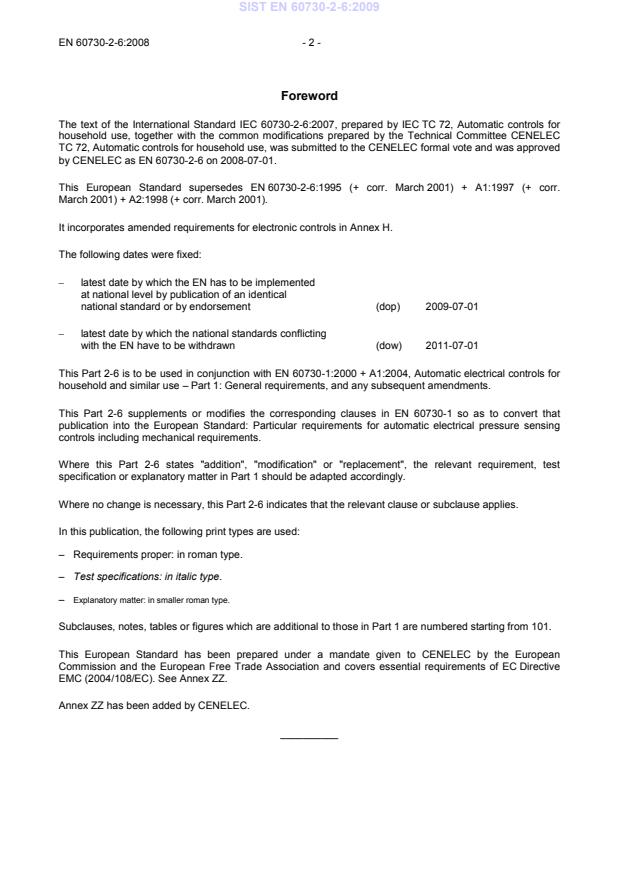

EN 60730-2-6:2008 - 2 - Foreword The text of the International Standard IEC 60730-2-6:2007, prepared by IEC TC 72, Automatic controls for household use, together with the common modifications prepared by the Technical Committee CENELEC TC 72, Automatic controls for household use, was submitted to the CENELEC formal vote and was approved by CENELEC as EN 60730-2-6 on 2008-07-01. This European Standard supersedes EN 60730-2-6:1995 (+ corr. March 2001) + A1:1997 (+ corr. March 2001) + A2:1998 (+ corr. March 2001). It incorporates amended requirements for electronic controls in Annex H. The following dates were fixed: – latest date by which the EN has to be implemented at national level by publication of an identical national standard or by endorsement
(dop)
2009-07-01 – latest date by which the national standards conflicting with the EN have to be withdrawn
(dow)
2011-07-01 This Part 2-6 is to be used in conjunction with EN 60730-1:2000 + A1:2004, Automatic electrical controls for household and similar use – Part 1: General requirements, and any subsequent amendments. This Part 2-6 supplements or modifies the corresponding clauses in EN 60730-1 so as to convert that publication into the European Standard: Particular requirements for automatic electrical pressure sensing controls including mechanical requirements. Where this Part 2-6 states "addition", "modification" or "replacement", the relevant requirement, test specification or explanatory matter in Part 1 should be adapted accordingly. Where no change is necessary, this Part 2-6 indicates that the relevant clause or subclause applies. In this publication, the following print types are used: – Requirements proper: in roman type. – Test specifications: in italic type. – Explanatory matter: in smaller roman type. Subclauses, notes, tables or figures which are additional to those in Part 1 are numbered starting from 101. This European Standard has been prepared under a mandate given to CENELEC by the European Commission and the European Free Trade Association and covers essential requirements of EC Directive EMC (2004/108/EC). See Annex ZZ. Annex ZZ has been added by CENELEC. __________ SIST EN 60730-2-6:2009



- 3 - EN 60730-2-6:2008 Endorsement notice The text of the International Standard IEC 60730-2-6:2007 was approved by CENELEC as a European Standard with agreed common modifications as given below. COMMON MODIFICATIONS 10 Terminals and terminations 10.1 Terminals and terminations for external copper conductors Delete Subclause “10.1.4 Addition:”.
18 Mechanical strength 18.101 Medium leakage Delete “Under consideration.” In paragraph 4 delete the text of a) and b) and replace with “the leakage rate is 70 l/h;” in both cases.
H.26 Electromagnetic compatibility (EMC) requirements - immunity H.26.10.5.101 Delete this additional subclause and replace by “Void”. ____________ SIST EN 60730-2-6:2009



EN 60730-2-6:2008 - 4 - Annex ZZ (informative)
Coverage of Essential Requirements of EC Directives This European Standard has been prepared under a mandate given to CENELEC by the European Commission and the European Free Trade Association and within its scope the standard covers all relevant essential requirements as given in Article 1 of Annex I of the EC Directive EMC (2004/108/EC). Compliance with this standard provides one means of conformity with the specified essential requirements of the Directive concerned. WARNING: Other requirements and other EC Directives may be applicable to the products falling within the scope of this standard. ___________
