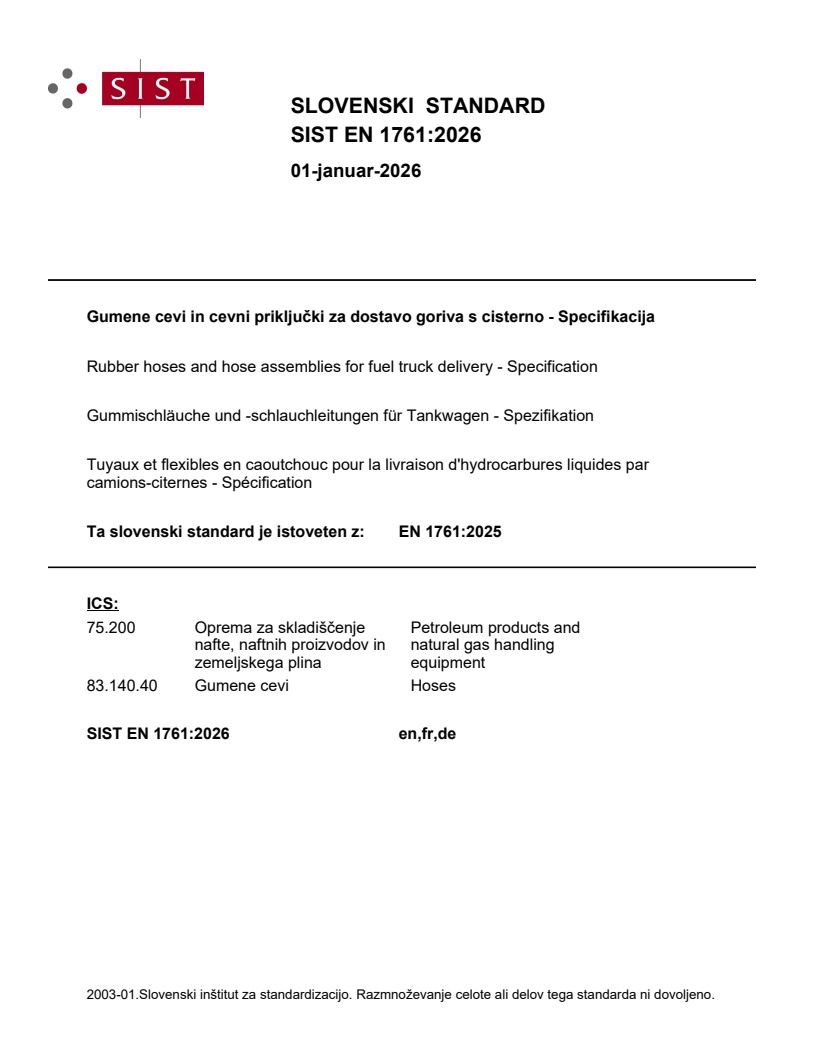

SIST EN 1761:2026

SLOVENSKI STANDARD
01-januar-2026
Gumene cevi in cevni priključki za dostavo goriva s cisterno - Specifikacija
Rubber hoses and hose assemblies for fuel truck delivery - Specification
Gummischläuche und -schlauchleitungen für Tankwagen - Spezifikation
Tuyaux et flexibles en caoutchouc pour la livraison d'hydrocarbures liquides par
camions-citernes - Spécification
Ta slovenski standard je istoveten z: EN 1761:2025
ICS:
75.200 Oprema za skladiščenje Petroleum products and
nafte, naftnih proizvodov in natural gas handling
zemeljskega plina equipment
83.140.40 Gumene cevi Hoses
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

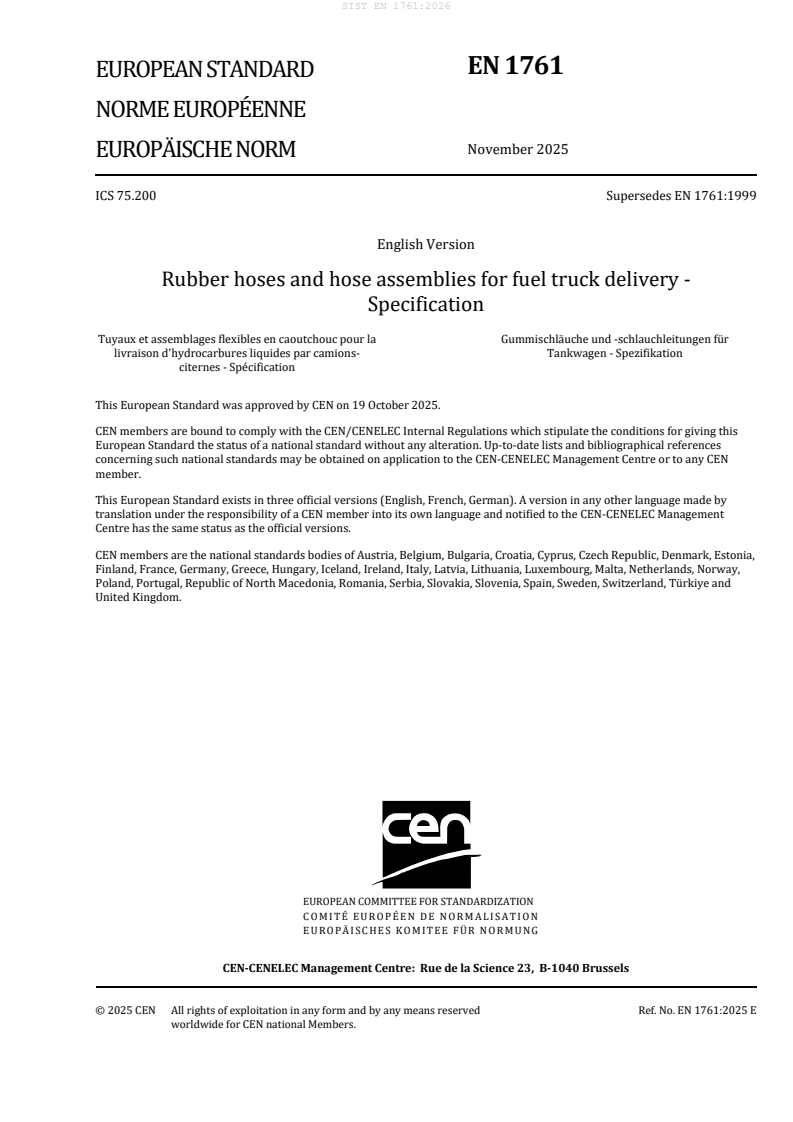

EN 1761
EUROPEAN STANDARD
NORME EUROPÉENNE
November 2025
EUROPÄISCHE NORM
ICS 75.200 Supersedes EN 1761:1999
English Version
Rubber hoses and hose assemblies for fuel truck delivery -
Specification
Tuyaux et assemblages flexibles en caoutchouc pour la Gummischläuche und -schlauchleitungen für
livraison d'hydrocarbures liquides par camions- Tankwagen - Spezifikation
citernes - Spécification
This European Standard was approved by CEN on 19 October 2025.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 1761:2025 E
worldwide for CEN national Members.

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 5
4 Types . 5
5 Materials and construction . 5
6 Dimensions. 5
6.1 Nominal size, internal diameters, outside diameters, service reeling diameters,
minimum bend radius . 5
6.2 Concentricity . 6
6.3 Tolerances in length . 6
6.4 Minimum thickness of lining and cover . 6
7 Physical properties . 7
7.1 Rubber compounds . 7
7.2 Finished hose . 7
8 Test for security of coupling attachment . 9
9 Electrical resistance . 9
10 Frequency of testing . 9
10.1 Hoses . 9
10.2 Hose assemblies . 10
11 Marking . 10
11.1 Hoses . 10
11.2 Hose couplings . 10
Annex A (normative) Test frequency for type tests and routine tests . 11
Annex B (normative) Test method for adhesion between components . 13
B.1 Dry adhesion . 13
B.2 Adhesion after contact with fuel ( Wet Adhesion ) . 13
Annex C (normative) Test method for flexibility at 20 °C . 14
Annex D (normative) Test method for flammability . 15
D.1 Method . 15
D.2 Assessment . 15
Annex E (normative) Test method for security of coupling attachment . 17
E.1 Apparatus . 17
E.2 Procedure . 17

European foreword
This document (EN 1761:2025) has been prepared by Technical Committee CEN/TC 218 “Rubber and
plastics hoses and hose assemblies”, the secretariat of which is held by BSI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by May 2026, and conflicting national standards shall be
withdrawn at the latest by May 2026.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 1761:1999.
— modification of the Scope by introducing a note regarding on how to proceed with other
temperatures and working pressures;
— in Table 1 adoption of the Dimensions 80 mm and 125 mm;
— in Table 3 modification of the entries for “Proof pressure min.” and “Burst pressure min.”;
— introduction of a new Annex A for Test frequency for type tests and routine tests;
— add the option of using water as a test liquid in place of Liquid F for the Flammability Test in
Annex D.
This document is based on ISO 2929, BS 3492 and the German military standard VG 95955.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
1 Scope
This document specifies the requirements for two types of rubber hoses and rubber hose assemblies for
loading and discharge of liquid hydrocarbon fuels with a maximum working pressure of 10 bar
(1,0 MPa).
Both types of hose are designed for:
a) use with hydrocarbon fuels, having an aromatic hydrocarbon content not exceeding 50 % by
volume and containing oxygenated compounds up to 15 %;
b) operation within the temperature range of −30 °C to +70 °C, undamaged by climatic conditions of
−50 °C to 70 °C when stored in static conditions.
This document is not applicable to hoses and hose assemblies for LPG, aviation fuel systems, fuel station
systems and marine applications.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN ISO 1402, Rubber and plastics hoses and hose assemblies — Hydrostatic testing (ISO 1402)
EN ISO 4671, Rubber and plastics hoses and hose assemblies — Methods of measurement of the
dimensions of hoses and the lengths of hose assemblies (ISO 4671)
EN ISO 7233, Rubber and plastic hoses and hose assemblies — Determination of resistance to vacuum
(ISO 7233)
EN ISO 7326, Rubber and plastics hoses — Assessment of ozone resistance under static conditions
(ISO 7326)
EN ISO 8031, Rubber and plastics hoses and hose assemblies — Determination of electrical resistance and
conductivity (ISO 8031)
EN ISO 8033:2017, Rubber and plastics hose — Determination of adhesion between components
(ISO 8033:2016)
EN ISO 10619-1:2018, Rubber and plastics hoses and tubing — Measurement of flexibility and stiffness —
Part 1: Bending tests at ambient temperature (ISO 10619-1:2017)
EN ISO 10619-2:2021, Rubber and plastics hoses and tubing — Measurement of flexibility and stiffness —
Part 2: Bending tests at sub-ambient temperatures (ISO 10619-2:2021)
ISO 37, Rubber, vulcanized or thermoplastic — Determination of tensile stress-strain properties
ISO 188, Rubber, vulcanized or thermoplastic — Accelerated ageing or heat-resistance tests
ISO 1817:2024, Rubber, vulcanized or thermoplastic — Determination of the effect of liquids
ISO 4649:2024, Rubber, vulcanized or thermoplastic — Determination of abrasion resistance using a
rotating cylindrical drum device
ISO 8330, Rubber and plastics hoses and hose assemblies — Vocabulary
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 8330 apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at https://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp
4 Types
Hoses shall be one of the following types:
a) type D: delivery hose;
b) type SD: suction and delivery hose, helix reinforced.
Both these types can be either:
1) electrically bonded, designated and marked “M” type; or
2) electrically conductive, using a conductive rubber layer, designated and marked “Ω” type.
5 Materials and construction
If mandrel built, particulate type, release agents shall not be used.
The hose shall be uniform in quality and free from porosity, airholes, foreign inclusions and other
defects.
The hose shall consist of the following:
a) a lining of synthetic rubber resistant to hydrocarbon fuels;
b) a reinforcement of layers of woven, braided or spirally wound textile material;
c) an embedded helix reinforcement (type SD only);
d) two or more low resistance electrical bonding wires (type “M” only);
e) an outer cover of synthetic rubber, resistant to abrasion, outdoor exposure and hydrocarbon fuels.
6 Dimensions
6.1 Nominal size, internal diameters, outside diameters, service reeling diameters,
minimum bend radius
When measured in accordance with EN ISO 4671 the internal diameter and outside diameter and their
tolerances shall comply with the values given in Table 1.
When tested by the method described in Annex
...
