SIST EN IEC 62604-2:2022

SLOVENSKI STANDARD
SIST EN IEC 62604-2:2022
01-december-2022
Nadomešča:
SIST EN IEC 62604-2:2018
Radiofrekvenčni (SAW) in visokofrekvenčni (BAW) duplekserji ocenjene kakovosti
- 2. del: Smernice za uporabo (IEC 62604-2:2022)
Surface acoustic wave (SAW) and bulk acoustic wave (BAW) duplexers of assessed
quality - Part 2: Guidelines for the use (IEC 62604-2:2022)
Oberflächenwellen-(OFW-) und Volumenwellen-(BAW-)Duplexer mit bewerteter Qualität
– Teil 2: Leitfaden für die Anwendung (IEC 62604-2:2022)
Duplexeurs à ondes acoustiques de surface (oas) et à ondes acoustiques de volume
(oav) sous assurance de la qualité - Partie 2 : Lignes directrices dutilisation (IEC 62604-
2:2022)
Ta slovenski standard je istoveten z: EN IEC 62604-2:2022
ICS:
31.140 Piezoelektrične naprave Piezoelectric devices
SIST EN IEC 62604-2:2022 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN IEC 62604-2:2022

---------------------- Page: 2 ----------------------
SIST EN IEC 62604-2:2022


EUROPEAN STANDARD EN IEC 62604-2

NORME EUROPÉENNE

EUROPÄISCHE NORM October 2022
ICS 31.140 Supersedes EN IEC 62604-2:2018
English Version
Surface acoustic wave (SAW) and bulk acoustic wave (BAW)
duplexers of assessed quality - Part 2: Guidelines for the use
(IEC 62604-2:2022)
Duplexeurs à ondes acoustiques de surface (OAS) et à Oberflächenwellen-(OFW-) und Volumenwellen-(BAW-
ondes acoustiques de volume (OAV) sous assurance de la )Duplexer mit bewerteter Qualität - Teil 2: Leitfaden für die
qualité - Partie 2: Lignes directrices d'utilisation Anwendung
(IEC 62604-2:2022) (IEC 62604-2:2022)
This European Standard was approved by CENELEC on 2022-10-06. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.


European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
 Ref. No. EN IEC 62604-2:2022 E

---------------------- Page: 3 ----------------------
SIST EN IEC 62604-2:2022
EN IEC 62604-2:2022 (E)

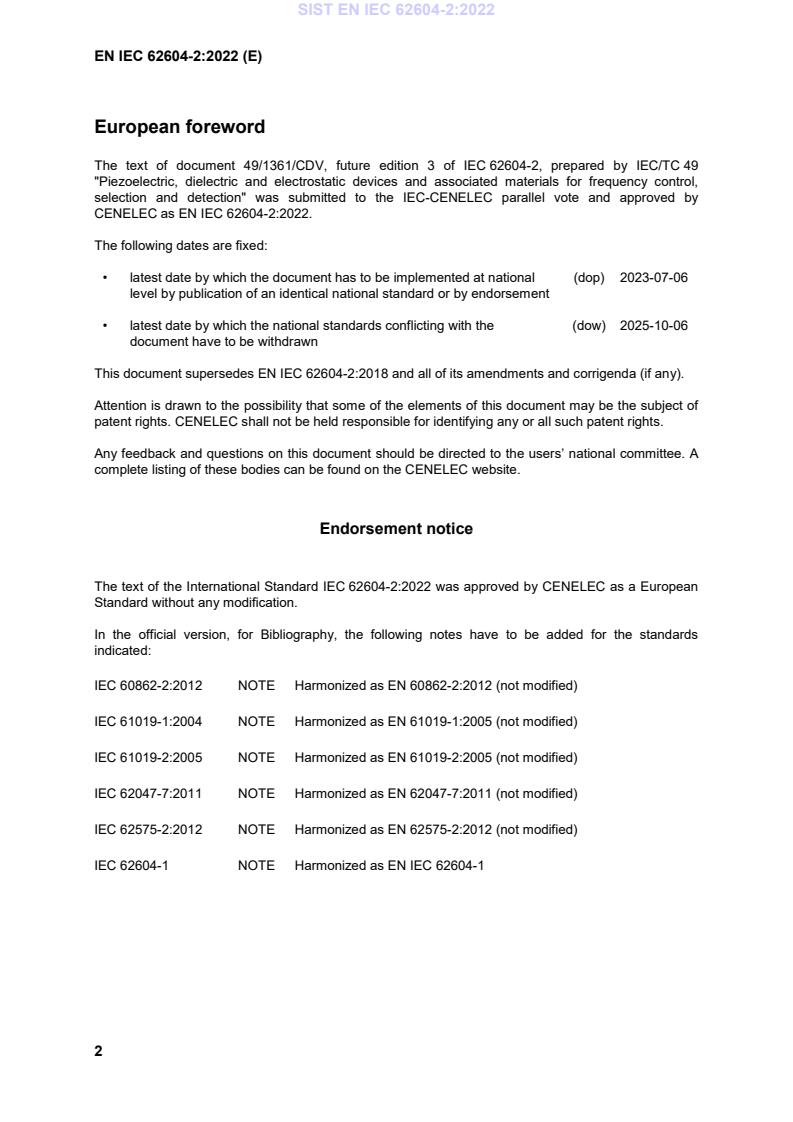

European foreword
The text of document 49/1361/CDV, future edition 3 of IEC 62604-2, prepared by IEC/TC 49
"Piezoelectric, dielectric and electrostatic devices and associated materials for frequency control,
selection and detection" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN IEC 62604-2:2022.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2023-07-06
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2025-10-06
document have to be withdrawn
This document supersedes EN IEC 62604-2:2018 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 62604-2:2022 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards
indicated:
IEC 60862-2:2012 NOTE Harmonized as EN 60862-2:2012 (not modified)
IEC 61019-1:2004 NOTE Harmonized as EN 61019-1:2005 (not modified)
IEC 61019-2:2005 NOTE Harmonized as EN 61019-2:2005 (not modified)
IEC 62047-7:2011 NOTE Harmonized as EN 62047-7:2011 (not modified)
IEC 62575-2:2012 NOTE Harmonized as EN 62575-2:2012 (not modified)
IEC 62604-1 NOTE Harmonized as EN IEC 62604-1
2

---------------------- Page: 4 ----------------------
SIST EN IEC 62604-2:2022
EN IEC 62604-2:2022 (E)
Annex ZA
(normative)

Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60862-1 - Surface acoustic wave (SAW) filters of EN 60862-1 -
assessed quality - Part 1: Generic specification
IEC 62575-1 - Radio frequency (RF) bulk acoustic wave EN 62575-1 -
(BAW) filters of assessed quality - Part 1:
Generic specification

3

---------------------- Page: 5 ----------------------
SIST EN IEC 62604-2:2022

---------------------- Page: 6 ----------------------
SIST EN IEC 62604-2:2022




IEC 62604-2

®


Edition 3.0 2022-09




INTERNATIONAL



STANDARD




NORME



INTERNATIONALE
colour

inside










Surface acoustic wave (SAW) and bulk acoustic wave (BAW) duplexers of

assessed quality –

Part 2: Guidelines for the use




Duplexeurs à ondes acoustiques de surface (OAS) et à ondes acoustiques de

volume (OAV) sous assurance de la qualité –


Partie 2: Lignes directrices d’utilisation













INTERNATIONAL

ELECTROTECHNICAL

COMMISSION


COMMISSION

ELECTROTECHNIQUE


INTERNATIONALE




ICS 31.140 ISBN 978-2-8322-4875-1




Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale

---------------------- Page: 7 ----------------------
SIST EN IEC 62604-2:2022
– 2 – IEC 62604-2:2022 © IEC 2022
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 7
3.1 Response characteristics related terms . 7
3.2 SAW and BAW duplexers related terms . 8
4 Technical considerations . 8
5 Fundamentals of SAW and BAW duplexers. 8
5.1 Basic function . 8
5.1.1 General . 8
5.1.2 TX filter response (filter response from TX port to antenna port) . 9
5.1.3 RX filter response (filter response from antenna port to RX port) . 10
5.1.4 Isolation (isolation from TX port to RX port) . 10
5.2 Basic structure . 11
5.3 Principle of operation . 11
5.4 Diplexer . 14
5.5 Multiplexer . 15
6 SAW and BAW duplexer characteristics . 15
6.1 General conditions for SAW and BAW duplexers . 15
6.2 Typical characteristics of SAW and BAW duplexers . 18
6.2.1 UMTS duplexer . 18
6.2.2 US CDMA duplexer . 18
6.2.3 PCS CDMA duplexer . 18
6.2.4 LTE Band 1 + Band 3 multiplexer. 19
7 Application guidelines . 23
7.1 Power durability . 23
7.2 Harmonics and inter-modulation distortion . 23
7.3 Measurement method for the duplexer . 23
7.4 Electrostatic voltage protection . 25
Bibliography . 26

Figure 1 – Basic duplexer configuration . 9
Figure 2 – Basic TX filter response example of SAW and BAW duplexers . 10
Figure 3 – Basic RX filter response example of SAW and BAW duplexers . 10
Figure 4 – Basic isolation characteristics example of SAW and BAW duplexers . 11
Figure 5 – The block diagram of a duplexer . 12
Figure 6 – Demanded condition of TX part for duplexers . 13
Figure 7 – Phase rotation in TX part . 13
Figure 8 – Demanded condition of RX part for duplexers . 14
Figure 9 – Basic diplexer configuration . 14
Figure 10 – Basic multiplexer configuration . 15
Figure 11 – Typical wide range frequency response of TX filter . 16
Figure 12 – Typical wide range frequency response of RX filter for upper local system . 17

---------------------- Page: 8 ----------------------
SIST EN IEC 62604-2:2022
IEC 62604-2:2022 © IEC 2022 – 3 –
Figure 13 – Phase shifter by microstrip line on the surface of a ceramic package . 17
Figure 14 – Lumped element phase shifter . 17
Figure 15 – Duplexer configuration . 18
Figure 16 – Frequency characteristics of SAW duplexer for UMTS Band 1 system . 20
Figure 17 – Frequency characteristics of a SAW duplexer for US CDMA system . 21
Figure 18 – Frequency characteristics of BAW duplexer for PCS CDMA system . 22
Figure 19 – Frequency characteristics of SAW Band 1 + Band 3 multiplexer for LTE. 23
Figure 20 – Four-port-type network analyzer for duplexer measurement . 24
Figure 21 – Four-port-type network analyzer for measurement of a balanced RX port
duplexer. 25

Table 1 – Frequency allocation for typical LTE frequency division duplex (FDD) bands . 9

---------------------- Page: 9 ----------------------
SIST EN IEC 62604-2:2022
– 4 – IEC 62604-2:2022 © IEC 2022
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________

SURFACE ACOUSTIC WAVE (SAW) AND BULK
ACOUSTIC WAVE (BAW) DUPLEXERS
OF ASSESSED QUALITY –

Part 2: Guidelines for the use

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 62604-2 has been prepared by IEC technical committee 49: Piezoelectric, dielectric and
electrostatic devices and associated materials for frequency control, selection and detection. It
is an International Standard.
This third edition cancels and replaces the second edition published in 2017. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) the term "cross-isolation" has been added to Clause 3;
b) multiplexers are described.
NOTE In this document, SAW and BAW duplexers are treated simultaneously because both duplexers are used in
the same manner, especially in mobile phone systems and have the same requirements of characteristics, test
method and so on.

---------------------- Page: 10 ----------------------
SIST EN IEC 62604-2:2022
IEC 62604-2:2022 © IEC 2022 – 5 –
The text of this International Standard is based on the following documents:
Draft Report on voting
49/1361/CDV 49/1376/RVC

Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.
A list of all parts in the IEC 62604 series, published under the general title Surface acoustic
wave (SAW) and bulk acoustic wave (BAW) duplexers of assessed quality, can be found on the
IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The "colour inside" logo on the cover page of this document indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.

---------------------- Page: 11 ----------------------
SIST EN IEC 62604-2:2022
– 6 – IEC 62604-2:2022 © IEC 2022
INTRODUCTION
While in 2G systems mainly dielectric duplexers have been used, the ongoing miniaturization
in 3G and 4G mobile communication systems promoted the development and application of
acoustic wave duplexers due to their small size, light weight and good electrical performance.
While standard surface acoustic wave (SAW) duplexers have been employed for applications
with moderate requirements regarding the steepness of individual filters, applications with
narrow duplex gap (e.g. Bands 2, 3, 8, 25), i.e., the frequency gap between receiving and
transmitting bands, require the application of temperature-compensated (TC) SAW or bulk
acoustic wave (BAW) technology, because of their better temperature characteristics and
resonator Q-factors.
Standard specifications, such as those of IEC, of which these guidelines form a part, and
national specifications or detail specifications issued by manufacturers will define the available
combinations of centre frequency, pass bandwidth and insertion attenuation for each sort of
transmitting and receiving filters and the isolation level between transmitter and receiver ports,
etc. These specifications are compiled to include a wide range of SAW and BAW duplexers with
standardized performances. It cannot be over-emphasized that the user should, wherever
possible, select his duplexers from these specifications, when available, even if it can lead to
making small modifications to his circuit to enable the use of standard duplexers. This applies
particularly to the selection of the nominal frequency band.

---------------------- Page: 12 ----------------------
SIST EN IEC 62604-2:2022
IEC 62604-2:2022 © IEC 2022 – 7 –
SURFACE ACOUSTIC WAVE (SAW) AND BULK
ACOUSTIC WAVE (BAW) DUPLEXERS
OF ASSESSED QUALITY –

Part 2: Guidelines for the use



1 Scope
This part of IEC 62604 applies to duplexers which can separate receiving signals from
transmitting signals and are key components for two-way radio communications, and which are
generally used in mobile phone systems compliant with CDMA systems such as N-CDMA in
second generation mobile telecommunication systems (2G), W-CDMA / UMTS (3G) or LTE (4G).
These guidelines draw attention to some fundamental questions about the theory of SAW and
BAW duplexers and how to use them, which will be considered by the user before he places an
order for SAW and BAW duplexers for a new application. Such a procedure will be the user’s
insurance against unsatisfactory performance. Because SAW and BAW duplexers have very
similar performance for the usage, it is useful and convenient for users that both duplexers are
described in one standard.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60862-1, Surface acoustic wave (SAW) filters of assessed quality – Part 1: Generic
specification
IEC 62575-1, Radio frequency (RF) bulk acoustic wave (BAW) filters of assessed quality –
Part 1: Generic specification
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
3.1 Response characteristics related terms
3.1.1
guard band
unused part of the radio spectrum between radio bands, for the purpose of preventing
interference

---------------------- Page: 13 ----------------------
SIST EN IEC 62604-2:2022
– 8 – IEC 62604-2:2022 © IEC 2022
3.1.2
cross-isolation
leakage power ratio from one of the TX ports to one of the RX ports from another nominal
frequency band in a multiplexer
3.2 SAW and BAW duplexers related terms
3.2.1
phase shifter
device which changes the phase of signals, not the frequency of them
Note 1 to entry: This is a basic part of a duplexer.
3.2.2
void
vacancy in the IDT electrode caused by stress migration resulting from diffusing and/or transfer
of metal atoms forming part of the electrode
3.2.3
hillock
projection on the side or upper surface of the electrode caused by stress migration resulting
from diffusing and/or transfer of metal atoms forming part of the electrode
4 Technical considerations
It is of prime interest to a user that the duplexer characteristics should satisfy particular
specifications. The selection of the front-end circuits in user equipment and SAW and BAW
duplexers to meet such specifications should be a matter of agreement between the user and
the manufacturer.
Duplexer characteristics are usually expressed in terms of centre frequency, pass bandwidth and
insertion attenuation for each of transmitting and receiving filter parts in the duplexer and
isolation level between the transmitter and receiver ports. Since the SAW and BAW duplexer is
used in RF front-end of the user equipment, lower insertion attenuation, higher
isolation/rejection level, stronger power durability and smaller/thinner package dimensions are
strictly required.
5 Fundamentals of SAW and BAW duplexers
5.1 Basic function
5.1.1 General
Duplexers are necessary for frequency division duplex (FDD) equipment to receive and transmit
signals simultaneously. Duplexers are 3-port devices which consist of an antenna port, a
transmitter port (TX port) and a receiver port (RX port), as shown in Figure 1. The duplexer has
three basic functions:
• to transfer the transmitting signal from the TX port to the antenna port;
• to transfer the receiving signal from the antenna port to the RX port;
• to prevent transfer of the transmitting signal and noise from the TX port to the RX port.
The transmitting and the receiving frequencies are determined corresponding to each mobile
communication system. For example, Table 1 shows typical allocated frequency bands for LTE.

---------------------- Page: 14 ----------------------
SIST EN IEC 62604-2:2022
IEC 62604-2:2022 © IEC 2022 – 9 –

Figure 1 – Basic duplexer configuration
Table 1 – Frequency allocation for typical
LTE frequency division duplex (FDD) bands
Downlink Downlink
Uplink frequency Band Uplink frequency
frequency frequency
Band
(MHz) (MHz) (MHz) (MHz)
1 1 920 – 1 980 2 110 – 2 170 16 2 010 – 2 025 2 585 – 2 600
2 1 850 – 1 910 1 930 – 1 990 17 704 – 716 734 – 746
3 1 710 – 1 785 1 805 – 1 880 18 815 – 830 860 – 875
4 1 710 – 1 755 2 110 – 2 155 19 830 – 845 875 – 890
5 824 – 849 869 – 894 20 832 – 862 791 – 821
6 830 – 840 875 – 885 21 1 447,9 – 1 462,9 1 495,5 – 1 510,9
7 2 500 – 2 570 2 620 – 2 690 22 3 410 – 3 490 3 510 – 3 590
8 880 – 915 925 – 960 23 2 000 – 2 020 2 180 – 2 200
9 1 749,9 – 1 784,9 1 844,9 – 1 879,9 24 1 626,5 – 1 660,5 1 525 – 1 559
10 1 710 – 1 770 2 110 – 2 170 25 1 850 – 1 915 1 930 – 1 995
11 1 427,9 – 1 447,9 1 475,9 – 1 495,9 26 814 – 849 859 – 894
12 699 – 716 729 – 746 27 807 – 824 852 – 869
13 777 – 787 746 – 756 28 703 – 748 758 – 803
14 788 – 798 758 – 768 30 2 305 – 2 315 2 350 – 2 360
15 1 900 – 1 920 2 600 – 2 620 31 452,5 – 457,5 462,5 – 467,5

NOTE For a user equipment, uplink frequency means transmitting frequency and downlink frequency means
receiving frequency respectively.
5.1.2 TX filter response (filter response from TX port to antenna port)
Figure 2 shows an example of frequency characteristics of the TX filter. The required frequency
characteristics are low insertion attenuation in the transmitting frequency band (f ), high
T
insertion attenuation in the receiving frequency band (f ) and good impedance matching.
R

---------------------- Page: 15 ----------------------
SIST EN IEC 62604-2:2022
– 10 – IEC 62604-2:2022 © IEC 2022
5.1.3 RX filter response (filter response from antenna port to RX port)
Figure 3 shows an example of frequency characteristics of the RX filter. The required frequency
characteristics are low insertion attenuation in the receiving band (f ) and high insertion
R
attenuation in the transmitting frequency band (f ).
T
5.1.4 Isolation (isolation from TX port to RX port)
Figure 4 shows an example of isolation characteristics. One of the important functions for
duplexers is isolation characteristics, which show the frequency dependence of the leakage
power from the TX port to the RX port.

Figure 2 – Basic TX filter response example of SAW and BAW duplexers

Figure 3 – Basic RX filter response example of SAW and BAW duplexers

---------------------- Page: 16 ----------------------
SIST EN IEC 62604-2:2022
IEC 62604-2:2022 © IEC 2022 – 11 –

Figure 4 – Basic isolation characteristics example of SAW and BAW duplexers
5.2 Basic structure
Duplexers are 3-port devices/modules, which enable to transmit and receive signals
simultaneously through a common antenna. A basic structure of duplexers is shown in Figure 5.
SAW and BAW duplexers consist of a transmitter (TX) part and a receiver (RX) part. These two
parts, which can add a phase shifter, are connected to an antenna port. The phase shifter is
utilized to prevent the interaction between the filters. In Figure 5, Z and Z correspond to the
t r
impedance of the TX and RX part at the antenna port side, whereas Z is the impedance of the
o
antenna port. The following conditions shall be fulfilled to achieve the duplexer functions.
Z ≅ Z and |Z | >> |Z | in the TX pass band
t o r o
Z ≅ Z and |Z | >> |Z | in the RX pass band
r o t o
DMS (double mode SAW) type filters which are also known as LCRF (longitudinally coupled
1) 2)
resonator filters) , ladder type SAW and BAW filters and other type of SAW filters such as
3)
interdigitated interdigital transducer (lIDT) resonator filters can be adopted as TX and RX
filters. High power dura
...
