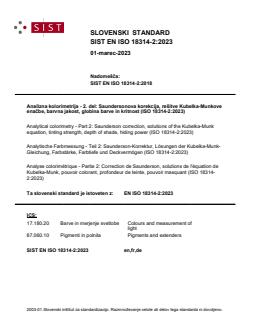

SIST EN ISO 18314-2:2023

SLOVENSKI STANDARD
01-marec-2023
Nadomešča:
SIST EN ISO 18314-2:2018
Analizna kolorimetrija - 2. del: Saundersonova korekcija, rešitve Kubelka-Munkove
enačbe, barvna jakost, globina barve in kritnost (ISO 18314-2:2023)
Analytical colorimetry - Part 2: Saunderson correction, solutions of the Kubelka-Munk
equation, tinting strength, depth of shade, hiding power (ISO 18314-2:2023)
Analytische Farbmessung - Teil 2: Saunderson-Korrektur, Lösungen der Kubelka-Munk-
Gleichung, Farbstärke, Farbtiefe und Deckvermögen (ISO 18314-2:2023)
Analyse colorimétrique - Partie 2: Correction de Saunderson, solutions de l'équation de
Kubelka-Munk, pouvoir colorant, profondeur de teinte, pouvoir masquant (ISO 18314-
2:2023)
Ta slovenski standard je istoveten z: EN ISO 18314-2:2023
ICS:
17.180.20 Barve in merjenje svetlobe Colours and measurement of
light
87.060.10 Pigmenti in polnila Pigments and extenders
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN ISO 18314-2
EUROPEAN STANDARD
NORME EUROPÉENNE
January 2023
EUROPÄISCHE NORM
ICS 87.060.10 Supersedes EN ISO 18314-2:2018
English Version
Analytical colorimetry - Part 2: Saunderson correction,
solutions of the Kubelka-Munk equation, tinting strength,
depth of shade, hiding power (ISO 18314-2:2023)
Analyse colorimétrique - Partie 2: Correction de Analytische Farbmessung - Teil 2: Saunderson-
Saunderson, solutions de l'équation de Kubelka-Munk, Korrektur, Lösungen der Kubelka-Munk-Gleichung,
pouvoir colorant, profondeur de teinte, pouvoir Farbstärke, Farbtiefe und Deckvermögen (ISO 18314-
masquant (ISO 18314-2:2023) 2:2023)
This European Standard was approved by CEN on 8 January 2023.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 18314-2:2023 E
worldwide for CEN national Members.

Contents Page
European foreword . 3

European foreword
This document (EN ISO 18314-2:2023) has been prepared by Technical Committee ISO/TC 256
"Pigments, dyestuffs and extenders" in collaboration with Technical Committee CEN/TC 298 “Pigments
and extenders” the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by July 2023, and conflicting national standards shall be
withdrawn at the latest by July 2023.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 18314-2:2018.
Any feedback and questions on this document should be directed to the users’ national standards
body/national committee. A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
Endorsement notice
The text of ISO 18314-2:2023 has been approved by CEN as EN ISO 18314-2:2023 without any
modification.
INTERNATIONAL ISO
STANDARD 18314-2
Second edition
2023-01
Analytical colorimetry —
Part 2:
Saunderson correction, solutions of
the Kubelka-Munk equation, tinting
strength, depth of shade and hiding
power
Analyse colorimétrique —
Partie 2: Correction de Saunderson, solutions de l'équation de
Kubelka-Munk, pouvoir colorant, profondeur de teinte et pouvoir
masquant
Reference number
ISO 18314-2:2023(E)
ISO 18314-2:2023(E)
© ISO 2023
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
ISO 18314-2:2023(E)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and abbreviated terms.3
5 Saunderson correction .4
5.1 General . 4
5.2 Incidence diffuse, observation 0° (d:0°) . 5
5.3 Incidence 45°, observation 0° (45°:0°) . 5
6 Solution of the Kubelka-Munk equations . 5
6.1 General . 5
6.2 Method 1 . 6
6.3 Method 2 . 6
7 Determination of relative tinting strength and residual colour difference of
coloured pigments . 7
7.1 General . 7
7.2 Principle . 7
7.3 Procedure . 7
7.3.1 General . 7
7.3.2 Evaluation of absorption at the absorption maximum . 7
7.3.3 Evaluation of the weighted K/S sum . 8
7.3.4 Evaluation by equalizing the tristimulus value, Y . 9
7.3.5 Evaluation by equalizing the smallest of the tristimulus values X, Y, and Z . 9
7.3.6 Evaluation by equalizing the depth of shade . 10
8 Determination of hiding power of pigmented media .12
8.1 General .12
8.2 Example for white or light-coloured paints with a contrast ratio of 0,98 as hiding
power criterion .12
9 Repeatability and reproducibility .13
Annex A (normative) Tables of coefficients for calculating a(φ) values (standard illuminant
D65 and 10° standard observer) .14
Annex B (normative) Tables of coefficients for calculating a(φ) values (illuminant C and 2°
standard observer) .16
Bibliography .18
iii
ISO 18314-2:2023(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 256, Pigments, dyestuffs and extenders, in
collaboration with the European Committee for Standardization (CEN) Technical Committee CEN/TC
298, Pigments and extenders, in accordance with the Agreement on technical cooperation between ISO
and CEN (Vienna Agreement).
This second edition cancels and replaces the first edition (ISO 18314-2:2015), which has been technically
revised.
The main changes are as follows:
— the title has been amended by “depth of shade”;
— the terms and definitions in Clause 3 have been aligned with ISO 18451-1;
— the document has been editorially revised and the bibliography has been updated.
A list of all parts in the ISO 18314 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
INTERNATIONAL STANDARD ISO 18314-2:2023(E)
Analytical colorimetry —
Part 2:
Saunderson correction, solutions of the Kubelka-Munk
equation, tinting strength, depth of shade and hiding
power
1 Scope
This document specifies the Saunderson correction for different measurement geometries and the
solutions of the Kubelka-Munk equation for hiding and transparent layers. It also specifies methods
for the calculations of the tinting strength including the residual colour difference based on different
criteria such as the depth of shade. Finally, methods for determining the hiding power are provided.
The procedures for preparing the samples for these measurements are not part of this document.
They are agreed between the contracting parties or are described in other national or international
standards.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
tinting strength
colour strength
measure of the ability of a colourant to colour other materials because of its absorptive power
[SOURCE: ISO 18451-1:2019, 3.122]
3.2
relative tinting strength
relative colour strength
percentage ratio of the tinting strength (3.1) of the colourant under test related to the tinting strength
of a reference colourant
[SOURCE: ISO 18451-1:2019, 3.105]
3.3
tinting strength criterion
parameter that describes the colouring effect of a colourant, based on its absorption
Note 1 to entry: The tinting strength criteria used in this document are the following:
ISO 18314-2:2023(E)
— value of the Kubelka-Munk function at the absorption maximum;
— weighted sum of the Kubelka-Munk function values;
— tristimulus value Y;
— the smallest of the tristimulus values X, Y, Z;
— shade depth parameter B.
Note 2 to entry: Examples of other tinting strength parameters not used in this document are the following:
— unweighted sum of the Kubelka-Munk function values;
— chromaticity given by the three colour coordinates (L*, a*, b*);
— reflectance factor at the absorption maximum.
3.4
residual colour difference
colour difference that remains between the white reductions of the reference and test samples when
the tinting strength criterion (3.3) values are the same or have been equalized
EXAMPLE Residual colour difference is given by ΔE*.
3.5
depth of shade
shade depth
colour depth
measure for the intensity of a colour perception that increases with increasing chroma and decreases
with increasing lightness
Note 1 to entry: Colourations having the same depth of shade appear to be prepared using the same concentrations
of colourants having the same tinting strength (3.1).
[SOURCE: ISO 18451-1:2019, 3.26, modified — admitted terms “shade depth” and “colour depth” have
been added.]
3.6
standard depth of shade
standard shade depth
standard colour depth
SD
depth of shade (3.5) level laid down by convention
[SOURCE: ISO 18451-1:2019, 3.113, modified — admitted terms “standard shade depth” and “standard
colour depth” have been added.]
3.7
hiding power
ability of coating to obliterate the colour or colour differences of the substrate
Note 1 to entry: The use of the German expressions “Deckkraft” und “Deckfähigkeit” should be avoided.
Note 2 to entry: The term “coverage” is ambiguous because it is used in some instances to refer to hiding power
and in others to mean spreading rate. The more precise terms hiding power and spreading rate should always be
used.
[SOURCE: ISO 18451-1:2019, 3.47]
ISO 18314-2:2023(E)
4 Symbols and abbreviated terms
a constant
a* CIELAB colour coordinate
a(φ) factor
a(λ) auxiliary variable
b* CIELAB colour coordinate
b(λ) auxiliary variable
B shade depth parameter
C relative tinting strength
rel
D hiding power value indicating the area of the contrast substrate concerned, in m , which can
m
be coated with 1 kg
D hiding power value indicating the area of the contrast substrate concerned, in m , which can
v
be coated with 1 l
F(λ) Kubelka-Munk function
F′(λ) modified Kubelka-Munk function
g(λ) weighting function (defined as the sum of the colour matching functions x()λ , y()λ , and
z λ for a 10° standard observer)
()
h thickness
K coefficient
K(λ) absorption coefficient
(K/S) Kubelka-Munk value of reference sample
r
(K/S) Kubelka-Munk value of test sample
t
L* CIELAB lightness
m mass fraction of coloured pigment reference sample
r
m mass fraction of coloured pigment test sample
t
n refractive index
r reflection coefficient at the surface for directional light incident perpendicular from outside
reflection coefficient at the surface for directional light incident parallel under 45° from outside
r
r reflection coefficient for light incident diffusely from the inside of the specimen
R()λ reflectance spectrum
R λ reflectance of infinitely thick layer
()
∞
*
Saunderson-corrected reflectance spectrum
R()λ
ISO 18314-2:2023(E)
*
Saunderson-corrected reflectance of the black substrate
R λ
()
ob
*
Saunderson-corrected reflectance of the white substrate
R λ
()
ow
*
Saunderson-corrected reflectance of the sample on black substrate
R()λ
b
*
Saunderson-corrected reflectance of the sample on white substrate
R()λ
w
R′ λ modified reflectance spectrum including surface effects
()
s saturation
S()λ scattering coefficient
SD standard depth of shade
T weighted sum
x, y chromaticity coordinates
X, Y, Z tristimulus values
ΔE *
residual colour difference
*
CIELAB colour difference
ΔE
ab
φ hue angle
φ closest angle in the table below the hue angle
o
r as a subscript, r refers to the reference sample
t as a subscript, t refers to the test sample
5 Saunderson correction
5.1 General
For colorimetric calculation it is necessary to account for surface phenomena to obtain viable results.
The formulae are known as Saunderson correction, and their derivation can be found in References [1]
[3]
and [2]. The necessary coefficients are solutions of the Fresnel formulae depending on the index of
refraction for the given binder.
The formulae are derived assuming an ideal surface, a perfectly hiding layer and a perfectly diffuse
scattering of light inside the interior of the specimen. Any deviation from these assumptions shall lead
to consideration of the usefulness of the following calculations.
The formulae given here are for two of the most widespread geometries: diffuse incidence, 0°
observation (d:0°) [Formula (1), Formula (2) and Formula (3)] and 45° incidence, 0° observation (45°:0°)
[Formula (4) and Formula (5)]. In nearly every colorimeter used, the measurement angle is not 0° but
8°. This deviation is not considered problematic.
The constants necessary for the calculation are the following:
r reflection coefficient at the surface for directional light incident perpendicular from outside.
For n = 1,5 r = 0,040.
ISO 18314-2:2023(E)
reflection coefficient at the surface for directional light incident parallel under 45° from out-
r
side. For n = 1,5, r = 0,050.
r reflection coefficient for light incident diffusely from the inside of the specimen. For n =
1,5, r = 0,596.
5.2 Incidence diffuse, observation 0° (d:0°)
The constant a = 1 if a gloss trap is closed and a = 0 if the gloss trap is open and the specular reflection
is excluded.
*
11−rr− R λ
()() ()
Rrλ =+a (1)
()
*
1−rR()λ
Where a = 1:
Rrλ −
()
*
R λ = (2)
()
11−−rr −R()λ
[]
Where a = 0:
R()λ
*
R λ = (3)
()
1 −−rr  ++rr R()λ
[]
02 20
5.3 Incidence 45°, observation 0° (45°:0°)
*
11−rr− R()λ
()()
n
R()λ = (4)
*
1−rR()λ
nR λ
()
*
R λ = (5)
()
1−−+rr rr +nr R()λ
00 00 2
6 Solution of the Kubelka-Munk equations
6.1 General
The Kubelka-Munk theory describes the reflection of a pigmented layer by two constants: absorption,
K(λ), and scattering, S(λ). It is based on the following assumptions:
a) ideally diffuse radiation distribution on the irradiation side;
b) ideally diffuse radiation distribution in the interior of the layer;
c) no consideration of surface phenomena resulting from the discontinuity in refractive index.
ISO 18314-2:2023(E)
For an infinitely thick, respectively hiding layer with a reflectance of R(λ) , the following solutions
∞
shown in Formula (6) and Formula (7) are found, which allow the determination of the relation between
the scattering and the absor
...
