SIST EN 14399-2:2015
(Main)High-strength structural bolting assemblies for preloading - Part 2: Suitability for preloading
High-strength structural bolting assemblies for preloading - Part 2: Suitability for preloading
This European Standard specifies the technical requirements for high-strength structural bolting assemblies in order to ensure the suitability for preloading of bolted connections in metallic structures.
A suitability test is specified to check the behaviour of the structural bolting assemblies so as to ensure that the required preload can be reliably obtained by the tightening methods specified in EN 1090 2 with sufficient margins against overtightening and against failure.
Hochfeste vorspannbare Garnituren für Schraubverbindungen im Metallbau - Teil 2: Eignung zum Vorspannen
Dieses Dokument legt die technischen Anforderungen an hochfeste Garnituren für Schraubverbindun¬gen im Metallbau fest, um deren Eignung für das Vorspannen von Schraubverbindungen in Metallkonstruktionen sicherzustellen.
Eine Eignungsprüfung wird festgelegt, um das Verhalten der Garnitur für Schraubverbindungen zu prüfen. Diese soll sicherstellen, dass die geforderte Vorspannkraft zuverlässig — mit ausreichend Reserven gegen übermäßiges Anziehen und gegen Versagen — mit den Anziehverfahren, die in EN 1090 2 festgelegt sind, erreicht werden kann.
Boulonnerie de construction métallique à haute résistance apte à la précontrainte - Partie 2: Aptitude à l'emploi pour la mise en précontrainte
La présente Norme européenne spécifie les exigences techniques pour la boulonnerie de construction métallique à haute résistance afin de vérifier l'aptitude à l'emploi pour la mise en précontrainte des assemblages boulonnés dans les structures métalliques.
Un essai d'aptitude à l'emploi est spécifié pour vérifier le comportement de la boulonnerie de construction de façon à s’assurer que la précontrainte requise peut être obtenue de façon fiable avec les méthodes de serrage spécifiées dans l'EN 1090-2, avec une marge de sécurité suffisante vis-à-vis du surserrage et de la rupture.
Visokotrdnostne strukturne vijačne zveze za prednapetje - 2. del: Primernost za prednapetje
Ta dokument določa tehnične zahteve za visokotrdnostne strukturne vijačne zveze, da se zagotovi primernost za prednapetje vijačnih povezav v kovinskih strukturah. Določen je preskus primernosti za preverjanje obnašanja pritrdilne zveze, da se zagotovi zahtevano zanesljivo prednapetje načinov zategovanja, določenih v standardu EN 1090-2, z zadostnimi mejami, ki preprečujejo prezatezanje in okvare.
General Information
- Status
- Published
- Public Enquiry End Date
- 06-Nov-2014
- Publication Date
- 23-Mar-2015
- Technical Committee
- ISEL - Mechanical elements
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 17-Mar-2015
- Due Date
- 22-May-2015
- Completion Date
- 24-Mar-2015
Relations
- Effective Date
- 01-May-2015
Overview
EN 14399-2:2015 - High-strength structural bolting assemblies for preloading - Part 2: Suitability for preloading (CEN) specifies the technical requirements and a suitability test to verify that high‑strength bolting assemblies can reliably achieve the required preload in metallic structures. The standard ensures bolted connections tightened using the methods in EN 1090‑2 reach intended bolt force with safe margins against overtightening and failure.
Key topics and technical requirements
- Suitability test: Defines test apparatus, test assemblies and procedures to evaluate assembly behaviour during tightening. Test outputs include rotation/bolt‑force, torque/bolt‑force and elongation/bolt‑force curves to assess performance.
- Preload criteria: Verifies that assemblies can obtain required preload (Fp,C) and defines evaluation metrics (individual and mean bolt forces, k‑factor, variation).
- Component composition and marking: Specifies allowed combinations (systems HR, HV, HRC), mandatory marking (manufacturer ID, system letter H and property class symbols) and the need to avoid mixing systems.
- Manufacturing and coatings: Requires compatible coatings under manufacturer control, attention to hydrogen embrittlement risks (especially for property class 10.9), rolled threads for 10.9 bolts, and that hot‑dip galvanized nuts be galvanized before threading. Nuts must not be re‑threaded.
- Delivery conditions: Bolting assemblies must be supplied in sealed packaging from one manufacturer (either complete sets or component packs) to preserve preloading suitability.
- Test reporting and quality control: Sets expectations for test reports and information to be supplied with products (tightening guidance per EN 1090‑2).
Applications
- Quality assurance for preloaded bolted connections in structural steel and metallic construction.
- Verification by manufacturers that bolt/nut/washer assemblies meet functional preload requirements before shipment.
- Use by fabricators, structural engineers and contractors to select assemblies that will perform reliably when tightened on site.
- Support for procurement, inspection and compliance checks during execution of steel structures.
Who uses this standard
- Bolt and fastener manufacturers (product design, marking, coating control)
- Structural steel fabricators and erectors (assembly selection and installation)
- Structural engineers and specification writers (design and compliance)
- Quality inspectors, testing laboratories and certification bodies
Related standards
- EN 14399 series (Parts 1, 3–10) - general requirements and component specifications
- EN 1090‑2 - tightening methods and execution requirements for steel structures
- EN ISO 898‑1 / EN ISO 898‑2 - mechanical properties of bolts and nuts
Keywords: EN 14399-2:2015, high-strength structural bolting assemblies, suitability for preloading, preload test, EN 1090-2, bolted connections, structural bolting, hydrogen embrittlement.
Frequently Asked Questions
SIST EN 14399-2:2015 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "High-strength structural bolting assemblies for preloading - Part 2: Suitability for preloading". This standard covers: This European Standard specifies the technical requirements for high-strength structural bolting assemblies in order to ensure the suitability for preloading of bolted connections in metallic structures. A suitability test is specified to check the behaviour of the structural bolting assemblies so as to ensure that the required preload can be reliably obtained by the tightening methods specified in EN 1090 2 with sufficient margins against overtightening and against failure.
This European Standard specifies the technical requirements for high-strength structural bolting assemblies in order to ensure the suitability for preloading of bolted connections in metallic structures. A suitability test is specified to check the behaviour of the structural bolting assemblies so as to ensure that the required preload can be reliably obtained by the tightening methods specified in EN 1090 2 with sufficient margins against overtightening and against failure.
SIST EN 14399-2:2015 is classified under the following ICS (International Classification for Standards) categories: 21.060.01 - Fasteners in general. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 14399-2:2015 has the following relationships with other standards: It is inter standard links to SIST EN 14399-2:2005. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
SIST EN 14399-2:2015 is associated with the following European legislation: EU Directives/Regulations: 97/23/EC. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase SIST EN 14399-2:2015 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.SUHGQDSHWMHHochfeste vorspannbare Garnituren für Schraubverbindungen im Metallbau - Teil 2: Eignung zum VorspannenBoulonnerie de construction métallique à haute résistance apte à la précontrainte - Partie 2: Aptitude à l'emploi pour la mise en précontrainteHigh-strength structural bolting assemblies for preloading - Part 2: Suitability for preloading21.060.01Vezni elementi na splošnoFasteners in generalICS:Ta slovenski standard je istoveten z:EN 14399-2:2015SIST EN 14399-2:2015en,fr,de01-maj-2015SIST EN 14399-2:2015SLOVENSKI
STANDARDSIST EN 14399-2:20051DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 14399-2
February 2015 ICS 21.060.01 Supersedes EN 14399-2:2005English Version
High-strength structural bolting assemblies for preloading - Part 2: Suitability for preloading
Boulonnerie de construction métallique à haute résistance apte à la précontrainte - Partie 2 : Aptitude à l'emploi pour la mise en précontrainte
Hochfeste vorspannbare Garnituren für Schraubverbindungen im Metallbau - Teil 2: Eignung zum Vorspannen This European Standard was approved by CEN on 18 October 2014.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2015 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 14399-2:2015 ESIST EN 14399-2:2015

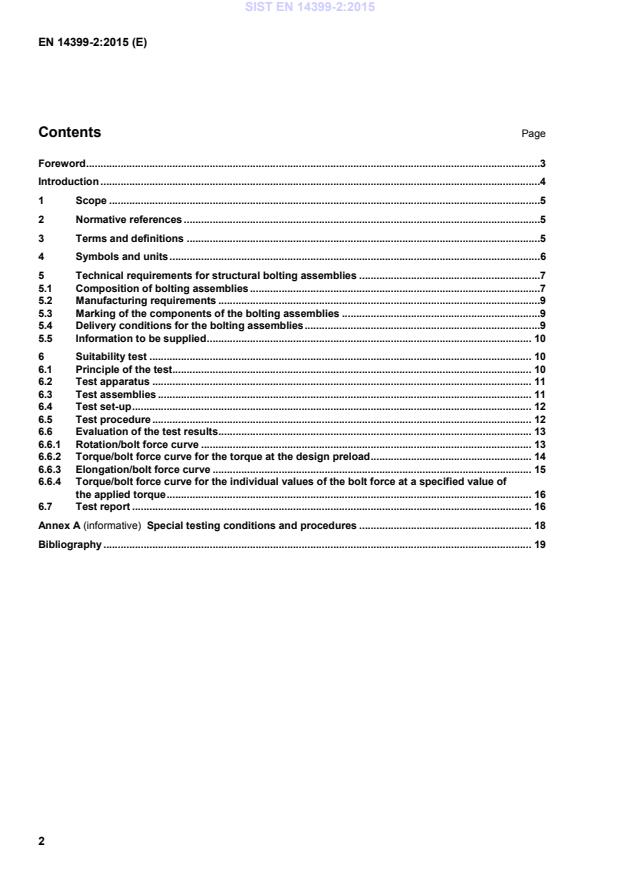

Special testing conditions and procedures . 18 Bibliography . 19
angle of rotation of the nut relative to the bolt, (°) pi individual value of the angle
at which the bolt force has first reached the value of Fp,C, (°) 1i individual value of the angle
at which the bolt force has reached its maximum value Fbi,max, (°) 2i individual value of the angle , (°) û1i individual angle difference (1i − pi), (°) û2i individual angle difference (2i − pi), (°) û2min minimum required value of the angle difference û2i as specified in the relevant product standard (°) t clamp length given as the total thickness of the clamped parts between the nut bearing face and the bolt head bearing face, (mm) SIST EN 14399-2:2015
...
