Overview
EN 15380-3:2006 - "Railway applications - Designation system for railway vehicles - Part 3: Designation of installation sites and locations" (CEN) defines standardized rules for identifying where equipment, assemblies and objects are installed in railway vehicles. The standard supports consistent installation planning and traceability of vehicle parts, structural units and combined assemblies across design, production, maintenance and documentation.
Key topics
- Designation purpose: Systematizes the naming of installation sites and precise locations within vehicles to enable unambiguous identification and traceability.
- Installation-site format: An installation-site designation uses the prefix "++" followed by a set of codes (three code letters and two code numbers) to indicate vehicle fleet, train type, vehicle type and position within a fixed train configuration.
- Location format: A location designation uses the prefix "+" followed by product-group code (EN 15380-2), two numeric location digits, a classification mark and optional finer location identifiers (areas or coordinates).
- Location hierarchy: The standard provides a numeric subdivision for vehicle zones (see Table 1). Examples include:
- 00: Roof, outside
- 10–19: Driver’s cab and related sub-areas (e.g., desk, floor, ceiling)
- 20–39: Side walls (right/left and subdivisions)
- 40–59: Interior right/left side areas
- 60: Interior ceiling (including double-decker intermediate ceilings)
- 70: Underframe
- 80: End wall / gangway / single-unit driver’s cab areas
- Examples and illustrations: Annex A supplies graphic examples for locomotives, high-speed and suburban vehicles to help implement location and installation-site codes practically.
Applications and who uses it
EN 15380-3 is used by:
- Vehicle designers and systems engineers for consistent placement and documentation of equipment
- Maintenance planners and workshops for precise fault localization and servicing instructions
- Technical writers and documentation teams producing drawings, manuals and spare-part lists
- Suppliers and integrators to reference exact installation points when delivering components
- Asset management and configuration control teams ensuring traceability across a fleet
Practical uses include installation planning, wiring and piping routing, spare parts ordering, configuration management, maintenance records and interoperability documentation.
Related standards
- EN 15380-1:2006 - General principles of the designation system
- EN 15380-2 - Product group coding used in location designations
- EN 13775-1 - Defines direction of travel conventions referenced in location numbering
By adopting EN 15380-3:2006, organizations achieve uniform, unambiguous location coding for railway vehicles that improves documentation quality, maintenance efficiency and cross-supplier communication.
Frequently Asked Questions
SIST EN 15380-3:2006 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Railway applications - Designation system for railway vehicles - Part 3: Designation of installation sites and locations". This standard covers: As a railway-specific technical standard, this document gives rules for the designation of installation sites and locations in railway vehicles.
As a railway-specific technical standard, this document gives rules for the designation of installation sites and locations in railway vehicles.
SIST EN 15380-3:2006 is classified under the following ICS (International Classification for Standards) categories: 01.110 - Technical product documentation; 45.060.01 - Railway rolling stock in general. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 15380-3:2006 is associated with the following European legislation: EU Directives/Regulations: 93/38/EEC, 96/48/EC; Standardization Mandates: M/024. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase SIST EN 15380-3:2006 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Railway applications - Designation system for railway vehicles - Part 3: Designation of installation sites and locationsApplications ferroviaires - Systeme de classification pour véhicules ferroviaires - Partie 3: Description des positions d'installationBahnanwendungen - Kennzeichnungssystematik für Schienenfahrzeuge - Teil 3: Kennzeichnung von Aufstellungs- und EinbauortenTa slovenski standard je istoveten z:EN 15380-3:2006SIST EN 15380-3:2006en45.060.01Železniška vozila na splošnoRailway rolling stock in general01.110L]GHONHTechnical product documentationICS:SLOVENSKI
STANDARDSIST EN 15380-3:200601-oktober-2006
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 15380-3April 2006ICS 01.110; 45.060.01 English VersionRailway applications - Designation system for railway vehicles -Part 3: Designation of installation sites and locationsApplications ferroviaires - Système de classification pourvéhicules ferroviaires - Partie 3: Description des positionsd'installationBahnanwendungen - Kennzeichnungssystematik fürSchienenfahrzeuge - Teil 3: Kennzeichnung vonAufstellungs- und EinbauortenThis European Standard was approved by CEN on 6 March 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2006 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 15380-3:2006: E

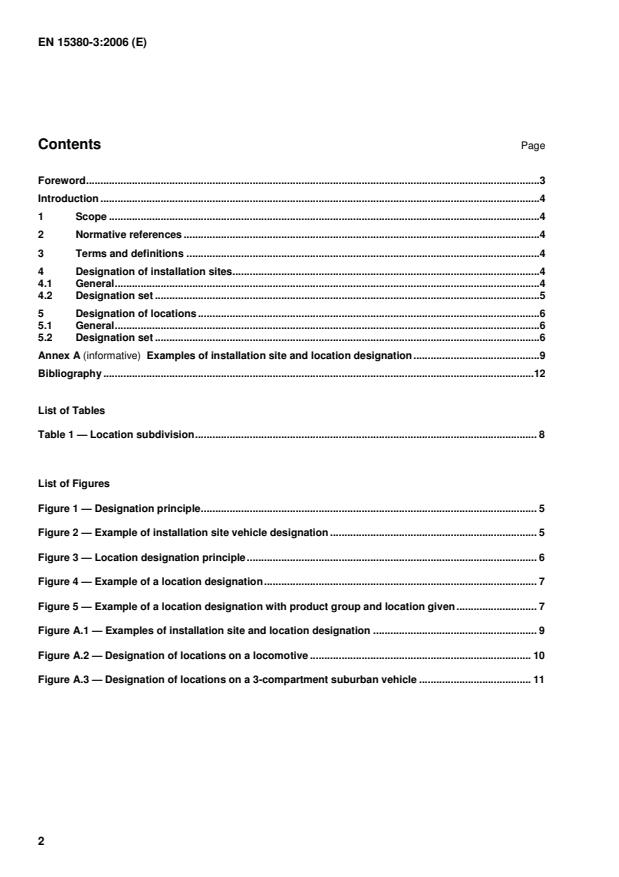

Examples of installation site and location designation.9 Bibliography.12
