SIST EN 13458-3:2003

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Cryogenic vessels - Static vacuum insulated vessels - Part 3: Operational requirementsKriogene posode - Stabilne, vakuumsko izolirane posode - 3. del: Obratovalne zahteveRécipients cryogéniques - Récipients fixes isolés sous vide - Partie 3: Exigences opérationnellesKryo-Behälter - Ortsfeste vakuum-isolierte Behälter - Teil 3: BetriebsanforderungenTa slovenski standard je istoveten z:EN 13458-3:2003SIST EN 13458-3:2003en23.020.40ICS:SLOVENSKI
STANDARDSIST EN 13458-3:200301-december-2003







EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13458-3May 2003ICS 23.020.40English versionCryogenic vessels - Static vacuum insulated vessels - Part 3:Operational requirementsRécipients cryogéniques - Récipients fixes isolés sous vide- Partie 3: Exigences opérationnellesKryo-Behälter - Ortsfeste vakuum-isolierte Behälter - Teil 3:BetriebsanforderungenThis European Standard was approved by CEN on 21 February 2003.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and UnitedKingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2003 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13458-3:2003 E

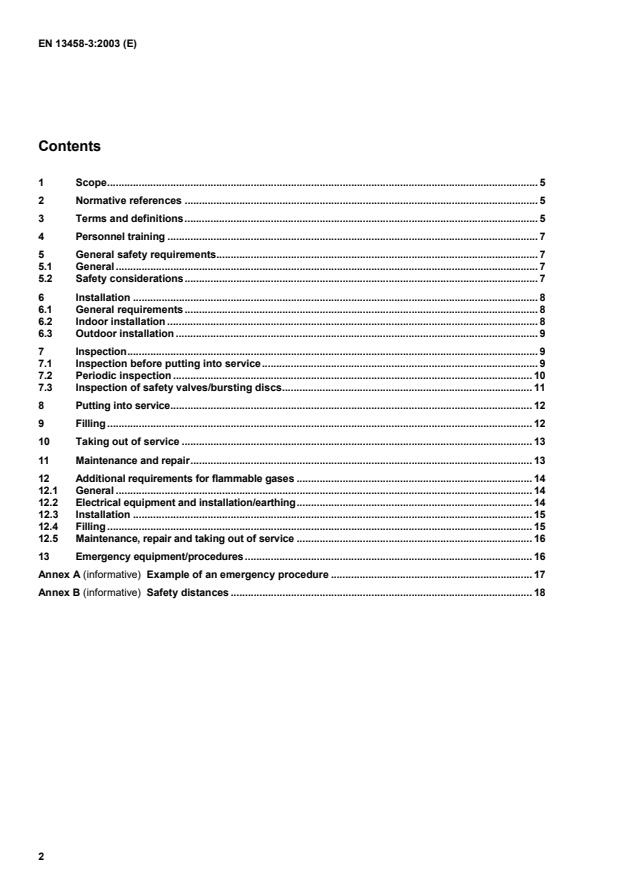

EN 13458-3:2003 (E)2Contents1Scope.52Normative references.53Terms and definitions.54Personnel training.75General safety requirements.75.1General.75.2Safety considerations.76Installation.86.1General requirements.86.2Indoor installation.86.3Outdoor installation.97Inspection.97.1Inspection before putting into service.97.2Periodic inspection.107.3Inspection of safety valves/bursting discs.118Putting into service.129Filling.1210Taking out of service.1311Maintenance and repair.1312Additional requirements for flammable gases.1412.1General.1412.2Electrical equipment and installation/earthing.1412.3Installation.1512.4Filling.1512.5Maintenance, repair and taking out of service.1613Emergency equipment/procedures.16Annex A (informative)
Example of an emergency procedure.17Annex B (informative)
Safety distances.18



EN 13458-3:2003 (E)3ForewordThis document (EN 13458-3:2003) has been prepared by Technical Committee CEN/TC 268 “Cryogenic vessels”,the secretariat of which is held by AFNOR.This European Standard shall be given the status of a national standard, either by publication of an identical text orby endorsement, at the latest by November 2003, and conflicting national standards shall be withdrawn at the latestby November 2003.This document has been prepared under a mandate given to CEN by the European Commission and the EuropeanFree Trade Association, and supports essential requirements of EU Directive(s).For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document.According to the CEN/CENELEC Internal Regulations, the national standards organizations of the followingcountries are bound to implement this European Standard: Austria, Belgium, Czech Republic, Denmark, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal,Slovakia, Spain, Sweden, Switzerland and the United Kingdom.Annexes A and B are informative.EN 13458 consists of the following Parts under the general title, Cryogenic vessels – Static vacuum insulatedvessels:– Part 1: Fundamental requirements.– Part 2: Design, fabrication, inspection and testing.– Part 3: Operational requirements.



EN 13458-3:2003 (E)4IntroductionElements of this document support the requirements of the Pressure Equipment Directive and other national orlocal requirements.Static cryogenic vessels are often partly equipped by the manufacturer, but may be installed or re-installed byanother party, such as the operator, the user or the owner. For this reason some of the scope this EuropeanStandard which includes installation, putting into service, inspection, filling, maintenance and emergency procedureoverlaps with some of the parts EN 13458-1 and EN 13458-2.



EN 13458-3:2003 (E)51 Scope1.1This European Standard specifies operational requirements for static vacuum insulated vessels designed fora maximum allowable pressure of more than 0.5 bar. It may also be used as a guideline for vessels designed for amaximum allowable pressure of less than 0,5 bar.1.2This European Standard applies to vessels designed for cryogenic fluids specified in EN 13458-1.2 Normative referencesThis European Standard incorporates by dated or undated reference, provisions from other publications. Thesenormative references are cited at the appropriate places in the text and the publications are listed hereafter. Fordated references, subsequent amendments to or revisions of any of these publications apply to this EuropeanStandard only when incorporated in it by amendment or revision. For undated references the latest edition of thepublication referred to applies (including amendments).EN 12300, Cryogenic vessels - Cleanliness for cryogenic service.EN 13458-1:2002 Cryogenic vessels - Static vacuum insulated vessels – Part 1: Fundamental requirements.EN 13458-2:2002, Cryogenic vessels - Static vacuum insulated vessels – Part 2: Design, fabrication, inspectionand testing.3 Terms and definitionsFor the purposes of this European Standard, the following terms and definitions apply in addition to those given inEN 13458-1:2002.3.1putting into serviceoperation by which a vessel is prepared to be used for the first time3.2fillingoperation by which a vessel undergoes a prefill check, filling with a cryogenic fluid and an after fill check3.3withdrawaloperation by which the product is taken from a vessel connected to the supply system3.4outdoor locationlocation outside of any building or structure and not enclosed by more than two walls3.5underground locationarea or room whose ground or floor is on all sides significantly lower than the adjacent ground surfacesNOTEInstallations should be considered on an individual base after a suitable and sufficient risk assessment has beencarried out.3.6safety distancesafety distance from a piece of equipment with inherent hazard is that minimum separation which will mitigate theeffect of a likely foreseeable incident and prevent a minor incident escalating into a larger incident



EN 13458-3:2003 (E)6Included in safety distances are:¾ distances between vessels and neighbouring installations, buildings or public roads, the purpose of which is toprotect the vessel from any damage, such as heating as a result of fire or mechanical damage;¾ the distance between the vessel and an object outside the installation, which has to be protected from theeffects of a gas release arising from normal operation. These distances are measured from those points on avessel from which in the normal course of operation a release of product may occur, e.g. vent point, fillconnection, flanges or other mechanical joints.The safety distance is the distance, outside of which:¾ in the case of flammable gases dangers through formation of an explosive atmosphere is eliminated, i.e. thelower explosive limit (LEL) is not exceeded;¾ in the case of inert and oxidising gases, dangers from a lack of oxygen or enrichment are eliminated.The safety distances defined in annex B are based on experience and calculation of minor releases. They aregiven for inert fluids, oxidising fluids and flammable fluids.The maximum volumes/masses of product in the vessel considered are as follows:¾ 175 m3 for inert fluids;¾ 200 t for oxidising fluids (corresponding to approx. 175 m3 LOX);¾ 5 t for liquid hydrogen (corresponding to approx. 75 m3 LH2); and¾ 50 t for other flammable fluids.For larger volumes/masses of products in the vessel the safety distances shall be determined by a specific hazardstudy.The safety distances are not intended to provide protection against catastrophic events or major releases andthese should be addressed by other means to reduce the frequency and/or consequences to an acceptable level.3.7gas releasegas release may be due to operating conditions or malfunctions. Gas escape, caused by malfunctions, which canbe reasonably excluded, are not taken into accountGas release for operating reasons may be produced, for example; on¾ vent lines;¾ pressure release lines.Gas escape due to malfunctions which cannot be excluded may occur, for example, in the case of:¾ overfilling;¾ failure of fittings;¾ loose connections;¾ faulty operation;¾ leakages.



EN 13458-3:2003 (E)73.8vesselthroughout this standard, vessel means a static cryogenic vessel as defined in 3.2 of EN 13458-1:2002.4 Personnel trainingOnly persons trained for the specific task shall be allowed to install, put into service, fill, handle, operate or maintainthe vessel.The training programme shall include:¾ normal operating procedures;¾ product and hazard identification;¾ safe operating limits;¾ emergency procedures;¾ physical and chemical properties of the vessel's contents and their effects on the human body;¾ personnel protective equipment (e.g. safety boots/goggles/gloves).Training shall be repeated as necessary to ensure that personnel remain competent. A training record should bemaintained which details the information personnel have received.5 General safety requirements5.1 GeneralIdentification labels and plates shall not be removed or defaced. Appropriate warning signs regarding product andoperational hazards and personnel protective equipment requirements should be displayed. Parts under pressureshall be disconnected only if they have been previously depressurised. When under pressure leaking valves orconnections may only be tightened using suitable tools and procedures. Direct flame or intense heat shall never beused to raise the pressure or to de-ice frozen valves.Vessels shall be kept free from oil and grease; for cleanliness requirements see EN 12300. Valve outlets shall bekept clean, dry and free from contaminants. Vessels shall not be modified without proper authorisation.5.2 Safety considerationsIn all operations and training the following safety considerations shall be taken into account:¾ small amounts of cryogenic fluids will produce large volumes of vaporised gas. Spillage of cryogenic fluids canresult in an oxygen deficient atmosphere, or in the case of vaporising oxygen, in an oxygen enrichedatmosphere. Provision is to be made for appropriate measures for this, e.g. ventilation;¾ due to the possibility of cold embrittlement, cryogenic fluids shall not come in contact with materials (metals orplastics) which are not suitable for low temperatures;¾ because of their extremely low temperatures, cryogenic fluids will produce cold burns when coming in contactwith the skin. Cold burns can also be produced from contact with uninsulated equipment and pipe;¾ oxygen enrichment due to liquefaction of ambient air can occur on the cold surfaces of uninsulated equipmentwhich contain fluids with a boiling point lower than oxygen.



EN 13458-3:2003 (E)86 Installation6.1 General requirementsVessels shall be installed and operated in such a way that employees or third parties are not endangered.Necessary safety distances shall be observed; see also annex B (informative).Vessels shall be installed so that the name plate is easily readable.The installation should allow inspection of vessels on all sides. All vessel controls shall be capable of beingoperated safely.Vessels shall be installed in such a way that its filling operation can be carried out safely.Vessels shall be erected in such a way that no inadmissible misalignment or inclination can occur due to:¾ the actual foundations;¾ the inherent mass of the vessel including its contents;¾ external forces.Gas from pressure relief devices or vents shall be discharged to a safe place.Appropriate warning signs regarding product hazards shall be displayed, e.g. in rooms, areas, or on vessels; theoperating instructions shall also refer to the hazardous properties of the gas.Vessels shall be installed in locations where there is sufficient ventilation such that the formation of dangerousexplosive gas-air mixtures or an oxygen deficient/enriched atmosphere is avoided.Vessels shall be installed in such a way that adequate space is provided for maintenance and cleaning, as well asfor emergency cases.The adequate space for maintenance and cleaning should be at least 0,5 m around the installation.Vessels shall not be installed in corridors, passages or thoroughfares, generally accessible lobbies, stair-wells ornear steps. Vessels should not be installed close to the aforementioned areas either, if traffic routes, escape routesor accessibility are limited.Access by unauthorised persons should be prevented.The floor under vessels as well as below detachable connections and fittings on the liquid phase on oxidisinggases shall be of non-flammable materials and free of oil, grease and other flammable contaminants.Consideration shall also be given to the need for similar precautions on liquid hydrogen and liquid heliuminstallations where significant air liquefaction may occur around uninsulated equipment.Pressure relief devices shall be provided to prevent overpressure of the equipment connected down stream of thevessel's outlet.If this connected equipment is not designed for low temperatures safety devices shall be provided to protect itagainst possible low operating temperatures.6.2 Indoor installationVessels should be installed outdoors wherever reasonably possible. If an indoor installation has to be carried outthe following safety precautions shall apply.The entrance of rooms in which vessels are installed shall be labelled. Reference shall be made to the hazardousproperties of the gas.



EN 13458-3:2003 (E)9Rooms shall:¾ have self-closing doors, where these do not lead directly outside;¾ consist of materials which are fire resistant or non-combustible, with the exception of windows and -otherclosures of apertures in external walls;¾ be separated from other rooms in accordance with a fire resistance class of 30 min;¾ be separated in a gas-tight manner and without any apertures, from rooms normally occupied by public;¾ have adequate ventilation; gas release from the trycock valve shall be taken into account when assessing theventilation requirements.Precautions/procedures shall be implemented to ensure that personnel entering or within the rooms are notexposed to hazardous atmospheres.Rooms containing vessels shall not be used in any other way which may be a danger to the vessels due tomechanical effects, fire or explosion.Filling connections shall be hard piped to an outdoor location.In rooms there shall be no:¾ air intake openings for the ventilation of other rooms;¾ open ducts;¾ any ducts inlets unprotected against the ingress of gas;¾ open shafts;¾ openings to lower rooms.6.3 Outdoor installationThe drainage of surface water from the place of installation shall be ensured.On sloping sites an installation may be necessary to prevent gas from penetrating over the place of installationdown into lower rooms, ducts, shafts or air intakes; this may be a wall for example.Vessels and their components shall be protected against mechanical damage, e.g. by vehicle buffer bars,enclosures, safety distances. The protection of vessel supports against leaking cryogenic fluid should beconsidered.7 InspectionThe tests and inspections shall be carried out by a competent person.7.1 Inspection before putting into serviceThe inspection comprises:¾ checking the markings;¾ checking the completeness of the handover documents;¾ checking the equipment;



EN 13458-3:2003 (E)10¾ checking the installation.7.1.1 Marking and labellingMarking and labelling shall be in accordance with EN 13458-1.7.1.2 Handover documentsIn addition to the manufacturer's documentation, where necessary the cryogenic vessel shall be accompanied byvessel specific documents and instructions for all items supplied covering:¾ operations;¾ auxiliary equipment;¾ inspection records.These documents shall be retained by the owner or user of the vessel.The user shall have appropriate operating instructions available. Such instructions may be attached to the vessel ina
...
