ISO 21342:2019

INTERNATIONAL ISO
STANDARD 21342
First edition
2019-05
Synchronous belt drives — Automotive
belts and pulleys
Reference number
©
ISO 2019
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved

Contents Page
Foreword .iv
1 Scope . 1
2 Normative reference . 1
3 Terms and definitions . 1
4 Profiles . 1
5 Belt designation . 2
6 Belt dimensions and tolerances . 2
6.1 Belt tooth dimensions — Trapezoidal tooth belts of types ZA and ZB . 2
6.2 Belt tooth dimensions — Curvilinear tooth belts of types ZH and YH . 3
6.3 Belt tooth dimensions — Curvilinear tooth belts of types YR and ZR . 4
6.4 Belt tooth dimensions — Curvilinear tooth belts of types YS and ZS . 5
6.5 Belt pitch length and tolerances . 6
6.6 Belt widths and tolerances . 7
7 Pitch length measurement . 7
7.1 Measuring fixture. 7
7.2 Total measuring force . 8
7.3 Procedure . 8
7.4 Dimensions and clearance between measuring pulley and belt, and measuring
pulley grooves . 9
8 Lateral runout measurement .12
8.1 Fixture .12
8.1.1 Belt .12
8.1.2 Pulleys .12
8.2 Measuring device .12
8.3 Procedure .12
8.4 Results .12
9 Pulley types .13
10 Pulley designation .13
11 Pulley groove profile .14
11.1 Pulleys of types ZA and ZB (involute groove profile) .14
11.2 Pulleys of types ZH and YH .15
11.3 Pulleys of types ZR and YR.16
11.4 Pulleys of types ZS and YS .16
12 Pulley dimensions and tolerances .17
12.1 Pitch tolerances .17
12.2 Pulley outside diameter tolerances .17
12.3 Minimum pulley width .18
12.4 Flange dimensions .18
12.5 Other pulley tolerances .19
12.5.1 Axial runout.19
12.5.2 Radial runout .20
12.5.3 Parallelism .20
12.5.4 Taper.20
13 Quality specification .20

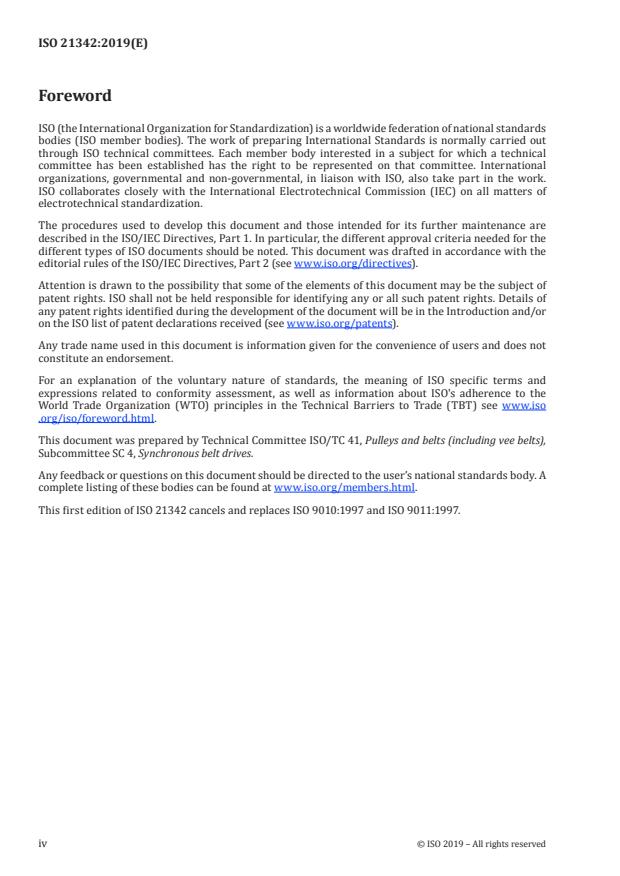

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 41, Pulleys and belts (including vee belts),
Subcommittee SC 4, Synchronous belt drives.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
This first edition of ISO 21342 cancels and replaces ISO 9010:1997 and ISO 9011:1997.
iv © ISO 2019 – All rights reserved

INTERNATIONAL STANDARD ISO 21342:2019(E)
Synchronous belt drives — Automotive belts and pulleys
1 Scope
This document specifies the characteristics of synchronous endless belts and their related pulleys for
use in automotive applications such as engine camshaft drives.
The characteristics include:
— belt pitch spacing;
— belt nominal tooth dimensions;
— belt width and width tolerance;
— belt pitch length and pitch length tolerance;
— pulley groove dimensions and tolerances;
— pulley tolerances and quality specifications.
Test methods for measuring belt pitch length and lateral runout are also included.
2 Normative reference
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 254, Belt drives — Pulleys — Quality, finish and balance
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https: //www .iso .org/obp.
— IEC Electropedia: available at http: //www .electropedia .org/
4 Profiles
The following profiles for synchronous drives for automotive applications are standardized:
— type ZA: trapezoidal tooth;
— type ZB: trapezoidal tooth;
— type ZH: curvilinear tooth, "H" system;
— type YH: curvilinear tooth, "H" system;
— type ZR: curvilinear tooth, "R" system;
— type YR: curvilinear tooth, "R" system;
— type ZS: curvilinear tooth, "S" system;
— type YS: curvilinear tooth, "S" system.
5 Belt designation
A belt is designated by a series of numbers and letters as follows:
a) the first set of numbers indicates the number of teeth;
b) the first letter indicates tooth pitch;
c) the second letter indicates tooth profile;
d) The second set of numbers indicates the width in millimetres.
EXAMPLE
6 Belt dimensions and tolerances
6.1 Belt tooth dimensions — Trapezoidal tooth belts of types ZA and ZB
The nominal belt tooth dimensions for trapezoidal tooth belts of types ZA and ZB are shown in Figure 1
and given in Table 1.
2 © ISO 2019 – All rights reserved

Key
1 tooth pitch (p )
b
2 tooth angle (2β)
3 height (h )
s
4 pitch line differential (a)
5 root radius (r )
r
6 tip radius (r )
a
7 tooth height (h )
t
8 tooth width (S)
Figure 1 — Nominal tooth dimensions (profile) for types ZA and ZB
Table 1 — Nominal tooth dimensions for types ZA and ZB
Nominal profile
Key number Symbol
Type ZA Type ZB
1 p 9,525 9,525
b
2 2β 40 40
3 h 4,1 4,5
s
4 a 0,686 0,686
5 r 0,51 1,02
r
6 r 0,51 1,02
a
7 h 1,91 2,29
t
8 S 4,65 6,12
6.2 Belt tooth dimensions — Curvilinear tooth belts of types ZH and YH
The
...
