ISO/PAS 19450:2015

PUBLICLY ISO/PAS
AVAILABLE 19450
SPECIFICATION
First edition
2015-12-15
Automation systems and integration —
Object-Process Methodology
Systèmes d’automatisation et intégration — Object-Process
Methodology
Reference number
©
ISO 2015
© ISO 2015, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2015 – All rights reserved

Contents Page
Foreword .vi
Introduction .vii
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols . 8
5 Conformance .10
6 OPM principles and concepts .10
6.1 OPM modelling principles .10
6.1.1 Modelling as a purpose-serving activity.10
6.1.2 Unification of function, structure, and behaviour .11
6.1.3 Identifying functional value .11
6.1.4 Function versus behaviour.11
6.1.5 System boundary setting .12
6.1.6 Clarity and completeness trade-off .12
6.2 OPM Fundamental concepts .12
6.2.1 Bimodal representation .12
6.2.2 OPM modelling elements .12
6.2.3 OPM things: objects and processes .13
6.2.4 OPM links: procedural and structural .13
6.2.5 OPM context management .14
6.2.6 OPM model implementation .14
7 OPM thing syntax and semantics .15
7.1 Objects .15
7.1.1 Description . . .15
7.1.2 Representation .15
7.2 Processes .15
7.2.1 Description . . .15
7.2.2 Representation .16
7.3 OPM things .16
7.3.1 OPM thing defined .16
7.3.2 Object-process test .16
7.3.3 OPM thing generic properties .17
7.3.4 Default values of thing generic properties .18
7.3.5 Object states .18
8 OPM link syntax and semantics overview .20
8.1 Procedural link overview .20
8.1.1 Kinds of procedural links .20
8.1.2 Procedural link uniqueness OPM principle .20
8.1.3 State-specified procedural links .20
8.2 Operational semantics and flow of execution control .20
8.2.1 The Event-Condition-Action control mechanism .20
8.2.2 Preprocess object set and postprocess object set .21
8.2.3 Skip semantics of condition versus wait semantics of non-condition links .21
9 Procedural links .22
9.1 Transforming links .22
9.1.1 Kinds of transforming links .22
9.1.2 Consumption link .22
9.1.3 Result link .23
9.1.4 Effect link .23
9.1.5 Basic transforming links summary .23
9.2 Enabling links .24
9.2.1 Kinds of enabling links .24
9.2.2 Agent and Agent Link . .24
9.2.3 Instrument and Instrument Link .25
9.2.4 Basic enabling links summary.26
9.3 State-specified transforming links .26
9.3.1 State-specified consumption link .26
9.3.2 State-specified result link .27
9.3.3 State-specified effect links .28
9.3.4 State-specified transforming links summary .30
9.4 State-specified enabling links .31
9.4.1 State-specified agent link .31
9.4.2 State-specified instrument link .32
9.4.3 State-specified enabling links summary .32
9.5 Control links .33
9.5.1 Kinds of control links .33
9.5.2 Event links .34
9.5.3 Condition links .40
9.5.4 Exception links .47

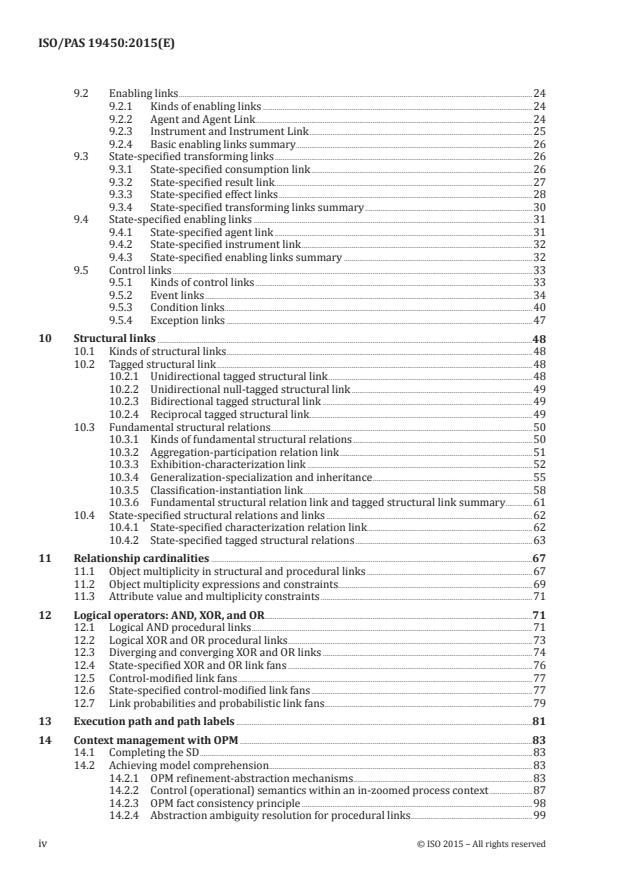

10 Structural links .48
10.1 Kinds of structural links .48
10.2 Tagged structural link .48
10.2.1 Unidirectional tagged structural link .48
10.2.2 Unidirectional null-tagged structural link .49
10.2.3 Bidirectional tagged structural link .49
10.2.4 Reciprocal tagged structural link.49
10.3 Fundamental structural relations .50
10.3.1 Kinds of fundamental structural relations .50
10.3.2 Aggregation-participation relation link .51
10.3.3 Exhibition-characterization link .52
10.3.4 Generalization-specialization and inheritance .55
10.3.5 Classification-instantiation link .58
10.3.6 Fundamental structural relation link and tagged structural link summary.61
10.4 State-specified structural relations and links .62
10.4.1 State-specified characterization relation link .62
10.4.2 State-specified tagged structural relations .63
11 Relationship cardinalities .67
11.1 Object multiplicity in structural and procedural links .67
11.2 Object multiplicity expressions and constraints.69
11.3 Attribute value and multiplicity constraints .71
12 Logical operators: AND, XOR, and OR .71
12.1 Logical AND procedural links .71
12.2 Logical XOR and OR procedural links .73
12.3 Diverging and converging XOR and OR links .74
12.4 State-specified XOR and OR link fans .76
12.5 Control-modified link fans .77
12.6 State-specified control-modified link fans .77
12.7 Link probabilities and probabilistic link fans .79
13 Execution path and path labels .81
14 Context management with OPM .83
14.1 Completing the SD .83
14.2 Achieving model comprehension.83
14.2.1 OPM refinement-abstraction mechanisms .83
14.2.2 Control (operational) semantics within an in-zoomed process context .87
14.2.3 OPM fact consistency principle .98
14.2.4 Abstraction ambiguity resolution for procedural links .99
iv © ISO 2015 – All rights reserved

Annex A (normative) OPL formal syntax in EBNF .102
Annex B (informative) Guidance for OPM .121
Annex C (informative) Modelling OPM using OPM .124
Annex D (informative) OPM dynamics and simulation .157
Bibliography .163
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is Technical Committee ISO/TC 184, Automation systems
and integration, Subcommittee SC 5, Interoperability, integration, and architectures for enterprise systems
and automation applications.
vi © ISO 2015 – All rights reserved

Introduction
Object-Process Methodology (OPM) is a compact conceptual approach, language, and methodology for
modelling and knowledge representation of automation systems. The application of OPM ranges from
simple assemblies of elemental components to complex, multidisciplinary, dynamic systems. OPM is
suitable for implementation and support by tools using information and computer technology. This
Publicly Available Specification specifies both the language and methodology aspects of OPM in order
to establish a common basis for system architects, designers, and OPM-compliant tool developers to
model all kinds of systems.
OPM provides two semantically equivalent modalities of representation for the same model: graphical
and textual. A set of hierarchically structured, interrelated Object-Process Diagrams (OPDs) constitutes
the graphical model, and a set of automatically generated sentences in a subset of the English language
constitutes the textual model expressed in the Object-Process Language (OPL). In a graphical-visual
model, each OPD consists of OPM elements, depicted as graphic symbols, sometimes with label
annotation. The OPD syntax specifies the consistent and correct ways to manage the arrangement of
those graphically elements. Using OPL, OPM generates the corresponding textual model for each OPD in
a manner that retains the constraints of the graphical model. Since the syntax and semantics of OPL are
a subset of English natural language, domain experts easily understand the textual model.
OPM notation supports the conceptual modelling of systems with formal syntax and semantics.
This formality serves as the basis for model-based systems engineering in general, including
systems architecting, engineering, development, life cycle support, communication, and evolution.
Furthermore, the domain-independent nature of OPM opens system modelling to the entire scientific,
commercial and industrial community for developing, investigating and analysing manufacturing
and other industrial and business systems inside their specific application domains; thereby enabling
companies to merge and provide for interoperability of different skills and competencies into a
common intuitive yet formal framework.
OPM facilitates a common view of the system under construction, test, integration, and daily maintenance,
providing for working in a multidisciplinary environment. Moreover, using OPM, companies can improve
their overall, big-picture view of the system’s functionality, flexibility in assignment of personnel to
tasks, and managing exceptions and error recovery. System specification is extensible for any necessary
detail, encompassing the functional, structural and behavioural aspects of a system.
One particular application of OPM is in the drafting and authoring of technical standards. OPM helps
sketch the implementation of a standard and identify weaknesses in the standard to reduce, thereby
significantly improving the quality of successive drafts. With OPM, even as the model-based text of a
system expands to include more details, the underlying model keeps maintaining its high degree of
formality and consistency.
This Publicly Available Specification provides a baseline for system architects and designers, who
can use it to model systems concisely and effectively. OPM tool vendors can utilise the PAS as a formal
standard specification for creating software tools to enhance conceptual modelling.
This Publicly Available Specification provides a presentation of the normative text that follows the
Extended Backus-Naur Form (EBNF) specification of the language syntax. All elements are presented in
Clauses 6 to 13 with only minimal reference to methodological aspects, Clause 14 presents the context
management mechanisms related to in-zooming and unfolding.
This specification utilizes several conventions for the presentation of OPM. Specifically, Arial bold font
in text and Arial bold italic font in figure captions, table captions and headings distinguish label names
for OPM objects, processes, states, and link tags. OPL reserved words are in Arial regular font with
commas and periods in Arial bold font. Most figures contain both a graphic image, the OPD portion, and
a textual equivalent, the OPL portion. Because this is a language specification, the precise use of term
definitions is essential and several terms in common use have particular meaning when using OPM.
Clause B.6 explains other conventions for the use of OPM.
Annex A presents the formal syntax for OPL, in EBNF form.
Annex B presents conventions and patterns commonly used in OPM applications.
Annex C presents aspects of OPM as OPM models.
Annex D summarizes the dynamic and simulation capabilities of OPM.
The International Organization for Standardization (ISO) draws attention to the fact that it is claimed
that compliance with this document may involve the use of a patent concerning OPM as a modelling
system given in Clauses 6 to 14.
ISO takes no position concerning the evidence, validity and scope of this patent right.
The holder of this patent right has assured the ISO that he/she is willing to negotiate licences either
free of charge or under reasonable and non-discriminatory terms and conditions with applicants
throughout the world. In this respect, the statement of the holder of this patent right is registered with
ISO. Information may be obtained from:
Prof. Dov Dori
Technion Israel Institute of Technology
Technion City
Haifa 32000, Israel
dori@ie.technion.ac.il
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights other than those identified above. ISO shall not be held responsible for identifying any or
all such patent rights.
ISO (www.iso.org/patents) and IEC (http://patents.iec.ch) maintain on-line databases of patents
relevant to their standards. Users are encouraged to consult the databases for the most up to date
information concerning patents.
viii © ISO 2015 – All rights reserved

PUBLICLY AVAILABLE SPECIFICATION ISO/PAS 19450:2015(E)
Automation systems and integration — Object-Process
Methodology
1 Scope
This Publicly Available Specification specifies Object-Process Methodology (OPM) with detail sufficient
for enabling practitioners to utilise the concepts, semantics, and syntax of Object-Process Methodology
as a modelling paradigm and language for producing conceptual models at various extents of detail,
and for enabling tool vendors to provide application modelling products to aid those practitioners.
While this Publicly Available Specification presents some examples for the use of Object-Process
Methodology to improve clarity, it does not attempt to provide a complete reference for all the possible
applications of Object-Process Methodology.
2 Normative references
There are no normative references.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
abstraction
decreasing the extent of detail and system model completeness (3.8) in order to achieve better
comprehension
3.2
affectee
transformee (3.78) that is affected by a process (3.58) occurrence, i.e. its state (3.69) changes
Note 1 to entry: An affectee can only be a stateful object (3.66). A stateless object (3.67) can only be created or
consumed, but not affected.
3.3
agent
enabler (3.17) that is a human or a group of humans
3.4
attribute
object (3.39) that characterizes a thing (3.76) other than itself
3.5
behaviour
transformation (3.77) of objects (3.39) resulting from the execution of an Object-Process Methodology
(3.43) model comprising a collection of things (3.76) and links (3.36) to objects in the model
3.6
beneficiary
stakeholder (3.65) who gains functional value (3.82) from the system’s operation (3.46)
3.7
class
collection of things (3.76) with the same perseverance (3.50), essence, and affiliation values, and the
same feature (3.21) and state (3.69) set
3.8
completeness
extent to which all the details of a system are specified in a model
3.9
condition link
procedural link (3.56) from an object (3.39) or object state (3.69) to a process (3.58), denoting a
procedural constraint
3.10
consumee
transformee (3.78) that a process (3.58) occurrence consumes or eliminates
3.11
context
portion of an Object-Process Methodology (3.43) model represented by an Object-Process
Diagram (3.41) and corresponding Object-Process Language (3.42) text
3.12
control link
procedural link (3.56) with additional control semantics
3.13
control modifier
symbol embellishing a link (3.36) to add control semantics to it, making it a control link (3.12)
Note 1 to entry: The control modifiers are the symbols ‘e’ for event (3.18) and ‘c’ for condition.
3.14
discriminating attribute
attribute (3.4) whose different values (3.81) identify corresponding specialization relations
3.15
effect
change in the state (3.69) of an object (3.39) or an attribute (3.4) value (3.81)
Note 1 to entry: An effect only applies to a stateful object (3.66).
3.16
element
thing (3.76) or link (3.36)
3.17
enabler
object (3.39) that enables a process (3.58) but which the process does not transform
3.18
event
point in time of creation (or appearance) of an object, or entrance of an object (3.39) to a
particular state (3.69), either of which may initiate an evaluation of the process (3.58) precondition
(3.53)
3.19
event link
control link (3.12) denoting an event (3.18) originating from an object (3.39) or object state (3.69) to a
process (3.58)
2 © ISO 2015 – All rights reserved

3.20
exhibitor
thing (3.76) that exhibits (is characterized by) a feature (3.21) by means of the exhibition-
characterization relation
3.21
feature
attribute (3.4) or operation (3.46)
3.22
folding
mechanism of abstraction (3.1) achieved by hiding the refineables (3.61) of an unfolded refinee (3.62)
Note 1 to entry: The four kinds of folded refineables are parts (part folding), features (3.21) (feature folding),
specializations (specialization folding), and instances (3.28) (instance folding).
Note 2 to entry: Folding is primarily applied to objects (3.39). When applied to a process, its subprocesses are
unordered, which is adequate for modelling asynchronous systems, in which processes’ temporal order is undefined.
Note 3 to entry: The opposite of folding is unfolding (3.80).
3.23
function
process (3.58) that provides functional value (3.82) to a beneficiary (3.6)
3.24
general
refineable (3.61) with specializations
3.25
informatical
of, or pertaining to informatics, e.g. data, information, knowledge
3.26
inheritance
assignment of Object-Process Methodology (3.43) elements (3.16) of a general (3.24) to its specializations
3.27
input link
link (3.36) from object (3.39) source (input) state (3.69) to the transforming process (3.58)
3.28
instance
object (3.39) instance or process (3.58) instance that is a refinee (3.62) in a classification-
instantiation relation
3.29
instance
object (3.39) instance or process (3.58) instance that is an actual, uniquely identifiable
thing (3.76) that exists during model operation (3.46), e.g. during simulation or runtime implementation
Note 1 to entry: A process instance is identifiable by the operational instances of the involved object set (3.32)
during process occurrence and the process start and end time stamps of the occurrence.
3.30
instrument
non-human enabler (3.17)
3.31
invocation
initiating of a process (3.58) by a process
3.32
involved object set
union of preprocess object set (3.54) and postprocess object set (3.52)
3.33
in-zoom context
things (3.76) and links (3.36) within the boundary of the thing being in-zoomed
3.34
in-zooming
object (3.39) part unfolding (3.80) that indicates spatial ordering of the constituent objects
3.35
in-zooming
process (3.58) part unfolding (3.80) that indicates temporal partial ordering of the
constituent processes
3.36
link
graphical expression of a structural relation (3.73) or a procedural relation (3.57) between two Object-
Process Methodology (3.43) things (3.76)
3.37
metamodel
model of a modelling language or part of a modelling language
3.38
model fact
relation between two Object-Process Methodology (3.43) things (3.76) or states (3.69) in the Object-
Process Methodology model
3.39
object
model element (3.16) representing a thing (3.76) that does or might exist physically or
informatically (3.25)
3.40
object class
pattern for objects (3.39) that have the same structure (3.74) and pattern of transformation (3.77)
3.41
Object-Process Diagram
OPD
Object-Process Methodology (3.43) graphic representation of an Object-Process Methodology model or
part of a model, in which objects (3.39) and processes (3.58) in the universe of interest appear together
with the structural links (3.72) and procedural links (3.56) among them
3.42
Object-Process Language
OPL
subset of English natural language that represents textually the Object-Process Methodology (3.43)
model that the Object-Process Diagram (3.42) represents graphically
3.43
Object-Process Methodology
OPM
formal language and method for specifying complex, multidisciplinary systems in a single function-
structure-behaviour unifying model that uses a bimodal graphic-text representation of objects (3.39) in
the system and their transformation (3.77) or use by processes (3.58)
4 © ISO 2015 – All rights reserved

3.44
OPD object tree
tree graph, whose root is an object (3.39), depicting elaboration of the object through refinement (3.63)
3.45
OPD process tree
tree graph whose root is the System Diagram (3.75) and each node is an Object-Process Diagram (3.42)
obtained by in-zooming (3.35) of a process (3.58) in its ancestor Object-Process Diagram (or the System
Diagram) and each directed edge points from the refined process at the parent Object-Process Diagram
to the same process in the child Object-Process Diagram
Note 1 to entry: Object-Process Methodology (3.43) model elaboration usually occurs by process decomposition
through in-zooming, therefore the OPD process tree is the primary way to navigate an Object-Process
Methodology model.
3.46
operation
process (3.58) that a thing (3.76) performs, which characterizes the thing other than itself
3.47
output link
link (3.36) from the transforming process (3.58) to the output (destination) state (3.69) of an object (3.39)
3.48
out-zooming
inverse of object (3.39) in-zooming (3.34)
3.49
out-zooming
inverse of process (3.58) in-zooming (3.35)
3.50
perseverance
property (3.60) of thing (3.76) which can be static, defining an object (3.39), or dynamic, defining a
process (3.58)
3.51
postcondition
condition that is the outcome of successful process (3.58) completion
3.52
postprocess object set
collection of objects (3.39) remaining or resulting from process (3.58) completion
Note 1 to entry: The postprocess object set may include stateful objects (3.66), for which specific states (3.69)
result from process performance.
3.53
precondition
condition for starting a process (3.58)
3.54
preprocess object set
collection of objects (3.39) to evaluate prior to starting a process (3.58)
Note 1 to entry: The collection of the objects may include stateful objects (3.66) for which specific states (3.69)
are necessary for process performance.
3.55
primary essence
essence of the majority of things (3.76) in a system, which can be either informatical (3.25) or
physical
3.56
procedural link
graphical notation of procedural relation (3.57) in Object-Process Methodology (3.43)
3.57
procedural relation
connection or association between an object (3.39) or object state (3.69) and a process (3.58)
Note 1 to entry: Procedural relations specify how the system operates to attain its function (3.23), designating
time-dependent or conditional initiating of processes that transform objects.
Note 2 to entry: An invocation (3.31) or exception link (3.36) signifies a transient object in the flow of execution
control between two processes.
3.58
process
transformation (3.77) of one or more objects (3.39) in the system
3.59
process class
pattern for processes (3.58) that perform the same object (3.39) transformation (3.77) pattern
3.60
property
modelling annotation common to all elements (3.16) of a specific kind that serve to distinguish that element
Note 1 to entry: Cardinality constraints, path labels, and structural link (3.72) tags are frequent property
annotations.
Note 2 to entry: Unlike an attribute (3.4), the value of a property may not change during model simulation or
operational implementation. Each kind of element has its own set of properties.
Note 3 to entry: Property is an attribute of an element in the Object-Process Methodology (3.43) metamodel (3.37).
3.61
refineable
thing (3.76) amenable to refinement (3.63), which can be a whole (3.83), an exhibitor (3.20), a
general (3.24), or a class (3.7)
3.62
refinee
thing (3.76) that refines a refineable (3.61), which can be a part, a feature (3.21), a specialization, or an
instance (3.29)
Note 1 to entry: Each of the four kinds of refinees has a corresponding refineable (part-whole, feature-exhibitor,
specialization-generalization, instance-class).
3.63
refinement
elaboration that increases the extent of detail and the consequent model completeness (3.8)
3.64
resultee
transformee (3.78) that a process (3.58) occurrence creates
3.65
stakeholder
individual, organization, or group of people that has an interest in, or might be affected by the
system being contemplated, developed, or deployed
6 © ISO 2015 – All rights reserved

3.66
stateful object
object (3.39) with specified states (3.69)
3.67
stateless object
object (3.39) lacking specified states (3.69)
3.68
state
possible situation or position of an object (3.39)
Note 1 to entry: In Object-Process Methodology (3.43) there is no concept of process (3.58) state, such as
“started”, “in process”, or “finished” within a model. Instead, Object-Process Methodology represents and models
subprocesses, such as starting, processing, or finishing. See also discussion of Object-Process Methodology
process metamodel in Annex C.
3.69
state
snapshot of the system model taken at a certain point in time, which shows all the existing
object (3.39) instances, current states of each stateful object (3.66) instance, and the process (3.58)
instances, with their elapsed times, executing at the time the snapshot occurs
3.70
state expression
refinement (3.63) involving the revealing of any proper subset of an object’s (3.39) set of states (3.69)
3.71
state suppression
abstraction (3.1) involving the hiding of any proper subset of an object’s (3.39) set of states (3.69)
3.72
structural link
graphic notation of structural relation (3.73) in Object-Process Methodology (3.43)
3.73
structural relation
operationally invariant connection or association between things
Note 1 to entry: Structural relations persist in the system for at least some interval of time. They provide the
structural aspect of the system, and are not contingent upon conditions that are time-dependent.
3.74
structure
collection of objects (3.39) in an Object-Process Methodology (3.43) model and the non-transient
relations or associations among them
3.75
System Diagram
SD
Object-Process Diagram (3.41) with one systemic process (3.58) indicating the system function (3.23)
and the objects (3.39) connecting with that function to depict the overall context (3.11) for and top-level
view of the system
Note 1 to entry: System Diagram is the root of the OPD process tree (3.45) and has no extent of detail beyond
the overall context depicted, i.e. no in-zoomed refinee (3.62) is present. Any Object-Process Diagram other than
System Diagram is a node in the OPD process tree resulting from refinement (3.63).
3.76
thing
object (3.39) or process (3.58)
3.77
transformation
creation (generation, construction) or consumption (elimination, destruction) of an object (3.39) or a
change in the state (3.69) of an object
Note 1 to entry: Only a process (3.58) can perform transformation.
3.78
transformee
object (3.39) that a process (3.58) transforms (creates, consumes, or affects)
3.79
transforming link
consumption link, effect link, or result link
3.80
unfolding
refinement (3.63) that elaborates a refinee (3.62) with additional detail comprising other things (3.76)
and the links (3.36) between them.
Note 1 to entry: The four kinds of unfolding are part unfolding, feature unfolding, specialization unfolding, and
instance unfolding.
Note 2 to entry: Unfolding is primarily applied to objects (3.39) for exposing details about the unfolded object.
3.81
value
state (3.69) of an attribute (3.4)
3.82
value
benefit at cost that the system’s function (3.23) delivers
3.83
