ISO 22549-2:2020

DRAFT INTERNATIONAL STANDARD
ISO/DIS 22549-2
ISO/TC 184/SC 5 Secretariat: ANSI
Voting begins on: Voting terminates on:
2020-01-20 2020-04-13
Automation systems and integration — Assessment on
convergence of informatization and industrialization for
industrial enterprises —
Part 2:
Maturity model and evaluation methodology
ICS: 25.040.01
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENT AND APPROVAL. IT IS
THEREFORE SUBJECT TO CHANGE AND MAY
NOT BE REFERRED TO AS AN INTERNATIONAL
STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
This document is circulated as received from the committee secretariat.
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
Reference number
NATIONAL REGULATIONS.
ISO/DIS 22549-2:2020(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
©
PROVIDE SUPPORTING DOCUMENTATION. ISO 2020

---------------------- Page: 1 ----------------------
ISO/DIS 22549-2:2020(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2020
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/DIS 22549-2:2020(E)

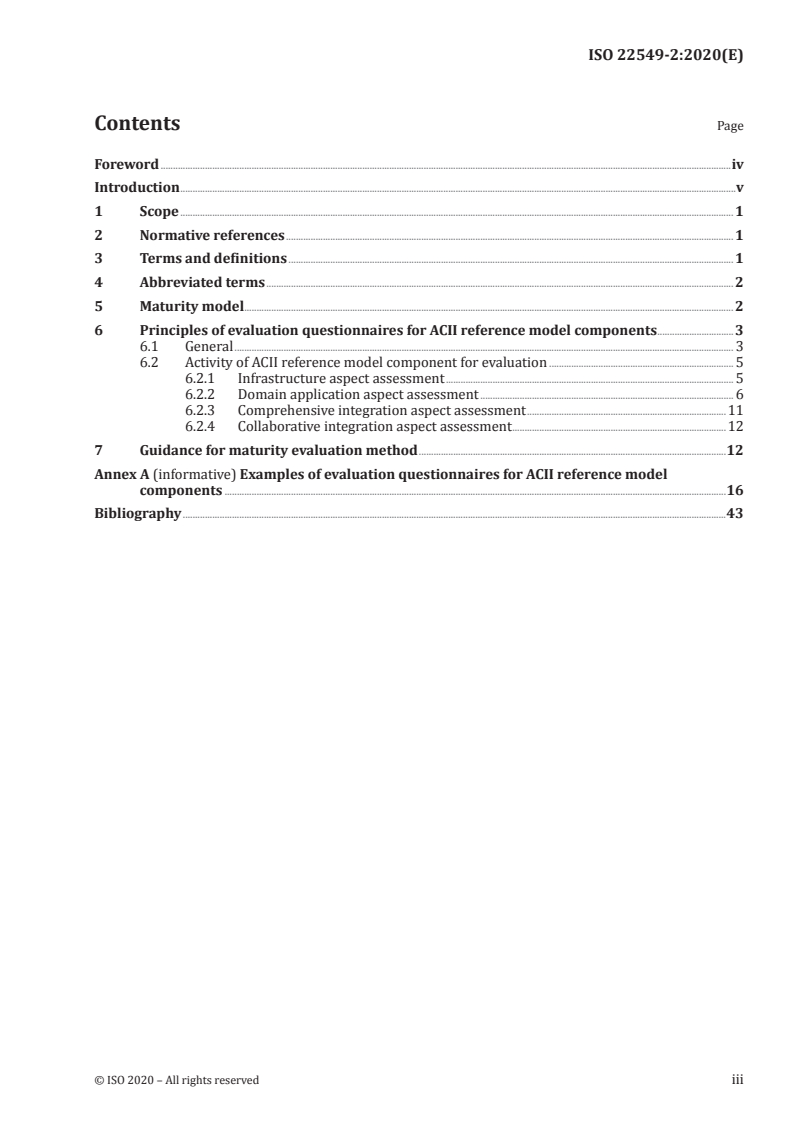

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols (and abbreviated terms) . 2
5 Maturity model . 2
6 Principles of evaluation questionnaires for ACII reference model components .4
6.1 General . 4
6.2 Activity of ACII reference model component for evaluation . 6
6.2.1 Infrastructure aspect assessment . 6
6.2.2 Domain application aspect assessment . 7
6.2.3 Comprehensive integration aspect assessment .12
6.2.4 Collaborative integration aspect assessment .13
7 Guidance for maturity evaluation method .13
Annex A (informative) Examples of evaluation questionnaires for ACII reference model
components .17
Bibliography .44
© ISO 2020 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/DIS 22549-2:2020(E)

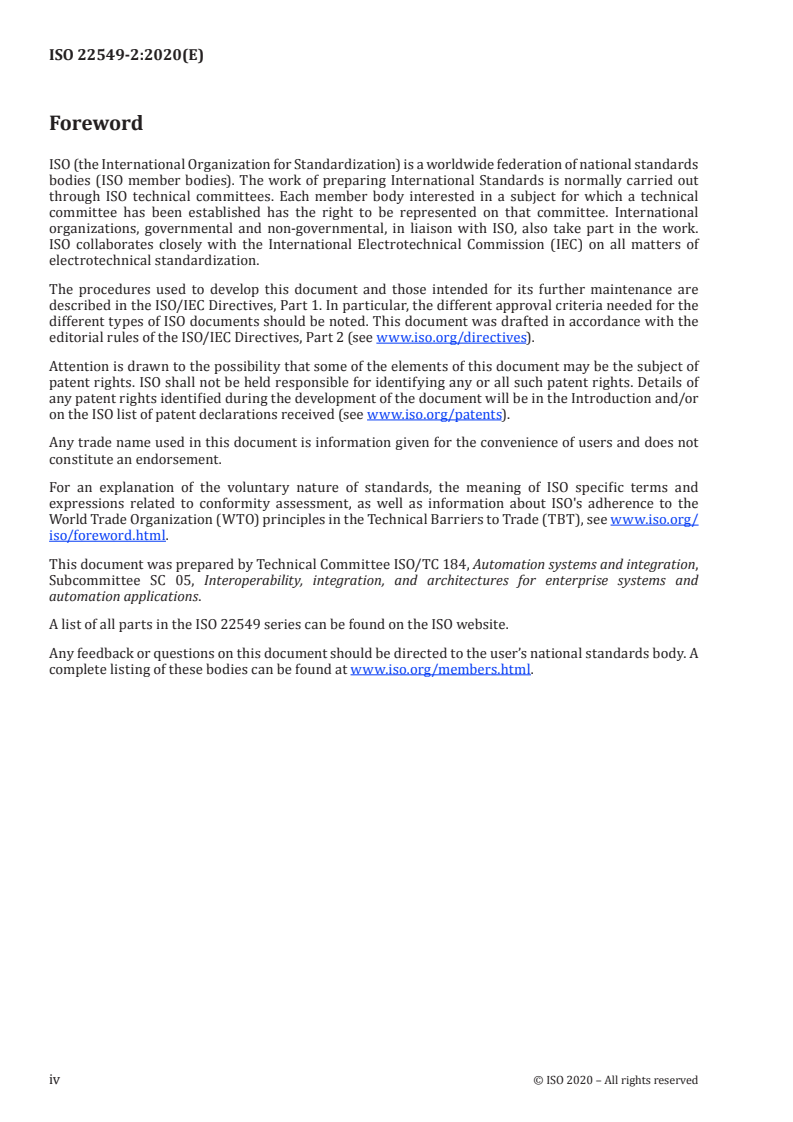

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 184, [Automation systems and integration],
Subcommittee SC 5, [Interoperability, integration, and architectures for enterprise systems and automation
applications].
A list of all parts in the ISO 22549 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2020 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/DIS 22549-2:2020(E)

Introduction
Convergence of informatization and industrialization (CII) refers to a process that integrates
information technology into industrial production. The purpose of convergence is to promote
development of industry in a higher value-added direction through wide application of information and
restructuring of traditional industry.
CII will promote production and resource allocation in a more comprehensive and dynamic as well as
optimal way.
This document and its related parts serve as a framework and normalization guide for enterprises to
promote the convergence of information technology, its research and development, into the processes
of production and operations management.
The purposes of this document include, but not limited to, providing industrial enterprises guidance for:
— assessing the current situation of CII
— finding weakness within the CII
— identifying ways to improve CII
The intended users of this document can be grouped into the following categories:
— unaffected third-party assessor, e.g. a consulting company or government department, which
conducts a convergence of informatization and industrialization assessment;
— responsible organization, e.g. production management department, quality management
department, inventory management department, etc., which sponsor an assessment of itself or a
subordinate organization;
— other industrial sector enterprises.
© ISO 2020 – All rights reserved v

---------------------- Page: 5 ----------------------
DRAFT INTERNATIONAL STANDARD ISO/DIS 22549-2:2020(E)
Automation systems and integration — Assessment on
convergence of informatization and industrialization for
industrial enterprises —
Part 2:
Maturity model and evaluation methodology
1 Scope
This document defines maturity model and evaluation methodology on convergence of informatization
and industrialization in industrial enterprises. The scope of this document includes the followings:
— Maturity model definition;
— Principles of evaluation questionnaires; and
— Guidance for maturity evaluation method
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 22549-1 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at http:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
maturity model
classification scheme for measuring the effect of policies, procedures, training and control that results
in the capability to execute efficient operations based on information technologies
3.2
maturity level indicator
maturity level
identified extent of measured effect within maturity model (3.1)
Note 1 to entry: The extent of measured effect is divided into segments, referred to as levels, of increasing
competence to achieve enterprise objectives.
3.3
evaluation questionnaire
list of questions used to evaluate and determine the maturity level (3.2)
3.4
maturity evaluation
method for determining the maturity level (3.2) of an industrial enterprise using responses to evaluation
questionnaire (3.3)
© ISO 2020 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO/DIS 22549-2:2020(E)

4 Symbols (and abbreviated terms)
ACII assessment on convergence of informatization and industrialization
BOM bill of material
CAD computer aided design
CPS cyber-physical system
E-BOM engineering BOM
ECO engineering change order
ECR engineering change request
EDI electronic data interchange
EHS environment, safety and health
ERP enterprise resource planning
IoT Internet of Things
IT information technology
KPI key performance indicator
M-BOM manufacturing BOM
MSDS material safety data sheets
MES manufacturing execution system
PLM product lifecycle management
SCM supply chain management
SPC Statistical process control
WIP work in process
5 Maturity model
The maturity model shall consist of maturity levels where each level consists of a maturity level
indicator, descriptive name, and characteristics relevant to the desired assessment information as
shown in Table 1. These characteristics guide domain aspect relevant evaluation questions for which
simple yes or no answers are appropriate.
2 © ISO 2020 – All rights reserved

---------------------- Page: 7 ----------------------
ISO/DIS 22549-2:2020(E)

Table 1 — Maturity model definition
Maturity level
Descriptive name Characteristics
indicator
Level 0 Unidentified — Little or no systematic documentation available
Level 1 Identified — Tracking and traceability of materials, data and etc.
— Registration and management of data using information
collection devices and systems
Level 2 Measured — Real time data acquisition of materials, machinery, process
and human roles, and data integration
— Measurement, aggregation, classification and management
of data using information collection devices and systems
— Synchronous history of data for the same time, same lot and
same product
Level 3 Analysed — Data analysis and optimized decision making using
aggregated data
Level 4 Optimized — Automation of processes according to optimized decision
making throughout the intra-enterprise and/or the inter-
enterprises
Level 5 Customized — Self-diagnosis and self-healing through cyber-physical
system (CPS), Internet of Things (IoT), artificial intelligence
(AI), etc.
— Flexible production of customized products through
autonomous control
NOTE Because maturity level 0 is the same for every questionnaire table, level 0 is not included in the
separate tables.
Figure 1 shows maturity level and its inclusive relationship that all higher maturity level shall include
characteristics of lower maturity level.
© ISO 2020 – All rights reserved 3

---------------------- Page: 8 ----------------------
ISO/DIS 22549-2:2020(E)

Figure 1 — Maturity level (inclusive)
Assessment of maturity level is done by evaluating assessment on convergence of informatization and
industrialization (ACII) reference model components based on the answers to the evaluation questions.
6 Principles of evaluation questionnaires for ACII reference model components
6.1 General
Figure 2 presents assessment reference model defined in ISO 22549-1. Four aspects are grouped by blue-
dotted line and twenty-four subordinate components to four aspects are grouped by red-dotted line.
4 © ISO 2020 – All rights reserved

---------------------- Page: 9 ----------------------
ISO/DIS 22549-2:2020(E)

Figure 2 — Assessment reference model (aspect and its subordinate component)
In general, each ACII reference model component consists of one or more activities, for example, product
design requires commodity planning, design automation, bill of material (BOM)/Parts management,
engineering change management, etc.
For ACII, each ACII reference model component has to be evaluated in the level of its activities, and each
activity has a set of questions to answer for each maturity level. Question answers shall be “YES” or “NO.”
Evaluation of maturity level using questionnaires is well-known and a common way, since it is easy to
make answers to the given questions and evaluate the maturity level based on the answers.
Table 2 shows the structure of questions for evaluation.
Table 2 — Structure of question for maturity evaluation
Activity Question Maturity level indicator
Activity name 1 Questions for maturity level 1. 1
Questions for maturity level 2. 2
Questions for maturity level 3. 3
Questions for maturity level 4. 4
Questions for maturity level 5. 5
Activity name 2 Questions for maturity level 1. 1
Questions for maturity level 2. 2
Questions for maturity level 3. 3
Questions for maturity level 4. 4
Questions for maturity level 5. 5
© ISO 2020 – All rights reserved 5

---------------------- Page: 10 ----------------------
ISO/DIS 22549-2:2020(E)

Table 2 (continued)
Activity Question Maturity level indicator
Activity name… Questions for maturity level 1. 1
Questions for maturity level 2. 2
Questions for maturity level 3. 3
Questions for maturity level 4. 4
Questions for maturity level 5. 5
Activity name N Questions for maturity level 1. 1
Questions for maturity level 2. 2
Questions for maturity level 3. 3
Questions for maturity level 4. 4
Questions for maturity level 5. 5
— Activity:
activity of ACII reference model component.
This document specifies a number of activities to be evaluated for each ACII reference model
component.
— Question:
questions to assess maturity level satisfaction, and the answer shall be “YES” or “NO”.
All questions in all activities in a given level need to be evaluated and all must be “YES” to proceed
to the next level questions by applying guidance for maturity evaluation method given in 7.
Annex A gives examples of a whole set of questions for all ACII reference model components.
— Maturity level indicator:
maturity level used for maturity evaluation.
6.2 Activity of ACII reference model component for evaluation
6.2.1 Infrastructure aspect assessment
6.2.1.1 Capital investment
Capital investment should be evaluated in terms of construction of automation and informatization,
operation and maintenance of the information system.
Table 3 — Activity of capital investment for evaluation
Activity Description
Capital Investment Investment to the IT equipments and systems
6.2.1.2 Organization and planning
Organization and planning should be evaluated in terms of team of personnel, establishment of the
organization, authority and defining of strategy related to the field of automation and informatization.
Table 4 — Activity of organization and planning for evaluation
Activity Description
Organization and Planning Team, organization, authority and strategy for automation and
informatization
6 © ISO 2020 – All rights reserved

---------------------- Page: 11 ----------------------
ISO/DIS 22549-2:2020(E)

6.2.1.3 Equipment and facilities management
Equipment and facilities management should be evaluated in terms of management of information
equipments and facilities, industrial equipments and facilities.
Table 5 — Activity of equipment and facilities management for evaluation
Activity Description
Equipment and Facilities Management Management of IT equipments and facilities
Management of industrial equipments and facilities
6.2.1.4 Information resources management
Information resources management should be evaluated in terms of construction of the information
resources.
Table 6 — Activity of information resources management for evaluation
Activity Description
Information Resources Management Collection, standardization, accumulation, integration, analysis,
and management of information resources
6.2.1.5 Information security management
Information security management should be evaluated in terms of protection of information security
such as.
Table 7 — Activity of information security management for evaluation
Activity Description
Computer and Network Security Manage- Implementation of protection of computer and networking security
ment
System and Application Security Manage- Implementation of protection of system security, application secu-
ment rity and construction of the prevention mechanism
6.2.2 Domain application aspect assessment
6.2.2.1 Product design
Product design should be evaluated in terms of digitalized model of the product, digital examination,
comprehensive design and optimization, and intelligent design of a product.
© ISO 2020 – All rights reserved 7

---------------------- Page: 12 ----------------------
ISO/DIS 22549-2:2020(E)

Table 8 — Activity of product design for evaluation
Activity Description
Design Environment Analysis Analysis of IT environment for product design to collect and analyse
product design information
Product Planning Process of identifying and articulating market requirements that
define a product's feature set such as creation of a product idea,
price, distribution and promotion, etc
Design Automation Use of designing software systems and smart connected technology
for design such as computer aided design (CAD), computer aided
engineering (CAE), augment reality (AR) and virtual reality (VR), etc
BOM/Parts Management Management of both engineering BOM (E-BOM) and manufacturing
BOM (M-BOM) using IT systems
Engineering Change Management Management of both engineering change order (ECO) and engi-
neering change request (ECR) using IT systems
Prototyping Use of IT systems and applications for prototyping and its validation
Advance Quality Management Quality management of product in prototyping stage
6.2.2.2 Process design
Process design should be evaluated in terms of design of process flow or planning, analysis of dynamic
simulation, process control and parameter optimization and integrated process design.
Table 9 — Activity of process design for evaluation
Activity Description
Process Design Use of IT systems and applications for supporting design of process
flow or planning, analysis of dynamic simulation, process control
and parameter optimization and integrated process design
6.2.2.3 Production management
Production management should be evaluated in terms of production planning and scheduling,
production management, material requirement planning, distribution management, and outsource
planning and management.
Table 10 — Activity of production management for evaluation
Activity Description
Master Production Scheduling Use of IT systems and applications for scheduling master produc-
tion, and optimization and customization
Work in Process (WIP) Management Use of IT systems and applications for managing work-in-process
Monitoring and Control Use of IT systems and applications for monitoring and controlling
production
Process Control Use of IT systems and applications for automatic process control,
and optimization and customization
Process Analysis and Enhancement Use of IT systems and applications for process analysis and en-
hancement
6.2.2.4 Materials management
Material management should be evaluated in terms of purchasing, inbound logistics, and management
of suppliers in the materials management of product as well as the e-commerce purchasing.
8 © ISO 2020 – All rights reserved

---------------------- Page: 13 ----------------------
ISO/DIS 22549-2:2020(E)

Table 11 — Activity of materials management for evaluation
Activity Description
Material Order Use of IT systems and applications for integrated material order
with master production schedule, BOM and inventory status, etc
Material Receipt Use of IT systems and applications for management of received
material
Warehouse Management Use of IT systems and applications for managing warehouse and
optimization
Weighing Management Use of IT systems and applications for weighing management, and
automatic calibration
Material Release and Process Input Use of IT systems and applications for material release and process
input, and integration with production control system
6.2.2.5 Sales management
Sales management should be evaluated in terms of management of sales, management of the inventory
of finished products, logistics distribution, after-sales services and management of suppliers in the
sales management of the product as well as the e-commerce sale.
Table 12 — Activity of sales management for evaluation
Activity Description
Demand Forecasting Use of IT systems and applications for supporting integrated de-
mand forecasting with other system such as enterprise resource
planning (ERP), manufacturing execution system (MES), product
lifecycle management (PLM) and supply chain management (SCM),
and its analysis
Delivery to Promise Use of IT systems and applications for delivery promise in conjunc-
tion with production plan
Order Management Use of IT systems and applications for managing order and strategic
decision making based on contract information and cost information
Shipment Management Use of IT systems and applications for supporting shipment man-
agement and its optimization
6.2.2.6 Financial management
Financial management should be evaluated in terms of accounting management, capital management,
accounting statement and analysis, cost management and financial budgeting management.
Table 13 — Activity of financial management for evaluation
Activity Description
Budget Management Use of IT systems and applications for budget management and
its optimization
Accounting Management Use of IT systems and applications for accounting management
and its optimization
6.2.2.7 Security management
Security management should be evaluated in terms of information technology construction and
application of security management, emergency response for the forecast and early warning about
major sources of hazard.
© ISO 2020 – All rights reserved 9

---------------------- Page: 14 ----------------------
ISO/DIS 22549-2:2020(E)

Table 14 — Activity of security management for evaluation
Activity Description
Physical Protection and Regulation Use of IT systems and applications for physical protection and
Management regulation management
Risk Management Use of IT systems and applications for risk management
Infringement Response Management Use of IT systems and applications for infringement response
management
6.2.2.8 Project management
Project management should be evaluated in terms of research and manufacturing of product, project
planning, project design, etc.
Table 15 — Activity of project management for evaluation
Activity Description
Project Management Use of IT systems and applications for project management includ-
ing analysis of project performance and prediction of future plans
6.2.2.9 Maintenance management
Maintenance management should be evaluated in terms of management of the equipment maintenance
using IT.
Table 16 — Activity of maintenance management for evaluation
Activity Description
Equipment Maintenance Use of IT systems and applications for supporting equipment main-
tenance including monitoring, preventive maintenance, automatic
update of facilities, etc
Jigs and Tools Management Use of IT systems and applications for managing jigs and tools for
support of locating and customizing design of jigs and tool
Spare Parts Management Use of IT systems and applications for managing spare parts sup-
porting locating, lifetime management and guaranteeing safety
stock of spare parts
Mould Management Use of IT systems and applications for mould management providing
monitoring, locating and lifetime management, etc
6.2.2.10 Human resource management
Human resource management should be evaluated in terms of management of human resource planning
and recruiting, training and development of the human resources, emoluments, benefits, achievement
and employee relationship.
10 © ISO 2020 – All rights reserved

---------------------- Page: 15 ----------------------
ISO/DIS 22549-2:2020(E)

Table 17 — Activity of human resource management for evaluation
Activity Description
Human Information Management Use of IT systems and applications for promotion, and supporting
of collaboration of personnel, etc
Payroll Management Use of IT systems and applications for payroll management
Performance Management Use of IT systems and applications for managing the performance
of personnel
Competency Management Use of IT systems and applications for competency management
such as qualification evaluation and training, etc
Recruiting Management Use of IT systems and applications for supporting recruit and its
management
6.2.2.11 Document management
Document management should be evaluated in terms of management of the documents collected from
the enterprise.
Table 18 — Activity of document management for evaluation
Activity Description
Document Management Use of IT systems and applications for managing the documents
6.2.2.12 Quality management
Quality management should be evaluated in terms of assurance of proper product quality.
Table 19 — Activity of quality management for evaluation
Activity Description
Inspection and Quality Analysis Use of IT systems and applications to support inspection and
quality analysis
Experiment Management Use of IT systems and applications to manage experiment such as
experimental data management and experimental data association
with the real time in-house system
6.2.2.13 Environment, Health and Safety (EHS) management
EHS management should be evaluated in terms of providing healthy, safe and sustainable manufacturing
environments.
Table 20 — Activity of EHS management for evaluation
Activity Description
Environment Management Use of IT systems and applications to manage environment infor-
mation and control environmental risks, etc
Health Management Use of IT systems and applications to manage employees’ health data
Safety Management Use of IT systems and applications to support safety management
6.2.2.14 Energy management
Energy management should be evaluated in terms of assuring low energy consumption.
© ISO 2020 – All rights reserved 11

---------------------- Page: 16 ----------------------
ISO/DIS 22549-2:2020(E)

Table 21 — Activity of energy management for evaluation
Activity Description
Energy-Saving Management Use of IT systems and applications to manage energy consumption
6.2.3 Comprehensive integration aspect assessment
6.2.3.1 Product design and manufacturing integration
Product design and manufacturing integration should be evaluated in terms of the bidirectional flow of
information between research and design, and manufacturing of product, such as data definition, data
exchange and management of product specification.
Table 22 — Activity of product design and manufacturing integration for evaluation
Activity Description
Exchange of Process Information between Use of IT systems and applications to exchange and integrate in-
Design and Production formation between design process and production process
Exchange of Mate
...
