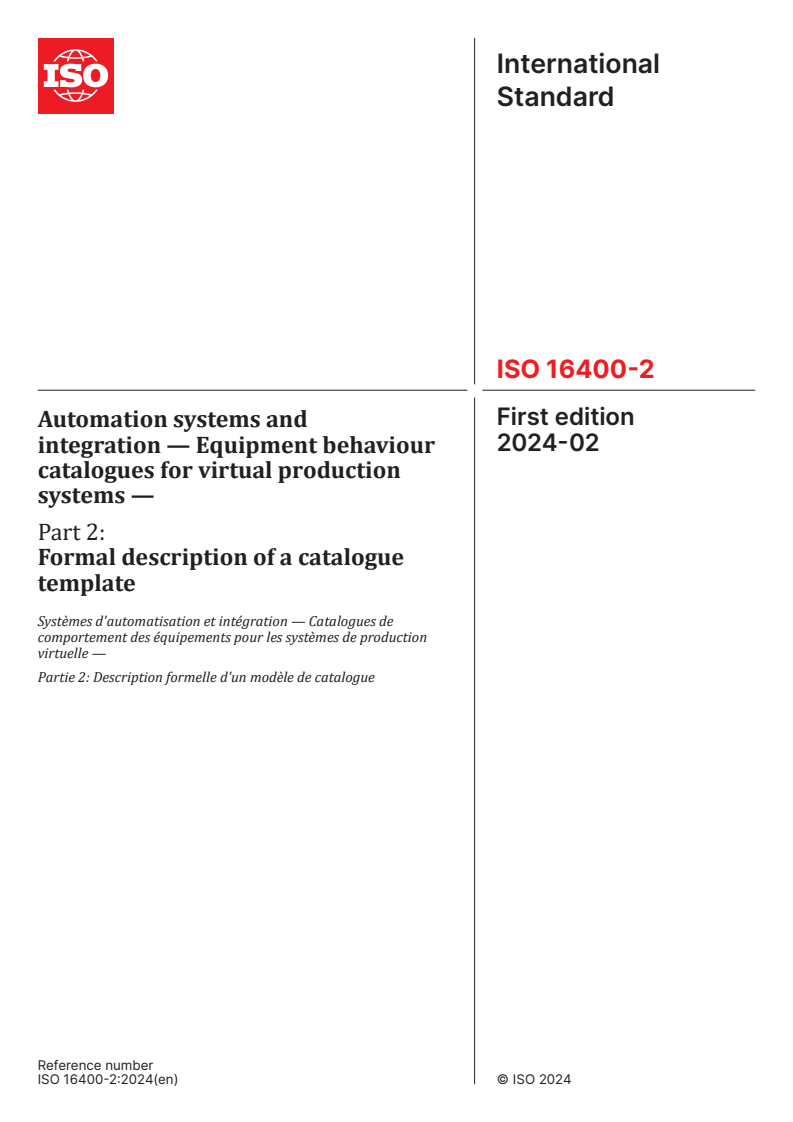

ISO 16400-2:2024

International
Standard
ISO 16400-2
First edition
Automation systems and
2024-02
integration — Equipment behaviour
catalogues for virtual production
systems —
Part 2:
Formal description of a catalogue
template
Systèmes d'automatisation et intégration — Catalogues de
comportement des équipements pour les systèmes de production
virtuelle —
Partie 2: Description formelle d'un modèle de catalogue
Reference number
© ISO 2024
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii

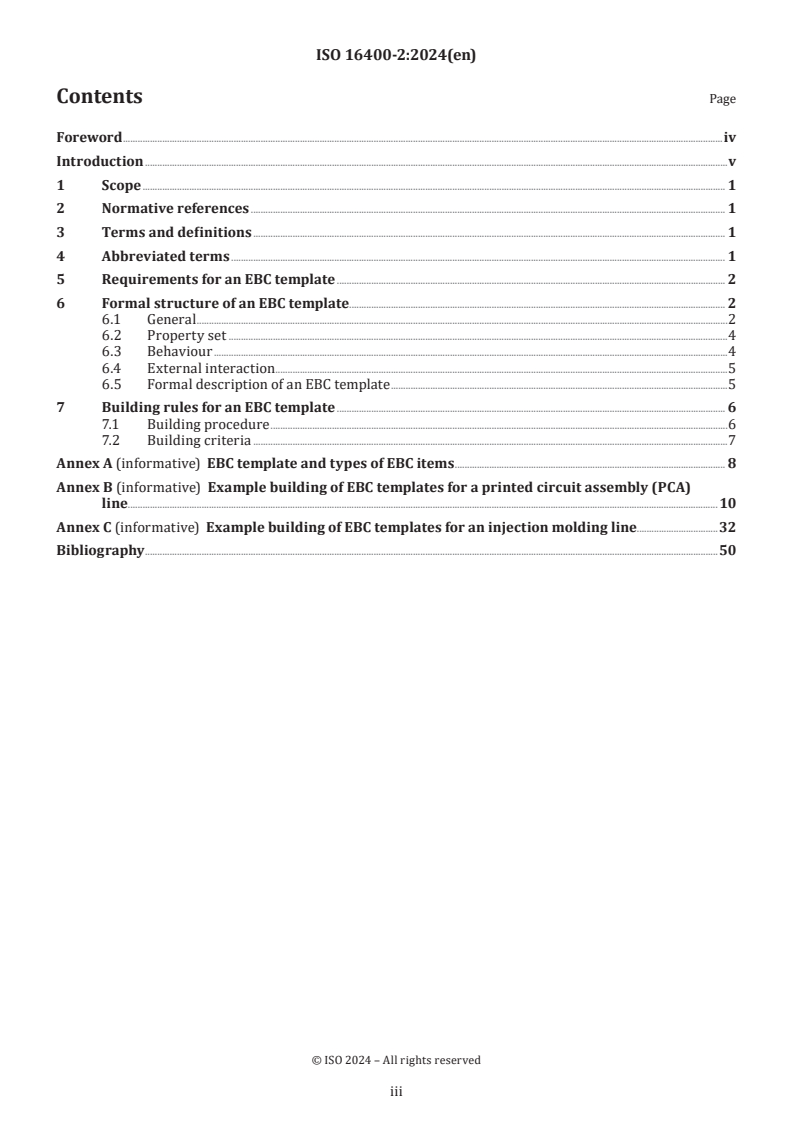

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Abbreviated terms . 1
5 Requirements for an EBC template . 2
6 Formal structure of an EBC template. 2
6.1 General .2
6.2 Property set .4
6.3 Behaviour .4
6.4 External interaction .5
6.5 Formal description of an EBC template .5
7 Building rules for an EBC template . 6
7.1 Building procedure .6
7.2 Building criteria .7
Annex A (informative) EBC template and types of EBC items . 8
Annex B (informative) Example building of EBC templates for a printed circuit assembly (PCA)
line . . 10
Annex C (informative) Example building of EBC templates for an injection molding line.32
Bibliography .50

iii

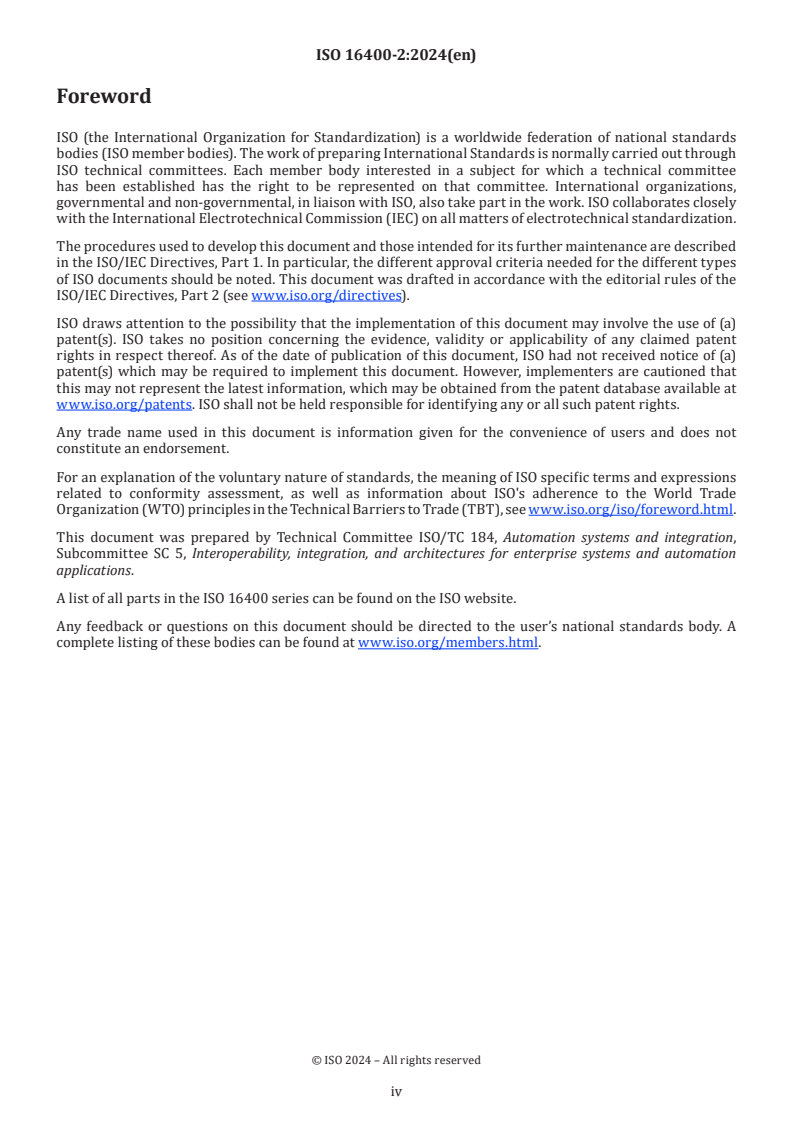

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 184, Automation systems and integration,
Subcommittee SC 5, Interoperability, integration, and architectures for enterprise systems and automation
applications.
A list of all parts in the ISO 16400 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
Introduction
The ISO 16400 series introduces a concept of an equipment behaviour catalogue (EBC), addresses the
requirements of an EBC and proposes guidelines to generate an executable representing the dynamic
behaviour of a nominal or physical instance of an equipment. Such executable plays a vital role when
configuring virtual production systems used for simulation and verification of a future process as well as
monitoring of a current process. Therefore, EBCs will constitute an important part of the evolution of smart
manufacturing.
An EBC enables an efficient and standardized way for a provider of equipment to communicate its dynamic
behaviour.
v
International Standard ISO 16400-2:2024(en)
Automation systems and integration — Equipment behaviour
catalogues for virtual production systems —
Part 2:
Formal description of a catalogue template
1 Scope
This document specifies a formal structure and building rules for an equipment behaviour catalogue (EBC)
template.
The formal structure of an EBC template represents a schema for descriptions of behaviour and related
entities.
Building rules for an EBC template provide required processes and compliance criteria to construct an EBC
template.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 16400-1:2020, Automation systems and integration — Equipment behaviour catalogues for virtual
production system — Part 1: Overview
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 16400-1 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
4 Abbreviated terms
ID Identifier
JSON JavaScript Object Notation
mathML Mathematical Markup Language
UML Unified Modeling Language
XML eXtensible Markup Language

5 Requirements for an EBC template
A virtual production system is constructed as a simulation system on a production behaviour model which is
configured by applying a production process model and a production system model (see ISO 16400-1:2020,
Figure 6).
A production system model can be constructed as a multi-agent system of equipment agents, i.e. behaviour
of a production system can be modelled using software agent technology. However, it is difficult for the user
of a manufacturing simulation system, such as a production system designer and an operator, to write a
software program of agents. There are requirements that a user can construct a virtual production system
by selecting adequate EBC items from an EBC repository. When an EBC item is provided, it becomes possible
to automatically generate an equipment instance model as a software agent from the EBC item. A production
system model can be constructed as a combination of equipment instance models.
An EBC item is an instance of an EBC template, and an EBC template is a schema representing a model for
each equipment including its process model as behaviour description. An EBC template shall include the
following elements as essential elements:
— a set of properties;
— description of behaviour.
An EBC template can include the following element:
— specification of external interactions.
In smart manufacturing, a virtual production system is constructed based on the digital twin concept.
For this purpose, further entities have to be considered, as they are specified in a production lifecycle
information model which is out of scope for this document. An EBC item is a digital description of properties
and behaviour of a physical equipment. A virtual equipment can be constructed by referring a corresponding
EBC item. An EBC item works as a bridge between physical equipment and virtual equipment in a digital
twin.
An EBC shall have interoperability including semantics in order to fulfil the requirements mentioned above.
6 Formal structure of an EBC template
6.1 General
An EBC template shall include descriptions which specify a property set, behaviour and external interactions.
Figure 1 shows a conceptual structure of an EBC template.

Figure 1 — Conceptual structure of an EBC template
An EBC shall be supplied in a common and independently usable form. The EBC template shall be created
as a basic form for each equipment type. There is no hierarchical relation like class among EBC templates.
Templates for the same equipment type have the same behaviour description structure about states and
about relationships among states. There is a possibility that the granularity of descriptions is different.
The structure of an EBC item shall follow the used template. From one template, one or more EBC items may
be created corresponding to each individual equipment of the same equipment type. The created EBC items
are grouped according to the type of the equipment and stored in the repository. An EBC item is created by
filling up the corresponding EBC template by concrete equipment data. Usually, an EBC item is created by
setting values on the elements in the property set of the corresponding EBC template by concrete equipment
data. For example, an EBC item for a specific equipment series contains equipment data as designed by the
equipment maker such as equipment specification data. An EBC item for a specific individual equipment in a
specific production line contains physical equipment data such as operational data in addition to equipment
specification data.
Annex A shows the relationship between the EBC template and EBC items and variety of EBC items using
two examples.
Information about an EBC template itself shall be described in a header part of the template. The
corresponding equipment type is included in this information. When creating the EBC template for the
specific equipment model/series of a specific equipment maker, the maker and the equipment model/series
are described in the property set as ‘equipment maker name’ and ‘equipment type name’.

6.2 Property set
[1] [2]
Elements in a property set are described in standards including ISO/IEC Guide 77, the ISO 13399 series,
[3] [6]
ISO 13584-42 and the IEC 61360 series (Common Data Dictionary, CDD). Values of some or all elements
in a property set are provided when an EBC item is created. A property set may include:
— profile data;
EXAMPLE 1 Equipment maker name, equipment type name, specific equipment name (value is given when
creating an EBC item for specific physical equipment).
— specification data (not dynamically affecting behaviour);
EXAMPLE 2 Size, weight.
— operational limits.
EXAMPLE 3 Maximum cutting speed, moving range.
6.3 Behaviour
Behaviour of an equipment is defined by a composition of states and state transitions with transition
conditions. A state can be represented by mathematical models, calculation formulae, programs, state data
and/or additional necessary entities. State transition occurs when transition conditions are met.
The state description is the basis of behaviour description in an EBC. Equipment can be in various states, e.g.
idling, under operation and under maintenance. The data values of parameters such as operation time and
electric energy consumption at each state are calculated using mathematical models, calculation formulas
and/or programs corresponding to the state. A formula or a mathematical model can include parameters/
variables. Values for parameters/variables are given from product data, scheduling data and/or operation
data as input data through external interaction, from calculation results of behaviour simulation and/or
from data description in the property set.
Behaviour shall be represented as dynamic properties according to states and state transitions in an EBC
template. Dynamic properties are described by:
— states of an equipment;
EXAMPLE 1 Stand-by, in operation.
NOTE 1 A state can be detailed as an aggregation of substates.
[6]
NOTE 2 A name of a state is described in line with the standard, e.g. the IEC 61360 series (CDD) and the ISO 14955
[4]
series, because of ensuring semantic interoperability.
— state transition.
EXAMPLE 2 Material input, power on, operation start, operation finish, transition trigger.
The state can be described and represented by:
— mathematical models, calculation formulas and/or programs;
EXAMPLE 3 Calculation formula for energy consumption, calculation formula for operation time.
NOTE 3 External interactions can be included in a state. The state transition can be described and represented by:
— a transition condition formula;
— source and destination states;
— external interaction as a trigger.
EXAMPLE 4 Operation order, operation result.

The representation of state/state transition can include:
— data values (parameter values);
— data variables.
NOTE 4 The name of the data (parameter)/variable is described in line with standards, such as the IEC 61360 series
[6] [5]
(CDD) and the ISO 22400 series (KPI) because of ensuring semantic interoperability.
6.4 External interaction
External interaction is the message data from/to other outside equipment. External interaction can
be described by referring to the information models shared with the outside equipment. Some of the
[7]
information models are supplied by existing standards, such as the IEC 62541 series (OPC UA) and the
[8]
IEC 62714 series (AutomationML). The external interaction message can include:
— interface and protocol;
— communication partner;
— description about message data;
— content of message data.
6.5 Formal description of an EBC template
The EBC template shall be described using a data description language.
EXAMPLE XML, MathML (for a formula), JSON.
An example of a formal description structure is shown in Figure 2. An EBC template shall contain all of the
following elements:
a) header;
— description language name;
— template name;
— template identifier;
— equipment type;
— referenced dictionaries;
NOTE 1 The value of "equipment type" is provided using the term in line with the referenced dictionary.
NOTE 2 "Referenced dictionaries" are standards and publicly available dictionaries which are referred to and
used when describing an EBC template.
NOTE 3 "Item name" and "Item identifier" are added when an EBC item is created using the template. Their
values are also provided.
b) property set;
c) behaviour;
d) external interaction;
NOTE 4 Additional attributes can be defined.

Figure 2 — Example of a formal description structure for an EBC template
7 Building rules for an EBC template
7.1 Building procedure
The procedure for building an EBC template is as follows:
— Step 1: Analyse functions that an equipment provides. The analysis is to list possible states of the
equipment and relationships among the states including state transition conditions. Generally, an
equipment becomes active when it gets an operation command with data through external interaction.
Describe the listed states and state transitions in the equipment. The listed states and relationships
including state transition conditions should be described by using formal methods.
EXAMPLE UML state chart, Petri-Net and IDEF3.
— Step 2: List required data, formulae and mathematical models for a dynamic calculation of the
parameter’s value at each state. Data include variables to which concrete values are assigned when a
virtual production system is constructed or when simulation is executed on a virtual production system,
i.e. some of these variables are provided by external interactions from outside of the equipment. These
data are described as variables in the EBC template and EBC items. Some of the variables get values when
an EBC item is created.
— Step 3: Integrate a property description, an external interaction description and a behaviour description,
which are listed in the above steps. Create an EBC template by describing the integrated descriptions
using the data description language.
Applied examples of the building procedure above for EBC templates are shown in Annex B and Annex C.
7.2 Building criteria
The conformance of an EBC template shall be tested according to the criteria below.
The following criteria shall be applied when building an EBC template:
a) An EBC template includes descriptions about a property set, behaviour and external interactions.
b) An EBC template is described in machine readable form.
c) An EBC template has necessary information items to generate an equipment instance model.
NOTE An EBC item is created from an EBC template. An equipment instance model is generated from an EBC item.
In addition, the following criteria should be applied when building an EBC template:
— Terms used in EBC template descriptions are from commonly referenceable standardized dictionary.
— An EBC template has interoperability including semantics.
The evaluation of the quality of the EBC template is out of scope of this document. Whether the integrity and
granularity of the EBC template completely describes the equipment differs depending on the usage purpose
of users. Users should evaluate the quality of an EBC with their own measurement means.

Annex A
(informative)
EBC template and types of EBC items
One EBC template is prepared for one equipment type in one maker. Usually, one equipment type consists of
several series. There are several model types in one series. One series can be an EBC item. One model type
can be an EBC item. One equipment in one model type can be an EBC item. All of them are described using
the same template.
An EBC item has wide granularity. An EBC template is applicable for this wide granularity. An EBC item
of specific individual equipment has a description of its product ID, i.e. it is possible that an EBC item for
equipment will not have a description of its product ID. If the equipment has some options which a customer
orders, its EBC item has a description of the product ID and options. An EBC item can have the data either of
shipment inspection or usage history, or both, for the equipment.
Figure A.1 and Figure A.2 show the relationships between the EBC templates and various EBC items for
the same example equipment series: Lathe X series. The Lathe X series has a hierarchical structure. Lathe
X (X-series by the company Y) is the highest class in the hierarchy. Lathe X-s (simple lathe in X-series) and
Lathe X-c (complex lathe in X-series) are subclasses of Lathe X. Lathe X-s-#A (type #A in X-series) is a specific
equipment type in subclass Lathe X-s. Lathe X-s-#A-nnnn (serial no.nnnn of type #A) is a produced individual
equipment in the type #A.
In Figure A.1, the EBC template is prepared corresponding to the class Lathe X. Lathe X-s, Lathe X-c, Lathe
X-s-#A, Lathe X-s-#A-nnnn, etc are catalogued as EBC items using this EBC template. The EBC template for
Lathe X has applicability for model descriptions of all lower classes in the hierarchy.
Figure A.1 — EBC items which are generated using the EBC template for Lathe X

When higher granularity of behaviour descriptions is required, EBC templates are prepared corresponding
to one level lower classes than the class Lathe X. In Figure A.2, EBC templates are prepared corresponding
to each of Lathe X-s and Lathe X-c. Here, Lathe X-s and Lathe X-c are treated as different equipment types.
Lathe X-c has more complex behaviour than Lathe X-s. Lathe X-s, Lathe X-s-#A, Lathe X-s-#B, Lathe X-s-#A-
nnnn, etc are catalogued as EBC items using the EBC template for Lathe X-s. Lathe X-c, Lathe X-c-#A, Lathe
X-c-#C, etc are catalogued as EBC items using the EBC template for Lathe X-c.
Figure A.2 — EBC items which are generated using the EBC templates for Lathe X-s and Lathe X-c
The EBC item for Lathe X-s-#A-nnnn corresponds to a specific individual equipment. An equipment instance
model which is constructed from the EBC item for Lathe X-s-#A-nnnn is a physical equipment instance
model of Lathe X-s-#A-nnnn. Equipment instance models which are constructed from the other EBC items
are nominal equipment instance models. If data about a specific individual equipment are added when
construction of an equipment instance model from the other EBC items are nominal equipment instance
models, a physical equipment instance model can be constructed.

Annex B
(informative)
Example building of EBC templates for a printed circuit assembly
(PCA) line
B.1 Equipment on a printed circuit assembly (PCA) line
The structure of a PCA line is shown in Figure B.1. A PCA line consists of a solder paste printer, several
electronic part mounters and a reflow soldering oven. This equipment is connected in sequence from the
printer to the reflow soldering oven. The number of electronic part mounters changes depending on the
capacity of the line.
A printed circuit board (PCB) is input to the line and a PCA is output from the line. When a blank PCB is input
to a solder paste printer, the production process is started.
Figure B.1 — Structure of printed circuit assembly (PCA) line
According to the building procedure for EBC templates, templates for a solder paste printer, an electronic
part mounter and a reflow soldering oven are prepared.
In this example, EBC templates are simplified by omitting sub activity descriptions and by focusing on
electric energy consumption. Other focusing points which are related to the equipment’s behaviour can be
added in the same way.
B.2 Building an EBC template of a solder paste printer
A solder paste printer is an equipment used for painting solder paste on PCBs by screen printing. A solder
paste printer takes the first position on the PCA production line. The behaviour of a solder paste printer is
modelled as an activity flow as shown in Figure B.2. After power on, a printer is in "idling" state. In "idling"
state the printer consumes idling electric power. A printer moves to "stop" state during a breakdown or
when the power is off. When a PCB is input to the printer, the printer starts the operation sequences. As
preparation before printing, a metal mask is changed if necessary and solder paste is replenished if needed.
The first operation is setting up the PCB. The second is the setting of the mask metal. The third is stage
moving. The fourth is printing. The fifth is releasing the metal mask. The sixth and the last is the output of
the PCB. Then the printer reverts back to "idling" state.

Figure B.2 — Activity diagram for a solder paste printer
The building procedure of an EBC template is applied to a solder paste printer as follows:
a) Listing of states
— stop;
— idling;
— metal mask change;
— cleaning;
— solder paste printing;
(sequence of following three substates)
— metal mask set;
— squeegee moving;
— metal mask release;
b) Listing of state transitions
— from stop into idling (when power on);
— from idling into stop (when power off);
— from idling into metal mask change (when PCB input time is reached and when PCA board id is
different from the previous production);
— from metal mask change into solder paste printing (when metal mask change time is elapsed);
— from idling into solder paste printing (when PCB input time is reached);
— from solder paste printing into cleaning (when count of printing is reached to the cleaning required
point);
— from cleaning into solder paste printing (when cleaning completed);

— from solder paste printing into solder paste printing (when no cleaning is required and production
is incomplete);
— from solder paste printing into idling (when number of producing product is achieved);
c) Listing of static parameters (except common items, e.g. equipment ID, equipment type, model name,
equipment weight)
— start-up time of equipment [sec];
— shutdown time of equipment [sec];
— cleaning time [sec];
— electric power of idling [kW];
— electric power of metal mask change [kW];
— electric power of cleaning [kW];
— electric power of solder paste printing [kW];
d) Listing of variables (providing by calculation formula)
— elapsed time of idling [sec];
— elapsed time of metal mask change [sec];
— elapsed time of cleaning [sec];
— elapsed time of solder paste printing [sec];
— elapsed time of metal mask set [sec];
— elapsed time of squeegee moving [sec];
— elapsed time of metal mask release [sec];
— total energy consumption of idling [kWh];
— total energy consumption of metal mask change [kWh];
— total energy consumption of cleaning [kWh];
— total energy consumption of solder paste printing [kWh];
— total processing quantity;
e) Listing of variables which are input values when construction of virtual system or when virtual
operation
— PCA board id;
— previous processed PCA board id;
— planned production quantity;
— production starting time;
— count of printing before cleaning is required;
— metal mask change time;
— solder paste printing time;
— metal mask set time [sec]
— squeegee moving time [sec];
— metal mask release time [sec].
Finally, the EBC template for a solder paste printer is described using XML as follows:

xmlns:opeartion="product-operation.xml"
xmlns:m="https://www.w3.org/1998/Math/MathML">
