ISO/IEC 15459-6:2007

INTERNATIONAL ISO/IEC
STANDARD 15459-6
First edition
2007-06-15

Information technology — Unique
identifiers —
Part 6:
Unique identifier for product groupings
Technologies de l'information — Identificateurs uniques —
Partie 6: Identificateur unique pour les regroupements de produits




Reference number
ISO/IEC 15459-6:2007(E)
©
ISO/IEC 2007

---------------------- Page: 1 ----------------------
ISO/IEC 15459-6:2007(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


COPYRIGHT PROTECTED DOCUMENT


©  ISO 2007
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO/IEC 2007 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/IEC 15459-6:2007(E)
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 15459-6 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 31, Automatic identification and data capture techniques.
ISO/IEC 15459 consists of the following parts, under the general title Information technology — Unique
identifiers:
⎯ Part 1: Unique identifiers for transport units
⎯ Part 2: Registration procedures
⎯ Part 3: Common rules for unique identifiers
⎯ Part 4: Unique identifiers for supply chain management
⎯ Part 5: Unique identifier for returnable transport items (RTIs)
⎯ Part 6: Unique identifier for product groupings
© ISO/IEC 2007 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/IEC 15459-6:2007(E)

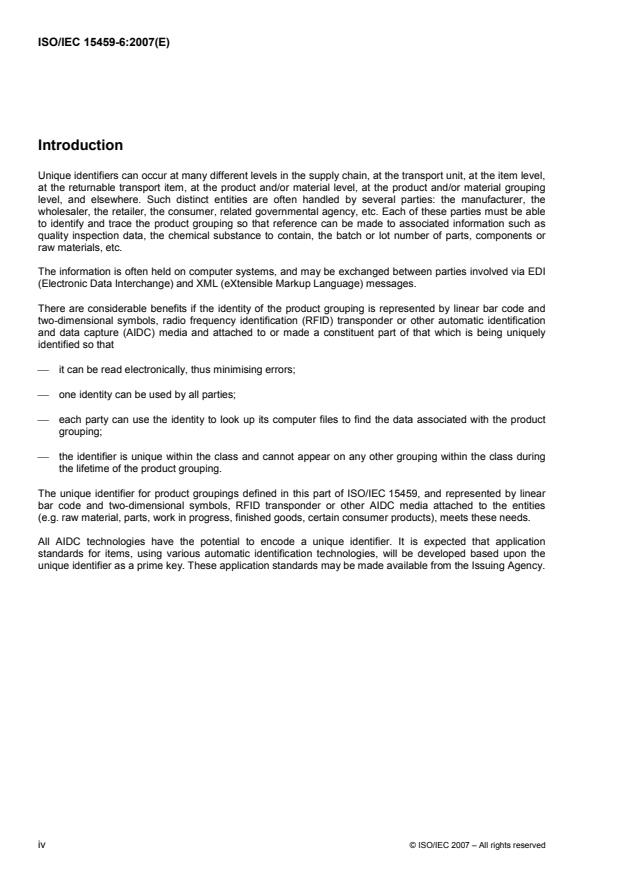

Introduction
Unique identifiers can occur at many different levels in the supply chain, at the transport unit, at the item level,
at the returnable transport item, at the product and/or material level, at the product and/or material grouping
level, and elsewhere. Such distinct entities are often handled by several parties: the manufacturer, the
wholesaler, the retailer, the consumer, related governmental agency, etc. Each of these parties must be able
to identify and trace the product grouping so that reference can be made to associated information such as
quality inspection data, the chemical substance to contain, the batch or lot number of parts, components or
raw materials, etc.
The information is often held on computer systems, and may be exchanged between parties involved via EDI
(Electronic Data Interchange) and XML (eXtensible Markup Language) messages.
There are considerable benefits if the identity of the product grouping is represented by linear bar code and
two-dimensional symbols, radio frequency identification (RFID) transponder or other automatic identification
and data capture (AIDC) media and attached to or made a constituent part of that which is being uniquely
identified so that
⎯ it can be read electronically, thus minimising errors;
⎯ one identity can be used by all parties;
⎯ each party can use the identity to look up its computer files to find the data associated with the product
grouping;
⎯ the identifier is unique within the class and cannot appear on any other grouping within the class during
the lifetime of the product grouping.
The unique identifier for product groupings defined in this part of ISO/IEC 15459, and represented by linear
bar code and two-dimensional symbols, RFID transponder or other AIDC media attached to the entities
(e.g. raw material, parts, work in progress, finished goods, certain consumer products), meets these needs.
All AIDC technologies have the potential to encode a unique identifier. It is expected that application
standards for items, using various automatic identification technologies, will be developed based upon the
unique identifier as a prime key. These application standards may be made available from the Issuing Agency.

iv © ISO/IEC 2007 – All rights reserved

---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO/IEC 15459-6:2007(E)

Information technology — Unique identifiers —
Part 6:
Unique identifier for product groupings
1 Scope
This part of ISO/IEC 15459 specifies a unique, non-significant string of characters for the unique identifier of
product groupings. The character string is intended to be represented in linear bar code and two-dimensional
symbols, radio frequency identification (RFID) transponder or other automatic identification and data capture
(AIDC) media attached to the product and/or material to meet the management needs in a batch or lot unit. To
address management needs, different classes of item are recognised in the various parts of ISO/IEC 15459.
This allows different requirements to be met by the unique identifiers of each class.
The unique identifier for product grouping enables a product grouping defined by a batch or lot number to be
uniquely identified from all other lots and batches compliant with this part of ISO/IEC 15459. Encoding this
unique identifier in a data carrier enables information about the quality of product and end-of-life processing to
be clearly identified.
The rules for the unique identifier for product grouping, to identify the unique occurrence of that quality, are
defined and supported by an example.
NOTE The unique identifier for product groupings is intended for “look-up” purposes, and cannot be directly used as
a unique item identifier in the strictest sense of the definition (as used, for example, in ISO/IEC 15459-1, ISO/IEC 15459-4,
and ISO/IEC 15459-5.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO/IEC 646, Information technology — ISO 7-bit coded character set for information interchange
ISO/IEC 15459-2, Information technology — Unique identifiers — Part 2: Registration procedures
ISO/IEC 15459-3, Information technology — Unique identifiers — Part 3: Common rules for unique identifiers
ISO/IEC 15459-4, Information technology — Unique identifiers — Part 4: Unique identifiers for supply chain
management
ISO/IEC 19762 (all parts), Information technology — Automatic identification and data capture (AIDC)
techniques — Harmonized vocabulary
ANS MH10.8.2, ASC M H 10 Data Identifiers and Application Identifiers
GS1 General Specifications, GS1
© ISO/IEC 2007 – All rights reserved 1

---------------------- Page: 5 ----------------------
ISO/IEC 15459-6:2007(E)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 19762 (all parts) and
ISO/IEC 15459-2 apply.
4 Identification of a unique entity
An individual instance of an entity is aptly identified by a serial number unique from any other serial number.
The description of such a form of unique identification is described in ISO/IEC 15459-4. Where an identifier for
an individual item is required employing a specific instance of an entity, ISO/IEC 15459-4 shall be used.
Where an identifier for product grouping is required, the provisions of this part of ISO/IEC 15459 shall be used.
5 Identification of group of entities
The group of entities of which the quality is considered the same shall be defined uniquely and distinctly. Each
group of entities shall be unambiguously identified by a code as defined in Clause 6.
So that groups of entities of this class can be distinguished from groups of entities of other classes, the unique
identifier shall be combined with a class identifier. These cla
...
