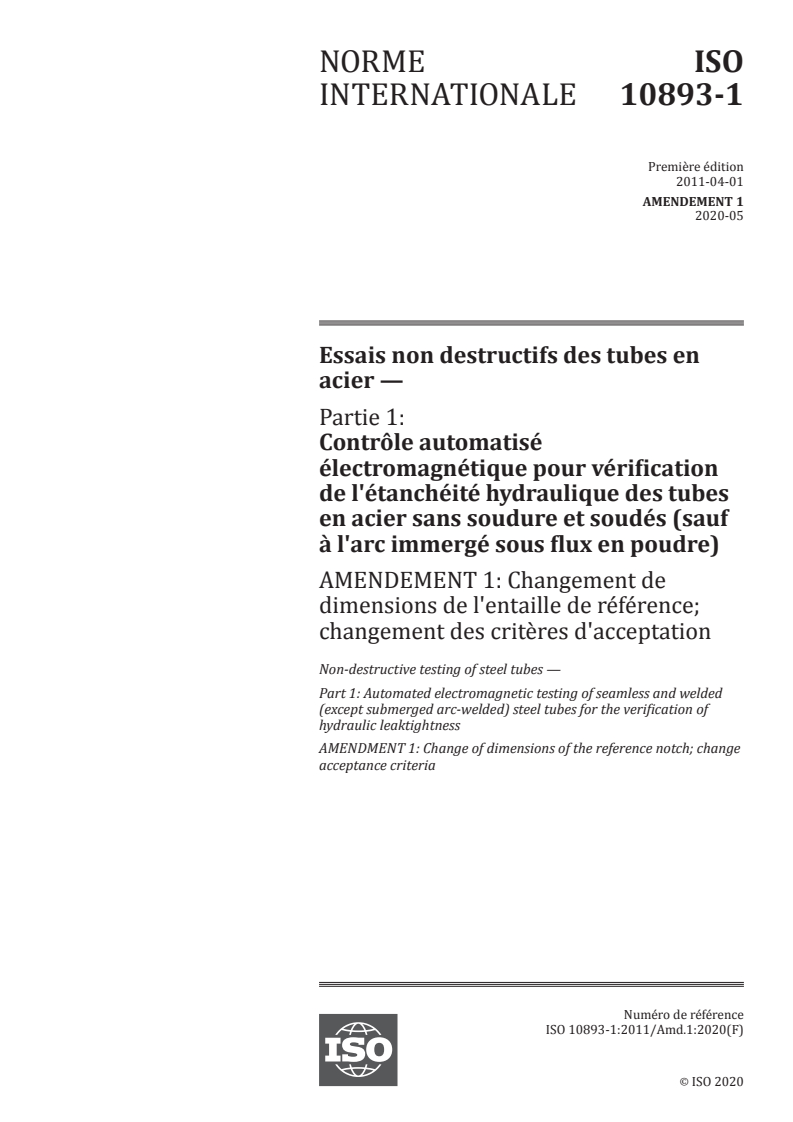

ISO 10893-1:2011/Amd 1:2020

Overview

ISO 10893-1:2011/Amd 1:2020 is an important international standard focused on the non-destructive testing (NDT) of steel tubes. Specifically, it covers automated electromagnetic testing of seamless and welded steel tubes, except those welded by submerged arc welding, to verify their hydraulic leaktightness. This 2020 amendment introduces critical updates to the dimensions of the reference notch and revises the acceptance criteria for testing results, enhancing the reliability and accuracy of steel tube inspection protocols.

Developed by ISO Technical Committee ISO/TC 17 and Subcommittee SC 19, this standard is vital in industries where the integrity of steel tubes under hydraulic pressure is paramount, such as oil and gas, chemical processing, and hydraulic systems manufacturing.

Key Topics

• Automated Electromagnetic Testing
  This standard dictates the use of automated electromagnetic methods as a non-invasive way to detect potential flaws or leaks in steel tubes, enabling efficient quality control without damaging the tubes.

• Reference Notch Dimension Change
  The amendment revises the reference notch width to be no greater than 1 mm, simplifying the previous requirement that tied notch width to depth or 1 mm, whichever was greater. This stricter specification ensures more consistent calibration and defect simulation during testing.

• Acceptance Criteria Update
  The retesting protocol has been streamlined: previously, tubes underwent two consecutive retests if initial signals exceeded alarm thresholds. Now, only one retest is required before a tube can be cleared or designated as suspect-expediting decision-making during inspections.

• Scope Exclusions
  Submerged arc-welded (SAW) steel tubes are excluded, emphasizing the standard's focus on seamless and other welded types, ensuring tailored testing guidelines for specific manufacturing processes.

Applications

ISO 10893-1:2011/Amd 1:2020 finds critical use across industries relying on the safe and leak-free performance of steel tubes, including:

• Oil and Gas Pipeline Inspection
  Ensures pipeline tubes meet hydraulic integrity standards, preventing leakages that could cause environmental hazards.

• Hydraulic and Pneumatic Systems
  Confirms the reliability of steel tubes in machinery and fluid power applications requiring leak-tight performance under pressure.

• Chemical and Petrochemical Manufacturing
  Maintains tubing quality where corrosion and pressure resistance are crucial, minimizing risk of process failures.

• Automotive and Aerospace Engineering
  Supports the durability and safety testing protocols for tubular components within engines, brakes, and fluid transfer systems.

• Steel Tube Manufacturing Quality Control
  Enables manufacturers to certify tubes meet international leaktightness standards before shipping, enhancing customer confidence and compliance.

Related Standards

To complement ISO 10893-1:2011/Amd 1:2020, professionals should consider the following related ISO standards:

• ISO 10893-2: Non-destructive testing of steel tubes - Part 2: Eddy current testing of seamless and welded steel tubes for detection of surface defects.

• ISO 3183: Steel pipe for pipeline transportation systems, which specifies requirements for steel pipes used in pipeline systems.

• ISO 6507: Metallic materials - Vickers hardness test, relevant for assessing mechanical properties of steel tubes.

• ISO 9300: Hydraulic fluid power - Four-ball wear tester, related to testing fluid system components.

Integrating insights from these standards enhances comprehensive quality assurance and compliance for steel tubing used in hydraulic and pressure applications.

By adhering to ISO 10893-1:2011/Amd 1:2020, industries benefit from advanced methodologies to detect hydraulic leakages effectively, reduce rework and waste, and comply with internationally recognized safety and performance benchmarks. This ensures steel tubes deliver optimal durability, safety, and performance in demanding industrial environments.
