ISO 14674:2005

INTERNATIONAL ISO
STANDARD 14674
IDF
First edition
2005-05-01
Milk and milk powder — Determination
of aflatoxin M content — Clean-up by
immunoaffinity chromatography and
determination by thin-layer
chromatography
Lait et lait en poudre — Détermination de la teneur en aflatoxin M —
Purification par chromatographie d'immunoaffinité et détermination par
chromatographie sur couche mince

Reference numbers
IDF 190:2005(E)
©
ISO and IDF 2005
IDF 190:2005(E)

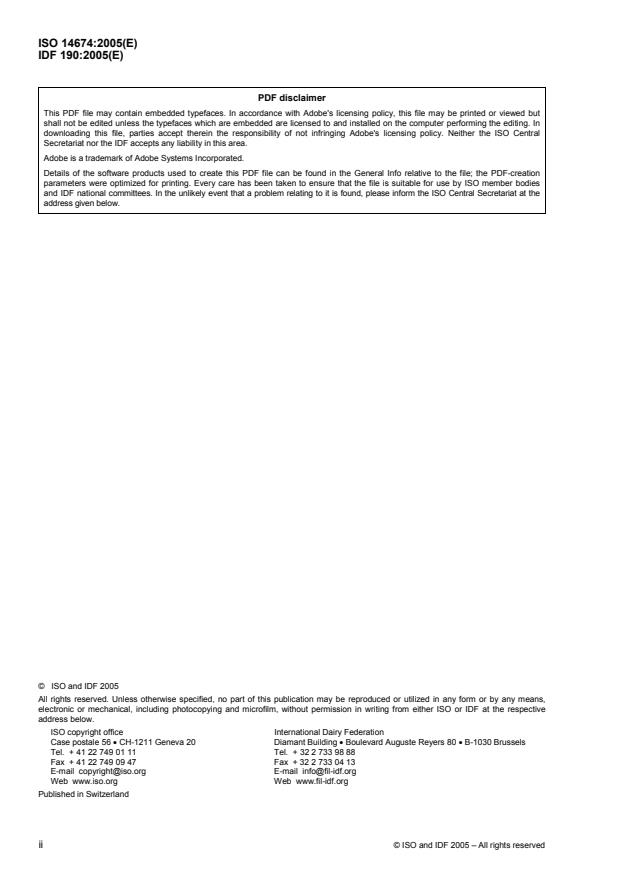

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. Neither the ISO Central
Secretariat nor the IDF accepts any liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies
and IDF national committees. In the unlikely event that a problem relating to it is found, please inform the ISO Central Secretariat at the
address given below.
©  ISO and IDF 2005
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO or IDF at the respective
address below.
ISO copyright office International Dairy Federation
Case postale 56 • CH-1211 Geneva 20 Diamant Building • Boulevard Auguste Reyers 80 • B-1030 Brussels
Tel. + 41 22 749 01 11 Tel. + 32 2 733 98 88
Fax + 41 22 749 09 47 Fax + 32 2 733 04 13
E-mail copyright@iso.org E-mail info@fil-idf.org
Web www.iso.org Web www.fil-idf.org
Published in Switzerland
ii © ISO and IDF 2005 – All rights reserved

IDF 190:2005(E)
Contents Page
Foreword. iv
1 Scope. 1
2 Terms and definitions. 1
3 Principle. 1
4 Reagents. 2
5 Apparatus. 3
6 Sampling. 4
7 Preparation of test samples. 5
7.1 Milk or liquid milk products . 5
7.2 Milk powders. 5
7.3 Immunoaffinity clean-up. 5
8 Procedure. 6
8.1 Unidirectional TLC. 6
8.2 Bidirectional TLC. 6
9 Calculation and expression of results . 7
9.1 Calculation. 7
9.2 Expression of results. 8
10 Precision. 8
10.1 Interlaboratory test. 8
10.2 Repeatability. 8
10.3 Reproducibility. 8
11 Test report. 9
Annex A (informative) Results of interlaboratory test . 10
Bibliography . 11

IDF 190:2005(E)

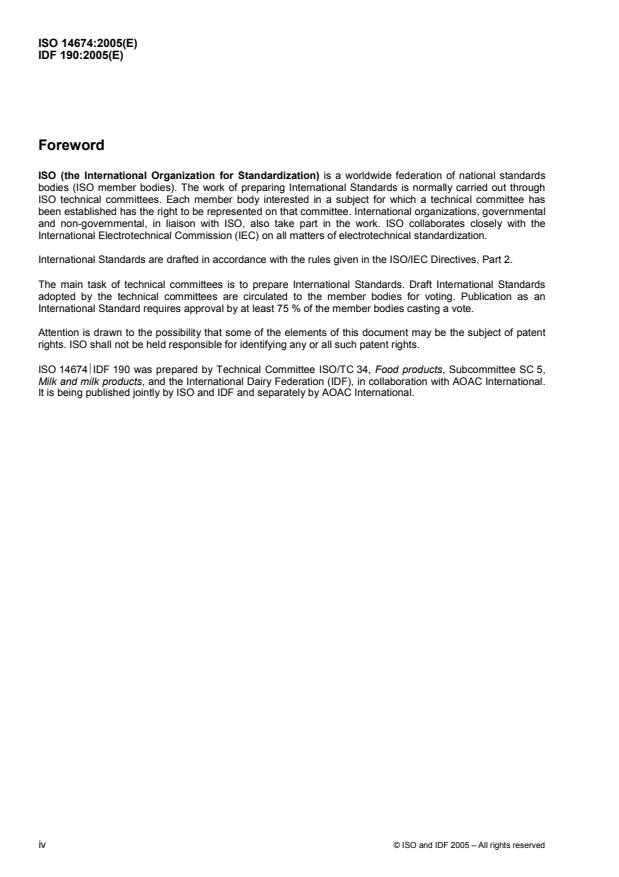

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee has
been established has the right to be represented on that committee. International organizations, governmental
and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 14674IDF 190 was prepared by Technical Committee ISO/TC 34, Food products, Subcommittee SC 5,
Milk and milk products, and the International Dairy Federation (IDF), in collaboration with AOAC International.
It is being published jointly by ISO and IDF and separately by AOAC International.

iv © ISO and IDF 2005 – All rights reserved

IDF 190:2005(E)
Foreword
IDF (the International Dairy Federation) is a worldwide federation of the dairy sector with a National
Committee in every member country. Every National Committee has the right to be represented on the IDF
Standing Committees carrying out the technical work. IDF collaborates with ISO and AOAC International in
the development of standard methods of analysis and sampling for milk and milk products.
Draft International Standards adopted by the Action Teams and Standing Committees are circulated to the
National Committees for voting. Publication as an International Standard requires approval by at least 50 % of
the National Committees casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. IDF shall not be held responsible for identifying any or all such patent rights.
ISO 14674IDF 190 was prepared by Technical Committee ISO/TC 34, Food products, Subcommittee SC 5,
Milk and milk products, and the International Dairy Federation (IDF), in collaboration with AOAC International.
It is being published jointly by ISO and IDF and separately by AOAC International.
All work was carried out by the Joint ISO/IDF/AOAC Action Team, Organic contaminants, of the Standing
Committee on Analytical methods for additives and contaminants, under the aegis of its project leader,
Mrs S Dragacci (FR).
INTERNATIONAL STANDARD
IDF 190:2005(E)
Milk and milk powder — Determination of aflatoxin M
content — Clean-up by immunoaffinity chromatography and
determination by thin-layer chromatography
WARNING — The method described in this International Standard requires the use of aflatoxin M
solutions. Aflatoxins are carcinogenic to human subjects. Attention is drawn to the statement made
[5]
by the International Agency for Research on Cancer (WHO).
Aflatoxins are subject to light degradation. Adequately protect analytical work from daylight and keep
aflatoxin standard solutions protected from light, for example by using amber vials or aluminium foil.
The use of non-acid-washed glassware (e.g. vials, tubes, flasks) for aqueous aflatoxin solutions can
cause a loss of aflatoxin. Take special care with new glassware. Before use, soak the new glassware
in diluted acid (e.g. 2 mol/l sulfuric acid) for several hours, then rinse extensively with distilled water
to remove all traces of acid. Check to ensure that the pH is in the range of 6 to 8 by using a pH-paper.
Use the decontamination procedure for laboratory wastes developed and validated by the
[5]
International Agency for Research on Cancer (WHO).
1 Scope
This International Standard specifies a method for the determination of the aflatoxin M (AFM1) content of milk
and milk powder by a method including a clean-up step using immunoaffinity chromatography followed by a
thin-layer chromatography (IAC-TLC).
The method is applicable to raw milk, low fat or skimmed liquid milk and milk powder.
The lowest quantity of AFM1 that can commonly be determined is 2 ng, which corresponds to a limit of
quantification close to 0,10 µg/l for liquid milk or dissolved milk powder (for a spot of 20 µl).
2 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
2.1
aflatoxin M content
mass fraction of substances determined by the method specified in this International Standard
NOTE The aflatoxin M content is expressed as micrograms per litre for liquid milk products, and as micrograms per
kilogram for milk powder.
3 Principle
Aflatoxin M (AFM1) is extracted by passing the test portion through an immunoaffinity column. The column
contains specific antibodies bound onto a solid support material. As the sample passes through the column,
the antibodies selectively bind with any AFM1 (antigen) present and form an antibody-antigen complex. All
IDF 190:2005(E)
other components of the sample matrix are washed off the column with water. Then the AFM1 is eluted from
the column with methanol and acetonitrile. After concentration of the eluate, the amount of AFM1 is
determined by one-dimensional thin-layer chromatography. In the case of interference, two-dimensional thin-
layer chromatography is carried out to separate the AFM1 from its impurities.
4 Reagents
Use only reagents of recognized analytical grade, unless otherwise specified, and distilled or demineralized
water or water of equivalent purity.
4.1 Pure solvents.
WARNING — Some of the pure solvents (e.g. chloroform, acetonitrile, toluene and methanol) are toxic.
Take all necessary precautions where needed.
4.1.1 Chloroform (CHCl ).
4.1.2 Acetonitrile (CH CN).
4.1.3 Diethyl ether (C H ) O.
2 5 2
4.1.4 Methanol (CH OH).
4.1.5 Toluene (C H CH ).
6 5 3
4.1.6 Acetone (CH .COCH ), optional.
3 3
4.1.7 Isopropanol (CH CHOHCH ), optional.
3 3
4.2 Acetonitrile/methanol solution, of volume ratio 3:2.
Add 30 ml of acetonitrile (4.1.2) to 20 ml of methanol (4.1.4) and mix.
4.3 Toluene/acetonitrile solution, of volume ratio 9:1.
Add 9 ml of toluene (4.1.5) to 1 ml of acetonitrile (4.1.2) and mix. Use this solution to resuspend the AFM1
standard solutions (4.5) and the evaporated eluate before the TLC analysis.
4.4 TLC development solvents.
4.4.1 Unidirectional TLC solution.
Prepare a 100 ml unidirectional TLC solution by adding 4 ml of methanol (4.1.4) and 1 ml of water to 95 ml of
diethyl ether (4.1.3) and mix well (volume ratio 95:4:1).
4.4.2 Bidirectional TLC solution, optional.
Prepare a 100 ml bidirectional TLC solution by adding 10 ml of acetone (4.1.6) and 3 ml of isopropanol (4.1.7)
to 87 ml of chloroform (4.1.1) and mix well (volume ratio 87:10:3).
4.5 Aflatoxin M standard solution.
4.5.1 AFM1 standard stock solution.
Prepare an AFM1 standard stock solution with a nominal concentration of 10 µg/ml chloroform (4.1.1); i.e. by
resuspending a lyophilized film of 10 µg of AFM1 to 1 ml of chloroform.
2 © ISO and IDF 2005 – All rights reserved

IDF 190:2005(E)
[6]
In accordance with the AOAC protocol , determine the concentration of the AFM1 standard stock solution by
measuring its absorbance at the wavelength of maximum absorption and use a calibrated spectrometer to
record the absorbance of the standard stock solution against chloroform (4.1.1), used as blank, at between
λ = 200 nm and λ = 400 nm.
Check the purity of the AFM1 by recording the spectrum between 200 nm and 400 nm. Measure the
absorbance (A) at the wavelength for maximum absorption (λ ), i.e. close to 365 nm.
max
Calculate the mass concentration, c, expressed in micrograms per millilitre, by using the following equation:
cA=×M×100 / ε
where
A is the numerical value of the absorbance measured at λ ;
max
M is the numerical value of the molar mass of the AFM1, in grams per mole (M = 328 g/mol);
ε is the numerical value of the absorption coefficient of AFM1 in chloroform, in square metres per mole
2 −1
(ε = 1 995 m ·mol ).
Keep the AFM1 standard stock solution in a well-stoppered amber-coloured vial protected from light. Store the
standard solution at below 0 °C. Under these conditions, the AFM1 standard stock solution is stable for about
one year.
4.5.2 AFM1 standard working solution.
4.5.2.1 Working solution A.
Use a volumetric pipette or a Hamilton-like microsyringe (5.2) to transfer 50 µl of AFM1 standard stock
solution (4.5.1) into a vial. Evaporate the solution to dryness. Resuspend the dried solution with 500 µl of
toluene/acetonitrile solution (4.3) to obtain an AFM1 standard working solution with concentration of 1 µg/ml
(working solution A). Use solution A to spot onto TLC plates for test samples with a high contamination level
or when the determination level is close to 0,50 µg/l.
4.5.2.2 Working solution B.
Transfer 100 µl of solution A to a vial. Add 900 µl of toluene/acetonitrile solution (4.3) to obtain an AFM1
standard working solution with concentration of 0,1 µg/ml (working solution B). Use solution B to spot onto
TLC plates for test samples with a low contamination level or when the determination level is close to 0,10 µg/l.
5 Apparatus
Usual laboratory apparatus and, in particular, the following.
5.1 Volumetric pipettes, of required capacities.
1)
5.2 Hamilton-like microsyringes.
5.3 Laboratory glassware, such as glass beakers and funnels, of appropriate capacities.

1) Hamilton-like syringes and Whatman No. 4 are examples of suitable products available commercially.
This information is given for the convenience of users of this document and does not constitute an endorsement by either
ISO or IDF of these products.
